122 - Central Tunnel -Valid for USA-

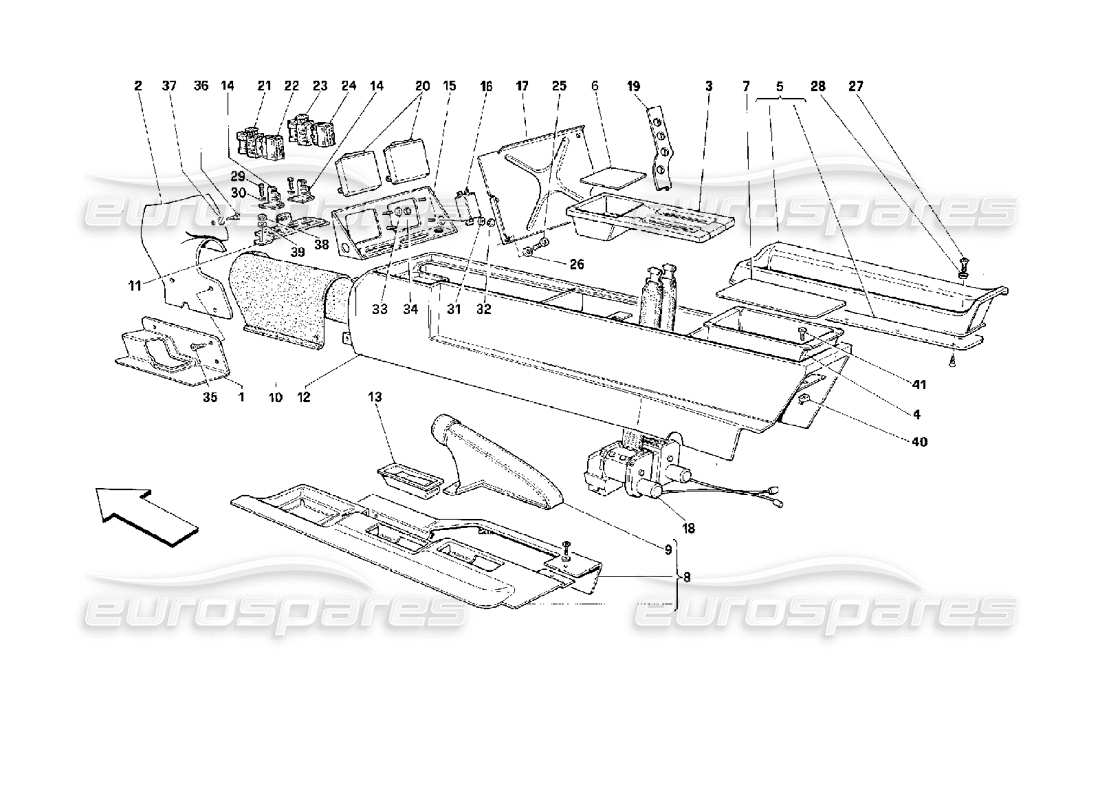

Ferrari 512 M Central Tunnel -Valid for USA- Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 63092400
ACCELERATOR PEDAL COVER
from £108.48
from £108.48
# 002
MPN: 630923..
FRONT PART OF TUNNEL
Supersession
Supersession
# 003
MPN: 63092800
GLOVE BOX WITH FRONT PLATE
from £470.30
from £470.30
# 004
MPN: 63092900
Rear Glove Box
from £411.60
from £411.60
# 005
MPN: 645410..
GLOVE BOX PASSENGER SIDE COMPLETE
Supersession
Supersession
# 006
MPN: 63623300
GROUND FOR FRONT BOX
from £149.95
from £149.95
# 007
MPN: 63622900
GROUND FOR REAR BOX
from £104.20
from £104.20
# 008
MPN: 645401..
HANDBRAKE CONSOLE COMPLETE
Supersession
Supersession
# 009
MPN: 634207..
HANDBRAKE LEVER COWLING
Supersession
Supersession
# 010
MPN: 636959..
CENTRAL PART OF TUNNEL COVER
Supersession
Supersession
# 011
MPN: 149506
PLATE
from £51.12
from £51.12
# 012
MPN: 630926..
CENTRAL CONSOLE FOR TUNNEL
Supersession
Supersession
# 013
MPN: 63011800
INNER HANDLE RELEASE
from £94.20
from £94.20
This part replaces part number 60086105 - and 2 more. Click to view details
# 014
MPN: 148682
CONNECTOR BRACKET
# 015
MPN: 149507
CONTROL UNITS SUPPORT
from £42.03
from £42.03
# 016
MPN: 137666
PASSIVE BELT ACOUSTIC SIGNAL
from £24.82
from £24.82
# 017
MPN: 63100300
FOOT REST PLATE FOR PASSENGER
from £124.11
from £124.11
# 018
MPN: 61552000
RETRACTING MECHANISM SET COMPL.
from £2,582.90
from £2,582.90
# 019
MPN: 63447800
FOOT REST FIX. BRACKET
from £27.29
from £27.29
# 020
MPN: 65779400
PASSIVE SAFETY BELTS CONTROL UNIT
from £1,044.75
from £1,044.75
This part replaces part number 61568900 which we have in stock
# 021
MPN: 146042
PM CONNECTOR (BLACK)
from £16.20
from £16.20
# 022
MPN: 146043
PF CONNECTOR (BLACK)
from £8.99
from £8.99
# 023
MPN: 146074
PM CONNECTOR (WHITE)
from £33.98
from £33.98
# 024
MPN: 146073
PF CONNECTOR (WHITE)
from £5.94
from £5.94
# 025
MPN: 62926700
SCREW
from £0.71
from £0.71
This part replaces part number 13276470 which we have in stock - and 1 more. Click to view details
# 026
MPN: 12644401
WASHER
from £0.47
from £0.47
# 027
MPN: 15692670
SCREW
- Valid for light leather
from £0.47
from £0.47
# 027
MPN: 15692677
SCREW
- Valid for dark leather
from £0.47
from £0.47
# 028
MPN: 62765300
WASHER
- Valid for dark leather
Supersession
Supersession
# 028
MPN: 62768300
WASHER
- Valid for light leather
from £0.53
from £0.53
# 029
MPN: 10444521
SCREW
from £0.71
from £0.71
# 030
MPN: 10615274
WASHER
from £0.51
from £0.51
This part replaces part number 10615270 - and 2 more. Click to view details
# 031
MPN: 12639701
WASHER
Supersession
Supersession
This part replaces part number 12639704
# 032
MPN: 12574211
NUT
from £0.71
from £0.71
# 033
MPN: 14496204
WASHER
from £0.48
from £0.48
This part replaces part number 14496201
# 034
MPN: 12574011
NUT
from £0.53
from £0.53
# 035
MPN: 20286209
SCREW
from £5.40
from £5.40
# 036
MPN: 15909478
SCREW
from £0.53
from £0.53
# 037
MPN: 62765300
WASHER
Supersession
Supersession
# 038
MPN: 12575411
NUT
Supersession
Supersession
# 039
MPN: 12643724
WASHER
from £0.53
from £0.53
This part replaces part number 109684 - and 3 more. Click to view details
# 040
MPN: 60758600
NUT
from £0.52
from £0.52
# 041
MPN: 14441582
SCREW
from £1.99
from £1.99
This part replaces part number 13310811
