123 - Instruments and Passenger Compartment Accessories

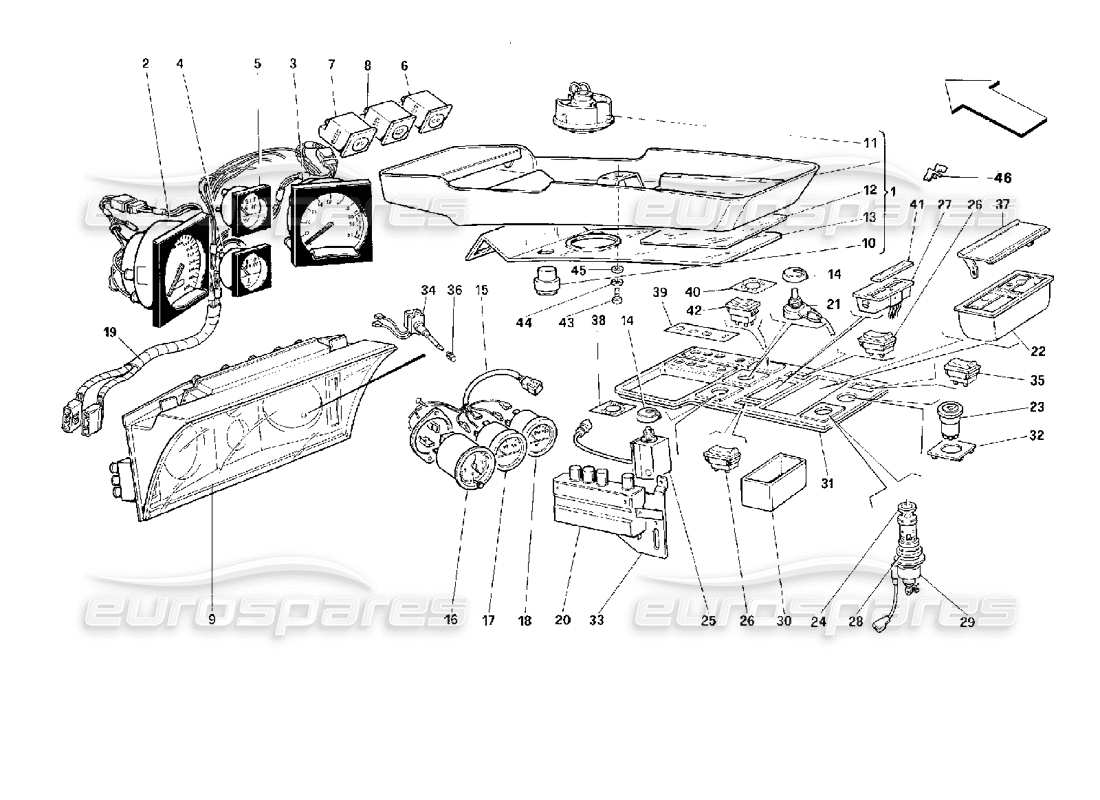

Ferrari 512 M Instruments and Passenger Compartment Accessories Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 152915
CENTRAL PANEL WITH INSTRUMENTS AND CABLES
- Not for USA
from £1,360.09
from £1,360.09
# 000
MPN: 153032
CENTRAL PANEL WITH INSTRUMENTS AND CABLES
- Valid for USA
from £1,360.09
from £1,360.09
# 001
MPN: 615483..
UPPER CONSOLE FOR COMPLETE FENDER
Supersession
Supersession
# 002
MPN: 147162
ELECTRONIC MILEAGE ODOMETER
- Valid for USA, GB and ZA
from £470.91
from £470.91
# 002
MPN: 149614
ELECTRONIC SPEEDOMETER
- Not for USA, GB and ZA
from £1,759.52
from £1,759.52
# 003
MPN: 152904
REV COUNTER
from £291.55
from £291.55
# 004
MPN: 147163
WATER TEMPERATURE GAUGE
- Valid for USA, GB and ZA
from £100.66
from £100.66
# 004
MPN: 149615
WATER TEMPERATURE GAUGE
- Not for USA, GB and ZA
from £195.09
from £195.09
# 005
MPN: 147164
OIL PRESSURE GAUGE
- Valid for USA, GB and ZA
from £105.14
from £105.14
# 005
MPN: 149616
OIL PRESSURE GAUGE
- Not for USA, GB and ZA
from £185.80
from £185.80
# 006
MPN: 120644
DUMMY SWITCH
- Valid for USA, CDN, SA, J - For CDN Q.ty 2
from £6.15
from £6.15
# 006
MPN: 121609
REAR FOG LIGHT SWITCH
- Not for USA, CDN, SA, J
from £522.94
from £522.94
This part replaces part number 116024 - and 1 more. Click to view details
# 007
MPN: 121607
FOG LIGHT SWITCH
- Not for CDN
from £1,262.67
from £1,262.67
This part replaces part number 116023 - and 1 more. Click to view details
# 008
MPN: 121608
HEATED REAR WINDOW SWITCH
from £544.79
from £544.79
This part replaces part number 116022 - and 2 more. Click to view details
# 009
MPN: 62925300
PLATE WITHOUT INSTRUMENTS WITH WARNING LIGHT
- Valid for USA, GB and ZA
from £535.49
from £535.49
# 009
MPN: 63685300
PLATE WITHOUT INSTRUMENTS WITH WARNING LIGHT
- Not for USA, GB and ZA
from £842.58
from £842.58
# 010
MPN: 61526300
PUSH BUTTON SPOT
from £39.68
from £39.68
# 011
MPN: 61526400
SPOT FOR PASSENGER COMPARTMENT
from £14.96
from £14.96
# 012
MPN: 61526500
ROOF LIGHT
from £5.62
from £5.62
# 013
MPN: 61526700
TRANSPARENT COVER
from £77.31
from £77.31
# 014
MPN: 147209
KNOB
from £82.94
from £82.94
# 015
MPN: 149487
INSTRUMENT CABLE
from £30.75
from £30.75
# 016
MPN: 147167
ANALOGIC CLOCK
from £711.48
from £711.48
# 017
MPN: 147166
FUEL LEVEL GAUGE
- Not for SA
from £90.61
from £90.61
# 017
MPN: 151311
FUEL LEVEL GAUGE
- Valid for SA
from £153.99
from £153.99
# 018
MPN: 147165

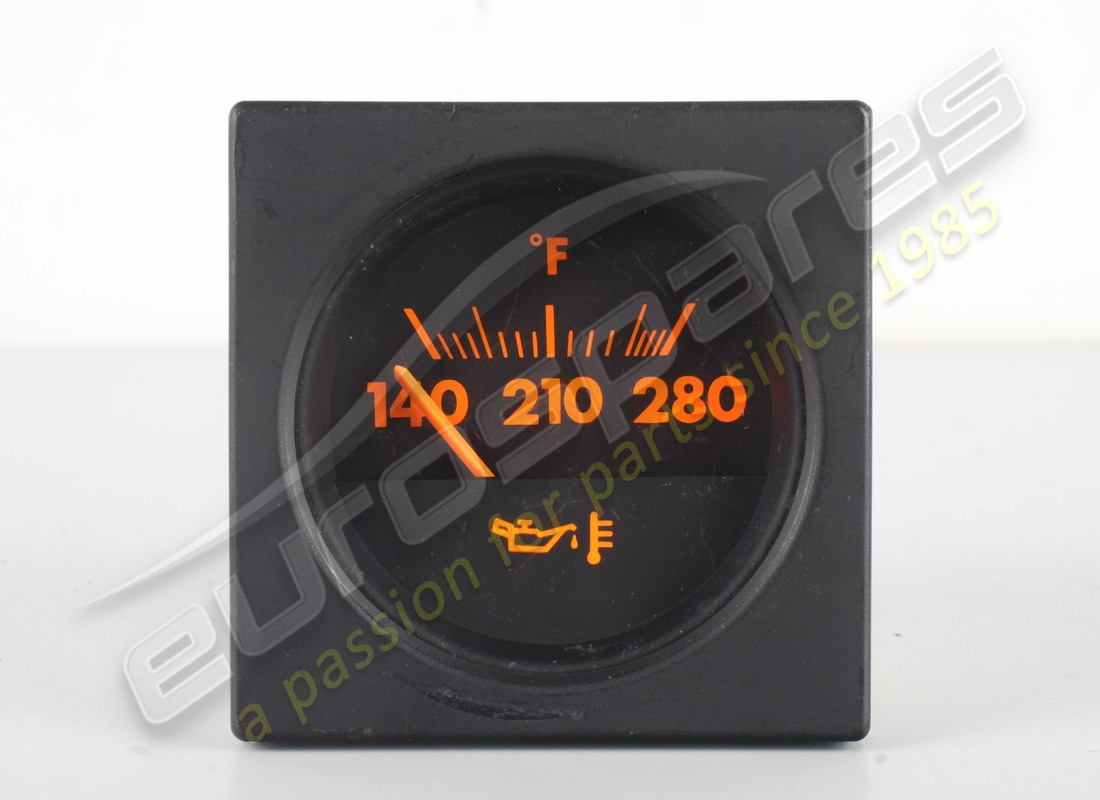

OIL TEMPERATURE GAUGE
- Valid for USA, GB and ZA
from £109.46
from £109.46
# 018
MPN: 149618
OIL TEMPERATURE GAUGE
- Not for USA, GB and ZA
from £178.28
from £178.28
# 019
MPN: 152905
INSTRUMENT PANEL CABLE
from £302.18
from £302.18
# 020
MPN: 147208
AIR CONDITIONER PUSH BUTTON UNIT
from £339.93
from £339.93
# 021
MPN: 61078700
POTENTIOMETER FOR A.C. TEMP.
from £3,044.15
from £3,044.15
# 022
MPN: 63451500
ASHTRAY BOX
from £61.79
from £61.79
# 023
MPN: 124086
HAZARD SWITCH
from £842.67
from £842.67
# 024
MPN: 226942
BODY FOR CIGARETTE LIGHTER
not as spare part - use part number: 226942
from £11.69
from £11.69
This part replaces part number 61107500
# 025
MPN: 157816
ADJUSTER FOR A.C. SPEED
from £225.56
from £225.56
# 026
MPN: 148135
SWITCH FOR FEET AIR
from £33.90
from £33.90
# 027
MPN: 124082
AIR OUTLET DISPLAY
from £240.00
from £240.00
# 028
MPN: 61162700
WASHER FOR CIGARETTE LIGHTER
from £1.25
from £1.25
# 029
MPN: 226941
BODY FOR CIGARETTE LIGHTER
not as spare part - use part number: 226941
from £9.51
from £9.51
This part replaces part number 61107600 - and 5 more. Click to view details
# 030
MPN: 124083
BOX
from £18.68
from £18.68
# 031
MPN: 63462400
CONTROLS HOUSING PANEL
from £86.85
from £86.85
# 032
MPN: 63619700
Frame
from £28.29
from £28.29
# 033
MPN: 154296
SUPPORT
from £9.52
from £9.52
# 034
MPN: 131467
RHEOSTAT
from £104.12
from £104.12
# 035
MPN: 148134
Switch for glove box opening
from £44.14
from £44.14
# 036
MPN: 62925400
REHOSTAT KNOB
from £2.25
from £2.25
This part replaces part number 152230
# 036
MPN: 62925500
SPEEDOMETER KNOB
from £2.40
from £2.40
This part replaces part number 152229
# 037
MPN: 63619300
ASH TRAY COVER
- Without flags
Supersession
Supersession
# 037
MPN: 65264200
ASH TRAY COVER
- With flags
from £234.00
from £234.00
This part replaces part number 63619300
# 038
MPN: 63619400
A.C. FANS SPEED PLATE
from £5.39
from £5.39
# 039
MPN: 63619600
AIR CONDITIONER SIMBOLS PLATE
from £5.46
from £5.46
# 040
MPN: 63619500
A.C. TEMPERATURE PLATE
from £6.16
from £6.16
# 041
MPN: 124084
DISPLAY FILTER
from £26.40
from £26.40
# 042
MPN: 152916
PARKING LIGHTS PUSH
from £97.28
from £97.28
# 043
MPN: 62926700
SCREW
from £0.71
from £0.71
This part replaces part number 13276470 which we have in stock - and 1 more. Click to view details
# 044
MPN: 10615479
WASHER
from £0.47
from £0.47
# 045
MPN: 12643707
WASHER
from £0.71
from £0.71
# 046
MPN: 64460400
FLAGS
from £57.26
from £57.26
