124 - HEADLIGHT

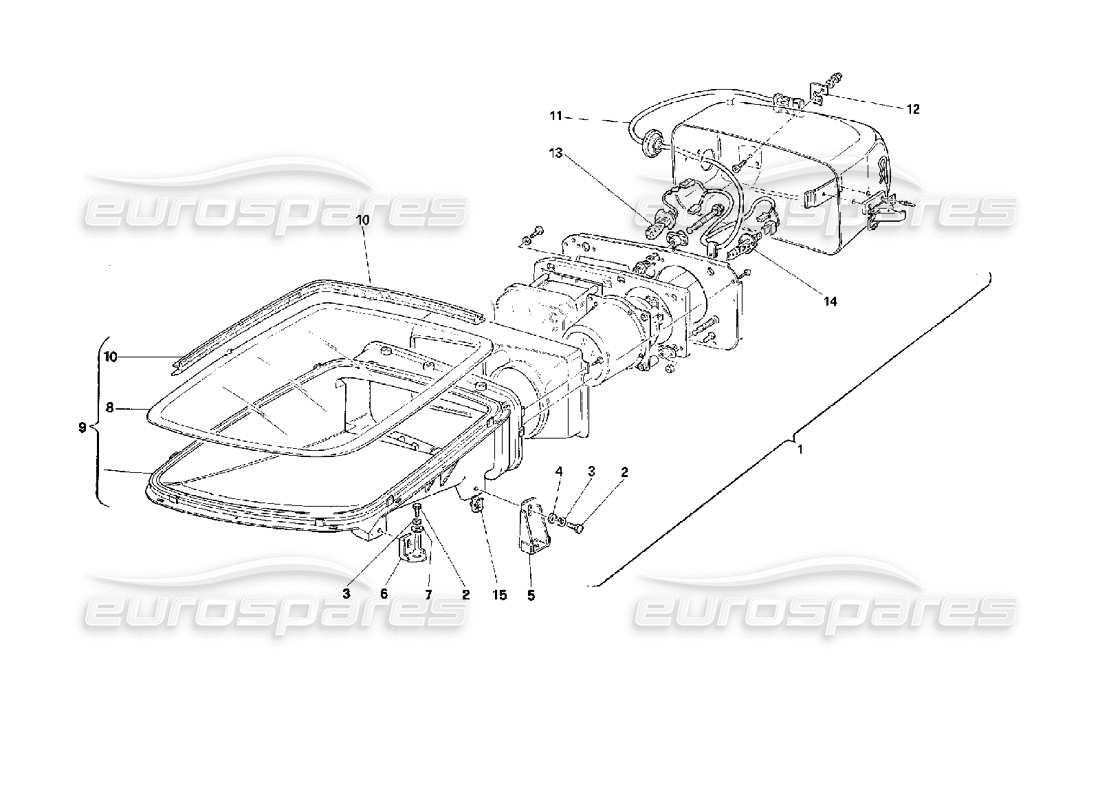

Ferrari 512 M Headlight Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 161543
RH MAIN AND DIPPED BEAMS LIGHT UNIT
- Not for USA, CDN, J and GD
from £3,268.48
from £3,268.48
# 001
MPN: 161544
LH MAIN AND DIPPED BEAMS LIGHT UNIT
- Not for USA, CDN, J and GD
from £2,286.78
from £2,286.78
# 001
MPN: 161949
RH MAIN AND DIPPED BEAMS LIGHT UNIT
- Valid for USA and CDN
from £2,419.89
from £2,419.89
# 001
MPN: 161950
LH MAIN AND DIPPED BEAMS LIGHT UNIT
- Valid for USA and CDN
from £2,298.90
from £2,298.90
# 001
MPN: 163765
RH MAIN AND DIPPED BEAMS LIGHT UNIT
- Valid for J
from £2,540.89
from £2,540.89
# 001
MPN: 163766
LH MAIN AND DIPPED BEAMS LIGHT UNIT
- Valid for J
from £4,247.25
from £4,247.25
# 001
MPN: 163793
RH MAIN AND DIPPED BEAMS LIGHT UNIT
- Valid for GD
from £2,286.78
from £2,286.78
# 001
MPN: 163794
LH MAIN AND DIPPED BEAMS LIGHT UNIT
- Valid for GD
from £2,286.78
from £2,286.78
# 002
MPN: 10902287
SCREW
from £0.48
from £0.48
# 003
MPN: 106850
WASHER
Supersession
Supersession
This part replaces part number 10516473 - and 1 more. Click to view details
# 004
MPN: 12643777
WASHER
Supersession
Supersession
This part replaces part number 12643706 which we have in stock - and 1 more. Click to view details
# 005
MPN: 162943
REAR BRACKET
from £31.14
from £31.14
# 006
MPN: 162944
FRONT BRACKET
from £29.79
from £29.79
# 007
MPN: 12640677
WASHER
not as spare part - use part number: 12640678
Supersession
Supersession
This part replaces part number 12640606 - and 1 more. Click to view details
# 008
MPN: 165912
RH TRANSPARENT
- Not for USA and J
from £778.32
from £778.32
# 008
MPN: 165913
LH TRANSPARENT
- Not for USA and J
from £415.70
from £415.70
# 008
MPN: 178501
RH TRANSPARENT
- Valid for USA and J
from £245.46
from £245.46
# 008
MPN: 178502
LH TRANSPARENT
- Valid for USA and J
from £245.46
from £245.46
# 009
MPN: 171654
COMPLETE RH FRONT LIGHT CASE
- Not for USA and J
# 009
MPN: 171655
COMPLETE LH FRONT LIGHT CASE
- Not for USA and J
# 009
MPN: 171656
COMPLETE RH FRONT LIGHT CASE
- Valid for USA and J
# 009
MPN: 171657
COMPLETE LH FRONT LIGHT CASE
- Valid for USA and J
# 010
MPN: 165914
RH GASKET
from £67.71
from £67.71
# 010
MPN: 165915
LH GASKET
from £58.35
from £58.35
# 011
MPN: 164350
HEADLIGHT CABLE CONNECTION
- Not for USA, CDN and J
from £39.66
from £39.66
# 011
MPN: 164450
HEADLIGHT CABLE CONNECTION
- Not for USA, CDN and J
from £50.04
from £50.04
# 012
MPN: 155751
CABLE RETAINING CLIP
from £2.80
from £2.80
# 013
MPN: 14151095
LAMP
from £9.77
from £9.77
# 013
MPN: 14151590
LAMP
- Not for USA - Valid for USA
from £9.58
from £9.58
# 014
MPN: 14151095
LAMP
from £9.77
from £9.77
# 015
MPN: 165911
SPRING
from £7.44
from £7.44
