128 - Windshield Wiper, Washer and Horns

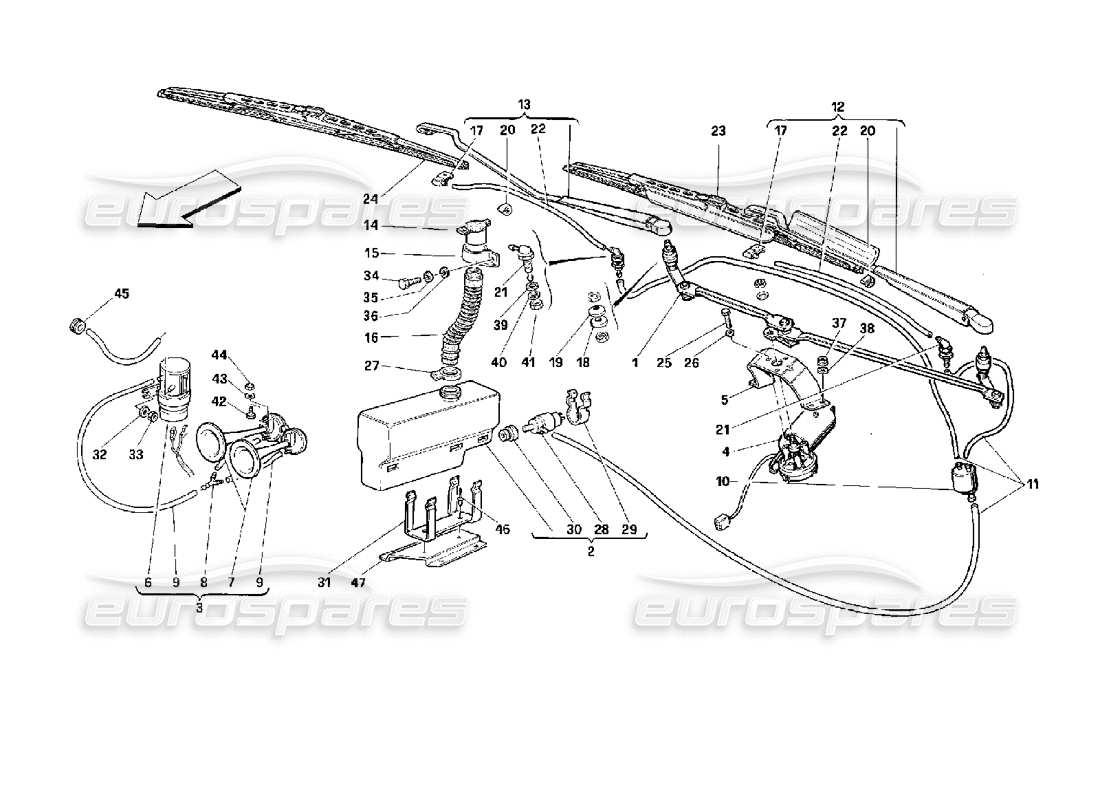

Ferrari 512 M Windshield Wiper, Washer and Horns Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 63467900
WINDSHIELD WIPER LEVERAGE
- Not for GD
from £317.32
from £317.32
# 001
MPN: 63468000
WINDSHIELD WIPER LEVERAGE
- Valid for GD
from £212.92
from £212.92
# 002
MPN: 63112200

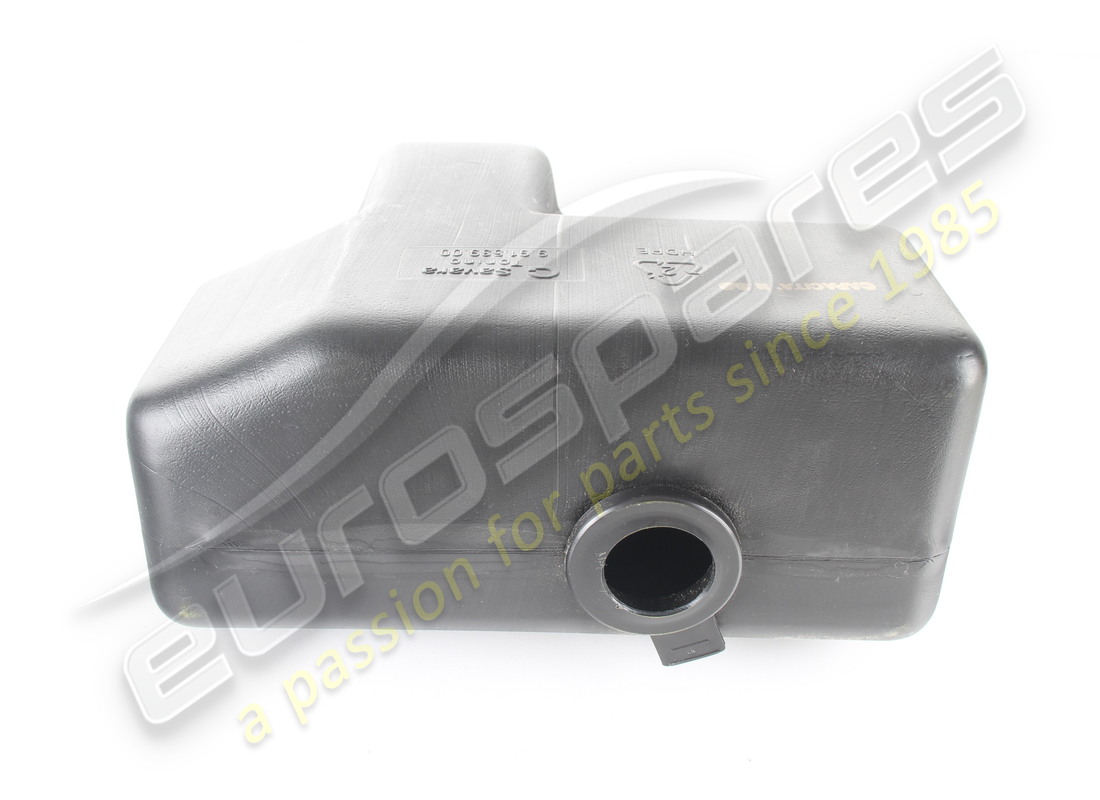

WATER RESERVOIR, COMPLETE
from £862.22
from £862.22
# 003
MPN: 189428
HORN, COMPLETE
from £33.58
from £33.58
This part replaces part number 10665500 which we have in stock - and 3 more. Click to view details
# 004
MPN: 61528100
wiper motor
from £413.59
from £413.59
This part replaces part number 144491 - and 8 more. Click to view details
# 005
MPN: 63080900
PLATE
from £40.77
from £40.77
# 006
MPN: 225757
ELECTRO COMPRESSOR
from £134.90
from £134.90
This part replaces part number 139920
# 007
MPN: 162304
ELECTROPNEUMATIC HORN
- Valid for CH
from £18.95
from £18.95
# 007
MPN: 189428
ELECTROPNEUMATIC HORN
- Not for CH
from £33.58
from £33.58
This part replaces part number 10665500 which we have in stock - and 3 more. Click to view details
# 008
MPN: 60741100
3 WAY UNION
from £0.54
from £0.54
This part replaces part number 61741100
# 009
MPN: 63243200
AIR DUCT
from £0.83
from £0.83
# 010
MPN: 61648100
NON RETURN VALVE
from £16.32
from £16.32
# 011
MPN: 61648200
PIPE
- Not for GD
from £9.45
from £9.45
# 011
MPN: 63991900
PIPE
- Valid for GD
from £26.34
from £26.34
# 012
MPN: 61725600
WIPER ARM DRIVER SEAT SIDE COMPLETE
- Valid for GD
from £126.13
from £126.13
# 012
MPN: 62461600
WIPER ARM DRIVER SEAT SIDE COMPLETE
- Not for GD
from £271.63
from £271.63
This part replaces part number 61647700 which we have in stock - and 2 more. Click to view details
# 013
MPN: 61647600
WIPER ARM PASSENGER SIDE COMPLETE
- Not for GD
from £100.00
from £100.00
# 013
MPN: 61725700
WIPER ARM PASSENGER SIDE COMPLETE
- Valid for GD
from £34.69
from £34.69
# 014
MPN: 63118500
PLUG WITH FILTER
from £2.33
from £2.33
# 015
MPN: 63449500
TANK UNION
from £81.56
from £81.56
# 016
MPN: 63969500
TANK PIPE
from £8.61
from £8.61
# 017
MPN: 61537500
WINDSCREEN WASHER JET
-Valid for GD-
from £19.17
from £19.17
# 017
MPN: 61541500
WINDSCREEN WASHER JET
- Not for GD
from £18.50
from £18.50
# 018
MPN: 61537600
CAP
from £0.53
from £0.53
# 019
MPN: 61537700
SPACER
from £0.59
from £0.59
# 020
MPN: 61559400
CLIP
from £1.56
from £1.56
# 021
MPN: 61648000
UNION
from £26.63
from £26.63
This part replaces part number 64290900
# 022
MPN: 63432500
PIPE FROM UNION TO NOZZLE
from £11.77
from £11.77
# 023
MPN: 61647800
Wiper brushes driver side
- Valid for GD
Supersession
Supersession
# 023
MPN: 62461700
Wiper brushes driver side
- Not for GD - USE 65661700
Supersession
Supersession
# 023
MPN: 65661700
WINDSHIELD WIPER (PAIR)
from £29.14
from £29.14
This part replaces part number 62461700 - and 3 more. Click to view details
# 024
MPN: 61647800
WIPER BRUSHES PASSENGER SIDE
- Valid for GD
Supersession
Supersession
# 024
MPN: 62461800
WIPER BRUSHES PASSENGER SIDE
- Not for GD
from £55.64
from £55.64
# 025
MPN: 10902211
SCREW
from £0.62
from £0.62
# 026
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 027
MPN: 63453700
PLUG
from £1.85
from £1.85
# 028
MPN: 61535400
PUMP FOR WATER RESERVOIR
from £80.00
from £80.00
# 029
MPN: 63290800
FIX. PUMP SPRING
from £13.15
from £13.15
# 030
MPN: 63290900
RUBBER BUSH
from £0.80
from £0.80
# 031
MPN: 60630000
WATER RESERVOIR RETAINER SPRING
from £19.18
from £19.18
# 032
MPN: 12643724
WASHER
from £0.53
from £0.53
This part replaces part number 109684 - and 3 more. Click to view details
# 033
MPN: 102948
NUT
from £0.54
from £0.54
This part replaces part number 12574211 - and 3 more. Click to view details
# 034
MPN: 10902421
SCREW
from £0.54
from £0.54
# 035
MPN: 10615474
WASHER
Supersession
Supersession
This part replaces part number 10615470 - and 3 more. Click to view details
# 036
MPN: 12643724
WASHER
from £0.53
from £0.53
This part replaces part number 109684 - and 3 more. Click to view details
# 037
MPN: 14084211
NUT
from £0.71
from £0.71
# 038
MPN: 12643724
WASHER
from £0.51
from £0.51
This part replaces part number 109684 - and 3 more. Click to view details
# 039
MPN: 64291000
SEAL RING
from £1.46
from £1.46
# 040
MPN: 64291100
WASHER
from £1.04
from £1.04
# 041
MPN: 64291200
NUT
Supersession
Supersession
# 042
MPN: 10902424
SCREW
from £0.53
from £0.53
This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
# 043
MPN: 10519424
WASHER
from £0.54
from £0.54
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 044
MPN: 102948
NUT
from £0.54
from £0.54
This part replaces part number 12574211 - and 3 more. Click to view details
# 045
MPN: 10396380
PIPE GROMMET RING
from £0.53
from £0.53
# 046
MPN: 60310703
RIVET
from £1.18
from £1.18
# 047
MPN: 64475200
BRACKET
from £5.09
from £5.09
