015 - AIR INTAKE

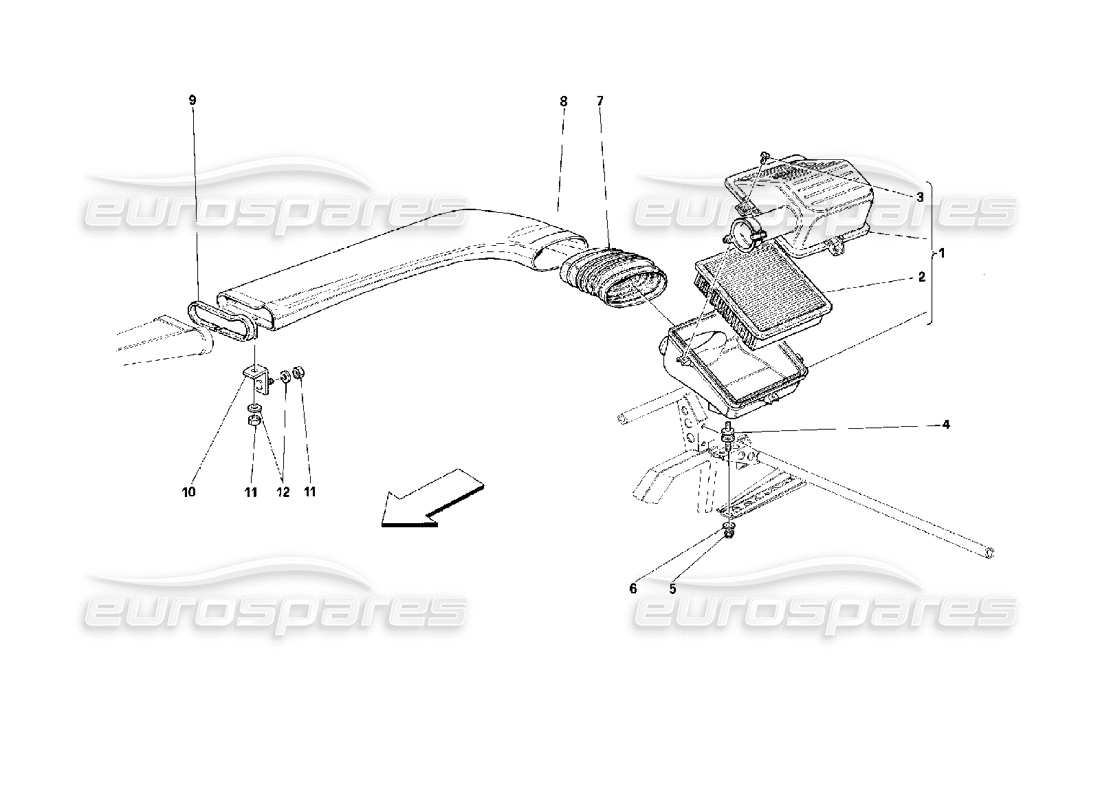

Ferrari 512 TR Air Intake Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 148719

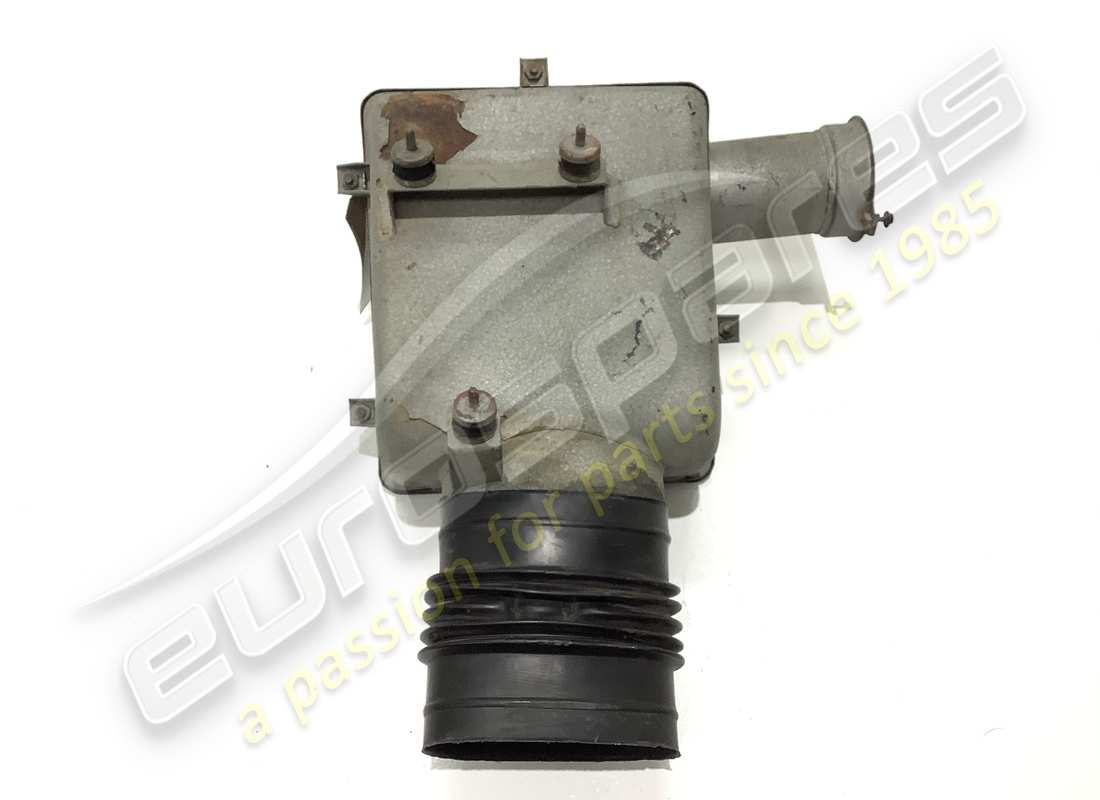

RH AIR INTAKE ASSY
- Not for CH
from £279.47
from £279.47
# 001
MPN: 148720
LH AIR INTAKE ASSY
- Not for CH
from £279.47
from £279.47
# 001
MPN: 152340
RH AIR INTAKE ASSY
- Valid for CH
from £841.75
from £841.75
# 001
MPN: 152341
LH AIR INTAKE ASSY
- Valid for CH
from £841.75
from £841.75
# 002
MPN: 151564

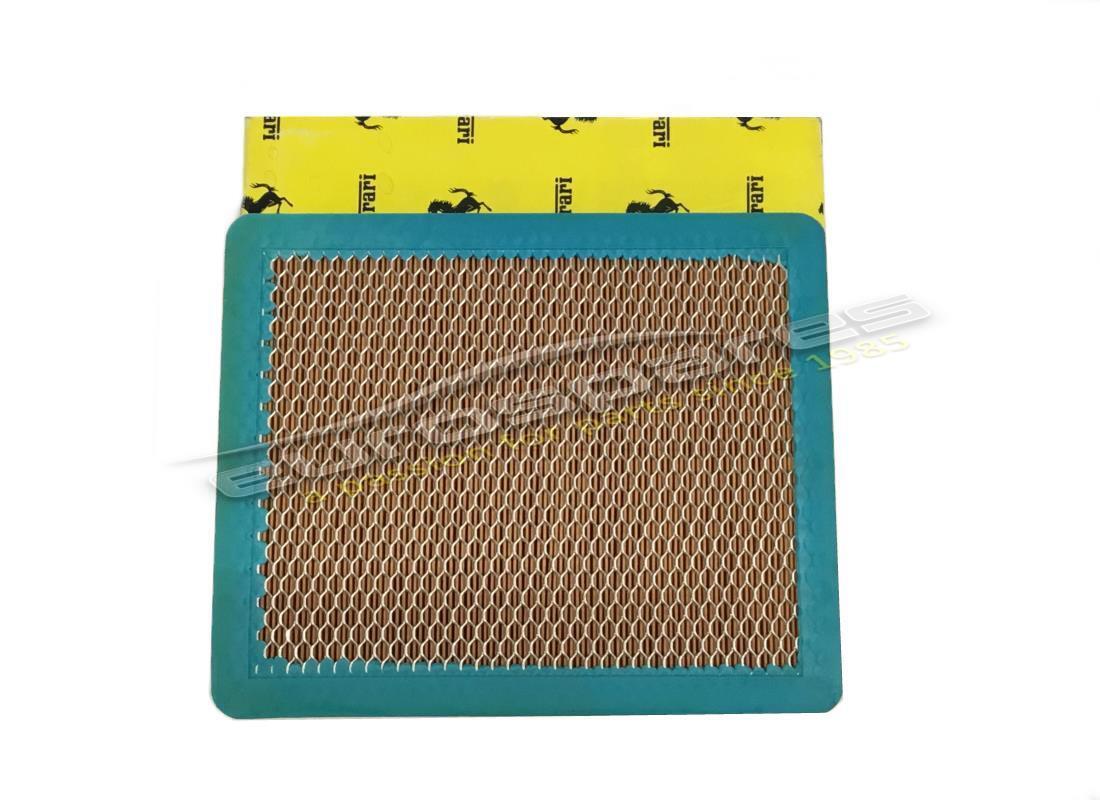

AIR FILTER
from £23.58
from £23.58
This part replaces part number 148718
# 003
MPN: 10376577
SCREW
from £5.49
from £5.49
This part replaces part number 10376517
# 004
MPN: 142202

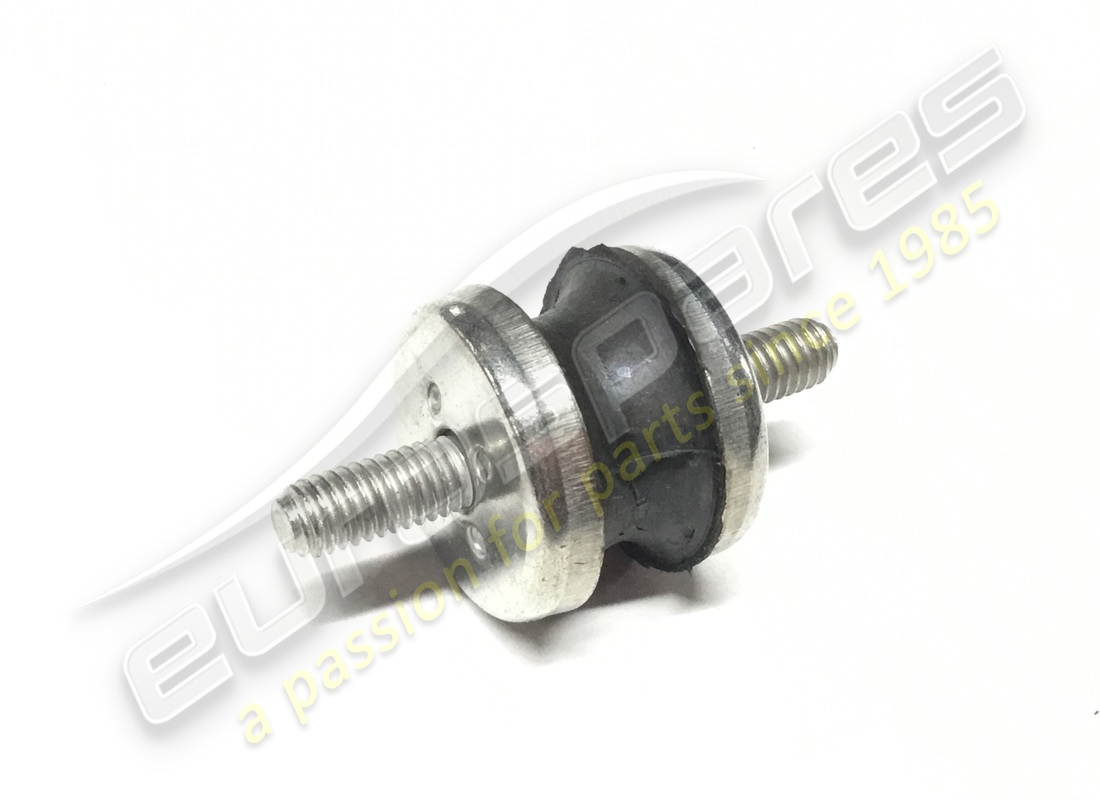

DAMPER SUPPORT
from £14.37
from £14.37
# 005
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 006
MPN: 10519401
WASHER
from £0.71
from £0.71
# 007
MPN: 63379200
SLEEVE
from £827.37
from £827.37
# 008
MPN: 63112600
RH REAR AIR CONVEYOR
- Not for CH
from £28.25
from £28.25
This part replaces part number 63358600
# 008
MPN: 63112700
LH REAR AIR CONVEYOR
- Not for CH
from £28.25
from £28.25
This part replaces part number 63358700
# 008
MPN: 63946300
RH REAR AIR CONVEYOR
- Valid for CH
from £749.50
from £749.50
This part replaces part number 63588100
# 008
MPN: 63946400
LH REAR AIR CONVEYOR
- Valid for CH
from £555.04
from £555.04
This part replaces part number 63588200
# 009
MPN: 63112800
GASKET
- Not for CH
from £3.10
from £3.10
# 010
MPN: 63100500
BRACKET
from £1.51
from £1.51
# 011
MPN: 14084211
NUT
from £0.71
from £0.71
# 012
MPN: 12643701
WASHER
Supersession
Supersession
This part replaces part number 12643704 - and 1 more. Click to view details
