016 - Throttle Control -Not for GD-

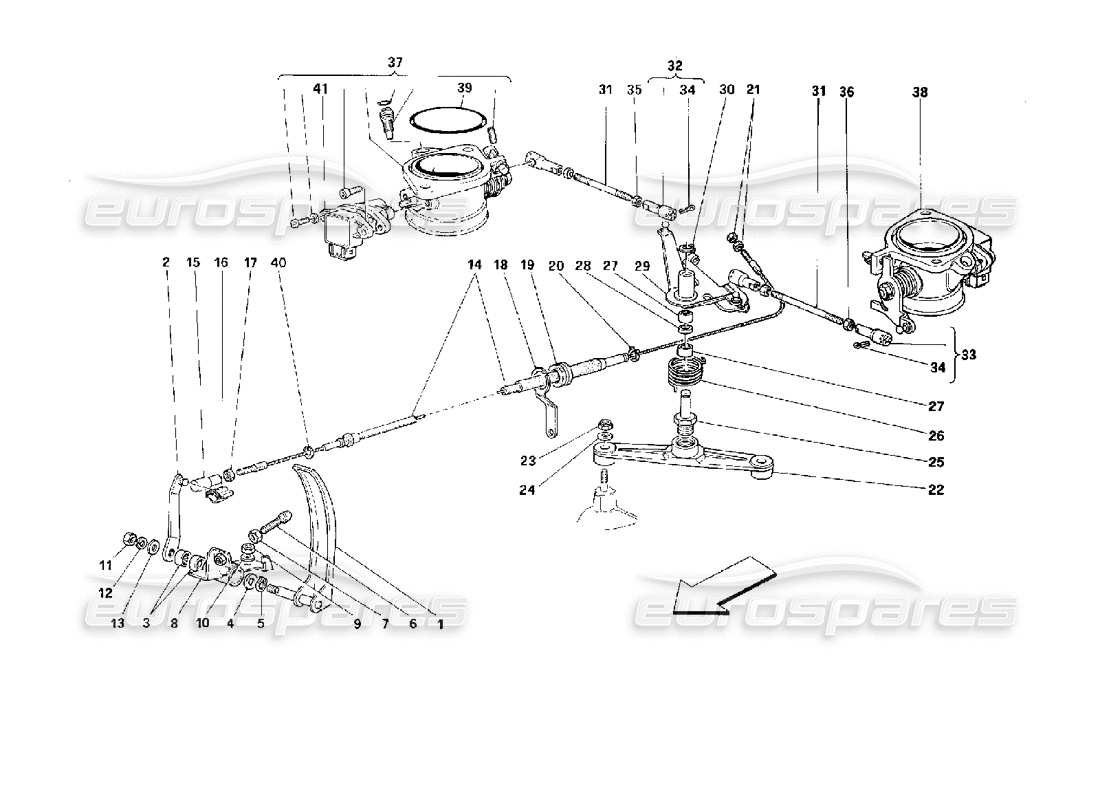

Ferrari 512 TR Throttle Control -Not for GD- Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 148296
throttle pedal
from £98.07
from £98.07
# 002
MPN: 148297
Throttle control lever
from £20.41
from £20.41
# 003
MPN: 101677
ROLLER BEARING
from £2.05
from £2.05
# 004
MPN: 108576
WASHER
from £1.00
from £1.00
# 005
MPN: 11066076

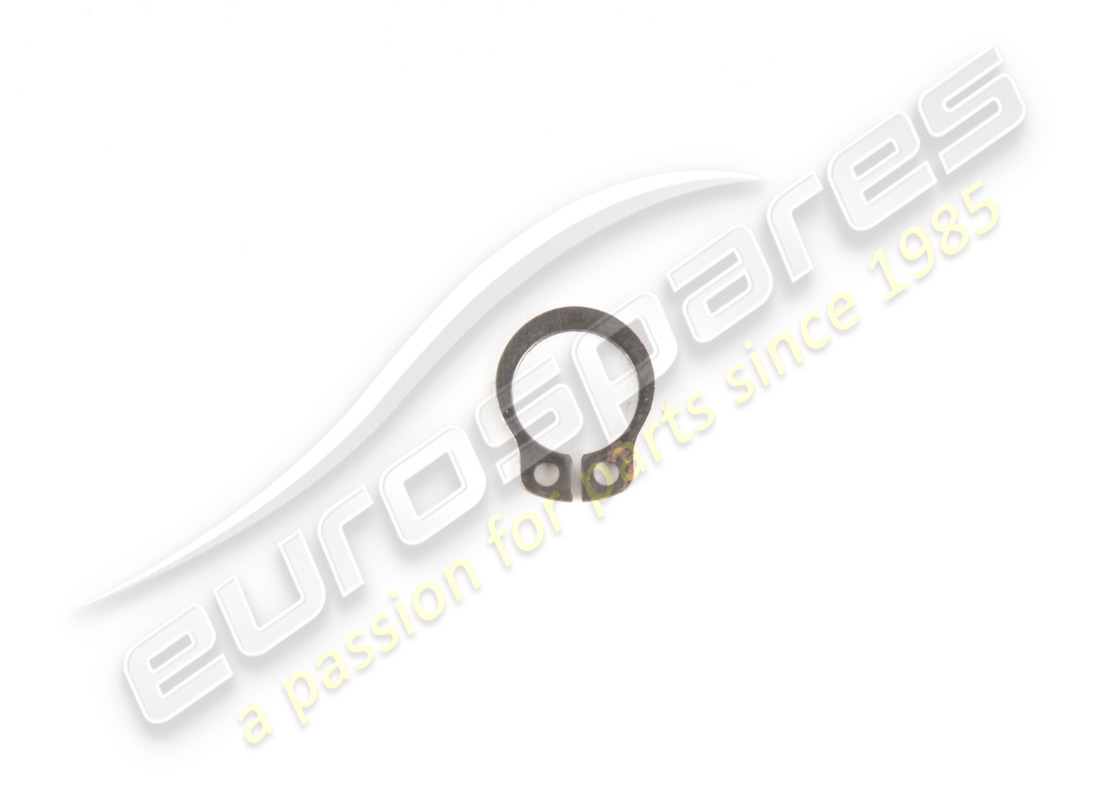

SEEGER RING
from £0.47
from £0.47
This part replaces part number 11066075
# 006
MPN: 105232
CONTROL SCREW
from £3.71
from £3.71
# 007
MPN: 16102311
NUT
from £0.42
from £0.42
This part replaces part number 16102315
# 008
MPN: 115396
THROTTLE PEDAL SUPPORT
from £23.85
from £23.85
# 009
MPN: 16100824
NUT
from £0.53
from £0.53
This part replaces part number 16100814 - and 1 more. Click to view details
# 010
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 011
MPN: 16100824
NUT
from £0.53
from £0.53
This part replaces part number 16100814 - and 1 more. Click to view details
# 012
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 013
MPN: 10519624
WASHER
from £0.54
from £0.54
This part replaces part number 10519601 - and 3 more. Click to view details
# 014
MPN: 146447
THROTTLES CONTROL CABLE
- Valid till stock exhaustion
Supersession
Supersession
# 014
MPN: 165416
THROTTLES CONTROL CABLE
from £160.63
from £160.63
This part replaces part number 159531
# 015
MPN: 10123811
JOINT HEAD
from £10.83
from £10.83
# 016
MPN: 10124776
SPRING CLIP
Supersession
Supersession
# 017
MPN: 15896470
NUT
(minimum order quantity = 20)
from £0.77
from £0.77
This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
# 018
MPN: 154742
BRACKET
from £18.15
from £18.15
This part replaces part number 150814
# 019
MPN: 10396680
CABLE GROMMET
from £1.08
from £1.08
# 020
MPN: 11065676
SEEGER RING
from £0.47
from £0.47
This part replaces part number 11065675 - and 1 more. Click to view details
# 021
MPN: 10725011
NUT
from £0.93
from £0.93
# 022
MPN: 145696
THROTTLE SUPPORT
from £99.19
from £99.19
# 023
MPN: 12574211
NUT
from £0.71
from £0.71
# 024
MPN: 12639701
WASHER
Supersession
Supersession
This part replaces part number 12639704
# 025
MPN: 136705
PIN
from £35.07
from £35.07
# 026
MPN: 153354
SPRING
from £3.60
from £3.60
This part replaces part number 150085
# 027
MPN: 132873
ROLLER CAGE
from £2.42
from £2.42
# 028
MPN: 136880
SPACER
from £15.60
from £15.60
# 029
MPN: 153356
LEVER
from £166.70
from £166.70
This part replaces part number 148157
# 030
MPN: 11065676
SEEGER RING
from £0.47
from £0.47
This part replaces part number 11065675 - and 1 more. Click to view details
# 031
MPN: 145762
TIE ROD
from £1.30
from £1.30
# 032
MPN: 105619
LH THREAD BALL JOINT
from £79.56
from £79.56
# 033
MPN: 173999
RH THREAD THROTTLE BALL JOINT
from £4.17
from £4.17
This part replaces part number 105617
# 034
MPN: 10795101
COTTER PIN
from £0.47
from £0.47
# 035
MPN: 105586
LH THREAD NUT
from £4.65
from £4.65
# 036
MPN: 15896470
NUT (RH THREAD)
(minimum order quantity = 20)
from £0.77
from £0.77
This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
# 037
MPN: 146632
RH THROTTLE BODY COMPLETE
from £552.58
from £552.58
# 038
MPN: 148708
LH THROTTLE BODY COMPLETE
from £543.93
from £543.93
# 039
MPN: 142934

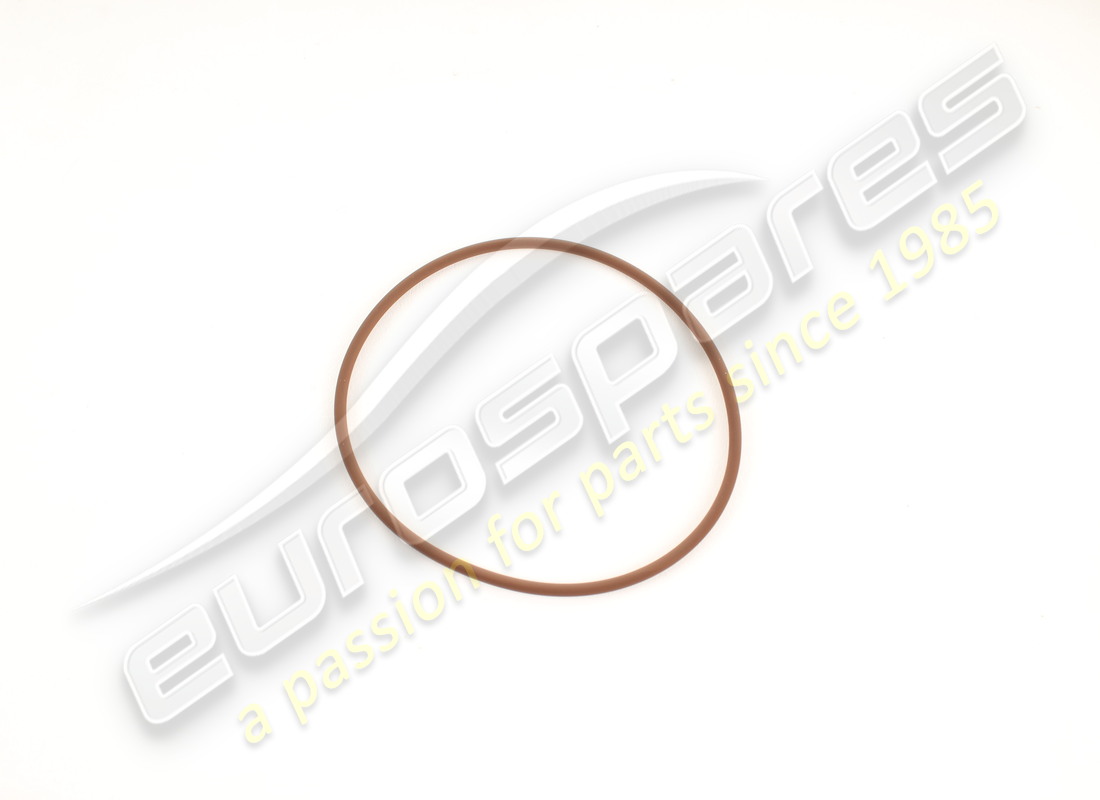

GASKET
from £6.05
from £6.05
This part replaces part number 147901
# 040
MPN: 11087974
CIRCLIP
from £0.53
from £0.53
This part replaces part number 11087976
# 041
MPN: 158170
POTENTIOMETER FOR THROTTLE VALVE
from £119.32
from £119.32
This part replaces part number 142434 - and 1 more. Click to view details
# 041
MPN: 166419
SAFETY PLUG FOR BY PASS SCREW
from £5.94
from £5.94
