043 - Hand - Brake Control

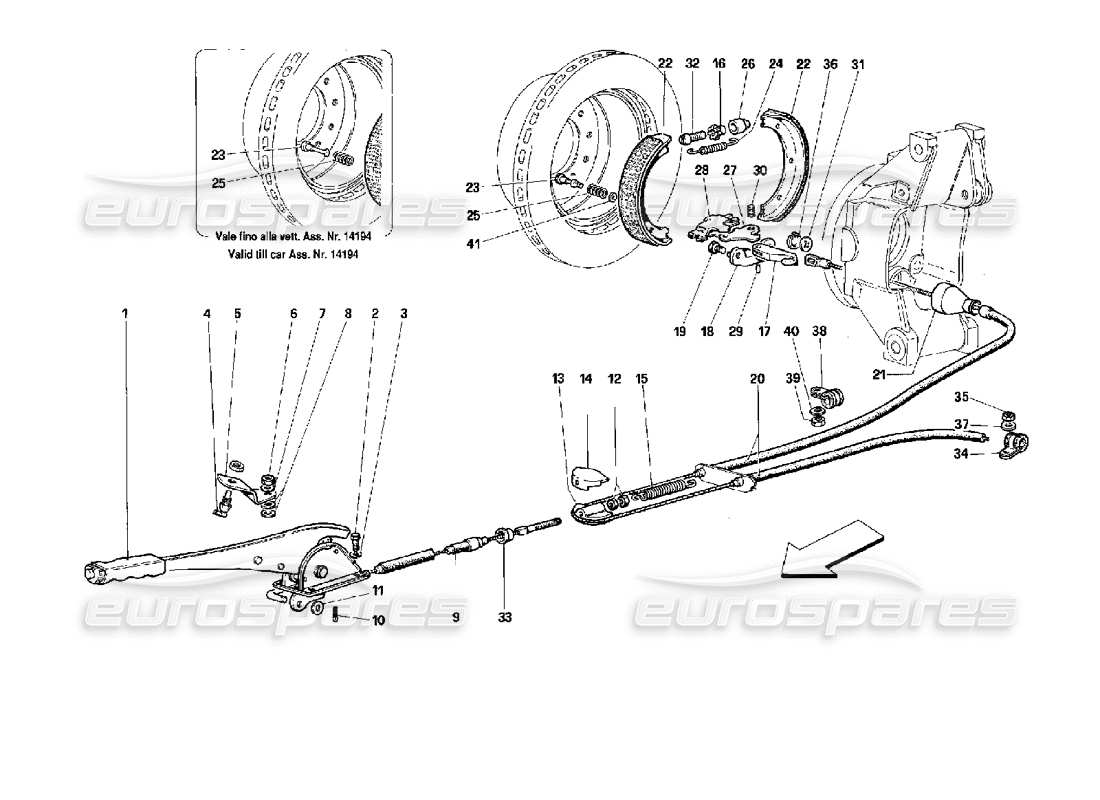

Ferrari 512 TR Hand - Brake Control Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 154093
HAND-BRAKE LEVER WITHOUT TRIM
from £259.96
from £259.96
This part replaces part number 139351 which we have in stock - and 1 more. Click to view details
# 001
MPN: 636190..
LEVER TRIM
- For leather colors see table - in draw. Colors code-
Supersession
Supersession
# 002
MPN: 10902124
SCREW
from £0.51
from £0.51
This part replaces part number 10902111 - and 1 more. Click to view details
# 003
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 004
MPN: 114318
SWITCH
Supersession
Supersession
This part replaces part number 114319
# 005
MPN: 114320
BRACKET
Supersession
Supersession
This part replaces part number 114320 N/L/A
# 006
MPN: 15896470
NUT
(minimum order quantity = 20)
from £0.77
from £0.77
This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
# 007
MPN: 12605270
WASHER
Supersession
Supersession
# 008
MPN: 10519377
WASHER
- Possible mounting-
Supersession
Supersession
This part replaces part number 10519305 which we have in stock - and 1 more. Click to view details
# 009
MPN: 120960
FRONT CABLE
from £13.27
from £13.27
# 010
MPN: 10796440
COTTER PIN
from £0.71
from £0.71
This part replaces part number 10796401 - and 1 more. Click to view details
# 011
MPN: 10519624
WASHER
from £0.54
from £0.54
This part replaces part number 10519601 - and 3 more. Click to view details
# 012
MPN: 16102311
NUT
from £0.42
from £0.42
This part replaces part number 16102315
# 013
MPN: 118552
ANCHORAGE FOR REAR CABLE
from £2.06
from £2.06
# 014
MPN: 118553
CABLE RETAINING PLATE
from £14.98
from £14.98
# 015
MPN: 104895

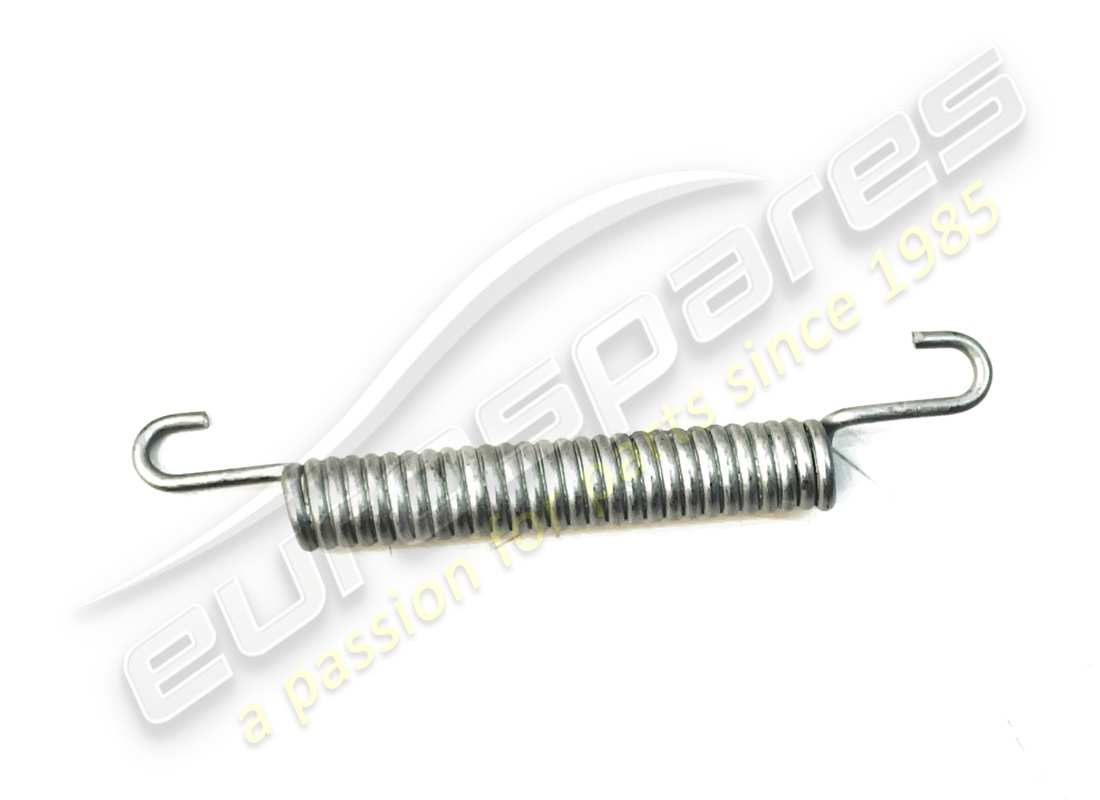

RETURN SPRING
from £2.90
from £2.90
# 016
MPN: 101286
NUT FOR ADJUSTING SCREW
from £21.35
from £21.35
This part replaces part number 680544 - and 5 more. Click to view details
# 017
MPN: 105270
INNER LEVER CONTROL FORK
from £14.51
from £14.51
# 018
MPN: 142861
BLOCK ON HUB HOLDER
from £134.82
from £134.82
# 019
MPN: 142856
SCREW
from £2.96
from £2.96
# 020
MPN: 137475
REAR CABLE
from £109.39
from £109.39
# 021
MPN: 143938
STOP CABLE HOSE AND PROTECTION INNER LEVER
from £16.04
from £16.04
# 022
MPN: 142886
BRAKE SHOE
- Valid till car - Ass. Nr. 14194-
Supersession
Supersession
# 022
MPN: 170701

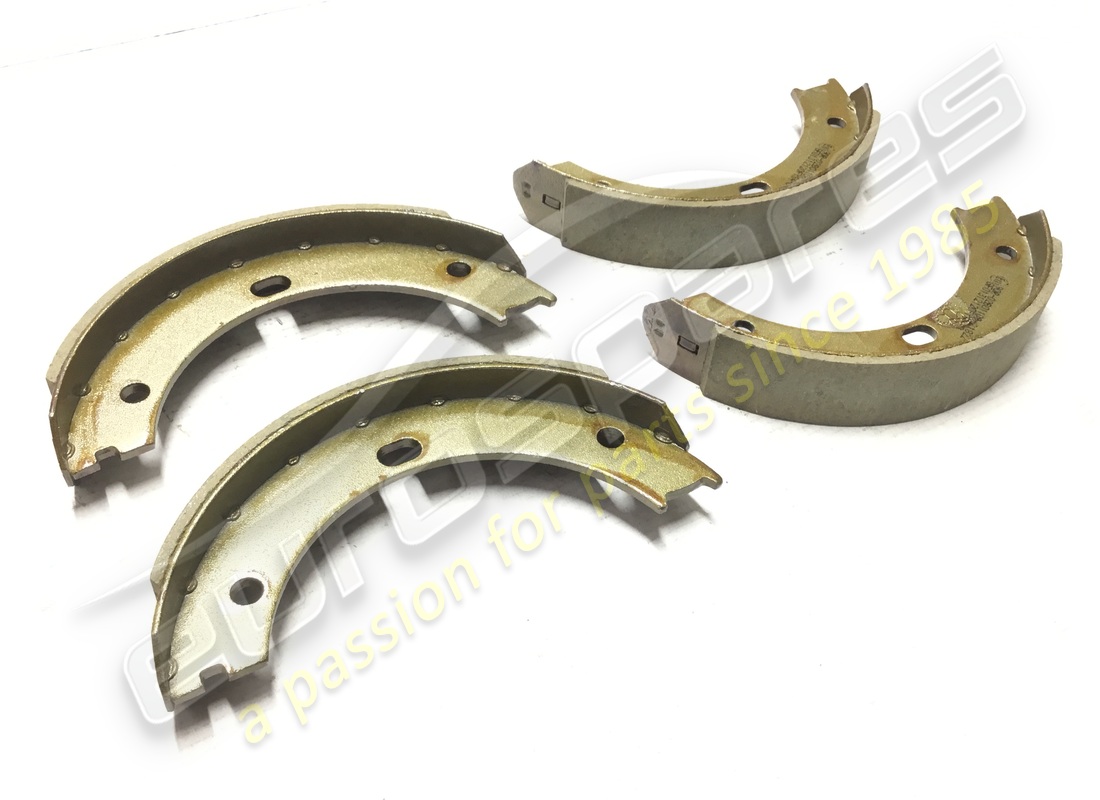

COMPLETE BRAKE SHOE
from £31.21
from £31.21
This part replaces part number 162820
# 022
MPN: 170701/A

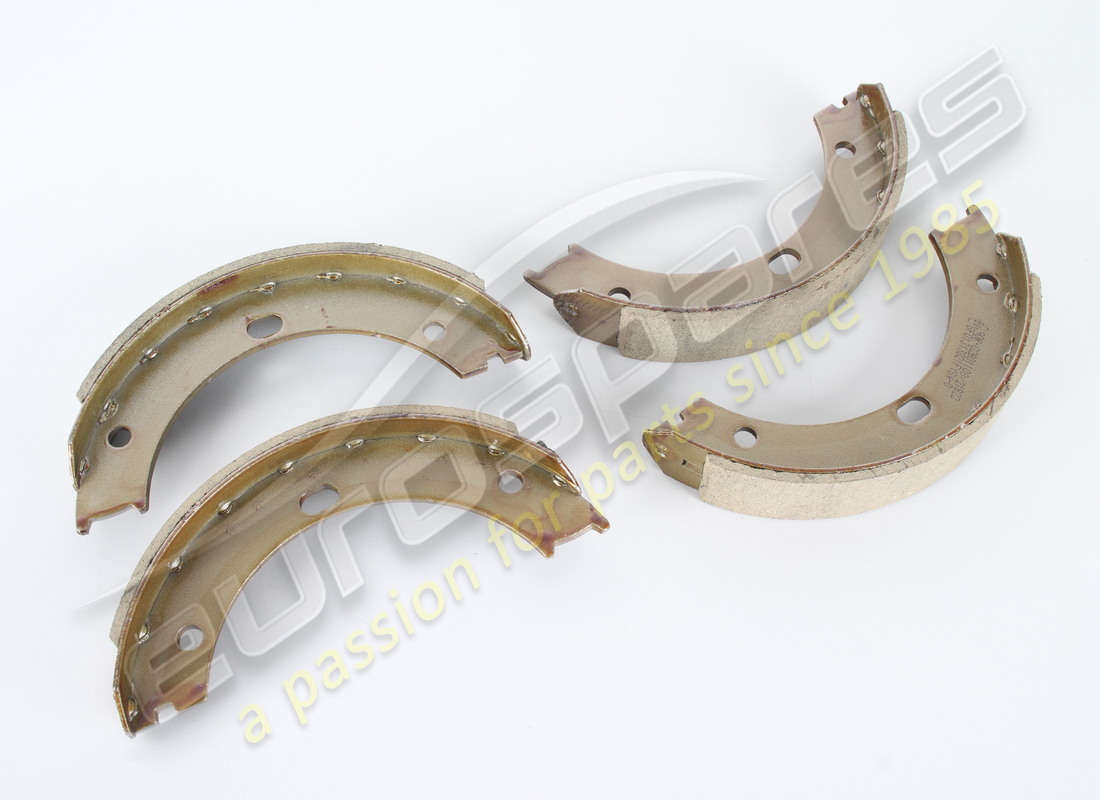

COMPLETE BRAKE SHOES
from £78.00
from £78.00
This part replaces part number 178382
# 023
MPN: 101275
SPRING SECURING PIN
- Valid till car - Ass. Nr. 14194-
from £8.07
from £8.07
This part replaces part number 680515 - and 1 more. Click to view details
# 023
MPN: 156915
SCREW L. 36 MM
- Valid from car - Ass. Nr. 141195-
from £84.35
from £84.35
# 023
MPN: 156916
SCREW L. 29 MM
- Valid from car - Ass. Nr. 14195-
from £55.62
from £55.62
# 024
MPN: 101276
RETURN SPRING FOR SHOE
from £1.50
from £1.50
This part replaces part number 680516 - and 5 more. Click to view details
# 025
MPN: 101277
SPRING
from £2.39
from £2.39
This part replaces part number 680517
# 026
MPN: 101279
SEAT FOR ADJUSTING SCREW
from £31.50
from £31.50
# 027
MPN: 101280
INNER CONTROL LEVER
from £25.76
from £25.76
This part replaces part number 680538 - and 5 more. Click to view details
# 028
MPN: 101281
OUTER CONTROL LEVER
from £33.69
from £33.69
This part replaces part number 680539 - and 6 more. Click to view details
# 029
MPN: 101282
PIN SECURING FORK TO INNER LEVER
from £7.88
from £7.88
This part replaces part number 680540
# 030
MPN: 101283
PIN FOR JOINT
from £15.82
from £15.82
This part replaces part number 680541
# 031
MPN: 101284
SPRING PLATE
- Valid till car - Ass. Nr. 14194-
from £2.89
from £2.89
This part replaces part number 680542
# 032
MPN: 101285
SCREW
from £17.48
from £17.48
This part replaces part number 680543 - and 8 more. Click to view details
# 033
MPN: 118554
BUSHING
from £13.76
from £13.76
# 034
MPN: 10441290

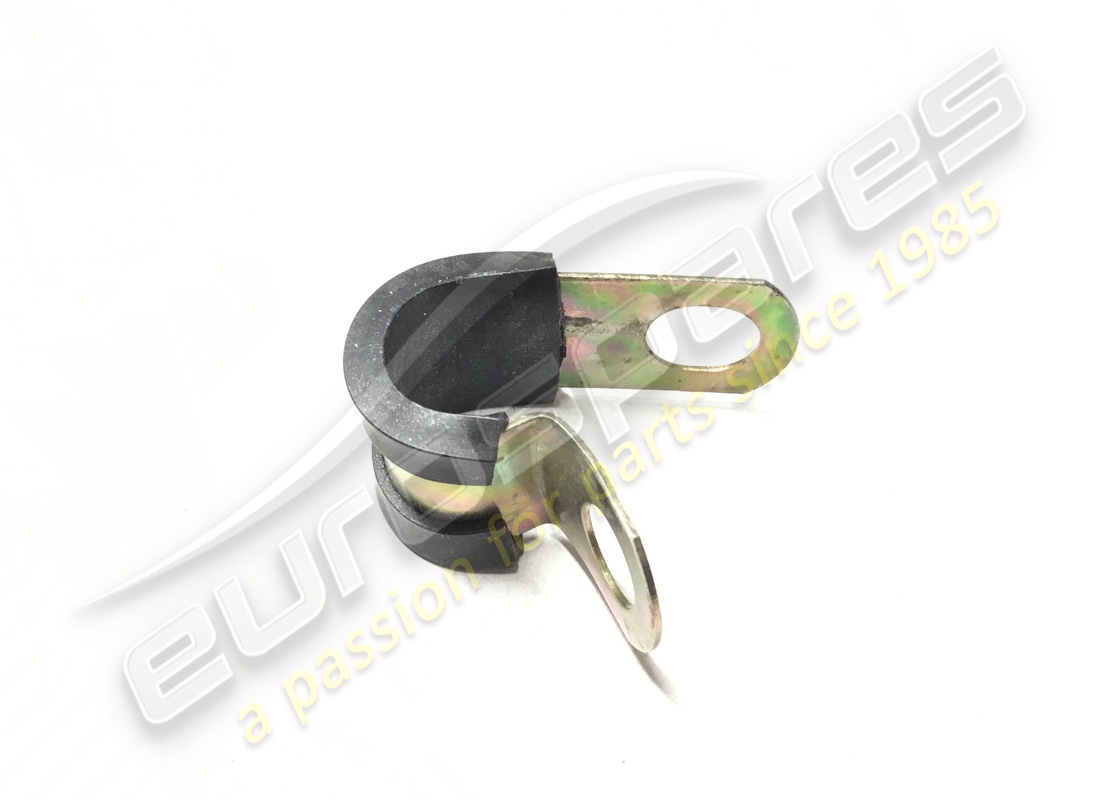

CLAMP
from £0.51
from £0.51
# 035
MPN: 12575411
NUT
Supersession
Supersession
# 036
MPN: 11057276
SEEGER RING
- Valid till car - Ass. Nr. 14194-
from £0.47
from £0.47
# 037
MPN: 12639701
WASHER
Supersession
Supersession
This part replaces part number 12639704
# 038
MPN: 10450190
BRACKET
from £0.53
from £0.53
This part replaces part number 148751
# 039
MPN: 16104411
NUT
from £0.54
from £0.54
# 040
MPN: 12638501
WASHER
from £0.54
from £0.54
# 041
MPN: 12625221
WASHER
Supersession
Supersession
