055 - AIR CONDITIONING COMPRESSOR

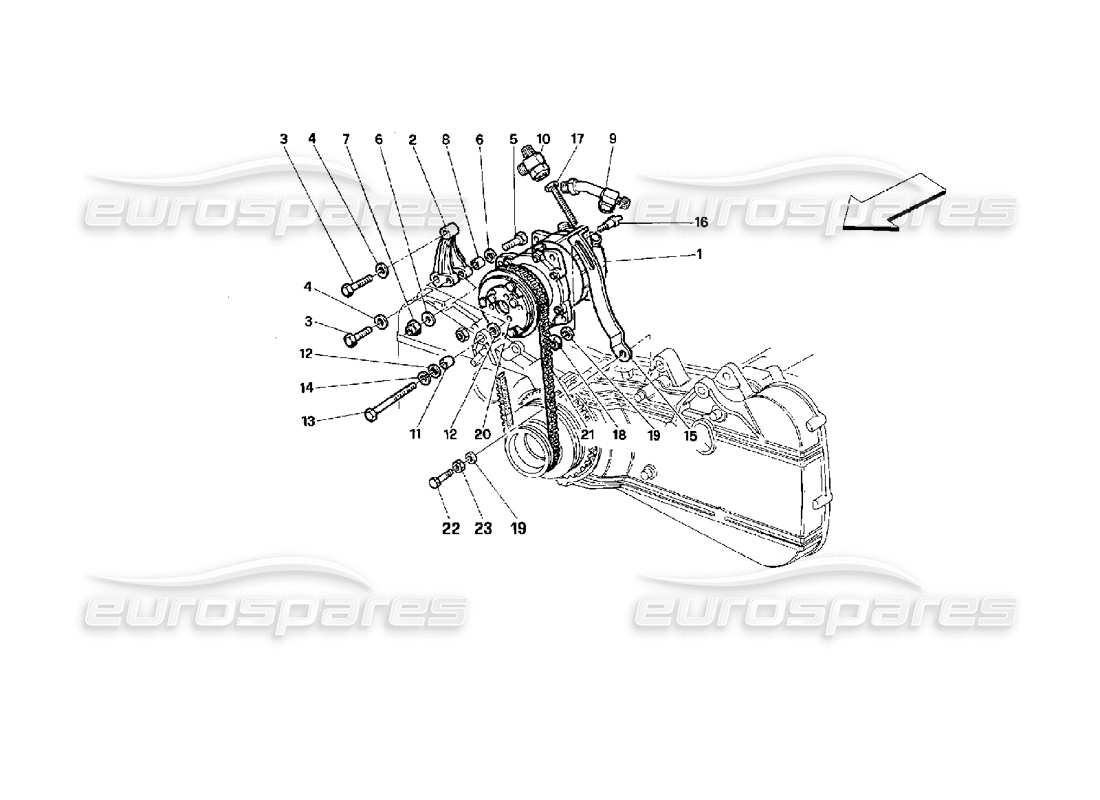

Ferrari 512 TR Air Conditioning Compressor Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Price
                                                # 001
                                                MPN: 147895

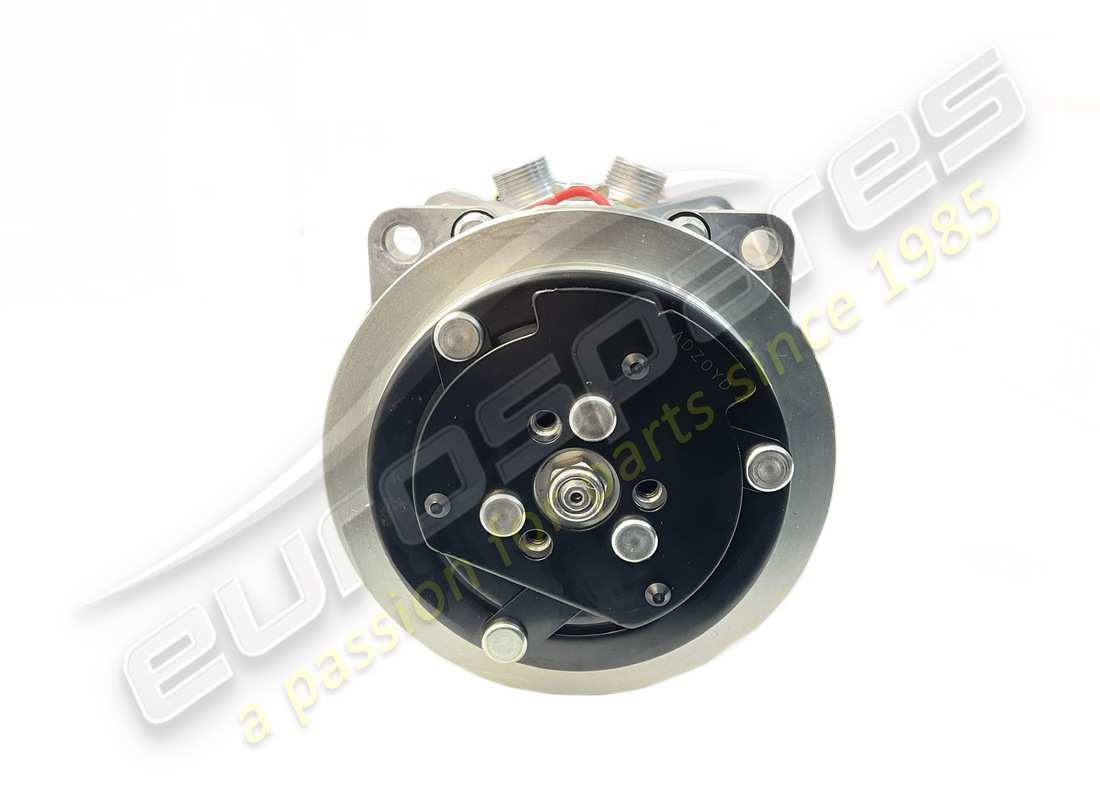

                                                COMPRESSOR
                                                from £1,559.32
                                                from £1,559.32
                                                # 002
                                                MPN: 122963
                                                SUPPORT
                                                from £40.30
                                                from £40.30
                                                # 003
                                                MPN: 121537
                                                SCREW
                                                from £2.81
                                                from £2.81
                                                This part replaces part number 121573
                                                # 004
                                                MPN: 12601474
                                                WASHER
                                                from £0.54
                                                from £0.54
                                                This part replaces part number 12601471 which we have in stock - and 2 more. Click to view details
                                                # 005
                                                MPN: 11288021
                                                SCREW
                                                Supersession
                                                Supersession
                                                # 006
                                                MPN: 14496601
                                                WASHER
                                                Supersession
                                                Supersession
                                                # 007
                                                MPN: 12574511
                                                NUT
                                                from £0.54
                                                from £0.54
                                                # 008
                                                MPN: 123180
                                                DOWEL
                                                from £1.74
                                                from £1.74
                                                # 009
                                                MPN: 127786
                                                INTAKE UNION
                                                from £61.37
                                                from £61.37
                                                # 010
                                                MPN: 126928
                                                OUTLET UNION
                                                from £42.37
                                                from £42.37
                                                # 011
                                                MPN: 121100
                                                BUSHING
                                                from £2.11
                                                from £2.11
                                                # 012
                                                MPN: 103025
                                                WASHER
                                                from £23.18
                                                from £23.18
                                                # 013
                                                MPN: 15541721
                                                SCREW
                                                from £0.91
                                                from £0.91
                                                # 014
                                                MPN: 106854
                                                WASHER
                                                Supersession
                                                Supersession
                                                # 015
                                                MPN: 123181
                                                TENSION ADJUSTING BRACKET
                                                from £45.86
                                                from £45.86
                                                # 016
                                                MPN: 123188
                                                PIN FOR ADJUSTING BRACKET
                                                from £214.77
                                                from £214.77
                                                # 017
                                                MPN: 125668
                                                TENSION ADJUSTING SCREW
                                                from £0.86
                                                from £0.86
                                                # 018
                                                MPN: 104030
                                                SELF LOCKING NUT
                                                from £0.54
                                                from £0.54
                                                This part replaces part number 16104125
                                                # 019
                                                MPN: 14496501
                                                WASHER
                                                from £0.85
                                                from £0.85
                                                # 020
                                                MPN: 123813
                                                ELECTROMAGNETIC JOINT
                                                from £677.89
                                                from £677.89
                                                # 021
                                                MPN: 122973
                                                COMPRESSOR BELT
                                                from £66.92
                                                from £66.92
                                                This part replaces part number 122417
                                                # 022
                                                MPN: 15970921
                                                SCREW
                                                from £0.53
                                                from £0.53
                                                # 023
                                                MPN: 127497
                                                WASHER
                                                from £0.54
                                                from £0.54
                                                This part replaces part number 10516871 - and 2 more. Click to view details
