ferrari 512 tr door - locking device parts diagram

111 - Door - Locking Device

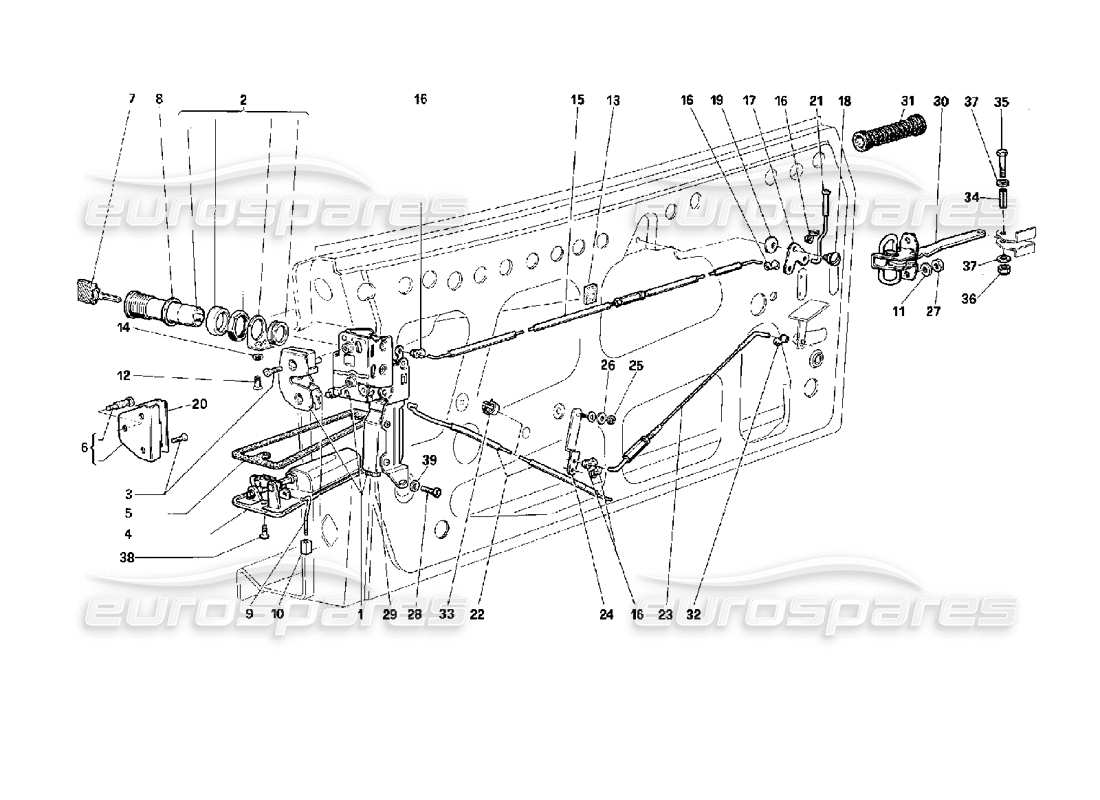

Ferrari 512 TR Door - Locking Device Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                            #
                                                                            Part number
                                                                            Description
                                                                            Price

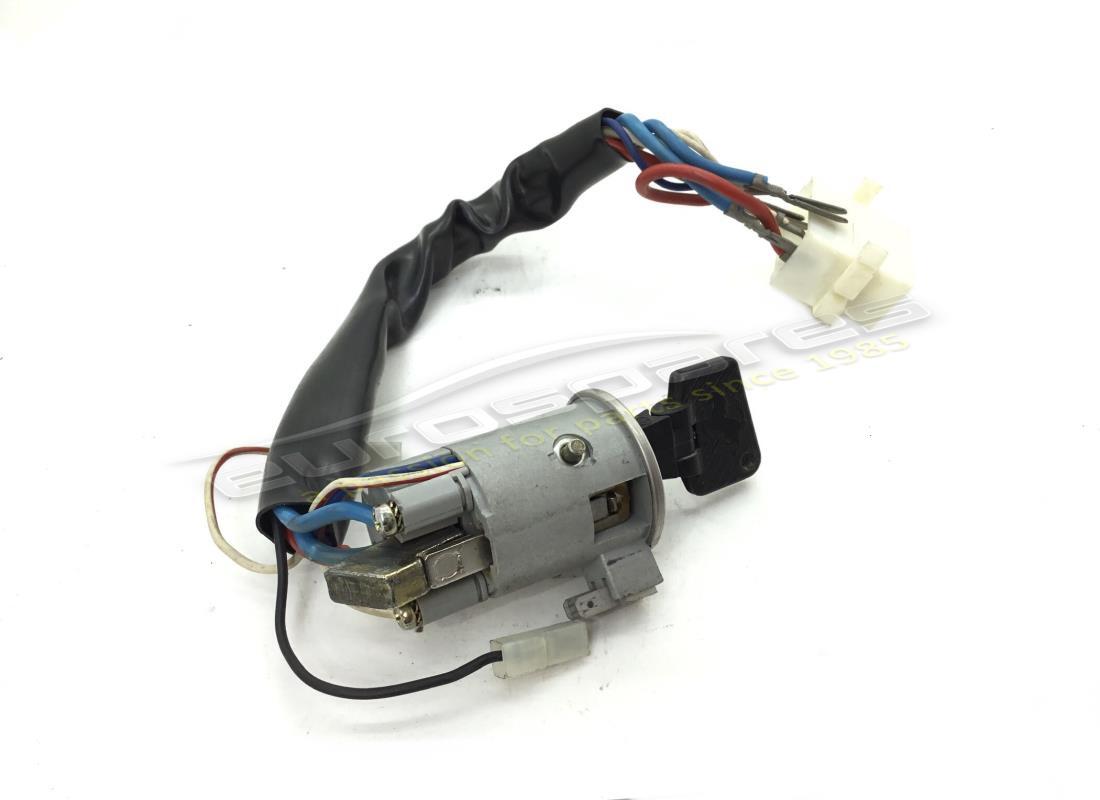

                                                                            # 001
                                                                            MPN: 164283
                                                                            LOCKS SET WITH KEY
                                                                            - Valid for USA, CDN, SA, J
                                                                            from £640.34
                                                                            from £640.34
                                                                            This part replaces part number 164282 - and 3 more. Click to view details
                                                                            # 001
                                                                            MPN: 61545300
                                                                            LOCKS SET WITH KEY
                                                                            - Not for USA, CDN, SA, J
                                                                            from £1,295.00
                                                                            from £1,295.00
                                                                            This part replaces part number 129116 - and 3 more. Click to view details

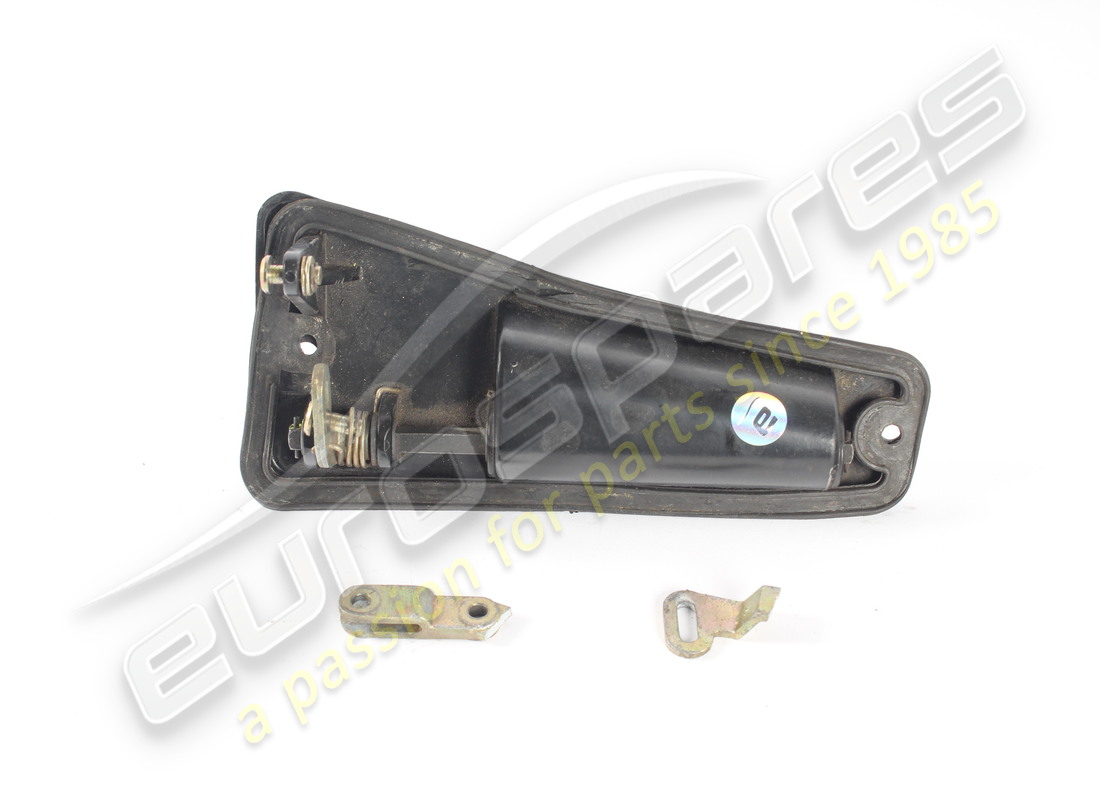

                                                                            # 001
                                                                            MPN: 63094800
                                                                            LOCK FOR RH DOOR COMPLETE
                                                                            from £521.20
                                                                            from £521.20
                                                                            This part replaces part number 61506100 which we have in stock
                                                                            # 001
                                                                            MPN: 63094900
                                                                            LOCK FOR LH DOOR COMPLETE
                                                                            from £361.20
                                                                            from £361.20
                                                                            This part replaces part number 61506200 which we have in stock
                                                                            # 002
                                                                            -
                                                                            lock
                                                                            # 003
                                                                            MPN: 62764600
                                                                            SCREW
                                                                            from £0.72
                                                                            from £0.72
                                                                            # 004
                                                                            MPN: 61506600
                                                                            OUTER HANDLE FOR RH DOOR
                                                                            from £229.85
                                                                            from £229.85
                                                                            # 004
                                                                            MPN: 61506700
                                                                            OUTER HANDLE FOR LH DOOR
                                                                            from £343.98
                                                                            from £343.98
                                                                            # 005
                                                                            MPN: 61506800
                                                                            GASKET FOR RH HANDLE
                                                                            from £2.42
                                                                            from £2.42
                                                                            # 005
                                                                            MPN: 61506900
                                                                            GASKET FOR LH HANDLE
                                                                            from £2.42
                                                                            from £2.42
                                                                            # 006
                                                                            MPN: 61506500
                                                                            LOCK STRIKER COMPLETE
                                                                            from £27.11
                                                                            from £27.11
                                                                            # 007
                                                                            MPN: 95401152

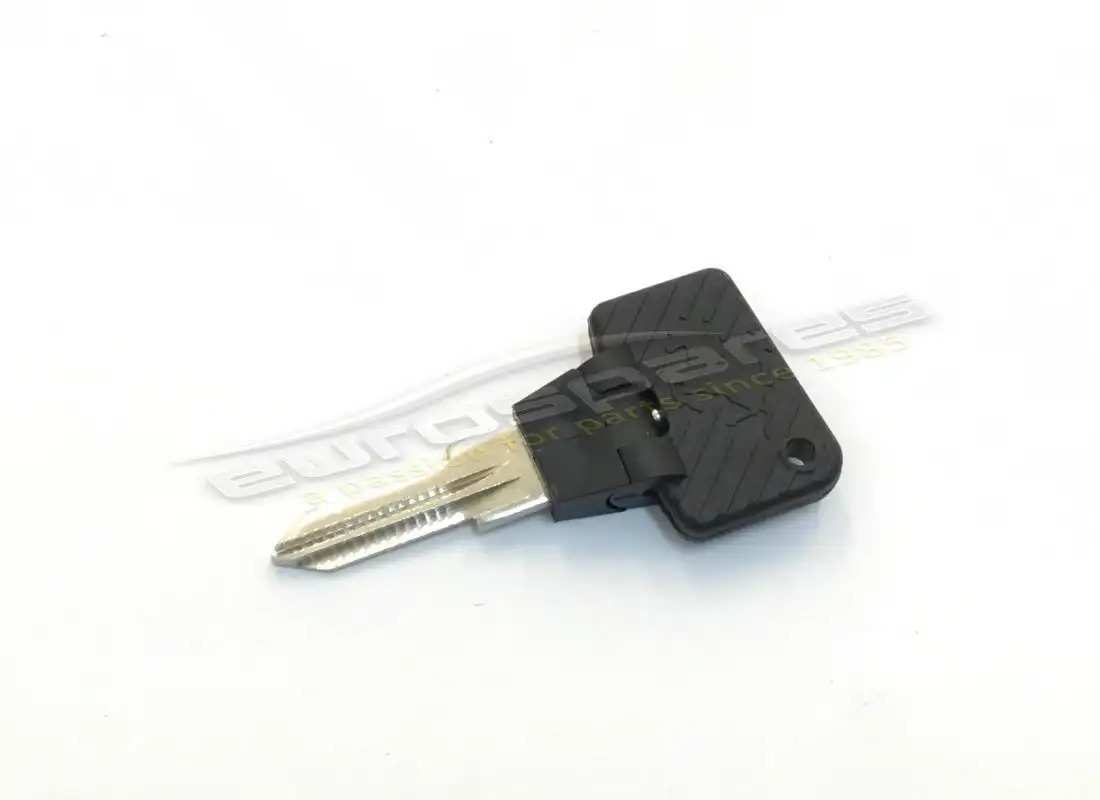

                                                                            BLANK KEY
                                                                            from £15.43
                                                                            from £15.43
                                                                            This part replaces part number 61507100
                                                                            # 008
                                                                            MPN: 61507200
                                                                            LOCK GASKET
                                                                            from £0.54
                                                                            from £0.54
                                                                            # 009
                                                                            MPN: 61507300
                                                                            ROD
                                                                            from £2.44
                                                                            from £2.44
                                                                            # 010
                                                                            MPN: 61507400
                                                                            SLEEVE
                                                                            from £0.51
                                                                            from £0.51
                                                                            # 011
                                                                            MPN: 12624101
                                                                            WASHER
                                                                            from £0.53
                                                                            from £0.53
                                                                            # 012
                                                                            MPN: 13271811
                                                                            SCREW
                                                                            from £1.08
                                                                            from £1.08
                                                                            # 013
                                                                            MPN: 62782800
                                                                            SPONGE
                                                                            from £0.56
                                                                            from £0.56
                                                                            # 014
                                                                            MPN: 10615274
                                                                            WASHER
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 10615270 - and 2 more. Click to view details
                                                                            # 015
                                                                            MPN: 61507600
                                                                            ROD
                                                                            from £9.39
                                                                            from £9.39
                                                                            # 016
                                                                            MPN: 14578180
                                                                            CLIP
                                                                            from £8.77
                                                                            from £8.77
                                                                            This part replaces part number 14578283 - and 1 more. Click to view details
                                                                            # 017
                                                                            MPN: 61507700
                                                                            LEVER
                                                                            from £0.39
                                                                            from £0.39
                                                                            # 018
                                                                            MPN: 62764500
                                                                            SPECIAL SCREW
                                                                            from £2.49
                                                                            from £2.49
                                                                            # 019
                                                                            MPN: 12541874
                                                                            WASHER
                                                                            from £1.14
                                                                            from £1.14
                                                                            # 020
                                                                            MPN: 61507800
                                                                            STRIKER PROTECTION
                                                                            from £5.83
                                                                            from £5.83

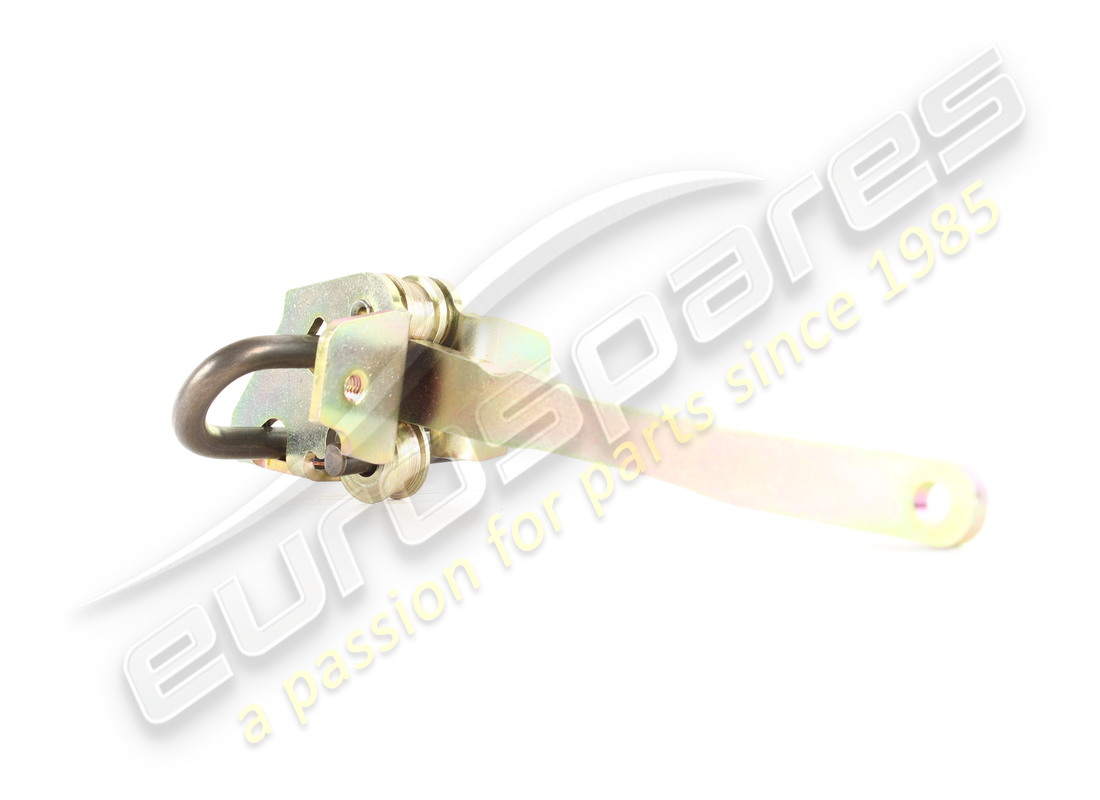

                                                                            # 021
                                                                            MPN: 63402500
                                                                            SECURITY ROD FOR DOOR
                                                                            from £137.82
                                                                            from £137.82
                                                                            # 022
                                                                            MPN: 63094700
                                                                            RH ROD
                                                                            from £28.81
                                                                            from £28.81
                                                                            # 022
                                                                            MPN: 63101600
                                                                            LH ROD
                                                                            from £23.60
                                                                            from £23.60
                                                                            # 023
                                                                            MPN: 63093500
                                                                            ROD
                                                                            from £24.09
                                                                            from £24.09

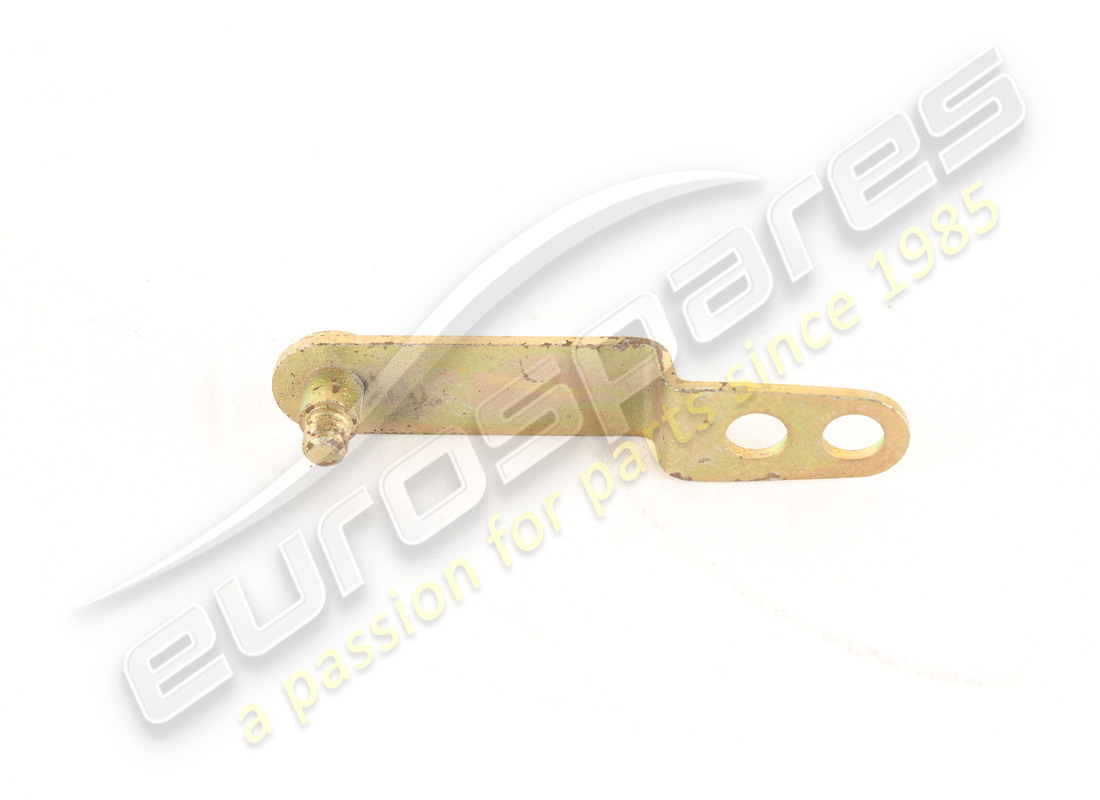

                                                                            # 024
                                                                            MPN: 61508100
                                                                            LEVER
                                                                            from £3.34
                                                                            from £3.34
                                                                            # 025
                                                                            MPN: 14084211
                                                                            NUT
                                                                            from £0.71
                                                                            from £0.71
                                                                            # 026
                                                                            MPN: 12643701
                                                                            WASHER
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 12643704 - and 1 more. Click to view details
                                                                            # 027
                                                                            MPN: 12574115
                                                                            NUT
                                                                            from £1.08
                                                                            from £1.08
                                                                            # 028
                                                                            MPN: 10977821
                                                                            SCREW
                                                                            Supersession
                                                                            Supersession
                                                                            # 029
                                                                            MPN: 150040
                                                                            LOCKING DEVICE
                                                                            from £483.75
                                                                            from £483.75
                                                                            # 031
                                                                            MPN: 148654
                                                                            BELOWS FOR ELECTRIC CABLES
                                                                            from £12.13
                                                                            from £12.13
                                                                            # 032
                                                                            MPN: 14578180
                                                                            SPRINGS
                                                                            from £9.82
                                                                            from £9.82
                                                                            This part replaces part number 14578283 - and 1 more. Click to view details
                                                                            # 033
                                                                            MPN: 14569680
                                                                            CLIP
                                                                            from £0.54
                                                                            from £0.54
                                                                            # 034
                                                                            MPN: 65859300
                                                                            ROD PIN
                                                                            from £9.42
                                                                            from £9.42
                                                                            This part replaces part number 60730200
                                                                            # 035
                                                                            MPN: 15210480
                                                                            SCREW
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 036
                                                                            MPN: 62790300
                                                                            NUT
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 12574011 - and 1 more. Click to view details
                                                                            # 037
                                                                            MPN: 63677900
                                                                            WASHER
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 038
                                                                            MPN: 13312970
                                                                            SCREW
                                                                            from £0.53
                                                                            from £0.53
                                                                            # 039
                                                                            MPN: 13577701
                                                                            WASHER
                                                                            from £0.53
                                                                            from £0.53
