112 - Door - Power Window

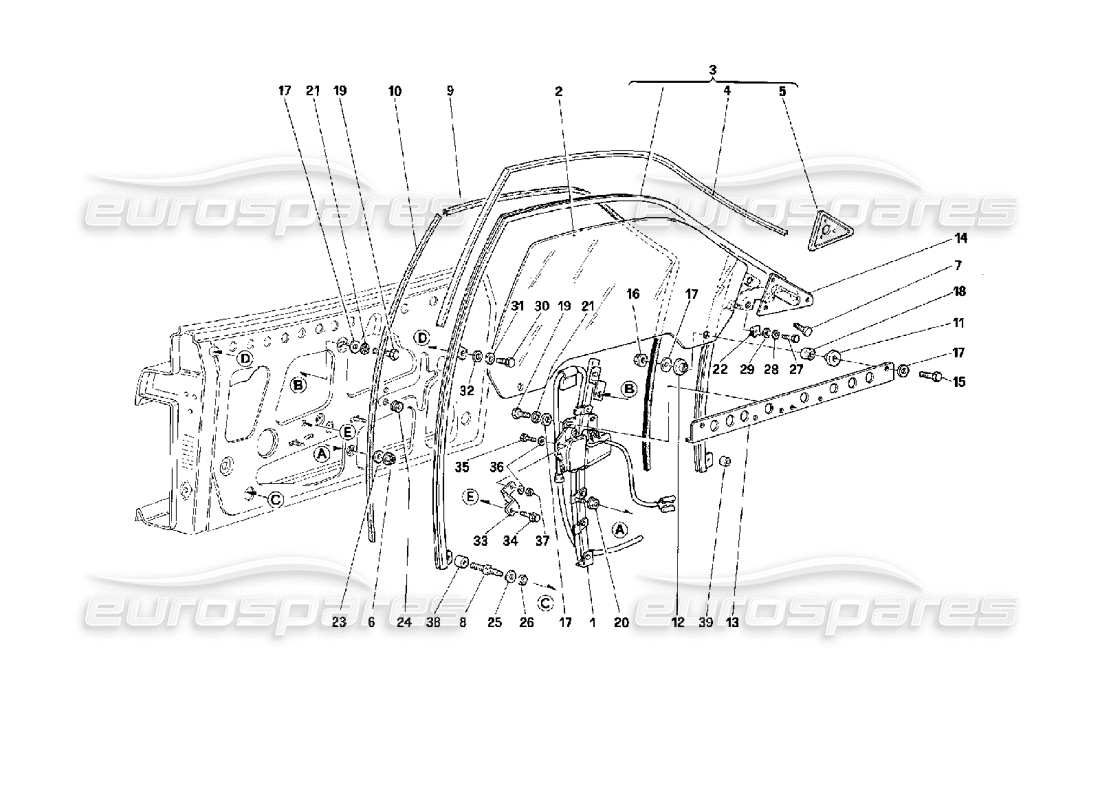

Ferrari 512 TR Door - Power Window Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 63096100
RH WINDOW REGULATOR
from £716.97
from £716.97
# 001
MPN: 63096200
LH WINDOW REGULATOR
from £1,984.50
from £1,984.50
# 002
MPN: 61533600
LH GLASS
from £282.58
from £282.58
This part replaces part number 61509000 - and 3 more. Click to view details
# 002
MPN: 61533700
RH GLASS
from £282.58
from £282.58
This part replaces part number 61508900 which we have in stock - and 2 more. Click to view details
# 003
MPN: 63057100
RH FRAME WORK COMPLETE
from £1,522.44
from £1,522.44
# 003
MPN: 63057200
LH FRAME WORK COMPLETE
from £2,186.42
from £2,186.42
# 004
MPN: 61548500
GASKET FOR RH DOOR
from £182.63
from £182.63
# 004
MPN: 61548600
GASKET FOR LH DOOR
from £965.79
from £965.79
# 005
MPN: 61573900
SUPPORT FOR RH EXTERNAL REAR VIEW MIRROR
from £233.38
from £233.38
# 005
MPN: 61574000
SUPPORT FOR LH EXTERNAL REAR VIEW MIRROR
from £233.38
from £233.38
# 006
MPN: 101139
NUT
from £0.54
from £0.54
This part replaces part number 16104425
# 007
MPN: 61568600
button
from £0.58
from £0.58
# 008
MPN: 62771300
COLUMN
from £5.76
from £5.76
# 009
MPN: 61509800
RUN CHANNEL
Supersession
Supersession
This part replaces part number 60509800 - and 1 more. Click to view details
# 010
MPN: 61509900
REAR RUN CHANNEL
Supersession
Supersession
# 011
MPN: 62106600
INNER BUSH
from £0.47
from £0.47
# 012
MPN: 62106700
EXTERNAL BUSH
from £0.47
from £0.47
# 013
MPN: 63108400
RH GLASS BASE
from £21.43
from £21.43
# 013
MPN: 63108500
LH GLASS BASE
from £20.41
from £20.41
# 014
MPN: 63111200
COVER TO FIX RH MIRROR
from £6.82
from £6.82
# 014
MPN: 63111300
COVER TO FIX LH MIRROR
from £6.36
from £6.36
# 015
MPN: 10902324
SCREW
from £0.53
from £0.53
This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
# 016
MPN: 12575411
NUT
Supersession
Supersession
# 017
MPN: 12643701
WASHER
Supersession
Supersession
This part replaces part number 12643704 - and 1 more. Click to view details
# 018
MPN: 62766200
BUSHING
from £6.44
from £6.44
# 019
MPN: 10902221
SCREW
from £0.54
from £0.54
# 020
MPN: 14084411
NUT
from £0.47
from £0.47
# 021
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 022
MPN: 62766300
SPRING
from £0.53
from £0.53
# 023
MPN: 10519624
WASHER
from £0.54
from £0.54
This part replaces part number 10519601 - and 3 more. Click to view details
# 024
MPN: 103549
CABLE GROMMET
from £0.69
from £0.69
# 025
MPN: 12640624
WASHER
from £0.53
from £0.53
This part replaces part number 12640601 - and 1 more. Click to view details
# 026
MPN: 13832101
NUT
from £0.53
from £0.53
# 027
MPN: 10902221
SCREW
from £0.54
from £0.54
# 028
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.52
from £0.52
This part replaces part number 10516470 - and 4 more. Click to view details
# 029
MPN: 12640624
WASHER
from £0.53
from £0.53
This part replaces part number 12640601 - and 1 more. Click to view details
# 030
MPN: 10902124
SCREW
from £0.53
from £0.53
This part replaces part number 10902111 - and 1 more. Click to view details
# 031
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 032
MPN: 12640624
WASHER
from £0.54
from £0.54
This part replaces part number 12640601 - and 1 more. Click to view details
# 033
MPN: 63951200
BRACKET
from £4.46
from £4.46
# 034
MPN: 13836371
SCREW
from £1.49
from £1.49
# 035
MPN: 10977511
SCREW
from £0.53
from £0.53
# 036
MPN: 12638101
WASHER
from £0.71
from £0.71
# 037
MPN: 12574115
NUT
from £1.08
from £1.08
# 038
MPN: 64536300
SPACER
from £1.14
from £1.14
# 039
MPN: 64536200
SPACER
from £1.51
from £1.51
