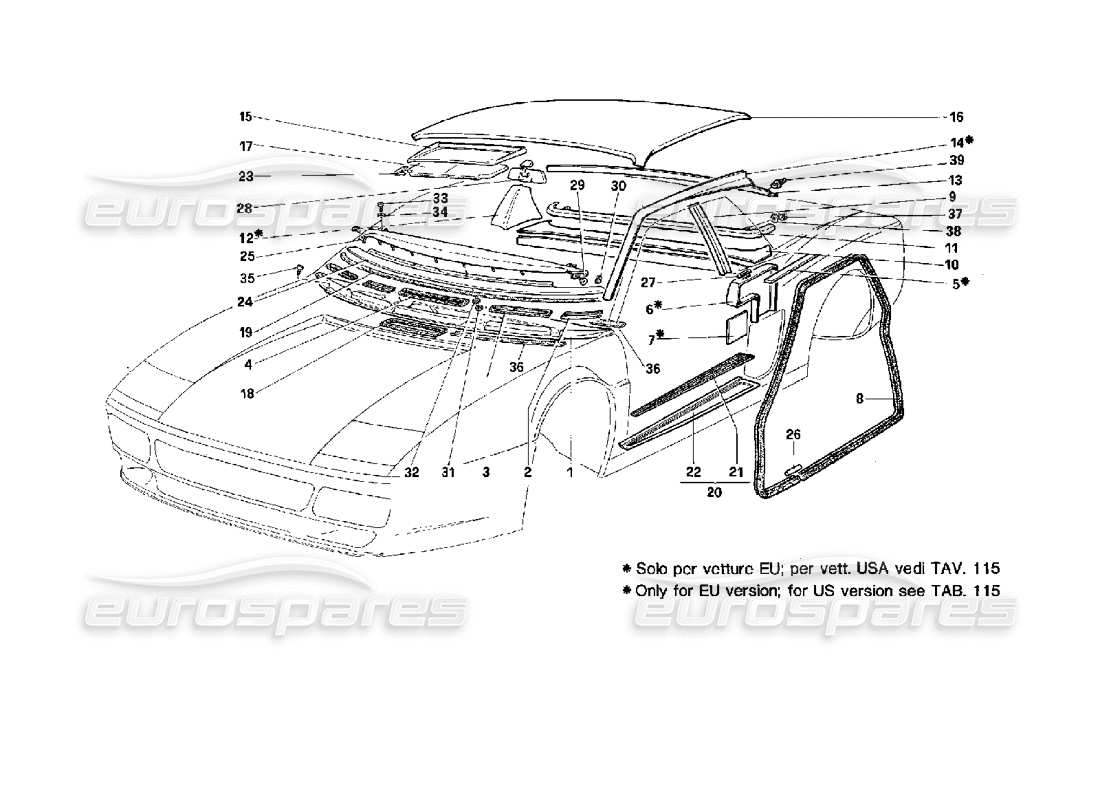

Ferrari 512 TR Accessories and Trims Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 63422000
AIR DELIVERY DUCT ASSY
-Valid for GD
from £285.24
from £285.24
# 001
MPN: 63422100
AIR DELIVERY DUCT ASSY
-Not for GD
from £236.49
from £236.49
# 002
MPN: 63089400
EXTERNAL SIDE GASKET
from £5.35
from £5.35
# 003
MPN: 63089300
INTERNAL SIDE GASKET
from £4.59
from £4.59
# 004
MPN: 63089200
CENTRAL GASKET
from £2.61
from £2.61
# 005
MPN: 615124..
RH SIDE TRIM
-Not for USA - See note
Supersession
Supersession
# 005
MPN: 615125..
LH SIDE TRIM
-Not for USA - See note
Supersession
Supersession
# 006
MPN: 615126..
RH SIDE REAR PANEL
-Not for USA - See note
Supersession
Supersession
# 006
MPN: 615127..
LH SIDE REAR PANEL
-Not for USA - See note
Supersession
Supersession
# 007
MPN: 615128..
RH SIDE PANEL
-Not for USA - See note
Supersession
Supersession
# 007
MPN: 615129..
LH SIDE PANEL
-Not for USA - See note
Supersession
Supersession
# 008
MPN: 61528200

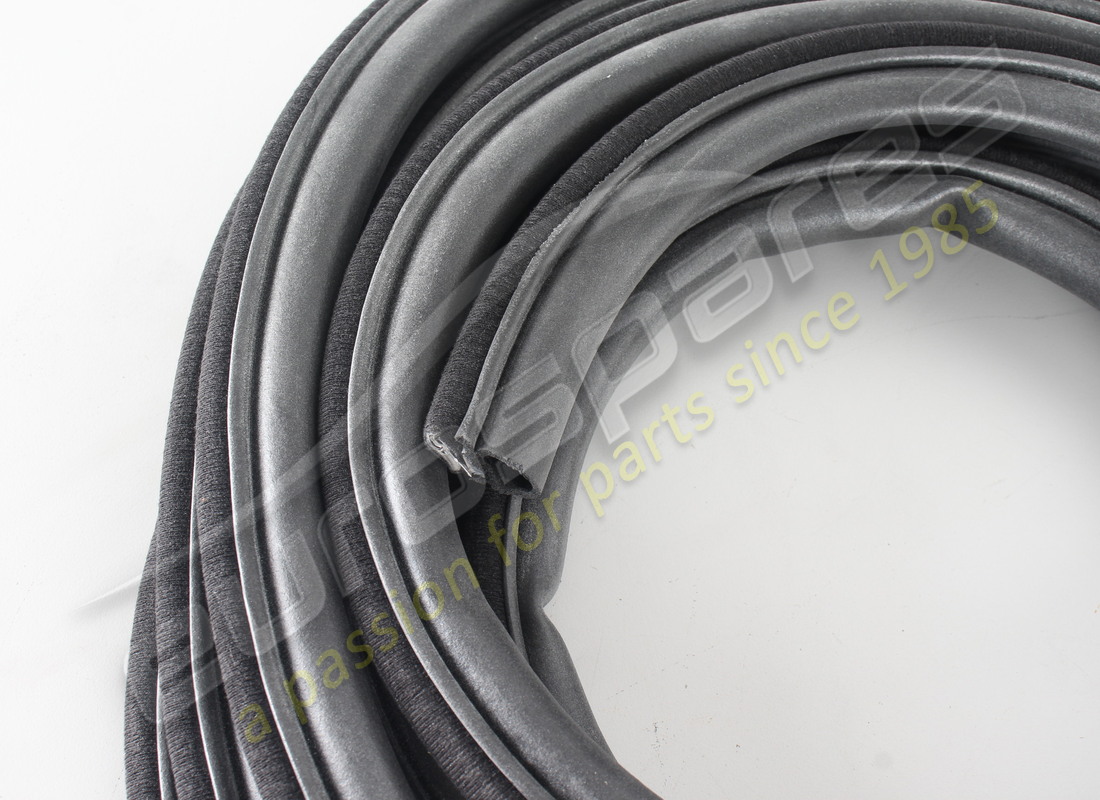

DOOR GASKET
from £105.00
from £105.00
# 009
MPN: 615132..
TRIM FOR RH CENTRAL FENDER
-Not for USA
Supersession
Supersession
# 009
MPN: 615133..
TRIM FOR LH CENTRAL FENDER
-Not for USA
Supersession
Supersession
# 009
MPN: 61556512
TRIM FOR RH CENTRAL FENDER
-Valid for USA
from £105.26
from £105.26
This part replaces part number 61556500
# 009
MPN: 61556612
TRIM FOR LH CENTRAL FENDER
-Valid for USA
Supersession
Supersession
# 010
MPN: 615134..
REAR WINDOW PLANE
Supersession
Supersession
# 011
MPN: 615135..
REAR WINDOW LOWER TRIM
Supersession
Supersession
# 012
MPN: 615136..
TRIM FOR RH REAR FENDER
-Not for USA - See note
Supersession
Supersession
# 012
MPN: 615137..
TRIM FOR LH REAR FENDER
-Not for USA - See note
Supersession
Supersession
# 013
MPN: 615138..
REAR WINDOW UPPER TRIM
-Not for USA
Supersession
Supersession
# 013
MPN: 615567..
REAR WINDOW UPPER TRIM
-Valid for USA
Supersession
Supersession
# 014
MPN: 615139..
TRIM FOR RH ROOF SIDE
Supersession
Supersession
# 014
MPN: 615140..
TRIM FOR LH ROOF SIDE
-Not for USA - See note
Supersession
Supersession
# 015
MPN: 615143..
RH UPPER WINDSHIELD TRIM
Supersession
Supersession
# 015
MPN: 615144..
LH UPPER WINDSHIELD TRIM
Supersession
Supersession
# 016
MPN: 615145..
INNER ROOF
Supersession
Supersession
# 017
MPN: 61514604

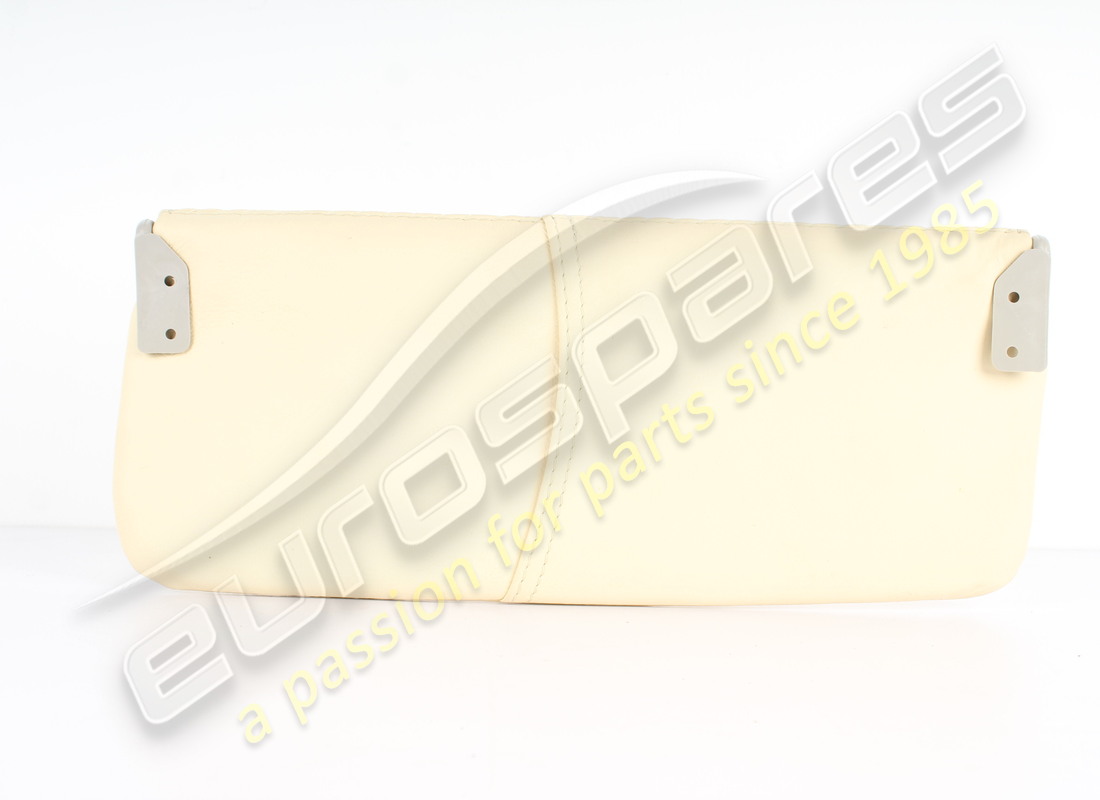

RH SUN VISOR
(cream)
from £133.25
from £133.25
# 017
MPN: 615147..
LH SUN VISOR
Supersession
Supersession
# 018
MPN: 63089500
GASKET FOR CONDITION
from £12.25
from £12.25
# 019
MPN: 62764400
GASKET
from £4.72
from £4.72
# 020
MPN: 63074000

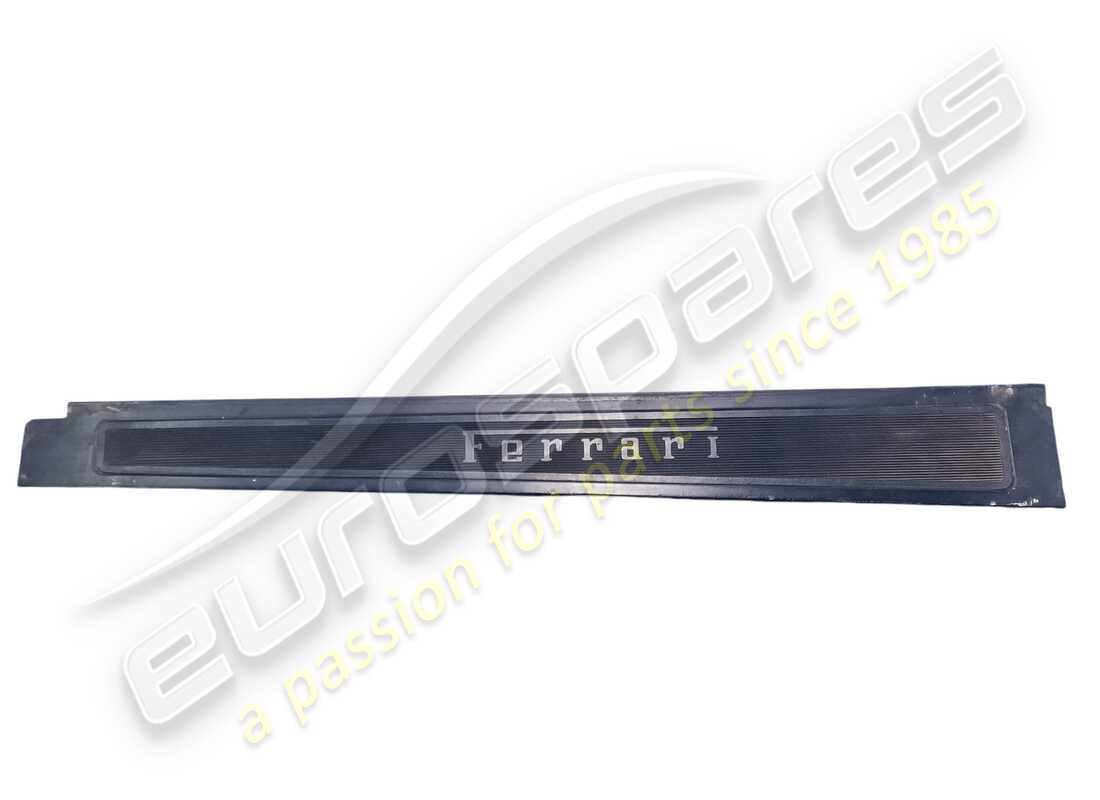

RH UNDERDOOR MOULDING, COMPLETE
from £815.22
from £815.22
This part replaces part number 61515300
# 020
MPN: 63074100
LH UNDERDOOR MOULDING, COMPLETE
from £463.32
from £463.32
This part replaces part number 61515400 - and 1 more. Click to view details
# 021
MPN: 61515100

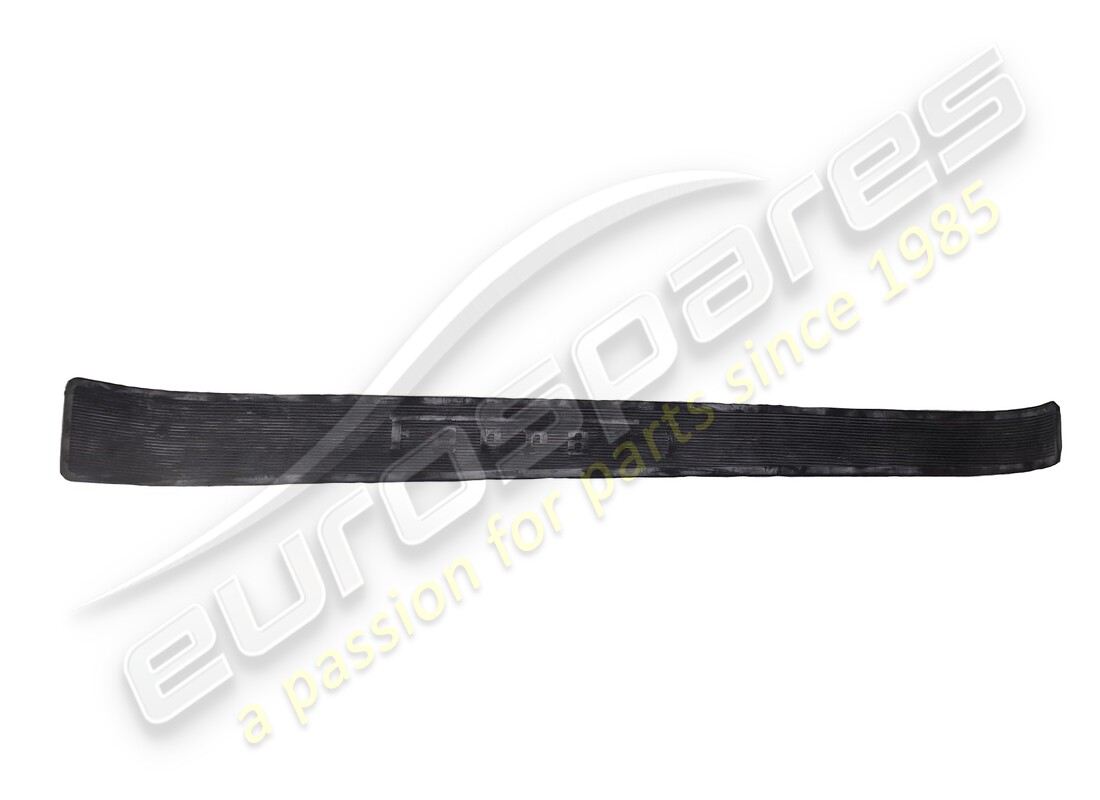

RUBBER INSERT FOR RH UNDERDOOR MOULDING
from £112.36
from £112.36
# 021
MPN: 61515200
RUBBER INSERT FOR LH UNDERDOOR MOULDING
from £260.52
from £260.52
# 022
MPN: 61514900
FRAME FOR RH UNDERDOOR MOULDING
from £394.52
from £394.52
# 022
MPN: 61515000
FRAME FOR LH UNDERDOOR MOULDING
from £298.95
from £298.95
# 023
MPN: 61515500
RH SUN VISOR SUPPORT
from £19.73
from £19.73
# 023
MPN: 61515600
LH SUN VISOR SUPPORT
from £19.73
from £19.73
# 024
MPN: 63116200
LOWER TRIM FOR FRONT WINDSHIELD
-Not for GD
from £63.24
from £63.24
# 024
MPN: 63116700
LOWER TRIM FOR FRONT WINDSHIELD
-Valid for GD
from £87.56
from £87.56
# 025
MPN: 631161..
LOWER TRIM FOR REAR WINDSHIELD
Supersession
Supersession
# 026
MPN: 62781300
CONNECTION TUBE
from £32.04
from £32.04
# 027
MPN: 63443200
SEAT BELTS FRAME
-Not for USA
from £28.17
from £28.17
# 028
MPN: 61548200
INNER REAR VIEW MIRROR
Supersession
Supersession
# 029
MPN: 62781000
BUSH
from £0.83
from £0.83
# 030
MPN: 62770200
SPRING
from £0.47
from £0.47
# 031
MPN: 15896470
NUT
(minimum order quantity = 20)
from £0.77
from £0.77
This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
# 032
MPN: 12638178
WASHER
from £0.47
from £0.47
This part replaces part number 10519578 which we have in stock - and 3 more. Click to view details
# 033
MPN: 14778818

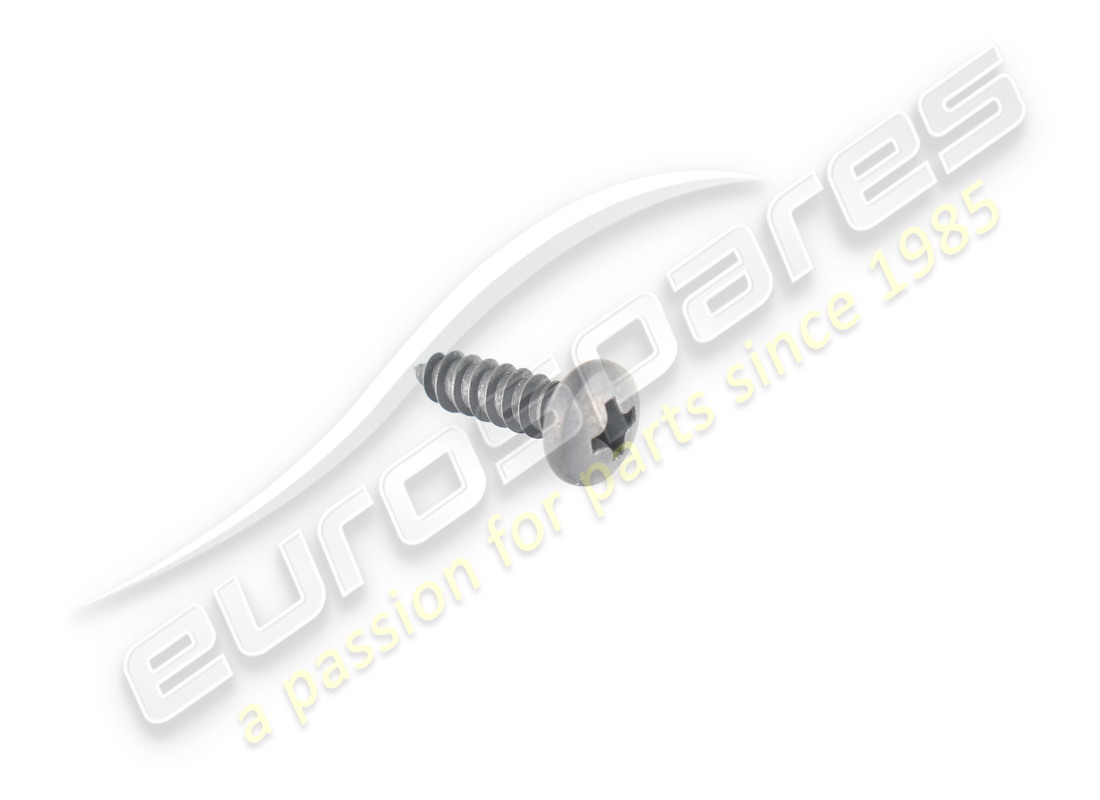

SCREW
Supersession
Supersession
# 034
MPN: 10615670
WASHER
from £0.47
from £0.47
# 035
MPN: 15688375
SCREW
(minimum order quantity = 30)
from £0.52
from £0.52
This part replaces part number 15688306 which we have in stock
# 036
MPN: 62660300
GASKET
from £7.06
from £7.06
# 037
MPN: 14084011
NUT
from £0.53
from £0.53
# 038
MPN: 12642801
WASHER
from £0.54
from £0.54
This part replaces part number 12642824
# 039
MPN: 14187980
REAR TRIM FIX. PIN
-Valid for J
from £0.71
from £0.71
# 039
MPN: 63404400
REAR TRIM FIX. PIN
-Not for J
from £0.47
from £0.47
