125 - Electric System

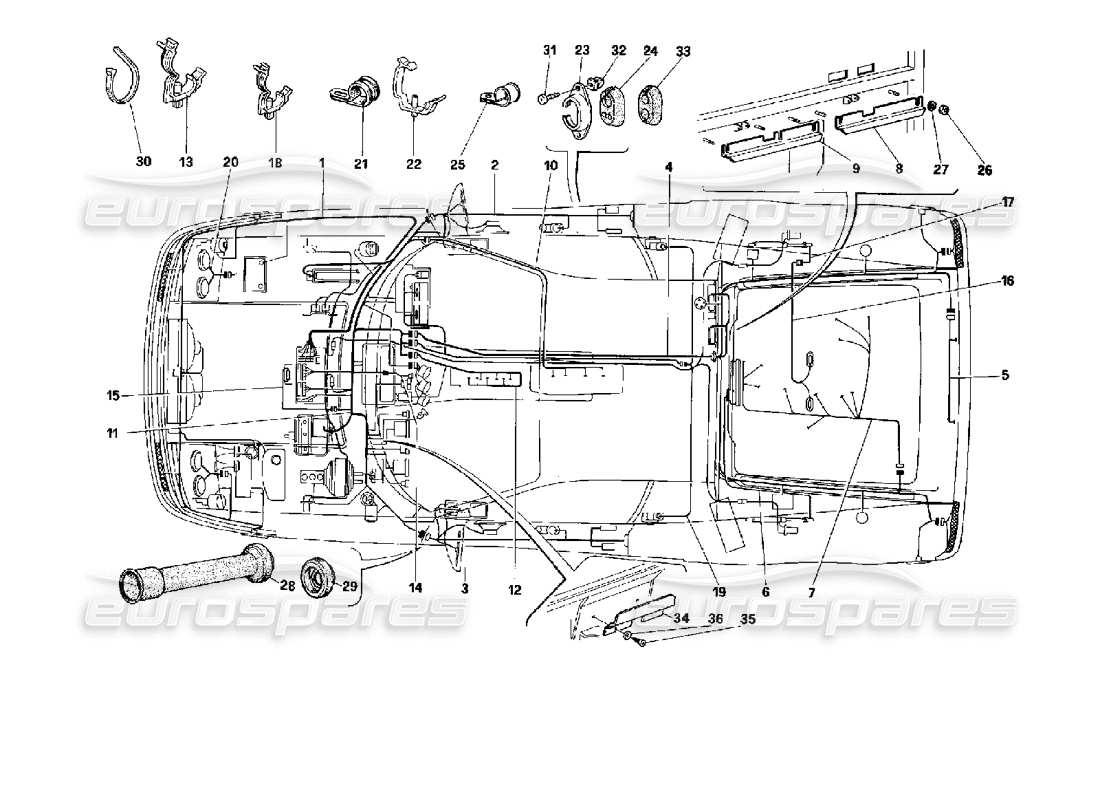

Ferrari 512 TR Electric System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 139095
AMP CONNECTOR
from £0.99
from £0.99
# 001
MPN: 147193
FRONT CABLES
- Valid for USA and CDN - Not for cars with ABS
from £321.92
from £321.92
# 001
MPN: 149620
FRONT CABLES
- Not for USA, CDN, J, GD - Not for cars with ABS
from £298.83
from £298.83
# 001
MPN: 150536
FRONT CABLES
- Valid for RHD with ABS
from £311.07
from £311.07
# 001
MPN: 151568
FRONT CABLES
- Valid for J with ABS
from £308.70
from £308.70
# 001
MPN: 152271
FRONT CABLES
- Valid for USA and CDN with ABS
from £306.60
from £306.60
# 001
MPN: 152272
FRONT CABLES
- Not for USA, CDN, J, GD - Valid for cars with ABS
from £271.65
from £271.65
# 001
MPN: 152656
FRONT CABLES
- Valid for RHD - Not for cars with ABS
from £700.25
from £700.25
# 001
MPN: 152806
FRONT CABLES
- Valid for J - Not for cars with ABS
from £440.83
from £440.83
# 002
MPN: 147199
CABLES FOR DOOR RH SIDE
- Not for RHD
from £181.53
from £181.53
# 002
MPN: 150598
CABLES FOR DOOR RH SIDE
- Valid for RHD
from £170.41
from £170.41
# 003
MPN: 147198
CABLES FOR DOOR LH SIDE
- Not for RHD
from £103.64
from £103.64
# 003
MPN: 150599
CABLES FOR DOOR LH SIDE
- Valid for RHD
from £152.51
from £152.51
# 004
MPN: 147195
REAR CABLES
- Valid for USA - Valid for cars With generator 147220 - See ref. 1 draw. 52
from £765.44
from £765.44
# 004
MPN: 149622
REAR CABLES
- Not for USA, CDN, CH, SA, J, GB, ZA, AUS - Valid for cars With generator 147220 - See ref. 1 draw. 52
from £702.23
from £702.23
# 004
MPN: 151124
REAR CABLES
- Valid for GB and ZA - Valid for cars With generator 147220 - See ref. 1 draw. 52
from £600.97
from £600.97
# 004
MPN: 151193
REAR CABLES
- Valid for CDN - Valid for cars With generator 147220 - See ref. 1 draw. 52
from £660.00
from £660.00
# 004
MPN: 151263
REAR CABLES
- See ref. 1 draw. 53 - Valid for J - Valid for cars With generator 147220 - See ref. 1 draw. 52
from £600.97
from £600.97
# 004
MPN: 151272
REAR CABLES
- Valid for AUS - Valid for cars With generator 147220 - See ref. 1 draw. 52
from £694.06
from £694.06
# 004
MPN: 153004
REAR CABLES
- See ref. 1 draw. 53 - Valid for SA - Valid for cars With generator 147220 - See ref. 1 draw. 52
from £408.97
from £408.97
# 004
MPN: 153627
REAR CABLES
- Valid for CH - Valid for cars With generator 147220 - See ref. 1 draw. 52
from £571.59
from £571.59
# 004
MPN: 154253
REAR CABLES
- Not for USA, CDN, CH, SA, J, GB, ZA, AUS - Valid for cars With generator 154153 - See ref. 1 draw. 53
from £641.48
from £641.48
# 004
MPN: 154255
REAR CABLES
- Valid for USA - Valid for cars With generator 154153 - See ref. 1 draw. 53
from £644.99
from £644.99
# 004
MPN: 154257
REAR CABLES
- Valid for GB and ZA - Valid for cars With generator 154153 - See ref. 1 draw. 53
from £632.97
from £632.97
# 004
MPN: 154259
REAR CABLES
- Valid for AUS - Valid for cars With generator 154153 - See ref. 1 draw. 53
from £680.26
from £680.26
# 004
MPN: 154261
REAR CABLES
- Valid for J - Valid for cars With generator 154153 - See ref. 1 draw. 53
from £575.89
from £575.89
# 004
MPN: 154263
REAR CABLES
- Valid for SA - Valid for cars With generator 154153
from £631.35
from £631.35
# 004
MPN: 154265
REAR CABLES
- Valid for CH - Valid for cars With generator 154153
from £642.46
from £642.46
# 004
MPN: 154267
REAR CABLES
- Valid for CDN - Valid for cars With generator 154153 - See ref. 1 draw. 53
from £648.88
from £648.88
# 005
MPN: 148119
CABLES FOR NUMBER PLATE LIGHTING
- Valid till depletion
Supersession
Supersession
# 005
MPN: 152892
CABLES FOR NUMBER PLATE LIGHTING
- Valid after depletion of 148119
from £25.57
from £25.57
This part replaces part number 148119
# 006
MPN: 150059
CABLE FOR FURTHER STOP LIGHT
- Valid for USA, CDN, AUS
from £14.32
from £14.32
# 007
MPN: 147201
ENGINE CABLES
- Valid for cars With generator 147220 - See ref. 1 draw. 52
from £153.75
from £153.75
# 007
MPN: 154251
ENGINE CABLES
- Valid for cars With generator 154153 - See ref. 1 draw. 53
from £244.98
from £244.98
# 008
MPN: 149926
RH CABLES PROTECTION
from £19.66
from £19.66
# 009
MPN: 149925
LH CABLES PROTECTION
from £31.64
from £31.64
# 010
MPN: 147200
CABLES FOR ROOF LAMPS CONNECTION
- Valid for USA, CDN, SA, J
from £117.21
from £117.21
# 010
MPN: 149623
CABLES FOR ROOF LAMPS CONNECTION
- Not for USA, CDN, SA, J
from £81.76
from £81.76
# 011
MPN: 147194
DASHBOARD CABLES
- Valid for USA - Not for cars with ABS - Valid for switch 61503300 (Ref. 35 draw. 110)
from £1,052.41
from £1,052.41
# 011
MPN: 149621
DASHBOARD CABLES
- Not for USA, CDN, SA, J and GD - Not for cars with ABS - Valid for switch 61503300 - (Ref. 35 draw. 110)
from £700.36
from £700.36
# 011
MPN: 150537
DASHBOARD CABLES
- Valid for GD - Valid for AUS - Not for cars with ABS - Valid for switch 61503300 - (Ref. 35 draw. 110)
from £1,308.85
from £1,308.85
# 011
MPN: 150624
DASHBOARD CABLES
- Not for USA, CDN, CH, SA, J and GD - Valid for cars with ABS
from £1,371.72
from £1,371.72
# 011
MPN: 151091
DASHBOARD CABLES
- Valid for GD - Valid for AUS - Valid for cars with ABS
from £1,367.74
from £1,367.74
# 011
MPN: 151192
DASHBOARD CABLES
- Valid for CDN - Valid for cars with ABS
from £1,335.43
from £1,335.43
# 011
MPN: 151262
DASHBOARD CABLES
- Valid for SA and J - Valid for cars with ABS
from £1,341.68
from £1,341.68
# 011
MPN: 151666
DASHBOARD CABLES
from £1,367.74
from £1,367.74
# 011
MPN: 152685
DASHBOARD CABLES
- Valid for USA - Valid for cars with ABS
from £1,371.72
from £1,371.72
# 011
MPN: 152807
DASHBOARD CABLES
- Valid for SA and J - Not for cars with ABS - Valid for switch 61503300 - (Ref. 35 draw. 110)
from £1,329.59
from £1,329.59
# 011
MPN: 152810
DASHBOARD CABLES
- Valid for CDN - Not for cars with ABS - Valid for switch 61503300 (Ref. 35 draw. 110)
from £1,278.24
from £1,278.24
# 011
MPN: 153167
DASHBOARD CABLES
- Valid for AUS - Not for cars with ABS - Valid for switch 61503300 (Ref. 35 draw. 110)
from £1,329.59
from £1,329.59
# 011
MPN: 153281
DASHBOARD CABLES
- Valid for USA - Not for cars with ABS - Valid for switch 153069 (Ref. 35 draw. 110)
from £978.68
from £978.68
# 011
MPN: 153303
DASHBOARD CABLES
- Not for USA, CDN, CH, SA, J and GD - Not for cars with ABS - Valid for switch 153069 (Ref. 35 draw. 110)
from £969.29
from £969.29
# 011
MPN: 153309
DASHBOARD CABLES
- Valid for CDN - Not for cars with ABS - Valid for switch 153069 (Ref. 35 draw. 110)
from £1,032.66
from £1,032.66
# 011
MPN: 153311
DASHBOARD CABLES
- Valid for GD - Valid for AUS - Not for cars with ABS - Valid for switch 153069 (Ref. 35 draw. 110)
from £921.77
from £921.77
# 011
MPN: 153313
DASHBOARD CABLES
- Valid for SA and J - Not for cars with ABS - Valid for switch 153069 - (Ref. 35 draw. 110)
from £1,032.66
from £1,032.66
# 011
MPN: 153315
DASHBOARD CABLES
- Valid for AUS - Not for cars with ABS - Valid for switch 153069 (Ref. 35 draw. 110)
from £1,051.66
from £1,051.66
# 011
MPN: 154197
DASHBOARD CABLES
- Valid for CH - Not for cars with ABS
from £1,064.88
from £1,064.88
# 011
MPN: 154292
DASHBOARD CABLES
- Valid for CH - Valid for cars with ABS
from £1,411.23
from £1,411.23
# 012
MPN: 147196
CONSOLE CABLES
- Valid for AUS - Valid for cars with ABS
from £302.04
from £302.04
# 013
MPN: 157386
RETAINER SPRING
from £0.52
from £0.52
# 014
MPN: 153142
CAR RADIO CABLES
from £118.87
from £118.87
This part replaces part number 143378 which we have in stock
# 015
MPN: 148483
CABLES FOR CENTRAL PANEL ROOF LAMP
from £11.29
from £11.29
# 016
MPN: 150056
CABLE FOR ENGINE ROOM ROOF LAMP
from £19.90
from £19.90
# 017
MPN: 150058
CABLE FOR ENGINE ROOM ROOF LAMP SWITCH
from £76.32
from £76.32
# 018
MPN: 157385
SPRING
from £0.49
from £0.49
# 019
MPN: 148130
PASSIVE BELTS CONNECTION CABLES
- Valid for USA
from £257.30
from £257.30
# 020
MPN: 148362
TRAFFIC/DRIVING HEADLIGHT CABLES
- Valid for USA, CDN, J
from £24.72
from £24.72
# 020
MPN: 151704
TRAFFIC/DRIVING HEADLIGHT CABLES
- Not for USA, CDN, J
from £131.14
from £131.14
# 021
MPN: 10441690
CLAMP Ø 18
from £1.07
from £1.07
This part replaces part number 1044690
# 021
MPN: 10450390
CLAMP Ø 14
from £0.69
from £0.69
# 022
MPN: 149773
CLIP
from £0.53
from £0.53
# 022
MPN: 60991000
CLIP
from £0.51
from £0.51
# 022
MPN: 61681500
CLIP
from £0.47
from £0.47
# 023
MPN: 139943
GASKET PROTECTION
from £41.90
from £41.90
# 024
MPN: 139944
GASKET
from £7.17
from £7.17
# 025
MPN: 10418301
CLAMP (Ø 8 MM)
from £0.54
from £0.54
# 025
MPN: 10418401
CLAMP (Ø 12 MM)
from £1.55
from £1.55
# 025
MPN: 10418501
CLAMP (Ø 10 MM)
from £1.08
from £1.08
# 025
MPN: 10418801
CLAMP (Ø 16 MM)
from £0.47
from £0.47
# 025
MPN: 10420301
CLAMP (Ø 4 MM)
from £3.08
from £3.08
# 026
MPN: 12575411
NUT
Supersession
Supersession
# 027
MPN: 12643701
WASHER
Supersession
Supersession
This part replaces part number 12643704 - and 1 more. Click to view details
# 028
MPN: 149042
CABLE BUSHING FOR DOOR CABLES
from £3.10
from £3.10
# 029
MPN: 149043
CABLE BUSHING
from £3.49
from £3.49
# 030
MPN: 145855
CLAMP
from £0.53
from £0.53
This part replaces part number 14560287 - and 1 more. Click to view details
# 031
MPN: 15517201
SCREW
from £0.53
from £0.53
# 032
MPN: 14211686
SCREW BLOCK
from £0.47
from £0.47
# 033
MPN: 151298
CABLE GROMMET GASKET
from £6.31
from £6.31
# 034
MPN: 63403400
CABLE PROTECTION PLATE
from £9.77
from £9.77
# 035
MPN: 15687675
SCREW
See also 15687978
# 035
MPN: 15687978
SCREW
Supersession
Supersession
# 036
MPN: 12642801
WASHER
from £0.54
from £0.54
This part replaces part number 12642824
