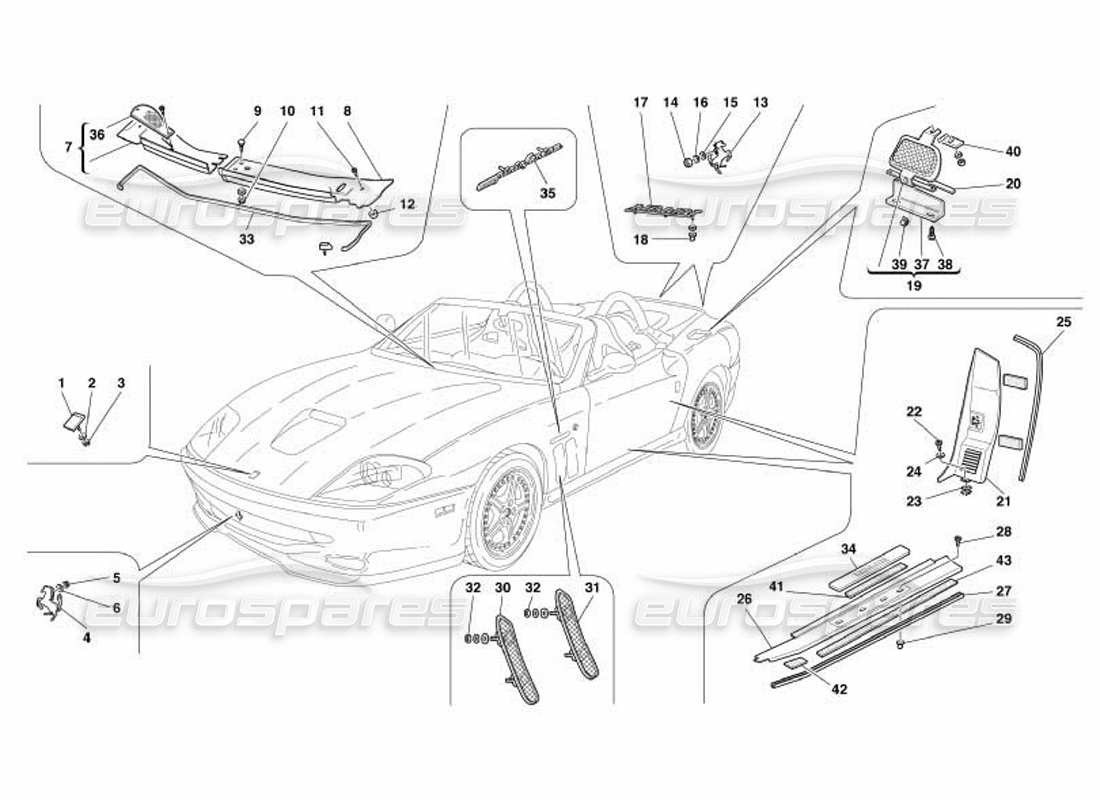

Ferrari 550 Barchetta Outside Finishings Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 62673100
FRONT ORNAMENT
from £117.21
from £117.21
# 002
MPN: 12638124
WASHER
from £0.54
from £0.54
This part replaces part number 12638101 which we have in stock - and 1 more. Click to view details
# 003
MPN: 113647
NUT
Not as spare part now - Replaced by 64449900
from £0.54
from £0.54
# 003
MPN: 64449900
NUT
from £4.42
from £4.42

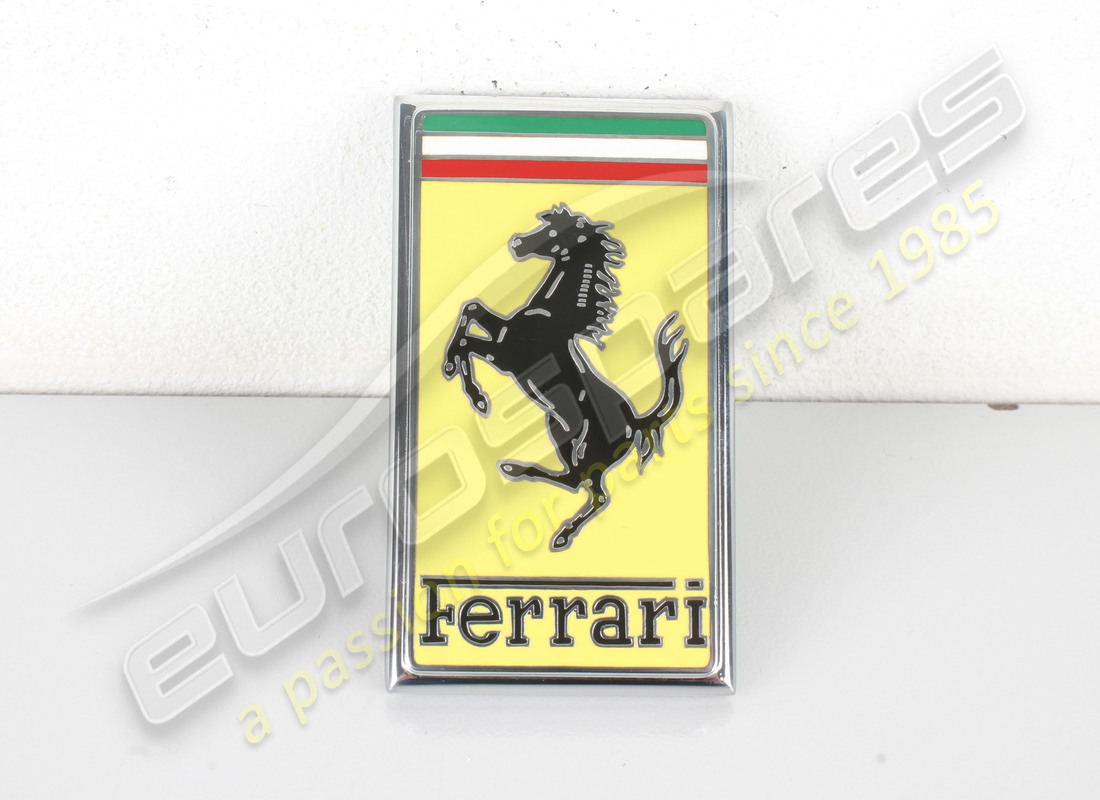

# 004
MPN: 60032109
CAVALLINO RAMPANTE
(75mm x 50mm)
from £33.60
from £33.60
This part replaces part number 253-44-302-02 which we have in stock - and 3 more. Click to view details
# 005
MPN: 16101715
NUT
(minimum order quantity = 20)
Supersession
Supersession
# 006
MPN: 12605074
WASHER
from £0.71
from £0.71
# 007
MPN: 64789200
RH OUTER MOLDING
Not for GD
from £141.08
from £141.08
# 007
MPN: 65241700
RH OUTER MOLDING
Valid for GD
from £220.18
from £220.18
# 008
MPN: 64948500
LH OUTER MOLDING
Not for GD
from £210.00
from £210.00
# 008
MPN: 65241900
LH OUTER MOLDING
Valid for GD
from £220.18
from £220.18
# 009
MPN: 15965814
SCREW
from £1.58
from £1.58
# 010
MPN: 159601
NUT
from £0.54
from £0.54
This part replaces part number 12578121
# 011
MPN: 15908470
SCREW
from £1.18
from £1.18
# 012
MPN: 62765000
NUT SCREW
from £1.14
from £1.14
# 013
MPN: 63233900
CHROME HORSE
(113mm x 76mm)
from £48.50
from £48.50
This part replaces part number 50097202 - and 2 more. Click to view details
# 014
MPN: 62790300
NUT
from £0.53
from £0.53
This part replaces part number 12574011 - and 1 more. Click to view details
# 015
MPN: 60995100
RUBBER RING
from £1.83
from £1.83
# 016
MPN: 10519224
WASHER
from £0.54
from £0.54
This part replaces part number 10519201 which we have in stock
# 017
MPN: 63482200
Ferrari SCRIPT
Light Alloy type - 3 Pin
from £25.76
from £25.76
# 018
MPN: 60324506
CLIP
from £1.52
from £1.52
This part replaces part number 62773000
# 019
MPN: 65236400
COMPLETE AIR INTAKE GRILLE
from £35.30
from £35.30
This part replaces part number 64650200 - and 1 more. Click to view details
# 019
MPN: 66582100
COMPLETE AIR INTAKE GRILLE
Not as spare part now - Replaced by 65236400
Supersession
Supersession
# 020
MPN: 65248400
GASKET
from £2.31
from £2.31
# 021
MPN: 64557500
COVER FOR RH DOOR STRIP
from £38.26
from £38.26
# 021
MPN: 64557600
COVER FOR LH DOOR STRIP
from £30.73
from £30.73
# 022
MPN: 15687270
SCREW
Not as spare part now - Replaced by 16083501
from £0.54
from £0.54
This part replaces part number 15642670
# 022
MPN: 16083501
SCREW
from £0.53
from £0.53
# 023
MPN: 14211580
NUT SCREW
Supersession
Supersession
# 024
MPN: 10519378
WASHER
from £0.54
from £0.54
This part replaces part number 10519377 which we have in stock - and 2 more. Click to view details
# 025
MPN: 65182400
RH GASKET
from £48.46
from £48.46
# 025
MPN: 65182500
LH GASKET
from £48.46
from £48.46
# 026
MPN: 65595900
RH KICK PLATE
Not as spare part now - Replaced by 65596700 and 65599700
from £738.26
from £738.26
# 026
MPN: 65596000
LH KICK PLATE
Not as spare part now - Replaced by 65596800 and 65599700
from £738.26
from £738.26
# 026
MPN: 65596700
RH KICK PLATE
- Carbon - Optional
from £443.06
from £443.06
RH KICK PLATE Genuine Ferrari Part - Used In stock
some light scratches (sold as a pair 65596700 and 65596800)
some light scratches (sold as a pair 65596700 and 65596800)
# 026
MPN: 65596800
LH KICK PLATE
- Carbon - Optional
from £243.68
from £243.68
# 027
MPN: 64787700
GASKET
from £50.17
from £50.17
# 028
MPN: 62564800
SCREW
from £1.62
from £1.62
# 029
MPN: 14211580
NUT SCREW
Supersession
Supersession
# 030
MPN: 64656800
RH FRONT GRILL
from £131.84
from £131.84
# 030
MPN: 64656900
LH FRONT GRILL
from £75.85
from £75.85
# 031
MPN: 64657000
RH REAR GRILL
from £91.11
from £91.11
# 031
MPN: 64657100
LH REAR GRILL
from £91.11
from £91.11
# 032
MPN: 14059111
NUT
from £0.47
from £0.47
# 033
MPN: 64718700
RUBBER GASKET
from £64.39
from £64.39
# 034
MPN: 65599700
KICK PLATE ALLUMINIUM CARPET SHIELD
from £102.95
from £102.95
# 035
MPN: 64780500
PININFARINA ORNAMENT
from £32.05
from £32.05
# 036
MPN: 63897800
POLLEN FILTER
Not for GD
from £65.10
from £65.10
This part replaces part number 63869800
# 036
MPN: 64241800
POLLEN FILTER
Valid for GD
from £59.63
from £59.63
# 037
MPN: 65214500
DEFLECTOR
from £6.24
from £6.24
# 038
MPN: 15689675
SCREW
from £0.71
from £0.71
# 039
MPN: 60646900
CLIP
from £0.53
from £0.53
# 040
MPN: 65263800
SMALL PLATE
mm. 1,0
from £0.58
from £0.58
# 040
MPN: 65263900
SMALL PLATE
mm. 1,5
from £0.58
from £0.58
# 040
MPN: 65269000
SMALL PLATE
mm. 3,0
from £0.67
from £0.67
# 041
MPN: 65357500
ANTI-VIBRATION GASKET
from £1.56
from £1.56
# 042
MPN: 65357600
ANTI-VIBRATION GASKET
from £4.33
from £4.33
# 043
MPN: 62765800
ANTI-VIBRATIONS
from £0.84
from £0.84
