013 - Fuel Tank Insulation and Protection

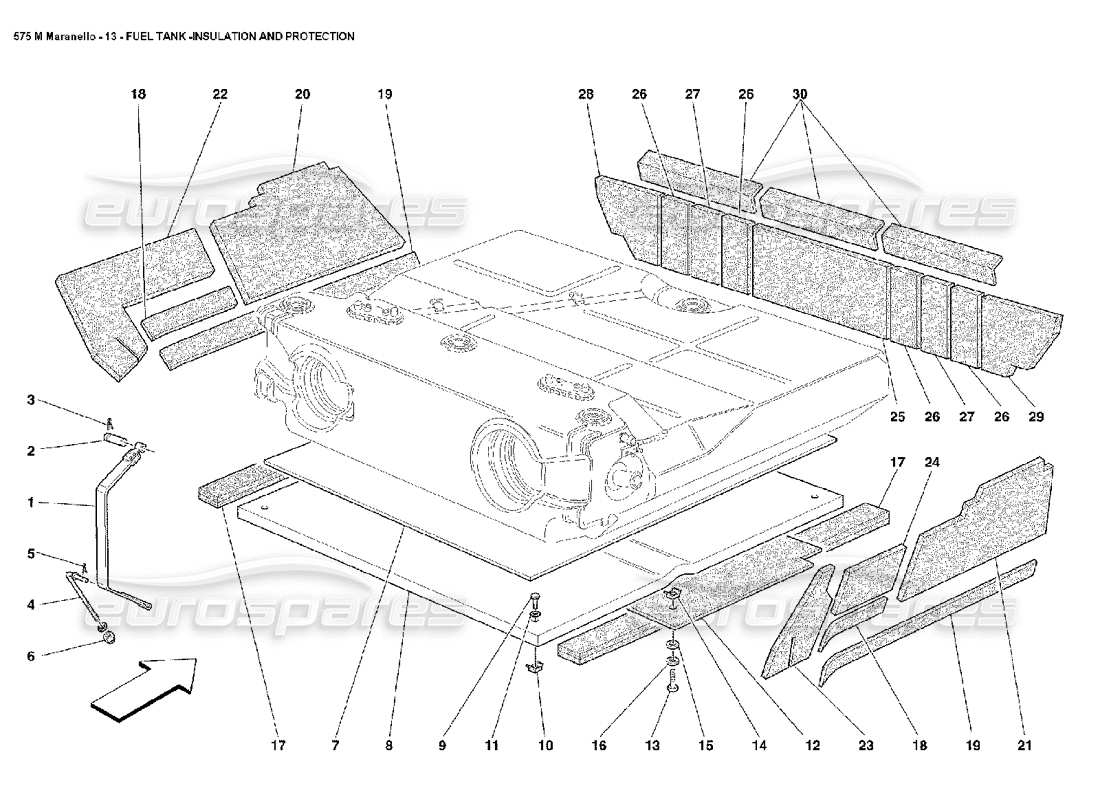

Ferrari 575M Maranello Fuel Tank Insulation and Protection Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 181692
FUEL TANK FASTENER
from £38.91
from £38.91
This part replaces part number 211324 - and 1 more. Click to view details
# 002
MPN: 103447
PIN
from £12.86
from £12.86
# 003
MPN: 10796440
SPLIT PIN
from £0.71
from £0.71
This part replaces part number 10796401 - and 1 more. Click to view details
# 004
MPN: 127529
THREADED TIE ROD
from £120.41
from £120.41
This part replaces part number 12311271 - and 15 more. Click to view details
# 005
MPN: 10796440
SPLIT PIN
from £0.71
from £0.71
This part replaces part number 10796401 - and 1 more. Click to view details
# 006
MPN: 104030
NUT
from £0.53
from £0.53
This part replaces part number 16104125
# 007
MPN: 66718200
UNDER TANK SHIELD
from £189.41
from £189.41
# 008
MPN: 66718000
SHIELD FOR TANK PROTECTION
from £668.16
from £668.16
# 009
MPN: 10902424
SCREW
from £0.51
from £0.51
This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
# 010
MPN: 65774200
NUT WITH CAGE
from £0.61
from £0.61
# 011
MPN: 12643724
WASHER
from £0.51
from £0.51
This part replaces part number 109684 - and 3 more. Click to view details
# 012
MPN: 66870800
TANK LOWER INSULATION
from £131.61
from £131.61
# 013
MPN: 10902124
SCREW
from £0.53
from £0.53
This part replaces part number 10902111 - and 1 more. Click to view details
# 014
MPN: 65774200
NUT WITH CAGE
from £0.63
from £0.63
# 015
MPN: 66121400

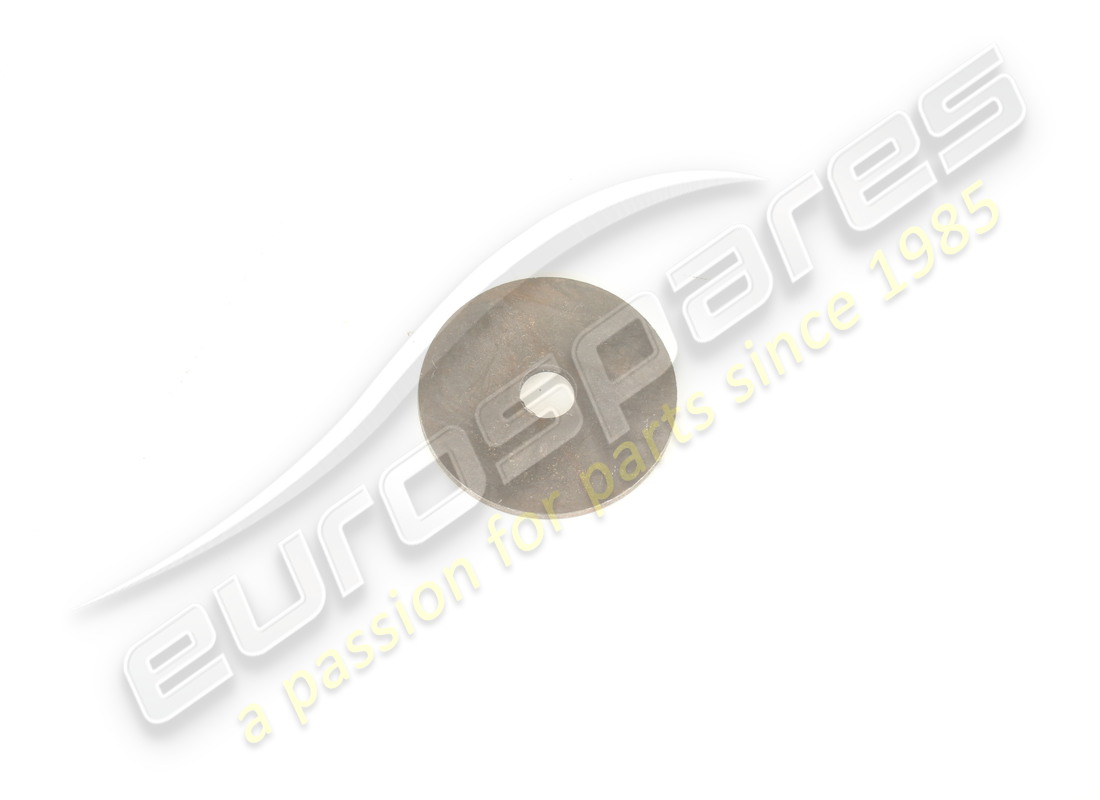

WASHER
from £6.78
from £6.78
This part replaces part number 12624977 - and 1 more. Click to view details
# 016
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 017
MPN: 192019
RUBBER THICKNESS
from £3.19
from £3.19
# 018
MPN: 183685
RUBBER THICKNESS
from £3.05
from £3.05
# 019
MPN: 183387
RUBBER THICKNESS
from £4.88
from £4.88
# 020
MPN: 66626800
LH FRONT LATERAL INSULATION FOR TANK COMPARTMENT
from £78.98
from £78.98
# 021
MPN: 66626900
RH FRONT LATERAL INSULATION FOR TANK COMPARTMENT
from £63.14
from £63.14
# 022
MPN: 66717800
LH REAR LATERAL INSULATION FOR TANK COMPARTMENT
from £43.77
from £43.77
# 023
MPN: 66717700
RH REAR LATERAL INSULATION FOR TANK COMPARTMENT
from £43.77
from £43.77
# 024
MPN: 66847600
RH CENTRAL LATERAL INSULATION FOR TANK COMPARTMENT
from £44.21
from £44.21
# 025
MPN: 66627200
CENTRAL FRONT INSULATION FOR TANK COMPARTMENT
from £49.07
from £49.07
# 026
MPN: 142798
RUBBER THICKNESS
from £0.97
from £0.97
# 027
MPN: 66627100
RH AND LH FRONT INSULATION FOR TANK COMPARTMENT
from £40.44
from £40.44
# 028
MPN: 66627000
LH FRONT OUTER INSULATION FOR TANK COMPARTMENT
from £47.33
from £47.33
# 029
MPN: 66626900
RH FRONT OUTER INSULATION FOR TANK COMPARTMENT
from £63.14
from £63.14
# 030
MPN: 181377
RUBBER THICKNESS
from £3.05
from £3.05
