030 - GEARBOX

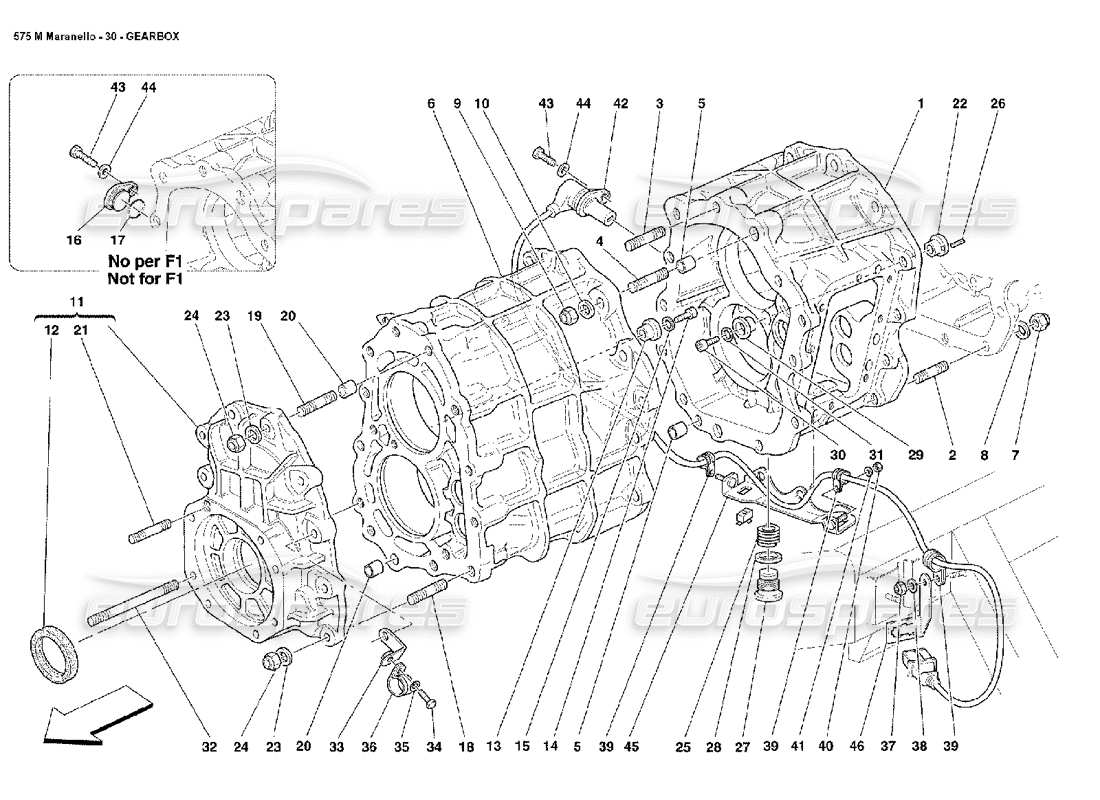

Ferrari 575M Maranello Gearbox Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 179650

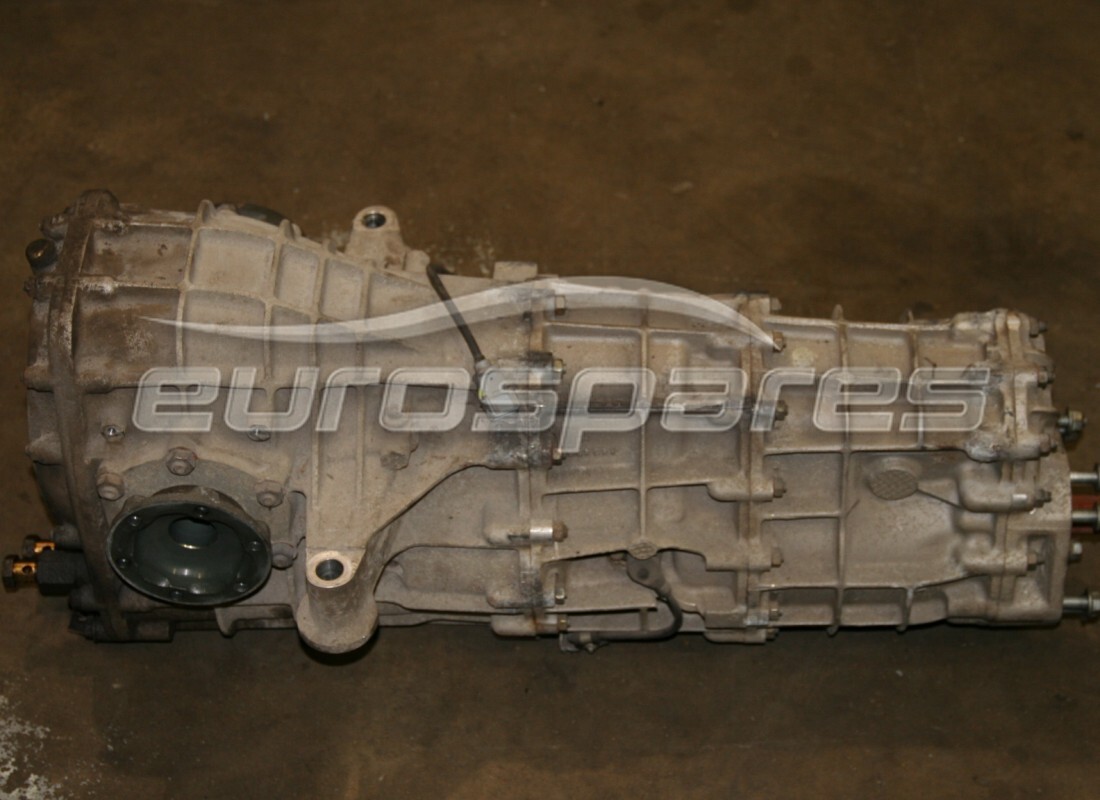

COMPLETE GEARBOX CASE
from £3,146.43
from £3,146.43
This part replaces part number 189712 - and 1 more. Click to view details
# 000
MPN: 95962892
COMPLETE GEARBOX ASSY
from £10,609.91
from £10,609.91
# 001
MPN: 189790
GEAR BOX 3RD ELEMENT
- With the complete gearbox 179650
# 002
MPN: 13543524

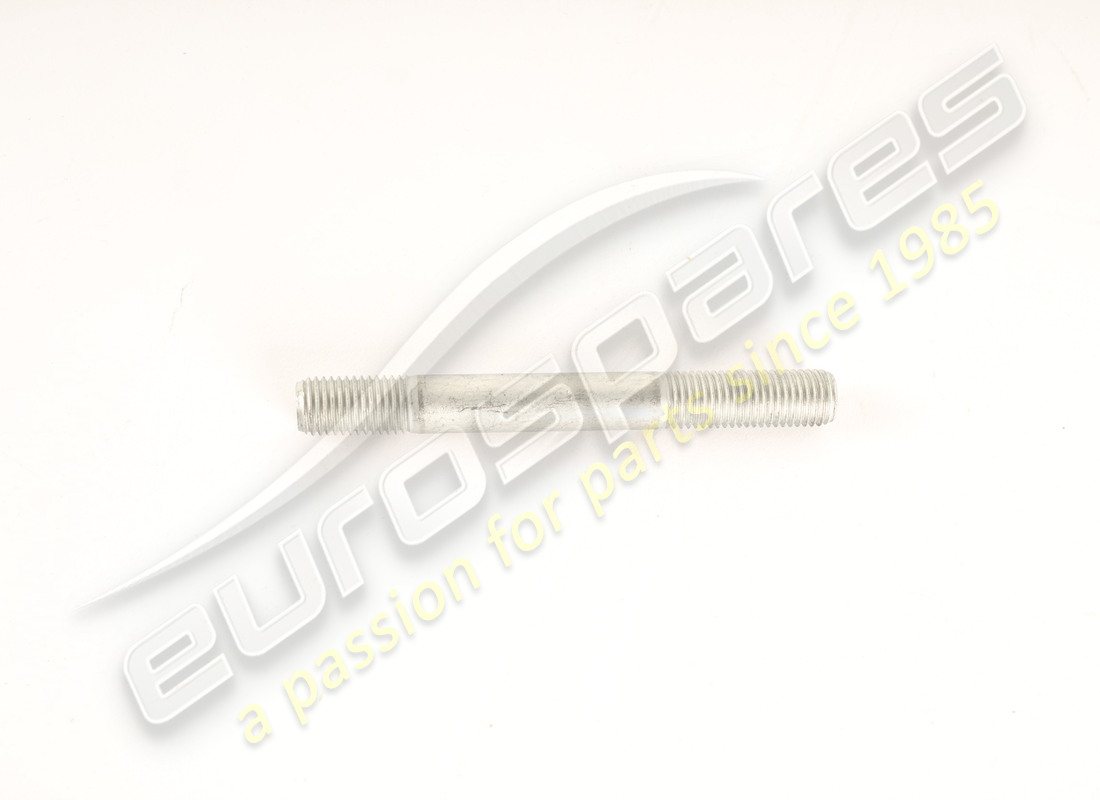

STUD
from £2.09
from £2.09
This part replaces part number 13543521
# 003
MPN: 13543524
STUD
from £2.09
from £2.09
This part replaces part number 13543521
# 004
MPN: 13543624
STUD
from £0.51
from £0.51
This part replaces part number 13543621
# 005
MPN: 102704
CENTERING DOWEL
from £1.83
from £1.83
This part replaces part number 500805
# 006
MPN: 189712
GEAR BOX 2ND ELEMENT
- With the complete gearbox 179650
Supersession
Supersession
# 007
MPN: 16100812
NUT
from £0.71
from £0.71
# 008
MPN: 12601374
WASHER
from £0.52
from £0.52
This part replaces part number 10615474 - and 6 more. Click to view details
# 009
MPN: 16100812
NUT
from £0.71
from £0.71
# 010
MPN: 12601374
WASHER
from £0.52
from £0.52
This part replaces part number 10615474 - and 6 more. Click to view details
# 011
MPN: 185933
COMPLETE GEAR BOX 1ST ELEMENT
This part replaces part number 162308
# 012
MPN: 172363
GASKET
from £15.00
from £15.00
# 013
MPN: 131757
BUSHING
from £3.78
from £3.78
# 014
MPN: 14305724
SCREW
from £0.54
from £0.54
This part replaces part number 11567624 - and 2 more. Click to view details
# 015
MPN: 10569273
WASHER
Supersession
Supersession
# 016
MPN: 185721
PLUG
- Not for F1
from £2.79
from £2.79
# 017
MPN: 254644
O.R. GASKET
- Not for F1
from £0.54
from £0.54
This part replaces part number 14453481
# 018
MPN: 13543424
STUD
from £1.08
from £1.08
This part replaces part number 13543421
# 019
MPN: 13543624
STUD
from £0.51
from £0.51
This part replaces part number 13543621
# 020
MPN: 102704
CENTERING DOWEL
from £1.83
from £1.83
This part replaces part number 500805
# 021
MPN: 13546334
STUD
from £0.64
from £0.64
This part replaces part number 13546331
# 022
MPN: 157010
BUSHING
from £6.08
from £6.08
# 023
MPN: 12601374
WASHER
from £0.53
from £0.53
This part replaces part number 10615474 - and 6 more. Click to view details
# 024
MPN: 16100814
NUT
from £0.71
from £0.71
This part replaces part number 16100811 - and 1 more. Click to view details
# 025
MPN: 112254
THREADED INSERT
from £2.36
from £2.36
# 026
MPN: 14159470
PIN
from £2.99
from £2.99
# 027
MPN: 183962
OIL OUTLET PLUG
from £14.99
from £14.99
This part replaces part number 182116
# 028
MPN: 10263460
GASKET
from £0.53
from £0.53
This part replaces part number 95119
# 029
MPN: 157009
BUSHING
from £5.10
from £5.10
# 030
MPN: 14305724
SCREW
from £0.54
from £0.54
This part replaces part number 11567624 - and 2 more. Click to view details
# 031
MPN: 10569274
WASHER
from £0.88
from £0.88
# 032
MPN: 13547334
STUD
from £3.80
from £3.80
# 033
MPN: 142060
BRACKET
- Valid for F1
from £3.48
from £3.48
# 034
MPN: 10977524
SCREW
from £0.53
from £0.53
# 035
MPN: 14447024
WASHER
- Valid for F1
from £0.47
from £0.47
# 036
MPN: 10441690
BRACKET WITH SHEATH
- Valid for F1
from £1.13
from £1.13
This part replaces part number 1044690
# 037
MPN: 102741
NUT
- Valid for F1
from £0.53
from £0.53
This part replaces part number 12575411 - and 1 more. Click to view details
# 038
MPN: 10519424
WASHER
- Valid for F1
from £0.54
from £0.54
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 039
MPN: 10441990
BRACKET WITH SHEATH
- Valid for F1
from £0.53
from £0.53
# 040
MPN: 102948
NUT
- Valid for F1
from £0.54
from £0.54
This part replaces part number 12574211 - and 3 more. Click to view details
# 041
MPN: 10519424
WASHER
- Valid for F1 - MAGNETIC SENSOR - Valid for F1
from £0.54
from £0.54
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 042
MPN: 168729
ELECTRO
from £72.33
from £72.33
# 043
MPN: 10902224
SCREW
from £0.53
from £0.53
# 044
MPN: 11194377
WASHER
from £0.71
from £0.71
# 045
MPN: 169464
FRONT BRACKET
- Not for F1
from £10.16
from £10.16
# 045
MPN: 186690
FRONT BRACKET
- Valid for F1 - Valid till stock exhaustion
Supersession
Supersession
# 045
MPN: 194807
FRONT BRACKET
- Valid for F1 - Valid after stock exhaustion of 186690
from £27.94
from £27.94
This part replaces part number 186690
# 046
MPN: 174513
CONNECTOR FIXING BRACKET
- Valid for F1 - Not as spare part - Replaced by 203766
from £4.50
from £4.50
# 046
MPN: 203766
CONNECTOR FIXING BRACKET
- Valid for F1
from £2.18
from £2.18
