053 - Front Suspension Shock Absorber and Brake Disc

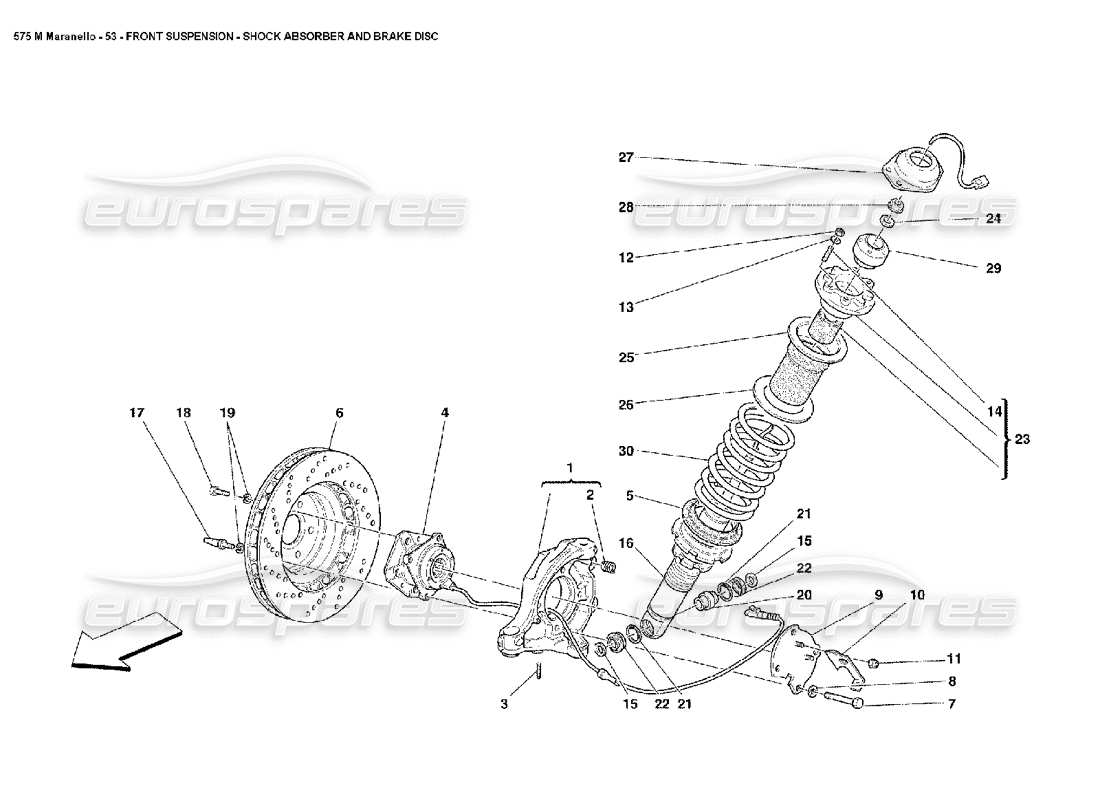

Ferrari 575M Maranello Front Suspension Shock Absorber and Brake Disc Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 184626
COMPLETE RH STEERING KNUCKLE
from £939.75
from £939.75
This part replaces part number 185818 - and 3 more. Click to view details
# 000
MPN: 184626
COMPLETE RH STEERING KNUCKLE
from £939.75
from £939.75
This part replaces part number 185818 - and 3 more. Click to view details
# 000
MPN: 184627
COMPLETE LH STEERING KNUCKLE
from £551.25
from £551.25
This part replaces part number 185819 - and 3 more. Click to view details
# 000
MPN: 185819
COMPLETE LH STEERING KNUCKLE
- Not as spare part - Replaced by 184627
Supersession
Supersession
This part replaces part number 178887
# 001
MPN: 184621
RH STEERING KNUCKLE
- Not as spare part - With complete RH steering - knuckle 185818
# 001
MPN: 184622
LH STEERING KNUCKLE
- Not as spare part - With complete LH steering - knuckle 185819
# 002
MPN: 133771
THREADED INSERT
from £2.39
from £2.39
# 003
MPN: 11000924
STUD
from £0.78
from £0.78
This part replaces part number 11000921 which we have in stock
# 004
MPN: 185561
BEARING FOR WHEEL
- Valid till stock exhaustion - Replace in couple
Supersession
Supersession
# 004
MPN: 197271
BEARING FOR WHEEL
from £642.90
from £642.90
This part replaces part number 185561
# 005
MPN: 152842
WASHER
from £24.66
from £24.66
# 006
MPN: 191981
FRONT BRAKE DISC
from £246.34
from £246.34
# 006
MPN: 225454
FRONT BRAKE DISC
CCM Version
from £2,249.23
from £2,249.23
This part replaces part number 211525 - and 1 more. Click to view details
# 007
MPN: 16324034
SCREW
from £3.16
from £3.16
# 008
MPN: 102901
WASHER
from £0.71
from £0.71
This part replaces part number 4146930
# 009
MPN: 183313
RH COVER
from £34.15
from £34.15
# 009
MPN: 183314
LH COVER
from £34.51
from £34.51
# 010
MPN: 183764
RH SUPPORT
from £40.28
from £40.28
# 010
MPN: 183765
LH SUPPORT
from £40.28
from £40.28
# 011
MPN: 102741
NUT
from £0.51
from £0.51
This part replaces part number 12575411 - and 1 more. Click to view details
# 012
MPN: 104030
NUT
from £0.51
from £0.51
This part replaces part number 16104125
# 013
MPN: 12638524
WASHER
from £0.47
from £0.47
This part replaces part number 12638501 - and 2 more. Click to view details
# 014
MPN: 12354524
STUD
from £16.49
from £16.49
This part replaces part number 12354521
# 015
MPN: 153495
SPACER WASHER MM. 3.00
- As an alternative of 153495 -As an alternative of 153495
from £2.40
from £2.40
# 015
MPN: 153496
SPACER WASHER MM. 2.90
from £2.40
from £2.40
# 015
MPN: 153497
SPACER WASHER MM. 3.10
from £2.42
from £2.42
# 016
MPN: 182989
FRONT SHOCK ABSORBER
- Valid till Ass. Nr.55768
from £2,044.24
from £2,044.24
# 016
MPN: 205288
FRONT SHOCK ABSORBER
- Valid from Ass. Nr.55769 - use 217735 -
Supersession
Supersession
# 017
MPN: 104370
BRAKE DISC FIXING SCREW
from £5.66
from £5.66
This part replaces part number 139981
# 018
MPN: 16043424
SCREW
from £0.53
from £0.53
This part replaces part number 16043421
# 019
MPN: 127496
WASHER
from £0.53
from £0.53
This part replaces part number 10516671 - and 2 more. Click to view details
# 020
MPN: 153285
BALL JOINT
from £298.76
from £298.76
# 021
MPN: 145478
SEEGER RING
from £2.42
from £2.42
This part replaces part number 11059370
# 022
MPN: 153286
RUBBER
from £1.27
from £1.27
# 023
MPN: 183125

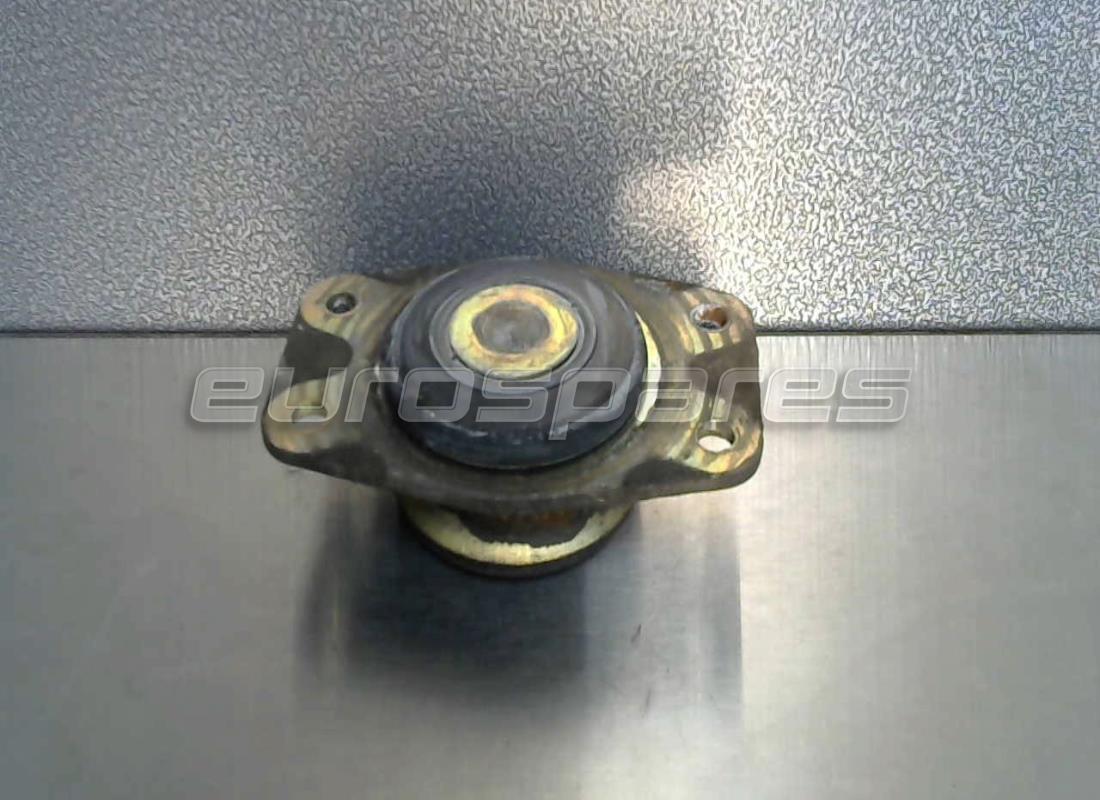

COMPLETE FRONT SHOCK ABSORBER SUPPORT
- Valid till Ass. Nr.55768
from £347.99
from £347.99
# 023
MPN: 209909
COMPLETE FRONT SHOCK ABSORBER SUPPORT
- Valid from Ass. Nr.55769
from £79.19
from £79.19
# 024
MPN: 10520124
WASHER
- Valid from Ass. Nr.55769
from £0.53
from £0.53
# 024
MPN: 183404
WASHER
- Valid till Ass. Nr.55768
from £5.66
from £5.66
# 025
MPN: 127991
COMPLETE SPACER
from £41.10
from £41.10
# 026
MPN: 152655
WASHER
from £3.11
from £3.11
# 027
MPN: 188337
SPACER WASHER
- Valid till Ass. Nr.55768
from £6.97
from £6.97
# 027
MPN: 204627
PAD FASTENING CUP
- Valid from Ass. Nr.55769
from £10.91
from £10.91
# 028
MPN: 183417
NUT
- Valid till Ass. Nr.55768
Supersession
Supersession
# 028
MPN: 203795
NUT
- Valid from Ass. Nr.55769
from £1.57
from £1.57
This part replaces part number 183417
# 029
MPN: 183047
HYPERBLOCK
- Valid till Ass. Nr.55768
from £52.07
from £52.07
# 029
MPN: 204606
HYPERBLOCK
- Valid from Ass. Nr.55769 - S - -
from £68.23
from £68.23
# 030
MPN: 163648
SPRING
Sold in pair Not for cars with handling Fiorano equipment
from £288.60
from £288.60
# 030
MPN: 169985
SPRING
Sold in pair - As an alternative - Not for cars with handling Fiorano equipment
from £287.21
from £287.21
# 030
MPN: 175886
SPRING
- Cagnola - Sold in pair - Valid for cars with handling Fiorano equipment - Optional
from £288.60
from £288.60
# 030
MPN: 208678
SPRING
-Cosmos - Sold in pair - As an alternativa - Valid for cars with handling Fiorano equipment!
from £332.28
from £332.28
