ferrari 575m maranello engine compartment fire proof insulations not for gd valid for gd parts diagram

109 - Engine Compartment Fire Proof Insulations Not for GD Valid for GD

Ferrari 575M Maranello Engine Compartment Fire Proof Insulations Not for GD Valid for GD Parts Diagram

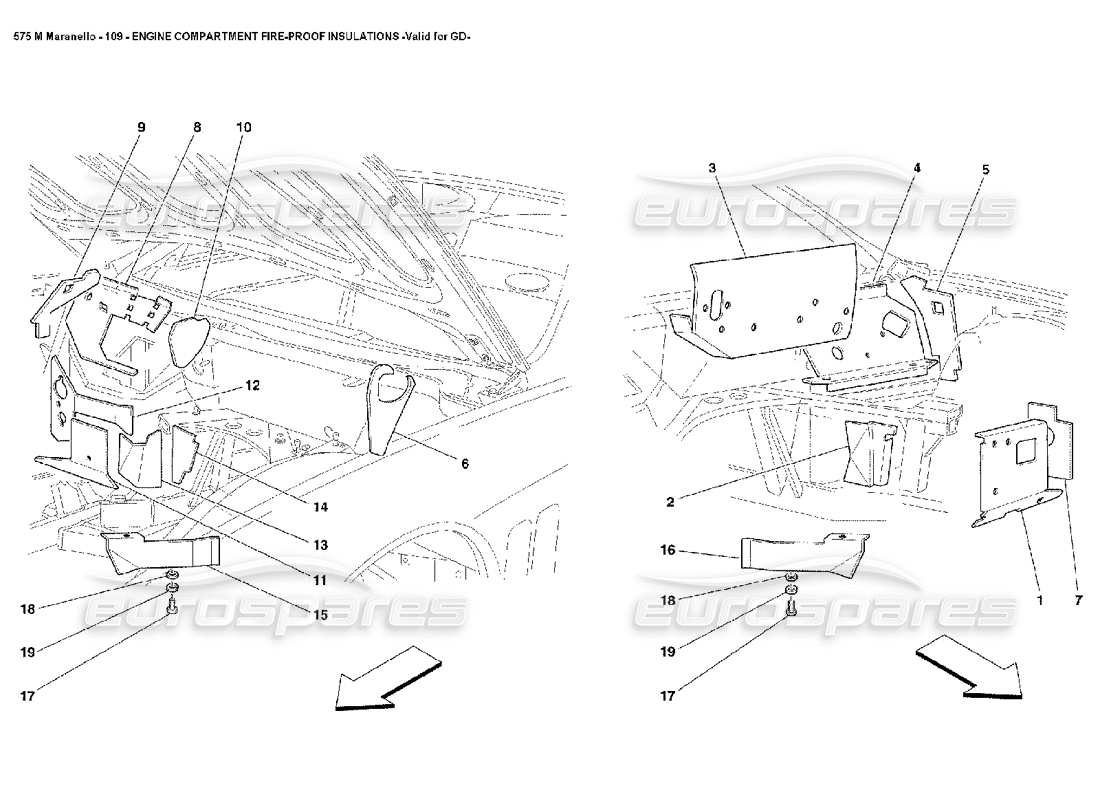

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Key
                                      Price
                                      # 001
                                      MPN: 66927000
                                      SERIES OF OUTER FIRE PROOF INSULATION
                                      from £695.83
                                      from £695.83
                                      SERIES OF OUTER FIRE-PROOFIN Genuine Ferrari Part - New (to order)
                                      # 001
                                      MPN: 67086900
                                      LH FIRE PROOF LOWER FRONT INSULATION
                                      LH FIRE-PROOF LOWER FRONT INSULATION Genuine Ferrari Part - New (to order)
                                      # 002
                                      MPN: 67087200
                                      TUNNEL LH LATERAL INSULATION
                                      LH TUNNEL LATERAL INSULATION Genuine Ferrari Part - New (to order)
                                      # 003
                                      MPN: 67085900
                                      OUTER WALL CENTRAL INSULATION FOR A.C. UNIT
                                      OUTER WALL CENTRAL INSULATION Genuine Ferrari Part - New (to order)
                                      # 004
                                      MPN: 67086800
                                      UPPER LH FRONT ANTI HEAT INSULATION
                                      LH UPPER FRONT ANTI-HEAT INSULATION Genuine Ferrari Part - New (to order)
                                      # 005
                                      MPN: 67086700
                                      LH OUTER FRONT FIRE PROOF INSULATION
                                      LH OUTER FRONT FIRE-PROOF INSULATION Genuine Ferrari Part - New (to order)
                                      # 006
                                      MPN: 67086000
                                      LH OUTER FIRE PROOF INSULATION FOR A.C. UNIT
                                      LH OUTER FIRE-PROOF INSULATION FOR AC UNIT Genuine Ferrari Part - New (to order)
                                      # 007
                                      MPN: 67087000
                                      LH LATERAL FIRE PROOF INSULATION
                                      LH LATERAL FIRE-PROOF INSULATION Genuine Ferrari Part - New (to order)
                                      # 008
                                      MPN: 67086200
                                      RH UPPER FIRE INSULATION
                                      RH UPPER FIRE-PROOF INSULATION Genuine Ferrari Part - New (to order)
                                      # 009
                                      MPN: 67086600
                                      RH OUTER FRONT FIRE PROOF INSULATION
                                      RH OUTER FRONT FIRE-PROOF INSULATION Genuine Ferrari Part - New (to order)
                                      # 010
                                      MPN: 67086100
                                      A.C. UNIT RH INSULATION
                                      RH AC UNIT INSULATION Genuine Ferrari Part - New (to order)
                                      # 011
                                      MPN: 67086400
                                      LOWER RH FIRE PROOF FRONT INSULATION
                                      RH LOWER FRONT FIRE-PROOF INSULATION Genuine Ferrari Part - New (to order)
                                      # 012
                                      MPN: 67086300
                                      UPPER RH FRONT FIRE PROOF INSULATION
                                      RH UPPER FRONT FIRE-PROOF INSULATION Genuine Ferrari Part - New (to order)
                                      # 013
                                      MPN: 67086500
                                      RH FIRE PROOF LOWER LATERAL INSULATION
                                      RH FIRE-PROOF LOWER LATERAL INSULATION Genuine Ferrari Part - New (to order)
                                      # 014
                                      MPN: 67087100
                                      TUNNEL RH LATERAL INSULATION
                                      RH TUNNEL LATERAL INSULATION Genuine Ferrari Part - New (to order)
                                      # 015
                                      MPN: 66084300
                                      RH HEAT PROTECTION SHIELD
                                      from £56.89
                                      from £56.89
                                      RH HEAT PROTECTION SHIELD. Genuine Ferrari Part - New (to order)
                                      # 016
                                      MPN: 66084400
                                      LH HEAT PROTECTION SHIELD
                                      from £56.89
                                      from £56.89
                                      LH HEAT PROTECTION SHIELD. Genuine Ferrari Part - New (to order)
                                      # 017
                                      MPN: 10902170
                                      SCREW
                                      from £0.47
                                      from £0.47
                                      SCREW. Genuine Ferrari Part - New (to order)
                                      # 018
                                      MPN: 12643770
                                      WASHER
                                      Supersession
                                      Supersession
                                      Genuine Ferrari Part (no longer available to order)
                                      # 019
                                      MPN: 127494
                                      WASHER
                                      (minimum order quantity = 20)
                                      from £0.52
                                      from £0.52
                                      This part replaces part number 10516470 - and 4 more. Click to view details
                                      WASHER Genuine Ferrari Part - New In stock
                                      WASHER (127494) Genuine Maserati Part - New In stock
