112 - Boot Insulation

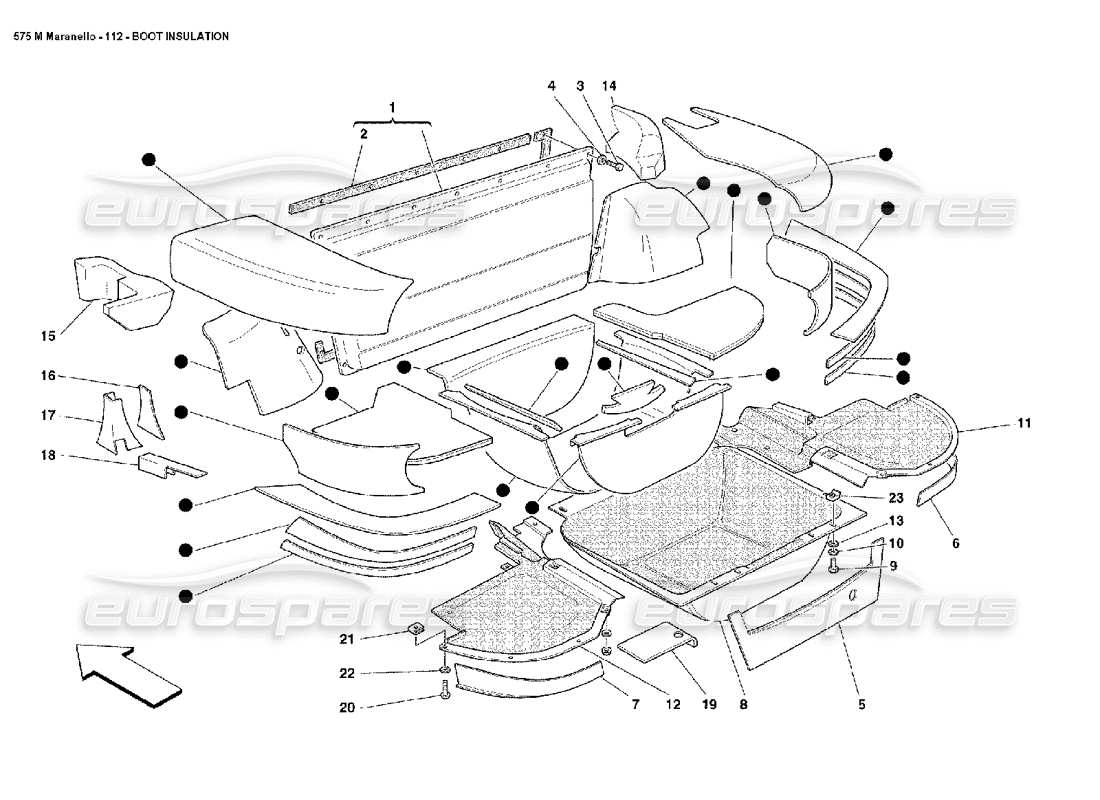

Ferrari 575M Maranello Boot Insulation Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 1001040
INSULATIONS SERIES FOR TRUNK COMPARTMENT
from £390.37
from £390.37
# 001
MPN: 64554800
COMPLETE TANK SHIELD
from £98.52
from £98.52
# 002
MPN: 64569700
GASKET
from £41.70
from £41.70
# 003
MPN: 10902611
SCREW
from £0.49
from £0.49
# 004
MPN: 12647624
WASHER
from £0.49
from £0.49
This part replaces part number 12647611
# 005
MPN: 65089700
REAR CENTRAL INSULATION
from £299.31
from £299.31
# 006
MPN: 65089900
RH REAR INSULATION
from £142.88
from £142.88
# 007
MPN: 65089800
LH REAR INSULATION
from £462.47
from £462.47
# 008
MPN: 64991100
HEAT SHIELD FOR SPARE WHEEL COMPARTMENT
from £493.81
from £493.81
# 009
MPN: 10902324
SCREW
from £0.51
from £0.51
This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
# 010
MPN: 12035674
WASHER
from £0.71
from £0.71
# 011
MPN: 64916400
RH HEAT SHIELD
from £263.80
from £263.80
# 012
MPN: 64916600
LH HEAT SHIELD
from £192.09
from £192.09
# 013
MPN: 12643724
WASHER
from £0.48
from £0.48
This part replaces part number 109684 - and 3 more. Click to view details
# 014
MPN: 65771100
RH WHEELHOUSE OUTER INSULATION
from £10.98
from £10.98
# 015
MPN: 67040900
LH WHEELHOUSE INSULATION
from £16.17
from £16.17
# 016
MPN: 66803600
RH INNER PILLAR INSULATION
from £37.70
from £37.70
# 016
MPN: 66803700
LH INNER PILLAR INSULATION
from £24.91
from £24.91
# 017
MPN: 66803400
RH REAR PILLAR INSULATION
from £48.63
from £48.63
# 017
MPN: 66803500
LH REAR PILLAR INSULATION
from £48.63
from £48.63
# 018
MPN: 66803800
SPRAGS FOR INSULATION
from £26.10
from £26.10
# 019
MPN: 65206500
DEFROSTER INSULATION
from £25.91
from £25.91
# 020
MPN: 15644175
SCREW
from £0.52
from £0.52
This part replaces part number 15644178
# 021
MPN: 14189776
FIXING BRACKET
from £0.48
from £0.48
# 022
MPN: 12638124
WASHER
from £0.53
from £0.53
This part replaces part number 12638101 which we have in stock - and 1 more. Click to view details
# 023
MPN: 65774200
NUT WITH CAGE
from £0.58
from £0.58
