010 - fuel pump

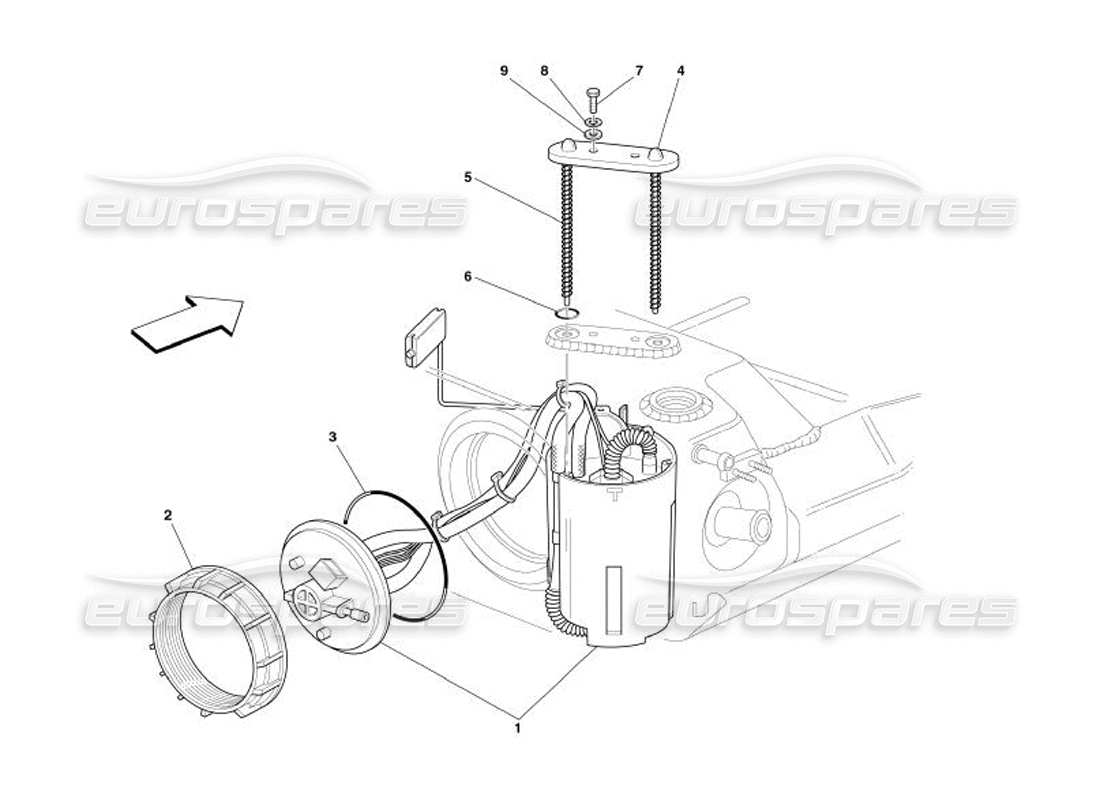

Ferrari 575 Superamerica Fuel Pump Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 239818
RH COMPLETE FUEL PUMP
from £190.40
from £190.40
This part replaces part number 180463
# 001
MPN: 239819
LH COMPLETE FUEL PUMP
from £155.57
from £155.57
This part replaces part number 180464 - and 1 more. Click to view details
# 002
MPN: 181682
RING NUT
from £7.68
from £7.68
# 003
MPN: 202698
GASKET
from £11.93
from £11.93
# 004
MPN: 182618
BRACKET FOR PUMP
from £15.71
from £15.71
# 005
MPN: 187794
SPRING
from £0.71
from £0.71
# 006
MPN: 14453389
GASKET
from £1.56
from £1.56
# 007
MPN: 16043624
SCREW
from £0.51
from £0.51
This part replaces part number 106526 - and 1 more. Click to view details
# 008
MPN: 127496
WASHER
from £0.53
from £0.53
This part replaces part number 10516671 - and 2 more. Click to view details
# 009
MPN: 14499404
WASHER
from £0.47
from £0.47
