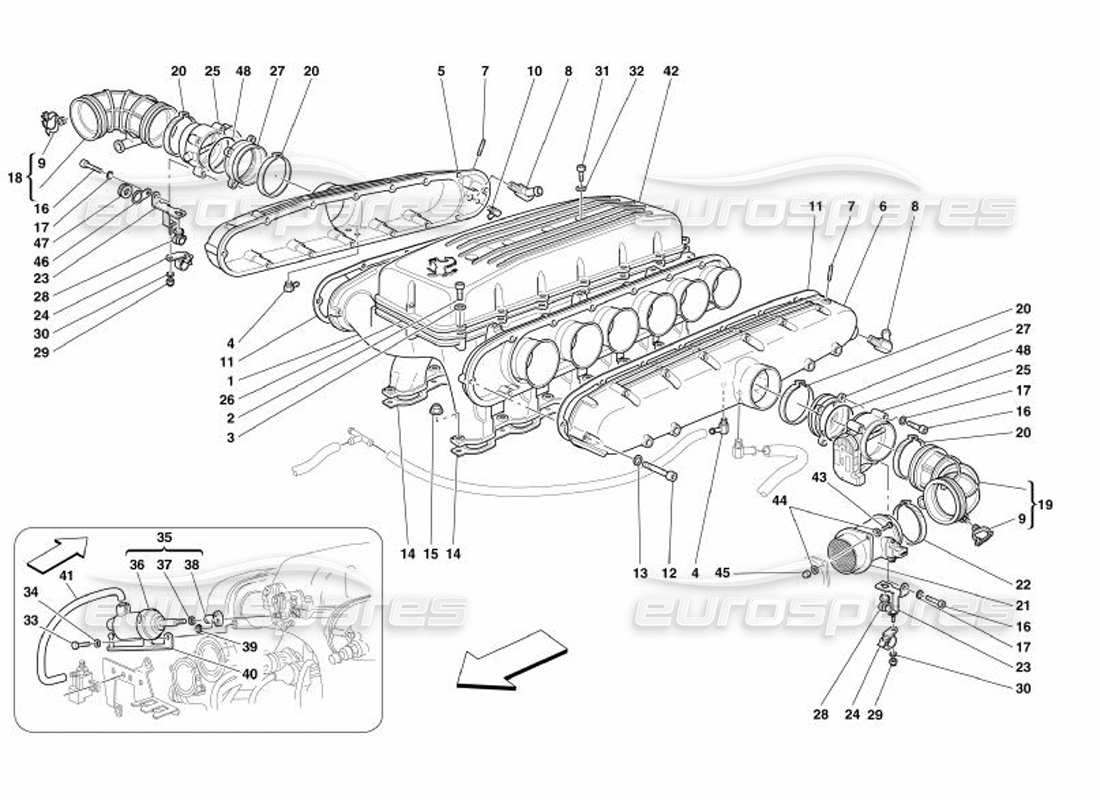

Ferrari 575 Superamerica Air Intake Manifolds Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 203826
SUCTION MANIFOLD
from £858.20
from £858.20
# 002
MPN: 14305424
SCREW
from £0.48
from £0.48
This part replaces part number 14305421 - and 2 more. Click to view details
# 003
MPN: 12601274
WASHER
from £0.48
from £0.48
This part replaces part number 12601221 - and 5 more. Click to view details
# 004
MPN: 128016
UNION
from £6.74
from £6.74
# 005
MPN: 213200
RH SUCTION MANIFOLDS COVER
from £437.16
from £437.16
# 006
MPN: 213201
LH SUCTION MANIFOLDS COVER
from £437.16
from £437.16
# 007
MPN: 11500024
STUD
from £1.55
from £1.55
This part replaces part number 11500011 which we have in stock - and 1 more. Click to view details
# 008
MPN: 193146
UNION
# 009
MPN: 189710
CLIP
from £0.53
from £0.53
# 010
MPN: 128016
UNION
from £6.74
from £6.74
# 011
MPN: 181064
GASKET
from £18.00
from £18.00
# 012
MPN: 156828
SCREW
from £2.13
from £2.13
This part replaces part number 14306024
# 013
MPN: 12601274
WASHER
from £0.49
from £0.49
This part replaces part number 12601221 - and 5 more. Click to view details
# 014
MPN: 324050
INLET GASKET
from £5.88
from £5.88
This part replaces part number 225462
# 015
MPN: 159601
NUT
from £0.51
from £0.51
This part replaces part number 12578121
# 016
MPN: 14305924
SCREW
from £0.48
from £0.48
# 017
MPN: 12639724
WASHER
from £0.52
from £0.52
This part replaces part number 12639725 - and 1 more. Click to view details
# 018
MPN: 181167
RH SLEEVE
from £26.50
from £26.50
# 019
MPN: 181169
LH SLEEVE
from £36.40
from £36.40
# 020
MPN: 190151
CLAMP
from £1.96
from £1.96
This part replaces part number 204436
# 021
MPN: 181120
AIR FLOW METER
from £128.50
from £128.50
# 022
MPN: 196715
CLAMP
from £2.94
from £2.94
# 023
MPN: 188614
BRACKET RETAINIG CABLES
from £9.54
from £9.54
# 024
MPN: 160888
FIXING CLIP
from £2.13
from £2.13
# 025
MPN: 179912
THROTTLE HOLDER
from £309.95
from £309.95
# 026
MPN: 180979
GASKET
from £19.32
from £19.32
# 027
MPN: 240262
SPACER FOR THROTTLE HOLDER
from £61.82
from £61.82
This part replaces part number 195206 which we have in stock
# 028
MPN: 178430
FIXING CLIP
from £0.53
from £0.53
# 029
MPN: 102741
NUT
from £0.53
from £0.53
This part replaces part number 12575411 - and 1 more. Click to view details
# 030
MPN: 14499324
WASHER
from £0.47
from £0.47
This part replaces part number 14499301 which we have in stock
# 031
MPN: 163774
SCREW
from £3.14
from £3.14
# 032
MPN: 12601174
WASHER
from £0.53
from £0.53
This part replaces part number 12601173 which we have in stock - and 5 more. Click to view details
# 033
MPN: 173599
SCREW
from £2.20
from £2.20
# 034
MPN: 173600
WASHER
from £0.71
from £0.71
# 035
MPN: 173602
COMPLETE ACTUATOR
Supersession
Supersession
This part replaces part number 173594
# 036
MPN: 173594
ACTUATOR
Supersession
Supersession
# 037
MPN: 173601
NUT
from £0.54
from £0.54
# 038
MPN: 173596
BALL JOINT
Supersession
Supersession
# 039
MPN: 173598
SEEGER RING
from £0.71
from £0.71
# 040
MPN: 173595
SUPPORT
from £21.48
from £21.48
# 041
MPN: 168248
RUBBER PIPE
from £10.43
from £10.43
# 042
MPN: 213195
COVER
from £459.05
from £459.05
# 043
MPN: 16285127
SCREW
(minimum order quantity = 10)
from £0.51
from £0.51
# 044
MPN: 12638178
WASHER
from £0.47
from £0.47
This part replaces part number 10519578 which we have in stock - and 3 more. Click to view details
# 045
MPN: 168698
NUT
from £1.03
from £1.03
This part replaces part number 14054048 which we have in stock
# 046
MPN: 165792
BRACKET FOR SECONDARY AIR PIPE
from £2.45
from £2.45
# 047
MPN: 10396780
INSULATING RING
from £1.08
from £1.08
# 048
MPN: 150302
GASKET
from £1.60
from £1.60
