ferrari 575 superamerica brake and clutch hydraulic system parts diagram

039 - Brake and Clutch Hydraulic System

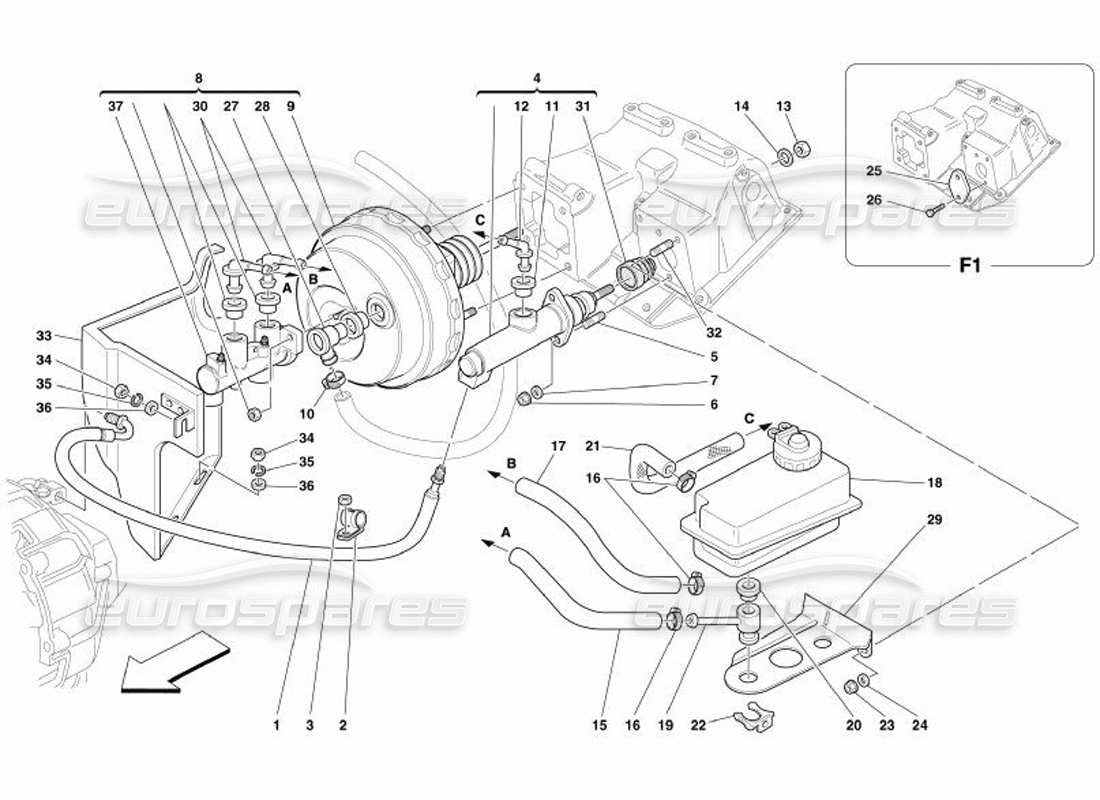

Ferrari 575 Superamerica Brake and Clutch Hydraulic System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Price
                                      # 001
                                      MPN: 154009
                                      CLUTCH CONTROL TUBE
                                      Not for F1 - Not for GD
                                      from £377.48
                                      from £377.48
                                      # 001
                                      MPN: 156119
                                      CLUTCH CONTROL TUBE
                                      Not for F1 - Valid for GD
                                      from £165.18
                                      from £165.18
                                      # 002
                                      MPN: 10441590
                                      BRACKET WITH SHEATH
                                      Not for F1
                                      from £0.51
                                      from £0.51
                                      This part replaces part number 10113600
                                      # 003
                                      MPN: 102948
                                      NUT
                                      Not for F1
                                      from £0.54
                                      from £0.54
                                      This part replaces part number 12574211 - and 3 more. Click to view details
                                      # 004
                                      MPN: 175211
                                      CLUTCH CONTROL PUMP
                                      Not for F1
                                      from £86.56
                                      from £86.56
                                      This part replaces part number 123416 - and 1 more. Click to view details
                                      # 005
                                      MPN: 13516824
                                      STUD
                                      Not for F1 - For GD valid for F1 too
                                      from £0.51
                                      from £0.51
                                      This part replaces part number 13516821
                                      # 006
                                      MPN: 177778
                                      NUT
                                      Not for F1 - For GD valid for F1 too
                                      from £1.01
                                      from £1.01
                                      This part replaces part number 133215 which we have in stock - and 1 more. Click to view details
                                      # 007
                                      MPN: 12601374
                                      WASHER
                                      Not for F1 - For GD valid for F1 too
                                      from £0.54
                                      from £0.54
                                      This part replaces part number 10615474 - and 6 more. Click to view details
                                      # 008
                                      MPN: 183081

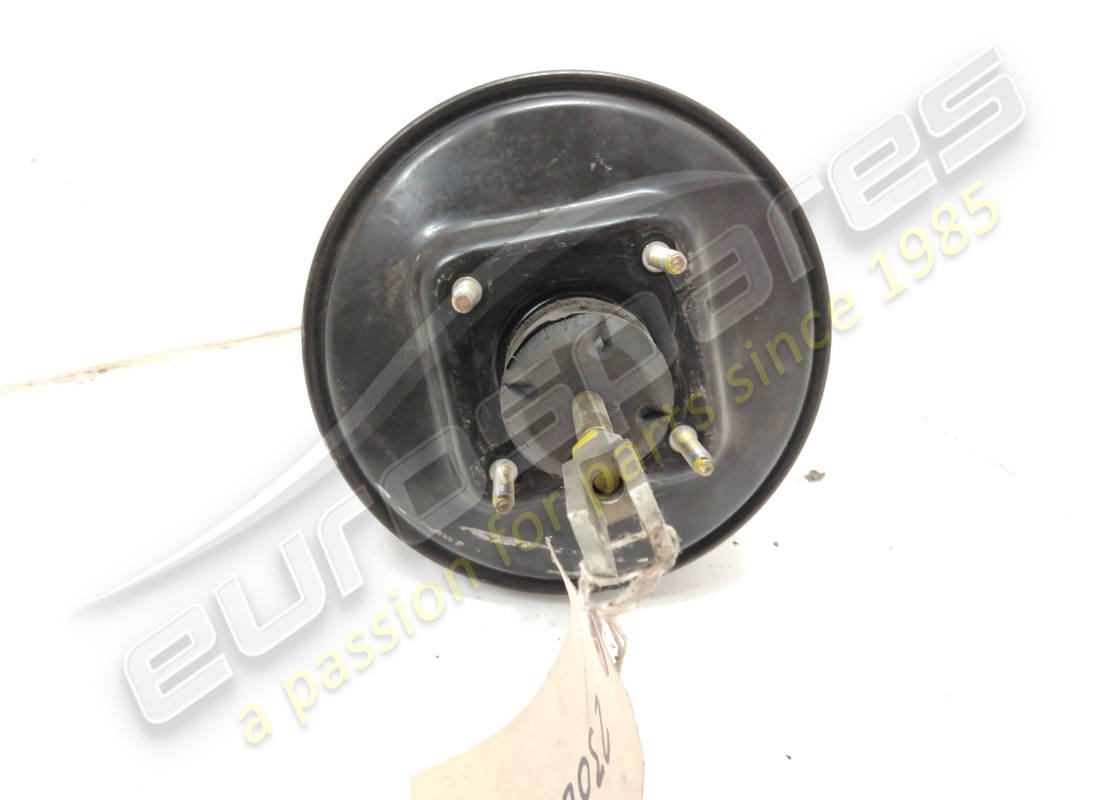

                                      BRAKE BOOSTER WITH PUMP
                                      from £824.97
                                      from £824.97
                                      # 010
                                      MPN: 13000390
                                      SCREW COLLAR
                                      from £0.53
                                      from £0.53
                                      This part replaces part number 12179590 - and 1 more. Click to view details
                                      # 011
                                      MPN: 175189
                                      SEAL RING
                                      Not for F1
                                      from £13.70
                                      from £13.70
                                      This part replaces part number 106625
                                      # 012
                                      MPN: 184497
                                      UNION
                                      Not for F1
                                      from £122.64
                                      from £122.64
                                      This part replaces part number 175188
                                      # 013
                                      MPN: 101139
                                      NUT
                                      from £0.53
                                      from £0.53
                                      This part replaces part number 16104425
                                      # 014
                                      MPN: 12601374
                                      WASHER
                                      from £0.53
                                      from £0.53
                                      This part replaces part number 10615474 - and 6 more. Click to view details
                                      # 015
                                      MPN: 105857
                                      RUBBER HOSE
                                      Not for GD
                                      from £4.77
                                      from £4.77
                                      # 015
                                      MPN: 134903
                                      RUBBER HOSE
                                      Valid for GD
                                      from £2.17
                                      from £2.17
                                      # 016
                                      MPN: 13000390
                                      SCREW COLLAR
                                      For F1 qty 4
                                      from £0.50
                                      from £0.50
                                      This part replaces part number 12179590 - and 1 more. Click to view details
                                      # 017
                                      MPN: 134903
                                      RUBBER HOSE
                                      Valid for GD
                                      from £2.17
                                      from £2.17
                                      # 017
                                      MPN: 173882
                                      RUBBER HOSE
                                      Not for GD
                                      from £3.81
                                      from £3.81
                                      This part replaces part number 123266 - and 1 more. Click to view details
                                      # 018
                                      MPN: 173866
                                      COMPLETE PAN FOR BRAKE LIQUID
                                      from £23.01
                                      from £23.01
                                      # 019
                                      MPN: 113116
                                      UNION
                                      from £19.80
                                      from £19.80
                                      This part replaces part number 173824 - and 1 more. Click to view details
                                      # 020
                                      MPN: 175189
                                      RUBBER
                                      from £13.70
                                      from £13.70
                                      This part replaces part number 106625
                                      # 021
                                      MPN: 173884
                                      RUBBER HOSE
                                      Not for F1 - Valid for GD
                                      from £1.64
                                      from £1.64
                                      # 021
                                      MPN: 173974
                                      RUBBER HOSE
                                      Not for F1 - Not for GD
                                      Supersession
                                      Supersession
                                      # 022
                                      MPN: 110810
                                      ELASTIC PLATE
                                      from £1.40
                                      from £1.40
                                      This part replaces part number 994922
                                      # 023
                                      MPN: 104030
                                      NUT
                                      from £0.53
                                      from £0.53
                                      This part replaces part number 16104125
                                      # 024
                                      MPN: 12638524
                                      WASHER
                                      from £0.47
                                      from £0.47
                                      This part replaces part number 12638501 - and 2 more. Click to view details
                                      # 025
                                      MPN: 163651
                                      FLANGE
                                      Valid for F1
                                      from £46.61
                                      from £46.61
                                      # 026
                                      MPN: 13516824
                                      STUD
                                      Valid for F1 - Valid for GD
                                      from £0.51
                                      from £0.51
                                      This part replaces part number 13516821
                                      # 026
                                      MPN: 16043021
                                      SCREW
                                      Valid for F1 - Not for GD
                                      from £0.53
                                      from £0.53
                                      # 027
                                      MPN: 144552
                                      UNION
                                      from £1.73
                                      from £1.73
                                      # 028
                                      MPN: 151475
                                      CABLE GROMMET
                                      from £5.91
                                      from £5.91
                                      # 029
                                      MPN: 183258
                                      BRAKE OIL TANK SUPPORT
                                      Not for GD
                                      from £8.15
                                      from £8.15
                                      # 029
                                      MPN: 188873
                                      BRAKE OIL TANK SUPPORT
                                      Valid for GD
                                      from £28.08
                                      from £28.08
                                      # 030
                                      MPN: 183477
                                      UNION
                                      from £10.85
                                      from £10.85
                                      # 031
                                      MPN: 175212
                                      PROTECTION BOOT
                                      Not for F1
                                      from £16.68
                                      from £16.68
                                      # 032
                                      MPN: 13516824
                                      STUD
                                      from £0.51
                                      from £0.51
                                      This part replaces part number 13516821
                                      # 033
                                      MPN: 183082
                                      BRAKE BOOSTER PROTECTION
                                      Not for GD
                                      from £94.80
                                      from £94.80
                                      # 033
                                      MPN: 188887
                                      BRAKE BOOSTER PROTECTION
                                      Valid for GD
                                      from £192.26
                                      from £192.26
                                      # 034
                                      MPN: 15896214
                                      NUT
                                      from £0.54
                                      from £0.54
                                      This part replaces part number 15896211
                                      # 035
                                      MPN: 12643724
                                      WASHER
                                      from £0.52
                                      from £0.52
                                      This part replaces part number 109684 - and 4 more. Click to view details
                                      # 036
                                      MPN: 127494
                                      WASHER
                                      (minimum order quantity = 20)
                                      from £0.53
                                      from £0.53
                                      This part replaces part number 10516470 - and 4 more. Click to view details
                                      # 037
                                      MPN: 171782
                                      BRAKE PUMP
                                      from £334.72
                                      from £334.72
                                      This part replaces part number 171782/A
