059 - Battery

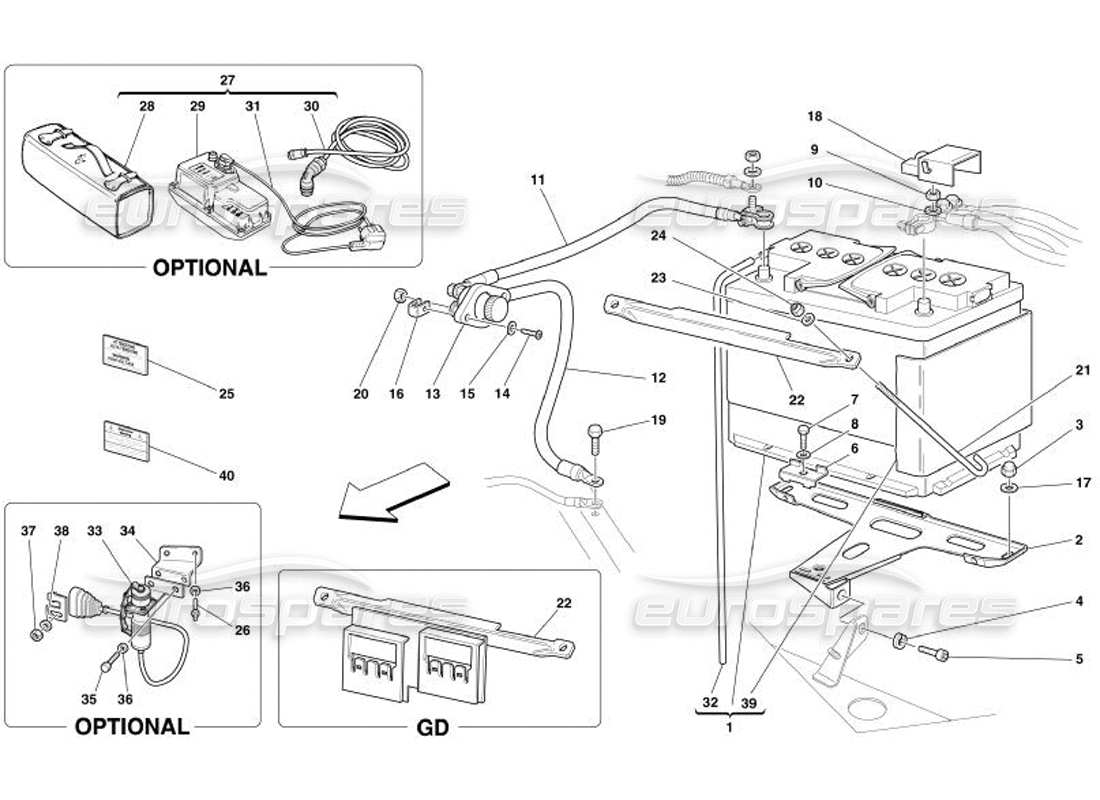

Ferrari 575 Superamerica Battery Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 188066
BATTERY 12V-74AH 400A
Supersession
Supersession
This part replaces part number 180087
# 002
MPN: 171918
PLATE FOR BATTERY SUPPORT
Not for GD
from £41.73
from £41.73
# 002
MPN: 172556
PLATE FOR BATTERY SUPPORT
Valid for GD
from £75.88
from £75.88
# 003
MPN: 150595
CAP NUT
from £0.58
from £0.58
This part replaces part number 16109642
# 004
MPN: 127496
CRINKLE SPLIT WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 005
MPN: 14306224
SCREW
from £0.53
from £0.53
This part replaces part number 14306221 - and 1 more. Click to view details
# 006
MPN: 154324
MOBILE BRACKET
from £15.67
from £15.67
# 007
MPN: 16043724
SCREW
from £0.71
from £0.71
This part replaces part number 16043721
# 008
MPN: 14499421
WASHER
from £0.54
from £0.54
This part replaces part number 14499424
# 009
MPN: 147985
NUT
from £0.54
from £0.54
# 010
MPN: 12638524
WASHER
from £0.47
from £0.47
This part replaces part number 12638501 - and 2 more. Click to view details
# 011
MPN: 183651
COPPER PLAIT FROM BATTERY TO SWITCH
Not for GD
from £37.90
from £37.90
# 011
MPN: 189506
COPPER PLAIT FROM BATTERY TO SWITCH
Valid for GD
from £56.97
from £56.97
# 012
MPN: 183650
COPPER PLAIT FROM SWITCH TO EARTH
from £39.83
from £39.83
# 013
MPN: 139607
BATTERY CUT-OUT SWITCH
Supersession
Supersession
# 014
MPN: 15688275
SCREW
from £1.30
from £1.30
This part replaces part number 15688208 which we have in stock - and 1 more. Click to view details
# 015
MPN: 12637878
WASHER
from £0.54
from £0.54
This part replaces part number 12637806
# 016
MPN: 61067800
BRACKET
from £1.07
from £1.07
# 017
MPN: 12646724
WASHER
from £0.54
from £0.54
This part replaces part number 12601571 which we have in stock - and 2 more. Click to view details
# 018
MPN: 185201
PROTECTION BOOT
from £6.85
from £6.85
# 019
MPN: 16296421
SCREW
from £37.16
from £37.16
# 020
MPN: 102741
NUT
from £0.53
from £0.53
This part replaces part number 12575411 - and 1 more. Click to view details
# 021
MPN: 189130
TIE ROD
from £39.52
from £39.52
This part replaces part number 171904
# 022
MPN: 171903
ANGLE PIECE
Not for GD
from £32.67
from £32.67
# 022
MPN: 193640
ANGLE PIECE
Valid for GD
from £55.23
from £55.23
# 023
MPN: 14496424
WASHER
Supersession
Supersession
This part replaces part number 14496401 - and 3 more. Click to view details
# 024
MPN: 102948
NUT
from £0.54
from £0.54
This part replaces part number 12574211 - and 3 more. Click to view details
# 025
MPN: 113404
WARNING HIGH VOLTAGE PLATE
from £6.83
from £6.83
# 026
MPN: 62738200
RIVET
from £0.54
from £0.54
# 027
MPN: 178682
BATTERY CHARGER KIT
Not for USA, CDN, J, GB, Hong Kong andAUS - Optional
from £1,359.75
from £1,359.75
This part replaces part number 70000941
# 027
MPN: 178684
BATTERY CHARGER KIT
Valid for AUS - Optional
from £528.26
from £528.26
This part replaces part number 70000943
# 027
MPN: 178685
BATTERY CHARGER KIT
Valid for GB and Hong Kong - Optional
from £604.60
from £604.60
This part replaces part number 70000944
# 027
MPN: 70002821
BATTERY CHARGER KIT
-Valid for USA, CDN and J - Optional
from £202.20
from £202.20
This part replaces part number 70001701
# 028
MPN: 65699200
BATTERY BAG CASE
optional
from £414.21
from £414.21
# 029
MPN: 177791
battery charger
230V - Not for USA, CDN and J - Optional
from £470.89
from £470.89
# 029
MPN: 177792
battery charger
110V - Not for USA, CDN and J - Optional
from £1,206.79
from £1,206.79
# 030
MPN: 178676
CABLE WITH CONNECTOR
optional
from £258.50
from £258.50
# 031
MPN: 177794
POWER SUPPLY CABLE
Not for USA, CDN, J, GB, Hong Kong andAUS - Optional
from £16.99
from £16.99
# 031
MPN: 177795
POWER SUPPLY CABLE
Valid for USA, CDN and J - Optional
from £12.74
from £12.74
# 031
MPN: 177796
POWER SUPPLY CABLE
Valid for AUS - Optional
from £23.65
from £23.65
# 031
MPN: 178294
POWER SUPPLY CABLE
Valid for GB and Hong Kong - Optional
from £40.79
from £40.79
# 032
MPN: 180056
BATTERY ACID EXHAUST TUBE
from £0.83
from £0.83
# 033
MPN: 200857
BATTERY CHARGING CONNECTION CABLE
optional
from £93.15
from £93.15
This part replaces part number 184585
# 034
MPN: 185565
BRACKET
optional
from £20.38
from £20.38
# 035
MPN: 10902224
SCREW
optional
from £0.53
from £0.53
# 036
MPN: 10519424
WASHER
optional
from £0.53
from £0.53
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 037
MPN: 102741
NUT
optional
from £0.53
from £0.53
This part replaces part number 12575411 - and 1 more. Click to view details
# 038
MPN: 12646601
WASHER
optional
from £0.71
from £0.71
# 039
MPN: 188068
HEAT PROTECTING
from £36.15
from £36.15
# 040
MPN: 184205
BATTERY EXCLUSION PLATE
Valid for USA and CDN
from £4.77
from £4.77
