0006 - timing system - drive

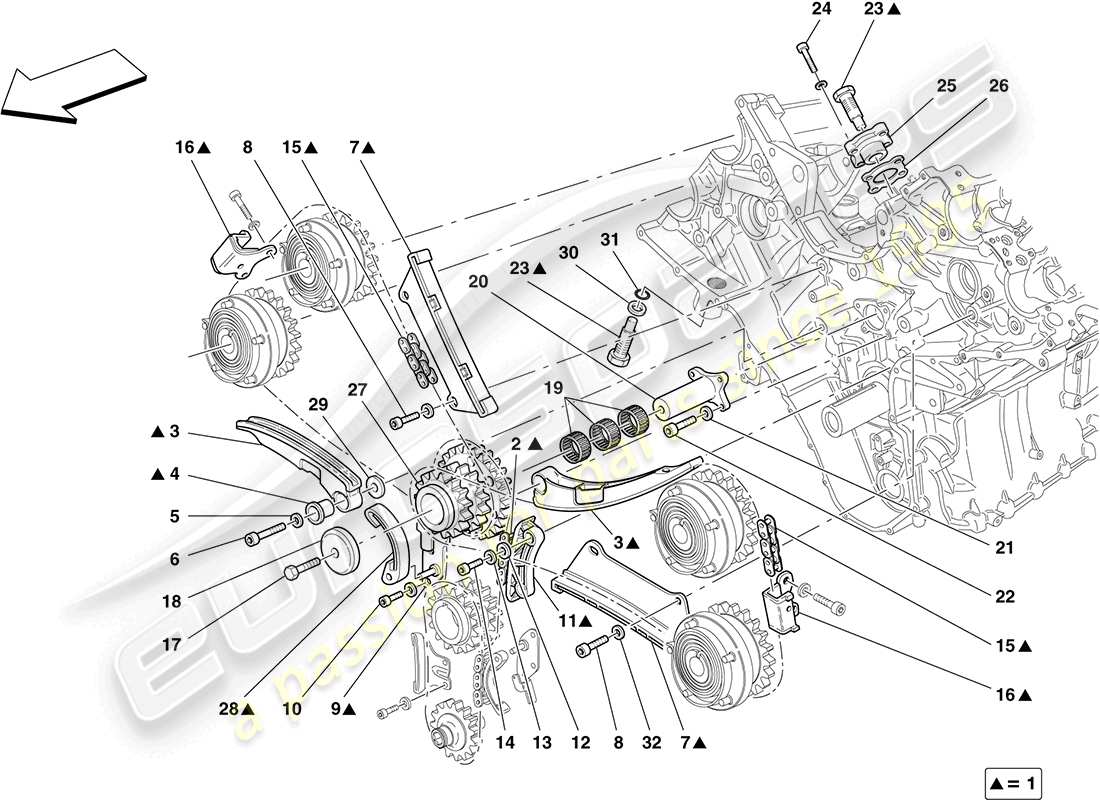

Ferrari California (RHD) TIMING SYSTEM - DRIVE Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 248388
OIL PUMP AND TIMING CONTROL ASSEMBLY
-Applicable up to engine No. 166072-
from £698.16
from £698.16
# 001
MPN: 261869
VALVE TIMING SYSTEM AND OIL PUMP
-Applicable from engine No. 166073- -No longer supplied- -Replaced by 316221-
Supersession
Supersession
# 001
MPN: 316221
VALVE TIMING SYSTEM AND OIL PUMP
-Applicable from engine No. 166073-
from £956.65
from £956.65
This part replaces part number 261869
# 002
MPN: 175286
CHAIN
from £23.79
from £23.79
# 003
MPN: 186184
MOBILE SHOE
from £68.54
from £68.54
# 004
MPN: 175303
BUSHING
from £12.94
from £12.94
# 005
MPN: 10569373
WASHER
-Applicable until depletion-
from £0.47
from £0.47
# 005
MPN: 255527
WASHER
-Applicable after depletion of 10569373-
from £0.54
from £0.54
This part replaces part number 10569373
# 006
MPN: 14306424
SCREW
from £0.53
from £0.53
This part replaces part number 14306324 - and 2 more. Click to view details
# 007
MPN: 186185
FIXED SHOE
from £34.09
from £34.09
# 008
MPN: 14306224
SCREW
from £0.51
from £0.51
This part replaces part number 14306221 - and 1 more. Click to view details
# 008
MPN: 231627
SCREW
-No longer supplied- -Replaced by 14306224-
from £0.53
from £0.53

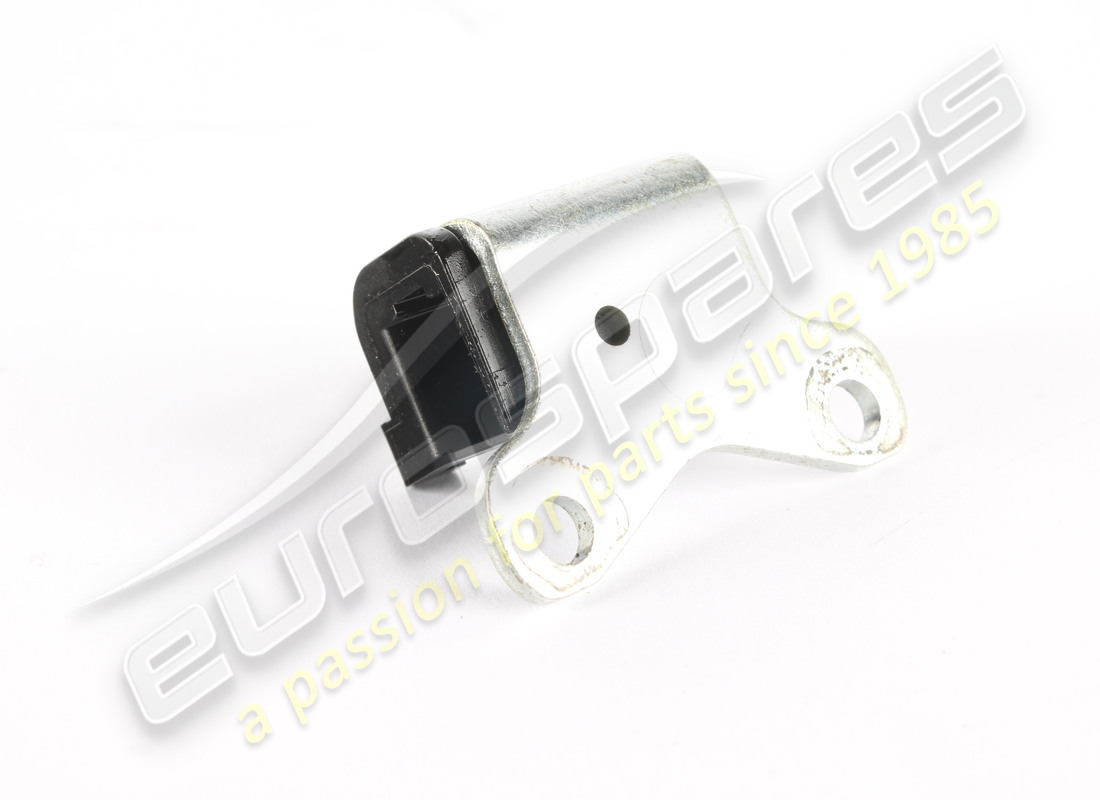

# 009
MPN: 186159
CHAIN SUPPORT
Requires P/N 196683
from £15.91
from £15.91
# 010
MPN: 231616
SCREW
-M6 X 14- -No longer supplied- -Replaced by 282392-
from £0.53
from £0.53
This part replaces part number 14305724 which we have in stock
# 010
MPN: 282392
SCREW
-M6 X 14-
from £0.47
from £0.47
# 011
MPN: 186181
FIXED SHOE
-Applicable until depletion-
Supersession
Supersession
# 011
MPN: 306094
FIXED SHOE
-Applicable after depletion of 186181-
from £21.23
from £21.23
This part replaces part number 186181
# 012
MPN: 11197774
WASHER
from £0.54
from £0.54
This part replaces part number 11197770 - and 3 more. Click to view details
# 013
MPN: 12647624
WASHER
from £0.53
from £0.53
This part replaces part number 12647611
# 014
MPN: 14432224
SCREW
from £0.53
from £0.53
This part replaces part number 14432221
# 015
MPN: 193616
CHAIN
from £52.07
from £52.07
# 016
MPN: 222310
FIXED SHOE
-Applicable up to engine No. 166072-
from £17.79
from £17.79
# 017
MPN: 16043124
SCREW
from £0.30
from £0.30
This part replaces part number 16043121 which we have in stock - and 1 more. Click to view details
# 018
MPN: 194262
SHOULDER
from £10.29
from £10.29
# 019
MPN: 175282
ROLLER BEARING CAGE
from £3.43
from £3.43

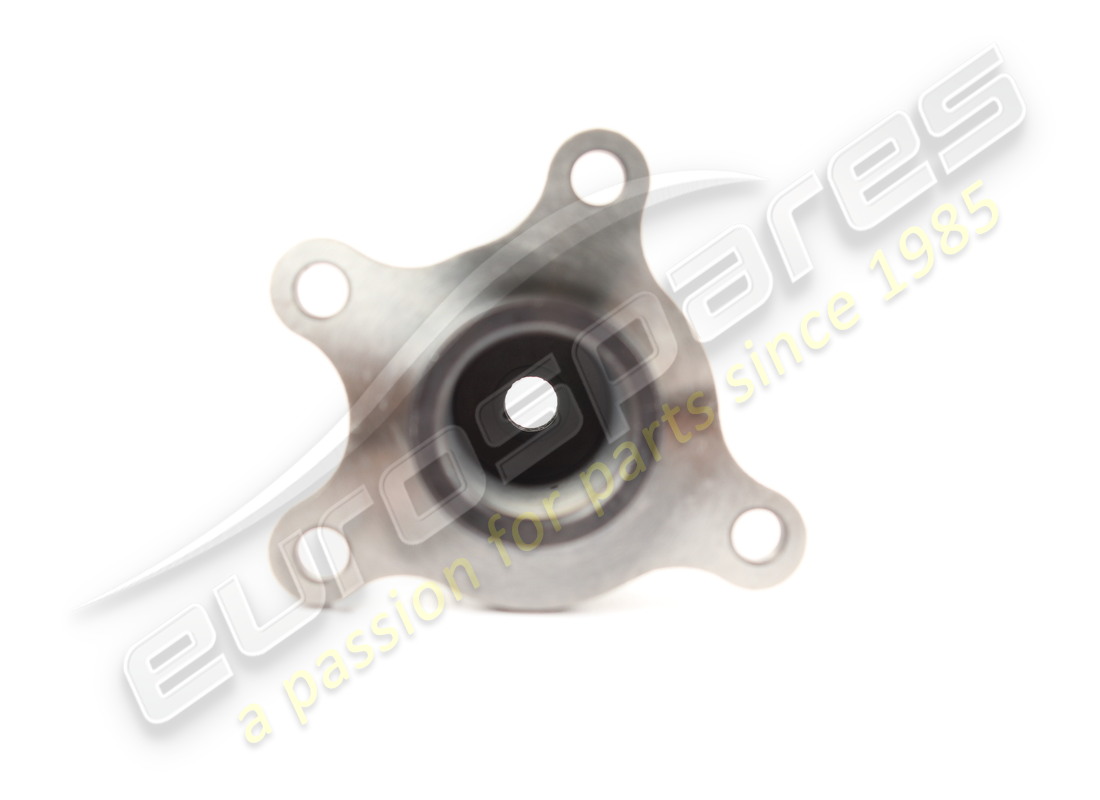

# 020
MPN: 212970
MOUNTING
from £43.65
from £43.65
# 021
MPN: 11181574
WASHER
from £0.53
from £0.53
# 022
MPN: 14304224
SCREW
from £0.51
from £0.51
# 023
MPN: 230652
HYDRAULIC TENSIONER
from £53.01
from £53.01
# 024
MPN: 231619
SCREW
-M6 X 22-
from £0.53
from £0.53
# 025
MPN: 190060
BUSHING
from £10.79
from £10.79
# 026
MPN: 247147
GASKET
-Applicable until depletion-
from £2.51
from £2.51
This part replaces part number 185854
# 026
MPN: 323282
GASKET
-Applicable after depletion of 247147-
from £1.13
from £1.13
This part replaces part number 247147 which we have in stock
# 027
MPN: 193565
DRIVE GEAR
from £57.96
from £57.96
# 028
MPN: 196683
SHOE
from £23.82
from £23.82
# 029
MPN: 175306
SHOULDER
from £2.51
from £2.51
# 030
MPN: 190171
SHIM
from £3.95
from £3.95
# 031
MPN: 192069
GASKET
from £0.54
from £0.54
# 032
MPN: 163759
WASHER
from £7.76
from £7.76
