0017 - HEAT EXCHANGER

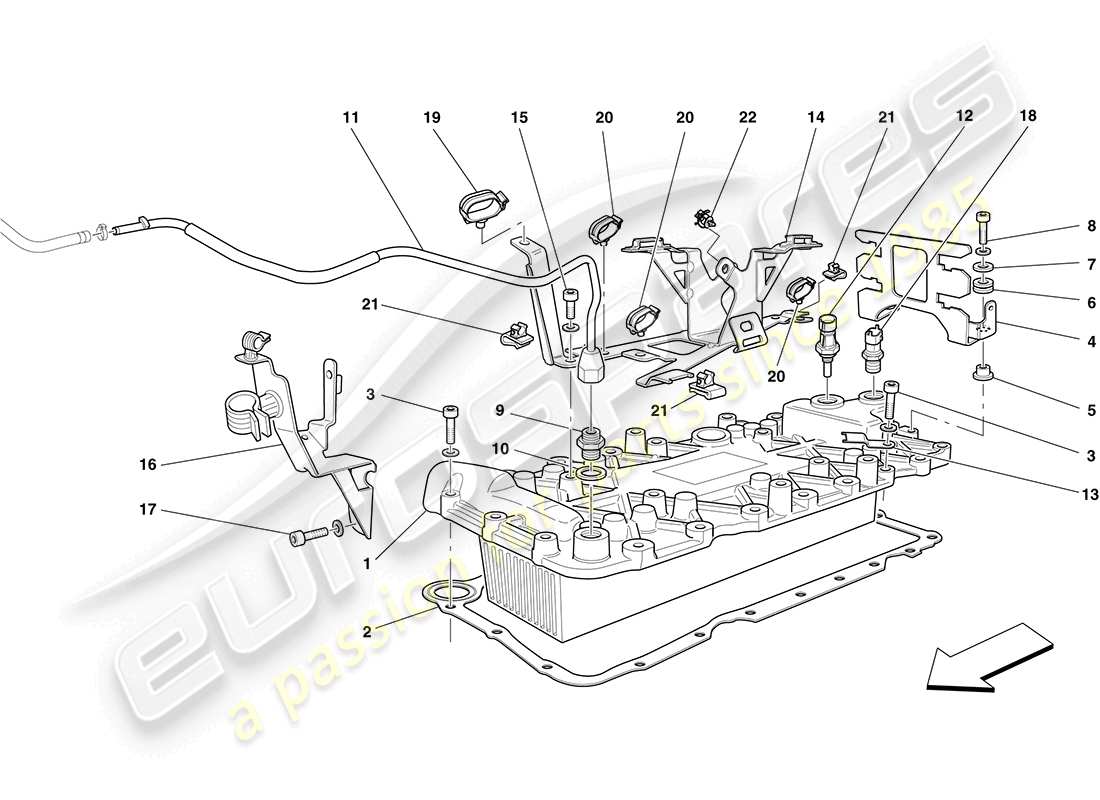

Ferrari California (RHD) HEAT EXCHANGER Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Key
                              Price
                              # 001
                              MPN: 239137
                              HEAT EXCHANGER
                              from £1,065.17
                              from £1,065.17
                              HEAT EXCHANGER Genuine Ferrari Part - New (to order)
                              # 002
                              MPN: 238689
                              GASKET
                              -Applicable until depletion-
                              Supersession
                              Supersession
                              This part replaces part number 225827
                              Genuine Ferrari Part (no longer available to order)
                              Genuine Maserati Part (no longer available to order)
                              # 002
                              MPN: 322663
                              GASKET
                              -Applicable after depletion of 238689-
                              from £15.96
                              from £15.96
                              This part replaces part number 238689
                              GASKET Genuine Ferrari Part - New (to order)
                              GASKET Genuine Maserati Part - New In stock
                              # 003
                              MPN: 231620
                              SCREW
                              -M6 X 25-
                              from £0.48
                              from £0.48
                              SCREW Genuine Ferrari Part - New In stock
                              SOCKET HEAD SCREW WITH WASHE Genuine Maserati Part - New (to order)
                              # 004
                              MPN: 251249
                              BRACKET
                              from £30.21
                              from £30.21
                              BRACKET Genuine Ferrari Part - New (to order)
                              # 005
                              MPN: 149707
                              SHIM
                              from £0.78
                              from £0.78
                              SPACER Genuine Ferrari Part - New In stock
                              SPACER Genuine Maserati Part - New (to order)
                              # 006
                              MPN: 177576
                              GROMMET
                              from £1.45
                              from £1.45
                              CABLE GROMMET Genuine Ferrari Part - New In stock
                              CABLE GROMMET Genuine Maserati Part - New (to order)
                              # 007
                              MPN: 12643724
                              WASHER
                              from £0.53
                              from £0.53
                              This part replaces part number 109684 - and 4 more. Click to view details
                              WASHER Genuine Ferrari Part - New In stock
                              WASHER Genuine Maserati Part - New In stock
                              # 008
                              MPN: 231616
                              SCREW
                              -M6 X 14-
                              from £0.53
                              from £0.53
                              This part replaces part number 14305724 which we have in stock
                              Genuine Ferrari Part (no longer available to order)
                              SCREW Genuine Maserati Part - New (to order)
                              # 009
                              MPN: 192327
                              UNION FOR WATER VAPOUR VENT
                              from £2.78
                              from £2.78
                              UNION Genuine Ferrari Part - New (to order)
                              UNION. Genuine Maserati Part - New (to order)
                              # 010
                              MPN: 10284460
                              GASKET
                              from £0.47
                              from £0.47
                              GASKET Genuine Ferrari Part - New In stock
                              GASKET Genuine Maserati Part - New In stock
                              GASKET Original Equipment - New In stock
                              # 011
                              MPN: 247944
                              WATER VENT PIPE
                              from £50.44
                              from £50.44
                              WATER VENT PIPE Genuine Ferrari Part - New (to order)
                              # 012
                              MPN: 201672
                              OIL PRESSURE TRANSMITTER
                              from £7.42
                              from £7.42
                              OIL PRESSURE TRANSMITTER Genuine Ferrari Part - New In stock
                              OIL PRESSURE TRANSMITTER. Genuine Maserati Part - New (to order)
                              # 013
                              MPN: 251595
                              CABLES SUPPORT BRACKET
                              from £5.52
                              from £5.52
                              CABLES SUPPORT BRACKET Genuine Ferrari Part - New (to order)
                              # 014
                              MPN: 248044
                              BRACKET
                              from £114.38
                              from £114.38
                              BRACKET Genuine Ferrari Part - New (to order)
                              # 015
                              MPN: 231620
                              SCREW
                              -M6 X 25-
                              from £0.53
                              from £0.53
                              SCREW Genuine Ferrari Part - New In stock
                              SOCKET HEAD SCREW WITH WASHE Genuine Maserati Part - New (to order)
                              # 016
                              MPN: 251472
                              SECONDARY AIR BRACKET
                              -Applicable until depletion-
                              Supersession
                              Supersession
                              Genuine Ferrari Part (no longer available to order)
                              # 016
                              MPN: 288663
                              SECONDARY AIR PIPE MOUNTING BRACKET
                              -Applicable after depletion of 251472-
                              from £72.05
                              from £72.05
                              This part replaces part number 251472
                              SECONDARY AIR PIPE MOUNTING Genuine Ferrari Part - New (to order)
                              # 017
                              MPN: 231616
                              SCREW
                              -M6 X 14-
                              from £0.54
                              from £0.54
                              This part replaces part number 14305724 which we have in stock
                              Genuine Ferrari Part (no longer available to order)
                              SCREW Genuine Maserati Part - New (to order)
                              # 019
                              MPN: 246722
                              CLIP
                              -D. 23-
                              from £0.86
                              from £0.86
                              CLIP -D.23- Genuine Ferrari Part - New In stock
                              # 020
                              MPN: 246723
                              CLIP
                              -D. 20-
                              from £0.57
                              from £0.57
                              CLIP -D.20- Genuine Ferrari Part - New (to order)
                              # 021
                              MPN: 67579900
                              CLIP
                              from £0.47
                              from £0.47
                              CLIP Genuine Ferrari Part - New (to order)
                              MOLLETTA LYS-FUSION 07118.88 Genuine Maserati Part - New In stock
                              # 022
                              MPN: 248674
                              CLIP
                              from £1.12
                              from £1.12
                              CLIP Genuine Ferrari Part - New (to order)
