0018 - VAPOUR OIL RECOVERY SYSTEM

Ferrari California (RHD) VAPOUR OIL RECOVERY SYSTEM Parts Diagram

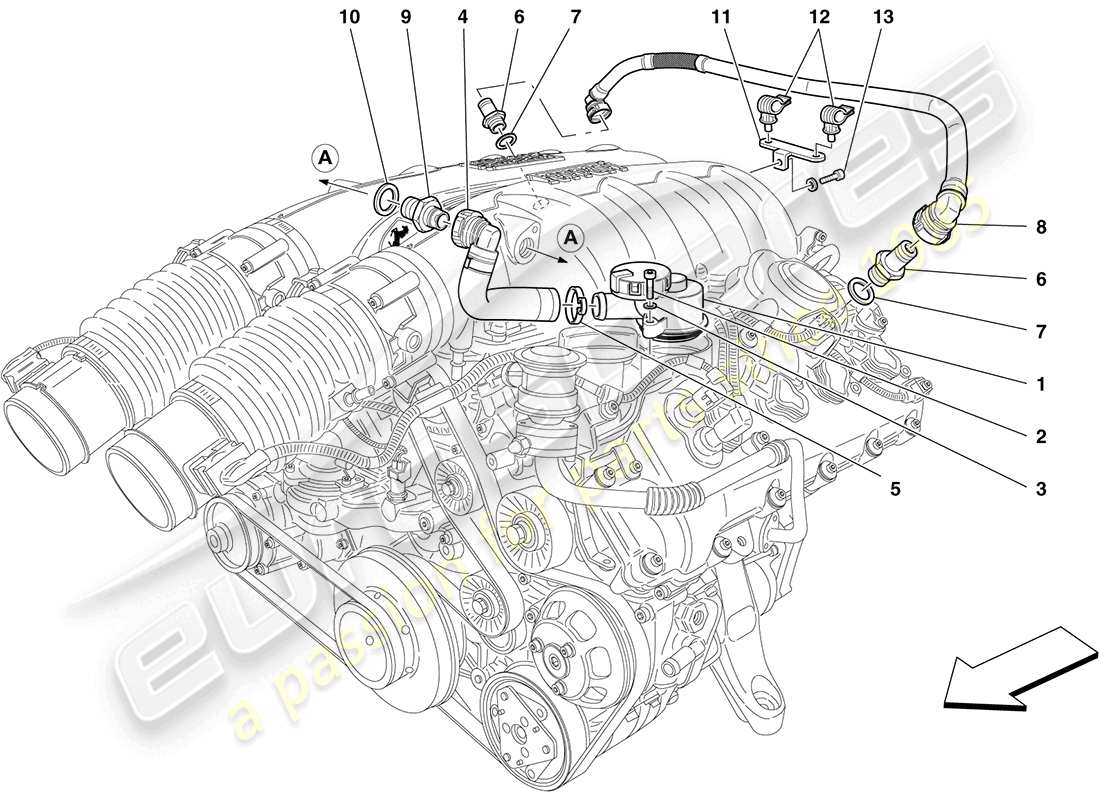

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 001
                    MPN: 219111
                    OIL DISAREATOR
                    from £213.32
                    from £213.32
                    OIL DISAREATOR Genuine Ferrari Part - New In stock
                    OIL VAPOUR SEPARATOR Genuine Maserati Part - New (to order)
                    # 002
                    MPN: 231621
                    SCREW
                    from £0.53
                    from £0.53
                    This part replaces part number 216568
                    SCREW Genuine Ferrari Part - New In stock
                    SCREW Genuine Maserati Part - New (to order)
                    # 003
                    MPN: 12644424
                    WASHER
                    from £0.54
                    from £0.54
                    This part replaces part number 12644401 - and 1 more. Click to view details
                    WASHER Genuine Ferrari Part - New In stock
                    WASHER Genuine Maserati Part - New In stock
                    # 004
                    MPN: 241010
                    PIPE FROM DISAREATOR TO SUCTION MANIFOLD
                    from £25.91
                    from £25.91
                    PIPE FROM DISAREATOR TO SUCT Genuine Ferrari Part - New (to order)
                    # 005
                    MPN: 224271
                    CLAMP
                    from £0.86
                    from £0.86
                    CLAMP Genuine Ferrari Part - New In stock
                    CLAMP D.29.9-33.1X7 Genuine Maserati Part - New (to order)
                    # 006
                    MPN: 229987

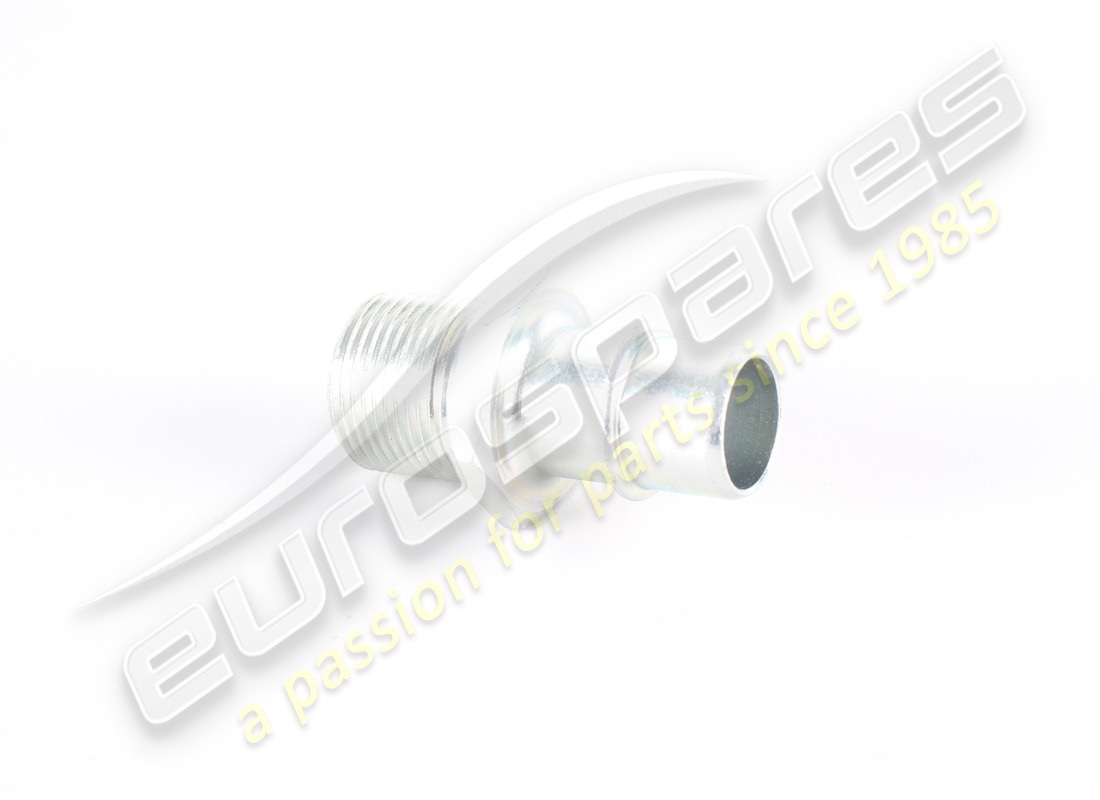

                    THREADED UNION
                    from £5.72
                    from £5.72
                    THREADED UNION Genuine Ferrari Part - New In stock
                    THREADED UNION M22X1.5 Genuine Maserati Part - New (to order)
                    # 007
                    MPN: 10263460
                    GASKET
                    from £0.53
                    from £0.53
                    This part replaces part number 95119
                    GASKET Genuine Ferrari Part - New In stock
                    GASKET 22- 28X 1.5 Genuine Maserati Part - New In stock
                    # 008
                    MPN: 246269
                    HEAD CONNECTION VENT PIPE
                    -Not for GD- -Applicable up to Ass. No. 88122- -Applicable up to engine No. 153878- -Applicable until depletion-
                    Supersession
                    Supersession
                    Genuine Ferrari Part (no longer available to order)
                    # 008
                    MPN: 252690
                    HEAD CONNECTION VENT PIPE
                    -Not for GD- -Applicable from Ass. No. 88123- -Applicable from engine No. 153879- -Applicable after depletion of 246269- -Applicable until depletion-
                    Supersession
                    Supersession
                    This part replaces part number 246269
                    Genuine Ferrari Part (no longer available to order)
                    # 008
                    MPN: 252690
                    HEAD CONNECTION VENT PIPE
                    -Applicable for GD- -Applicable until depletion-
                    Supersession
                    Supersession
                    This part replaces part number 246269
                    Genuine Ferrari Part (no longer available to order)
                    # 008
                    MPN: 286901
                    HEAD CONNECTOR BREATHER PIPE
                    -Applicable after depletion of 252690-
                    from £92.68
                    from £92.68
                    This part replaces part number 252690
                    HEAD CONNECTING VENT PIPE Genuine Ferrari Part - New (to order)
                    # 009
                    MPN: 240893
                    THREADED UNION
                    from £51.58
                    from £51.58
                    THREADED UNION Genuine Ferrari Part - New (to order)
                    # 010
                    MPN: 10263460
                    GASKET
                    from £0.54
                    from £0.54
                    This part replaces part number 95119
                    GASKET Genuine Ferrari Part - New In stock
                    GASKET 22- 28X 1.5 Genuine Maserati Part - New In stock
                    # 011
                    MPN: 240895
                    BRACKET
                    -Applicable up to Ass. No. 89945-
                    Supersession
                    Supersession
                    Genuine Ferrari Part (no longer available to order)
                    # 012
                    MPN: 222072

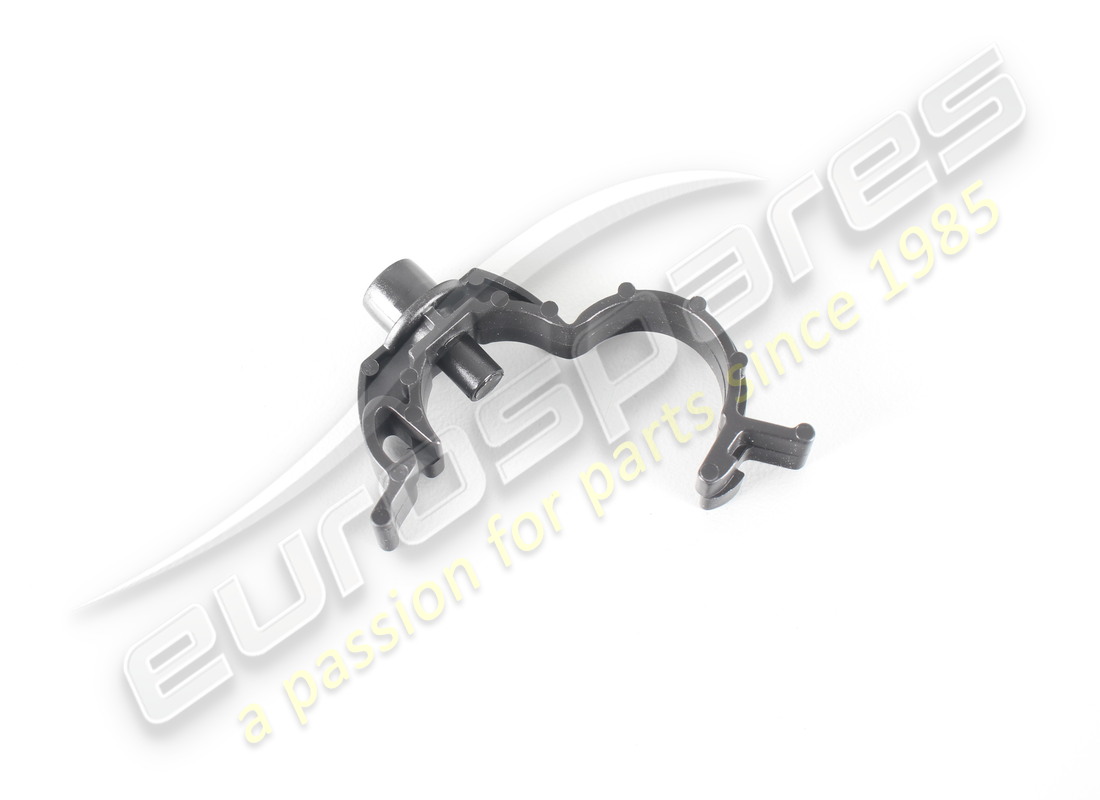

                    CLIP
                    -Applicable up to Ass. No. 89945-
                    from £1.90
                    from £1.90
                    CLIP Genuine Ferrari Part - New In stock
                    CLIP Genuine Maserati Part - New In stock
                    # 013
                    MPN: 233600
                    SCREW
                    -Applicable up to Ass. No. 89945-
                    from £0.54
                    from £0.54
                    SCREW Genuine Ferrari Part - New In stock
                    SCREW Genuine Maserati Part - New (to order)
                    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
