0020 - LUBRICATION: PUMP AND FILTER

Ferrari California (RHD) LUBRICATION: PUMP AND FILTER Parts Diagram

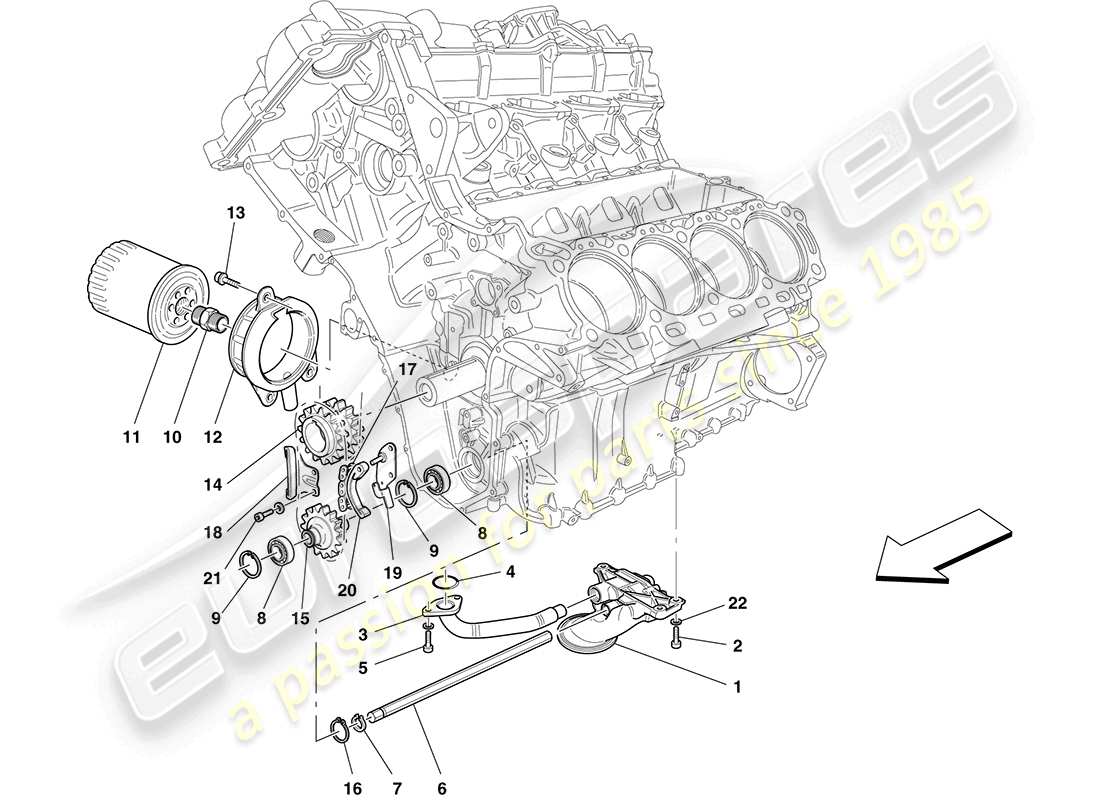

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # 001
                          MPN: 249914
                          COMPL. OIL PUMP
                          -Applicable up to Ass. No. 88122- -Applicable up to engine No. 153878-
                          from £344.77
                          from £344.77
                          COMPLETE OIL PUMP Genuine Ferrari Part - New (to order)
                          # 001
                          MPN: 261025
                          COMPL. OIL PUMP
                          -Applicable from Ass. No. 88123- -Applicable from engine No. 153879- -Applicable until depletion-
                          Supersession
                          Supersession
                          Genuine Ferrari Part (no longer available to order)
                          # 001
                          MPN: 261026
                          COMPL. OIL PUMP
                          -Applicable after depletion of 261025-
                          from £371.20
                          from £371.20
                          This part replaces part number 261025
                          COMPLETE OIL PUMP Genuine Ferrari Part - New (to order)
                          # 002
                          MPN: 14306724
                          SCREW
                          -Applicable from Ass. No. 88123- -Applicable from engine No. 153879-
                          from £0.50
                          from £0.50
                          SCREW Genuine Ferrari Part - New In stock
                          # 002
                          MPN: 231629
                          SCREW
                          -Applicable up to Ass. No. 88122- -Applicable up to engine No. 153878-
                          from £0.47
                          from £0.47
                          SCREW -M 8X30- Genuine Ferrari Part - New (to order)
                          SOCKET HEAD SCREW WITH WASHER M8X (231629) Genuine Maserati Part - New (to order)
                          # 003
                          MPN: 241787
                          OIL DELIVERY PIPE
                          from £45.08
                          from £45.08
                          OIL DELIVERY TUBE Genuine Ferrari Part - New (to order)
                          # 004
                          MPN: 140071
                          GASKET
                          from £0.47
                          from £0.47
                          GASKET Genuine Ferrari Part - New In stock
                          O-RING D. 29.87- 8X 100 (140071) Genuine Maserati Part - New In stock
                          # 005
                          MPN: 231618
                          SCREW
                          -M6 X 20-
                          from £0.47
                          from £0.47
                          SCREW Genuine Ferrari Part - New In stock
                          SCREW (231618) Genuine Maserati Part - New (to order)
                          # 006
                          MPN: 225963
                          HEXAGONAL OIL PUMP DRIVE ROD
                          -Applicable up to Ass. No. 88122- -Applicable up to engine No. 153878-
                          from £10.33
                          from £10.33
                          OIL PUMP CONTROL BAR Genuine Ferrari Part - New (to order)
                          OIL PUMP CONTROL HEX.BAR (225963) Genuine Maserati Part - New (to order)
                          # 006
                          MPN: 261148
                          HEXAGONAL OIL PUMP DRIVE ROD
                          -Applicable from Ass. No. 88123- -Applicable from engine No. 153879-
                          from £9.04
                          from £9.04
                          BARRA ESAG. COMANDO POMPA OL Genuine Ferrari Part - New (to order)
                          OIL PUMP CONTROL HEX.BAR (261148) Genuine Maserati Part - New (to order)
                          # 007
                          MPN: 11066176
                          SEEGER RING
                          from £0.47
                          from £0.47
                          SEEGER RING Genuine Ferrari Part - New (to order)
                          SEEGER RING FOR SHAFT D.13 (11066176) Genuine Maserati Part - New (to order)
                          # 008
                          MPN: 216239
                          BEARING
                          from £11.17
                          from £11.17
                          BEARING Genuine Ferrari Part - New (to order)

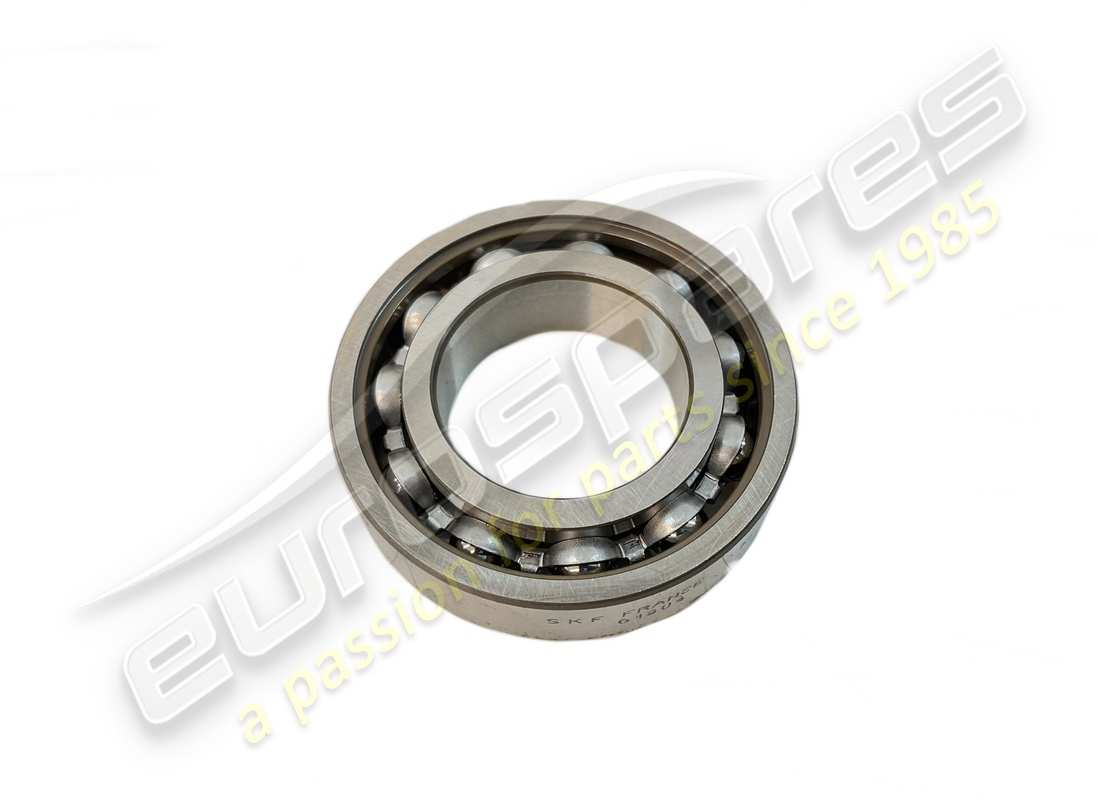

                          RIGID RADIAL BALL BEARING (216239) Genuine Maserati Part - New (to order)
                          # 009
                          MPN: 11059676
                          SEEGER RING
                          from £0.47
                          from £0.47
                          SEEGER RING Genuine Ferrari Part - New In stock
                          SEEGER RING FOR HOLE D.37 (11059676) Genuine Maserati Part - New (to order)
                          # 010
                          MPN: 225838
                          THREADED UNION
                          from £6.81
                          from £6.81
                          THREADED UNION Genuine Ferrari Part - New (to order)
                          THREADED UNION M25X1.5-1 (225838) Genuine Maserati Part - New (to order)
                          # 011
                          MPN: 234742
                          OIL FILTER
                          -No longer supplied- -Replaced by 280466-
                          from £25.86
                          from £25.86
                          This part replaces part number 200595
                          OIL FILTER Genuine Ferrari Part - New (to order)

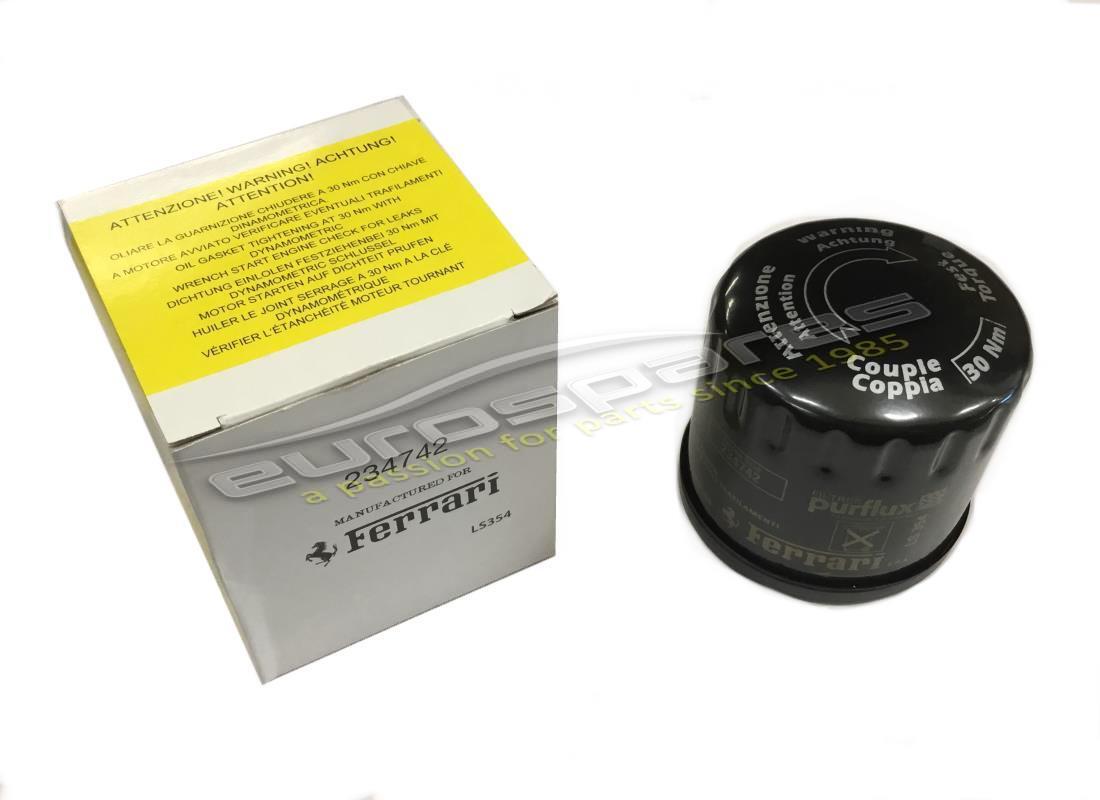

                          OIL FILTER (234742) Original Equipment - New In stock
                          # 011
                          MPN: 280466
                          OIL FILTER
                          from £34.86
                          from £34.86
                          OIL FILTER Genuine Ferrari Part - New In stock
                          # 012
                          MPN: 248581
                          OIL FILTER BOOT
                          -Applicable until depletion-
                          Supersession
                          Supersession
                          Genuine Ferrari Part (no longer available to order)
                          # 012
                          MPN: 263660
                          OIL FILTER CAP
                          -Applicable after depletion of 248581-
                          from £126.75
                          from £126.75
                          This part replaces part number 248581
                          OIL FILTER CAP Genuine Ferrari Part - New (to order)
                          # 013
                          MPN: 231617
                          SCREW
                          -M6 X 18-
                          from £0.47
                          from £0.47
                          This part replaces part number 14433124
                          SCREW Genuine Ferrari Part - New In stock
                          SOCKET HEAD SCREW WITH WASHER M6X (231617) Genuine Maserati Part - New (to order)
                          # 014
                          MPN: 186854
                          CRANKSHAFT GEAR
                          -Applicable until depletion-
                          from £57.90
                          from £57.90
                          TOOTHED WHEEL Genuine Ferrari Part - New (to order)
                          TOOTHED WHEEL FOR CRANKSHAFT Z.20 (186854) Genuine Maserati Part - New In stock
                          TOOTHED WHEEL FOR CRANKSHAFT Z.20 (186854) Genuine Maserati Part - Used In stock
                          # 014
                          MPN: 292873
                          CRANKSHAFT GEAR
                          -Applicable after depletion of 186854-
                          from £1,109.48
                          from £1,109.48
                          CRANKSHAFT GEAR Genuine Ferrari Part - New (to order)
                          # 015
                          MPN: 247158
                          OIL PUMP CONTROM TOOTHED WHEEL
                          from £205.80
                          from £205.80
                          OIL PUMP CONTROM TOOTHED WHE Genuine Ferrari Part - New (to order)
                          # 016
                          MPN: 11066876
                          SEEGER RING
                          from £0.47
                          from £0.47
                          This part replaces part number 11066875
                          SNAP RING Genuine Ferrari Part - New In stock
                          SEEGER RING FOR SHAFT D.20 (11066876) Genuine Maserati Part - New (to order)
                          # 017
                          MPN: 212260
                          OIL PUMP CHAIN
                          from £56.60
                          from £56.60
                          OIL PUMP CHAIN Genuine Ferrari Part - New (to order)
                          # 018
                          MPN: 241583
                          FIXED SHOE
                          from £56.01
                          from £56.01
                          FIXED TENSION Genuine Ferrari Part - New (to order)
                          # 019
                          MPN: 241582
                          GUIDE SHOE SUPPORT
                          from £24.13
                          from £24.13
                          GUIDE SHOE SUPPORT Genuine Ferrari Part - New (to order)
                          # 020
                          MPN: 196683
                          SHOE
                          from £24.54
                          from £24.54
                          CHAIN TENSIONER Genuine Ferrari Part - New In stock
                          FIXED CHAIN TENSIONER (196683) Genuine Maserati Part - New In stock
                          # 021
                          MPN: 231616
                          SCREW
                          -M6 X 14-
                          from £0.47
                          from £0.47
                          This part replaces part number 14305724 which we have in stock
                          Genuine Ferrari Part (no longer available to order)
                          SCREW (231616) Genuine Maserati Part - New (to order)
                          # 022
                          MPN: 11193874
                          WASHER
                          -Applicable from Ass. No. 88123- -Applicable from engine No. 153879-
                          from £0.47
                          from £0.47
                          This part replaces part number 11193879 which we have in stock
                          WASHER Genuine Ferrari Part - New In stock
                          WASHER (11193874) Genuine Maserati Part - New In stock
