ferrari california (rhd) manual dct gearbox lock release control parts diagram

0031 - MANUAL DCT GEARBOX LOCK RELEASE CONTROL

Ferrari California (RHD) MANUAL DCT GEARBOX LOCK RELEASE CONTROL Parts Diagram

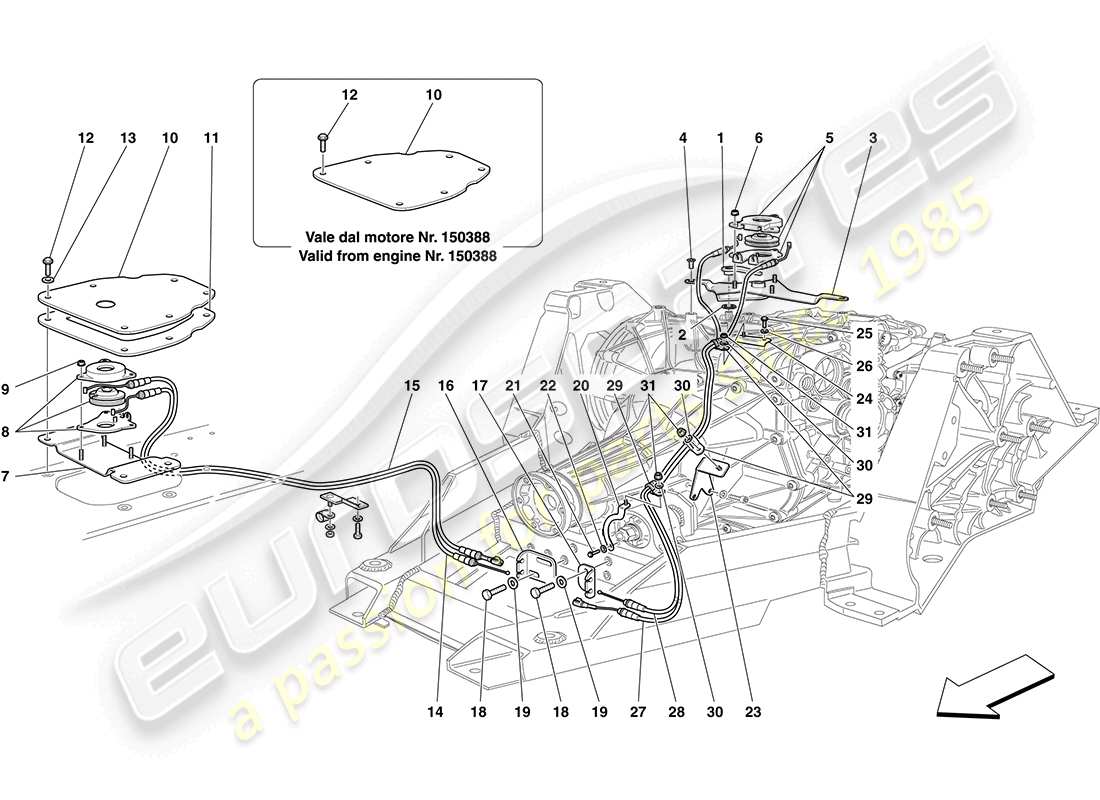

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 001
        MPN: 238370
        COMPLETE RELEASE LEVER
        from £35.94
        from £35.94
        COMPLETE RELEASE LEVER Genuine Ferrari Part - New (to order)
        # 002
        MPN: 11066176
        SEEGER RING
        from £0.47
        from £0.47
        SEEGER RING Genuine Ferrari Part - New (to order)
        SEEGER RING FOR SHAFT D.13 (11066176) Genuine Maserati Part - New (to order)
        # 003
        MPN: 252661
        RELEASE ARM MOUNTING BRACKET
        -No longer supplied- -Replaced by 310524-
        from £42.30
        from £42.30
        BRACKET Genuine Ferrari Part - New (to order)
        # 003
        MPN: 310524
        RELEASE ARM MOUNTING BRACKET
        from £23.69
        from £23.69
        BRACKET Genuine Ferrari Part - New (to order)
        BRACKET Genuine Ferrari Part - Used In stock
        # 004
        MPN: 243151
        SCREW
        from £3.06
        from £3.06
        SCREW Genuine Ferrari Part - New (to order)
        # 005
        MPN: 252665
        COMPL. RELEASE CARRIAGE
        -Applicable up to engine No. 150387-
        from £312.80
        from £312.80
        COMPLETE RELEASE PULLEY Genuine Ferrari Part - New (to order)
        # 006
        MPN: 14048511
        NUT
        -Applicable up to engine No. 150387-
        from £0.50
        from £0.50
        NUT Genuine Ferrari Part - New (to order)
        # 007
        MPN: 252543
        BRACKET
        -Applicable up to engine No. 150387-
        from £40.69
        from £40.69
        BRACKET Genuine Ferrari Part - New (to order)
        # 008
        MPN: 252665
        COMPL. RELEASE CARRIAGE
        -Applicable up to engine No. 150387-
        from £312.80
        from £312.80
        COMPLETE RELEASE PULLEY Genuine Ferrari Part - New (to order)
        # 009
        MPN: 14048511
        NUT
        -Applicable up to engine No. 150387-
        from £0.50
        from £0.50
        NUT Genuine Ferrari Part - New (to order)
        # 010
        MPN: 245942
        PLATE
        -Applicable from engine No. 150388-
        from £178.17
        from £178.17
        PLATE Genuine Ferrari Part - New (to order)
        # 010
        MPN: 251261
        PLATE
        -Applicable up to engine No. 150387-
        from £241.27
        from £241.27
        PLATE Genuine Ferrari Part - New (to order)
        # 011
        MPN: 251260
        GASKET
        -Applicable up to engine No. 150387-
        from £193.03
        from £193.03
        GASKET Genuine Ferrari Part - New (to order)
        # 012
        MPN: 10902424
        SCREW
        -Applicable up to engine No. 150387-
        from £0.50
        from £0.50
        This part replaces part number 10902324 - and 3 more. Click to view details
        SCREW Genuine Ferrari Part - New In stock
        SCREW (10902424) Genuine Maserati Part - New In stock
        # 012
        MPN: 81290900
        SCREW
        -Applicable from engine No. 150388-
        from £0.47
        from £0.47
        This part replaces part number 67578600
        SCREW WITH DOUBLE WASHER Genuine Ferrari Part - New In stock
        # 013
        MPN: 14498801
        WASHER
        -Applicable up to engine No. 150387-
        from £0.47
        from £0.47
        WASHER. Genuine Ferrari Part - New In stock
        WASHER (14498801) Genuine Maserati Part - New In stock
        # 014
        MPN: 252340
        CAR SIDE LOCK CABLE
        -No longer supplied- -Replaced by 256224-
        Supersession
        Supersession
        Genuine Ferrari Part (no longer available to order)
        # 014
        MPN: 256224
        CAR SIDE LOCK CABLE
        -Applicable up to engine No. 150387-
        from £189.31
        from £189.31
        This part replaces part number 252340
        CAR SIDE LOCK CABLE Genuine Ferrari Part - New (to order)
        # 015
        MPN: 252338
        CAR SIDE RELEASE CABLE
        -No longer supplied- -Replaced by 256222-
        Supersession
        Supersession
        Genuine Ferrari Part (no longer available to order)
        # 015
        MPN: 256222
        CAR SIDE RELEASE CABLE
        -Applicable up to engine No. 150387-
        from £189.31
        from £189.31
        This part replaces part number 252338
        CAR SIDE RELEASE CABLE Genuine Ferrari Part - New (to order)
        # 016
        MPN: 252531
        BRACKET
        -Applicable up to engine No. 150387-
        from £37.12
        from £37.12
        BRACKET Genuine Ferrari Part - New (to order)
        # 017
        MPN: 250768
        BRACKET
        -Applicable up to engine No. 150387-
        from £54.59
        from £54.59
        BRACKET Genuine Ferrari Part - New (to order)
        # 018
        MPN: 252530
        SCREW
        -Applicable up to engine No. 150387- -No longer supplied- -Replaced by 65377400-
        Supersession
        Supersession
        Genuine Ferrari Part (no longer available to order)
        # 018
        MPN: 65377400
        SCREW
        -Applicable up to engine No. 150387-
        from £1.11
        from £1.11
        This part replaces part number 156814 - and 3 more. Click to view details
        SCREW Genuine Ferrari Part - New In stock
        VITE TBEI M6X1X18 TECNOFRE (65377400) Genuine Maserati Part - New In stock
        # 019
        MPN: 12601274
        WASHER
        -Applicable up to engine No. 150387-
        from £0.47
        from £0.47
        This part replaces part number 12601221 - and 5 more. Click to view details
        WASHER Genuine Ferrari Part - New In stock
        WASHER (12601274) Genuine Maserati Part - New In stock
        # 020
        MPN: 251384
        BRACKET
        -No longer supplied- -Replaced by 253788-
        Supersession
        Supersession
        Genuine Ferrari Part (no longer available to order)
        # 020
        MPN: 253788
        BRACKET
        -Applicable up to engine No. 150387-
        from £8.69
        from £8.69
        This part replaces part number 251384
        BRACKET Genuine Ferrari Part - New (to order)
        # 021
        MPN: 13026924
        SCREW
        -Applicable up to engine No. 150387-
        from £0.47
        from £0.47
        SCREW Genuine Ferrari Part - New (to order)
        SCREW. (13026924) Genuine Maserati Part - New (to order)
        # 022
        MPN: 12601274
        WASHER
        -Applicable up to engine No. 150387-
        from £0.47
        from £0.47
        This part replaces part number 12601221 - and 5 more. Click to view details
        WASHER Genuine Ferrari Part - New In stock
        WASHER (12601274) Genuine Maserati Part - New In stock
        # 023
        MPN: 250769
        BRACKET
        -No longer supplied- -Replaced by 253786-
        Supersession
        Supersession
        Genuine Ferrari Part (no longer available to order)
        # 023
        MPN: 253786
        BRACKET
        -Applicable up to engine No. 150387-
        from £8.31
        from £8.31
        This part replaces part number 250769
        BRACKET Genuine Ferrari Part - New (to order)
        # 024
        MPN: 252315
        BRACKET
        -No longer supplied- -Replaced by 253785-
        Supersession
        Supersession
        Genuine Ferrari Part (no longer available to order)
        # 024
        MPN: 253785
        BRACKET
        -Applicable up to engine No. 150387-
        from £40.03
        from £40.03
        This part replaces part number 252315
        BRACKET Genuine Ferrari Part - New (to order)
        # 025
        MPN: 16043324
        SCREW
        -Applicable up to engine No. 150387-
        from £0.47
        from £0.47
        This part replaces part number 16043321
        SCREW Genuine Ferrari Part - New In stock
        SCREW (16043324) Genuine Maserati Part - New (to order)
        # 026
        MPN: 14499401
        WASHER
        -Applicable up to engine No. 150387-
        from £0.47
        from £0.47
        Genuine Ferrari Part (no longer available to order)
        SPLIT WASHER D. 8.4 -14X1 (14499401) Genuine Maserati Part - New (to order)
        # 027
        MPN: 252339
        CAR SIDE LOCK CABLE
        -No longer supplied- -Replaced by 256223-
        Supersession
        Supersession
        Genuine Ferrari Part (no longer available to order)
        # 027
        MPN: 256223
        CAR SIDE LOCK CABLE
        -Applicable up to engine No. 150387-
        from £189.31
        from £189.31
        This part replaces part number 252339
        CAR SIDE LOCK CABLE Genuine Ferrari Part - New (to order)
        # 028
        MPN: 252337
        GEARBOX SIDE RELEASE CABLE
        -No longer supplied- -Replaced by 256221-
        Supersession
        Supersession
        Genuine Ferrari Part (no longer available to order)
        # 028
        MPN: 256221
        GEARBOX SIDE RELEASE CABLE
        -Applicable up to engine No. 150387-
        from £189.31
        from £189.31
        This part replaces part number 252337
        GEARBOX SIDE RELEASE CABLE Genuine Ferrari Part - New (to order)
        # 029
        MPN: 10441290
        BRACKET WITH SHEATH
        -No longer supplied- -Replaced by 10441490-
        from £0.47
        from £0.47
        BRACKET Genuine Ferrari Part - New In stock
        STAFFETTA CON GUAINA PER 1 T (10441290) Genuine Maserati Part - New (to order)
        # 029
        MPN: 10441490
        BRACKET WITH SHEATH
        -Applicable up to engine No. 150387-
        from £0.47
        from £0.47
        CLAMP Genuine Ferrari Part - New In stock
        BRACKET (10441490) Genuine Maserati Part - New (to order)
        # 030
        MPN: 12601274
        WASHER
        -No longer supplied-
        from £0.47
        from £0.47
        This part replaces part number 12601221 - and 5 more. Click to view details
        WASHER Genuine Ferrari Part - New In stock
        WASHER (12601274) Genuine Maserati Part - New In stock
        # 031
        MPN: 14040611
        NUT
        -Applicable up to engine No. 150387-
        from £0.53
        from £0.53
        NUT Genuine Ferrari Part - New In stock
        NUT (14040611) Genuine Maserati Part - New In stock
        # 031
        MPN: 14048111
        NUT
        -No longer supplied- -Replaced by 14040611-
        from £0.47
        from £0.47
        This part replaces part number 14048115
        NUT Genuine Ferrari Part - New In stock
        NUT (14048111) Genuine Maserati Part - New (to order)
