0039 - FRONT WHEEL BRAKE SYSTEM COMPONENTS

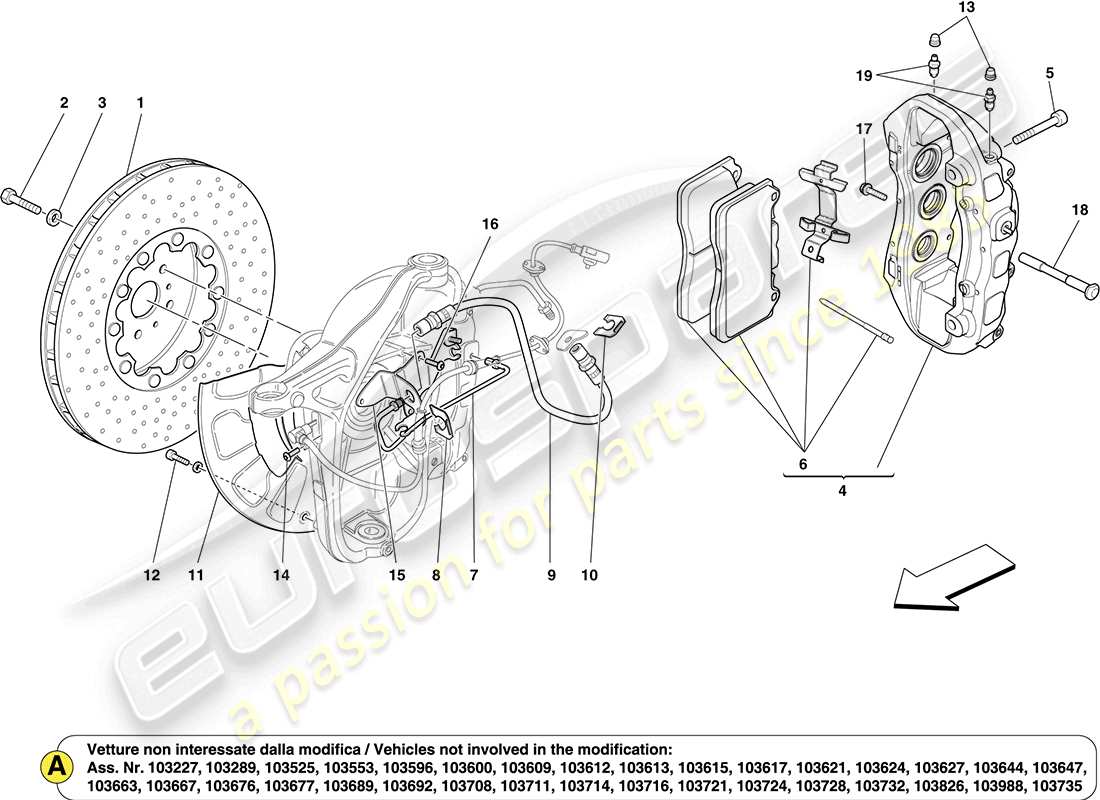

Ferrari California (RHD) FRONT WHEEL BRAKE SYSTEM COMPONENTS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 251484
FRONT BRAKE DISC
-Applicable until depletion-
from £2,395.00
from £2,395.00
# 001
MPN: 257101
FRONT BRAKE DISC
-Applicable up to Ass. No. 95333- -Applicable after depletion of 251484- -Applicable until depletion-
from £2,395.00
from £2,395.00
This part replaces part number 251484 which we have in stock
# 001
MPN: 271713
FRONT BRAKE DISC
-Applicable from Ass. No. 95334 up to Ass. No. 96951- -Applicable after depletion of 257101- -Applicable until depletion-
Supersession
Supersession
This part replaces part number 257101 which we have in stock
# 001
MPN: 274233
FRONT BRAKE DISC
-Applicable from Ass. No. 96952- -Applicable after depletion of 271713-
from £2,395.00
from £2,395.00
This part replaces part number 257101 which we have in stock - and 1 more. Click to view details
# 002
MPN: 104370
SCREW
from £5.60
from £5.60
This part replaces part number 139981
# 002
MPN: 228131
SCREW
from £0.53
from £0.53
# 003
MPN: 228132
WASHER
from £0.53
from £0.53
# 004
MPN: 251492
COMPLETE LH FRONT CALIPER
-Gloss Black brake callipers- -Applicable up to Ass. No. 103178-
from £1,732.77
from £1,732.77
# 004
MPN: 251509
COMPL. LH FRONT CALLIPER
-Anodised Black brake callipers- -Applicable up to Ass. No. 103178-
# 004
MPN: 251510
COMPLETE LH FRONT CALIPER
-Corsa Red brake callipers- -Applicable up to Ass. No. 103178-
from £1,732.77
from £1,732.77
# 004
MPN: 251511
COMPLETE LH FRONT CALIPER
-Aluminium Grey brake callipers- -Applicable up to Ass. No. 103178-
from £1,732.77
from £1,732.77
# 004
MPN: 251512
COMPLETE LH FRONT CALIPER
-Modena Yellow brake callipers- -Applicable up to Ass. No. 103178-
from £953.02
from £953.02
# 004
MPN: 251513
COMPLETE LH FRONT CALIPER
-Scuderia Red brake callipers- -Applicable up to Ass. No. 103178-
from £1,732.77
from £1,732.77
# 004
MPN: 251514
COMPL. RH FRONT CALLIPER
-Anodised Black brake callipers- -Applicable up to Ass. No. 103178-
# 004
MPN: 251515
COMPLETE RH FRONT CALIPER
-Gloss Black brake callipers- -Applicable up to Ass. No. 103178-
from £1,732.77
from £1,732.77
# 004
MPN: 251516
COMPLETE RH FRONT CALIPER
-Corsa Red brake callipers- -Applicable up to Ass. No. 103178-
from £1,732.77
from £1,732.77
# 004
MPN: 251517
COMPLETE RH FRONT CALIPER
-Aluminium Grey brake callipers- -Applicable up to Ass. No. 103178-
from £1,732.77
from £1,732.77
# 004
MPN: 251518
COMPLETE RH FRONT CALIPER
-Modena Yellow brake callipers- -Applicable up to Ass. No. 103178-
from £953.02
from £953.02
# 004
MPN: 251519
COMPLETE RH FRONT CALIPER
-Scuderia Red brake callipers- -Applicable up to Ass. No. 103178-
from £1,732.77
from £1,732.77
# 004
MPN: 275976
COMPL. LH FRONT CALLIPER
-Anodised Black brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 112692- -Applicable until depletion-
Supersession
Supersession
# 004
MPN: 275982
COMPL. RH FRONT CALLIPER
-Anodised Black brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 112692- -Applicable until depletion-
Supersession
Supersession
# 004
MPN: 276875
COMPL. LH FRONT CALLIPER
-Dark grey brake callipers- -Applicable up to Ass. No. 103178-
from £1,966.37
from £1,966.37
# 004
MPN: 276876
COMPL. RH FRONT CALLIPER
-Dark grey brake callipers- -Applicable up to Ass. No. 103178-
from £1,966.37
from £1,966.37
# 004
MPN: 279121
COMPL. LH FRONT CALLIPER
-Gloss Black brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 112692- -Applicable until depletion-
Supersession
Supersession
# 004
MPN: 279122
COMPL. LH FRONT CALLIPER
-Corsa Red brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 112692- -Applicable until depletion-
Supersession
Supersession
# 004
MPN: 279123
COMPL. LH FRONT CALLIPER
-Aluminium Grey brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 112692- -Applicable until depletion-
Supersession
Supersession
# 004
MPN: 279124
COMPL. LH FRONT CALLIPER
-Modena Yellow brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 112692- -Applicable until depletion-
Supersession
Supersession
# 004
MPN: 279125
COMPL. LH FRONT CALLIPER
-Scuderia Red brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 112692- -Applicable until depletion-
Supersession
Supersession
# 004
MPN: 279126
COMPL. LH FRONT CALLIPER
-Dark grey brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 112692- -Applicable until depletion-
Supersession
Supersession
# 004
MPN: 279127
COMPL. RH FRONT CALLIPER
-Gloss Black brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 112692- -Applicable until depletion-
Supersession
Supersession
# 004
MPN: 279129
COMPL. RH FRONT CALLIPER
-Corsa Red brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 112692- -Applicable until depletion-
Supersession
Supersession
# 004
MPN: 279131
COMPL. RH FRONT CALLIPER
-Aluminium Grey brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 112692- -Applicable until depletion-
Supersession
Supersession
# 004
MPN: 279132
COMPL. RH FRONT CALLIPER
-Modena Yellow brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 112692- -Applicable until depletion-
Supersession
Supersession
# 004
MPN: 279133
COMPL. RH FRONT CALLIPER
-Scuderia Red brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 112692- -Applicable until depletion-
Supersession
Supersession
# 004
MPN: 279135
COMPL. RH FRONT CALLIPER
-Dark grey brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 112692- -Applicable until depletion-
Supersession
Supersession
# 004
MPN: 284691
COMPL. LH FRONT CALLIPER
-Gold brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 112692- -Applicable until depletion-
Supersession
Supersession
# 004
MPN: 284692
COMPL. RH FRONT CALLIPER
-Gold brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 112692- -Applicable until depletion-
Supersession
Supersession
# 004
MPN: 284695
COMPL. LH FRONT CALLIPER
-Blue brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 112692- -Applicable until depletion-
Supersession
Supersession
# 004
MPN: 284696
COMPL. RH FRONT CALLIPER
-Blue brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 112692- -Applicable until depletion-
Supersession
Supersession
# 004
MPN: 296587
COMPL. LH FRONT CALLIPER
-Anodised Black brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 112693- -Applicable after depletion of 275976-
from £1,732.77
from £1,732.77
This part replaces part number 275976
# 004
MPN: 296589
COMPL. RH FRONT CALLIPER
-Anodised Black brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 112693- -Applicable after depletion of 275982-
from £1,732.77
from £1,732.77
This part replaces part number 275982
# 004
MPN: 296590
COMPL. LH FRONT CALLIPER
-Dark grey brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 112693- -Applicable after depletion of 279126-
This part replaces part number 279126
# 004
MPN: 296591
COMPL. RH FRONT CALLIPER
-Dark grey brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 112693- -Applicable after depletion of 279135-
from £1,065.75
from £1,065.75
This part replaces part number 279135
# 004
MPN: 296593
COMPL. LH FRONT CALLIPER
-Gloss Black brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 112693- -Applicable after depletion of 279121-
This part replaces part number 279121
# 004
MPN: 296594
COMPL. RH FRONT CALLIPER
-Gloss Black brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 112693- -Applicable after depletion of 279127-
from £1,732.77
from £1,732.77
This part replaces part number 279127
# 004
MPN: 296595
COMPL. LH FRONT CALLIPER
-Corsa Red brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 112693- -Applicable after depletion of 279122-
from £1,732.77
from £1,732.77
This part replaces part number 279122
# 004
MPN: 296596
COMPL. RH FRONT CALLIPER
-Corsa Red brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 112693- -Applicable after depletion of 279129-
from £1,732.77
from £1,732.77
This part replaces part number 279129
# 004
MPN: 296597
COMPL. LH FRONT CALLIPER
-Aluminium Grey brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 112693- -Applicable after depletion of 279123-
from £1,732.77
from £1,732.77
This part replaces part number 279123
# 004
MPN: 296598
COMPL. RH FRONT CALLIPER
-Aluminium Grey brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 112693- -Applicable after depletion of 279131-
from £1,732.77
from £1,732.77
This part replaces part number 279131
# 004
MPN: 296599
COMPL. LH FRONT CALLIPER
-Modena Yellow brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 112693- -Applicable after depletion of 279124-
from £1,732.77
from £1,732.77
This part replaces part number 279124
# 004
MPN: 296600
COMPL. RH FRONT CALLIPER
-Modena Yellow brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 112693- -Applicable after depletion of 279132-
from £1,732.77
from £1,732.77
This part replaces part number 279132
# 004
MPN: 296601
COMPL. LH FRONT CALLIPER
-Scuderia Red brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 112693- -Applicable after depletion of 279125-
from £733.95
from £733.95
This part replaces part number 279125 - and 1 more. Click to view details
# 004
MPN: 296602
COMPL. RH FRONT CALLIPER
-Scuderia Red brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 112693- -Applicable after depletion of 279133-
This part replaces part number 279133
# 004
MPN: 301876
COMPL. LH FRONT CALLIPER
-Gold brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 112693- -Applicable after depletion of 284691-
This part replaces part number 284691
# 004
MPN: 301878
COMPL. RH FRONT CALLIPER
-Gold brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 112693- -Applicable after depletion of 284692-
This part replaces part number 284692
# 004
MPN: 301879
COMPL. LH FRONT CALLIPER
-Blue brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 112693- -Applicable after depletion of 284695-
from £1,232.27
from £1,232.27
This part replaces part number 284695
# 004
MPN: 301880
COMPL. RH FRONT CALLIPER
-Blue brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 112693- -Applicable after depletion of 284696-
from £1,356.81
from £1,356.81
This part replaces part number 284696
# 005
MPN: 195167
SCREW
from £11.31
from £11.31
This part replaces part number 217654 - and 1 more. Click to view details
# 006
MPN: 70001364
FRONT BRAKE PAD KIT
-No longer supplied- -Replaced by 70001784-
Supersession
Supersession
# 006
MPN: 70001784
FRONT BRAKE PAD KIT
-No longer supplied- -Replaced by 70001785-
Supersession
Supersession
This part replaces part number 70001364
# 006
MPN: 70001785
FRONT BRAKE PAD KIT
-Applicable up to Ass. No. 103178- -Applicable until depletion-
Supersession
Supersession
This part replaces part number 70001784
# 006
MPN: 70002446
FRONT BRAKE PAD KIT
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 112692- -Applicable until depletion-
from £1,558.32
from £1,558.32
# 006
MPN: 70002954
FRONT BRAKE PAD KIT
-Applicable from Ass. No. 112693- -Applicable after depletion of 70002446-
from £785.69
from £785.69
This part replaces part number 70002446 which we have in stock
# 006
MPN: 70003110
FRONT BRAKE PAD KIT
-Applicable up to Ass. No. 103178- -Applicable after depletion of 70001785-
from £785.69
from £785.69
This part replaces part number 70001785
# 007
MPN: 252366
LH BRAKE PIPE
-Applicable up to Ass. No. 103178-
from £28.23
from £28.23
# 007
MPN: 252372
RH BRAKE PIPE
-Applicable up to Ass. No. 103178-
from £28.23
from £28.23
# 007
MPN: 274701
BRAKE PIPE FROM CALLIPER TO LH FLEXIBLE HOSE
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £32.57
from £32.57
# 007
MPN: 274703
BRAKE PIPE FROM CALLIPER TO RH FLEXIBLE HOSE
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £32.57
from £32.57
# 008
MPN: 234284
CLIP
from £0.53
from £0.53
# 009
MPN: 116373
RUBBER PIPE
-Applicable up to Ass. No. 95333- -Applicable until depletion-
Supersession
Supersession
# 009
MPN: 254241
HOSE
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
Supersession
Supersession
# 009
MPN: 271711
RUBBER PIPE
-Applicable from Ass. No. 95334 up to Ass. No. 103178- -Applicable after depletion of 116373-
from £18.16
from £18.16
This part replaces part number 116373 - and 4 more. Click to view details
# 010
MPN: 116374
CLIP
from £1.14
from £1.14
# 011
MPN: 251524
FRONT LH BRAKE DISC SHIELD
-After depletion of stock, also order hub carrier 260255, see tab. 45 pos. 3- -Applicable up to Ass. No. 86527- -Applicable until depletion-
from £9.88
from £9.88
# 011
MPN: 251526
FRONT RH BRAKE DISC SHIELD
-After depletion of stock, also order hub carrier 260256, see tab. 45 pos. 3- -Applicable up to Ass. No. 86527- -Applicable until depletion-
Supersession
Supersession
# 011
MPN: 260258
FRONT LH DISC SHIELD
-Applicable from Ass. No. 86528 up to Ass. No. 103178- -Applicable after depletion of 251524-
from £11.64
from £11.64
This part replaces part number 251524 which we have in stock - and 2 more. Click to view details
# 011
MPN: 260259
FRONT RH DISC SHIELD
-Applicable from Ass. No. 86528 up to Ass. No. 103178- -Applicable after depletion of 251526-
from £11.64
from £11.64
This part replaces part number 251526 - and 2 more. Click to view details
# 011
MPN: 260675
LH FRONT BRAKE DISC SHIELD
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £22.35
from £22.35
# 011
MPN: 260676
RH FRONT BRAKE DISC SHIELD
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £22.35
from £22.35
# 012
MPN: 190870
SCREW
-No longer supplied- -Replaced by 250657-
from £1.42
from £1.42
# 012
MPN: 250657
SCREW
from £4.02
from £4.02
# 013
MPN: 215666
CAP
from £16.89
from £16.89
# 014
MPN: 229324
SCREW
-M6 X 1 X 16- -No longer supplied-
from £70.67
from £70.67
# 015
MPN: 251084
LH BRACKET
-Applicable up to Ass. No. 103178-
from £36.76
from £36.76
# 015
MPN: 251085
RH BRACKET
-Applicable up to Ass. No. 103178-
from £36.76
from £36.76
# 015
MPN: 275956
LH BRACKET
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £252.21
from £252.21
# 015
MPN: 275958
RH BRACKET
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £252.21
from £252.21
# 016
MPN: 190870
SCREW
-No longer supplied- -Replaced by 250657-
from £1.42
from £1.42
# 016
MPN: 250657
SCREW
from £4.02
from £4.02
# 017
MPN: 198014
FLANGED SCREW
from £6.50
from £6.50
# 018
MPN: 198015
TIE ROD
from £30.94
from £30.94
# 019
MPN: 215665
BLEED SCREW
from £25.66
from £25.66
-part-diagram-0040.webp "FERRARI CALIFORNIA (RHD) REAR WHEEL BRAKE SYSTEM COMPONENTS PARTS DIAGRAM")
-part-diagram-0041.webp "FERRARI CALIFORNIA (RHD) PARKING BRAKE PARTS DIAGRAM")
-part-diagram-0042.webp "FERRARI CALIFORNIA (RHD) STEERING BOX AND POWER STEERING PUMP PARTS DIAGRAM")
-part-diagram-0043.webp "FERRARI CALIFORNIA (RHD) STEERING COLUMN ASSEMBLY AND STEERING WHEEL PARTS DIAGRAM")
-part-diagram-0044.webp "FERRARI CALIFORNIA (RHD) FRONT SHOCK ABSORBER COMPONENTS PARTS DIAGRAM")
-part-diagram-0045.webp "FERRARI CALIFORNIA (RHD) FRONT SUSPENSION PARTS DIAGRAM")
-part-diagram-0046.webp "FERRARI CALIFORNIA (RHD) REAR SHOCK ABSORBER COMPONENTS PARTS DIAGRAM")
-part-diagram-0047.webp "FERRARI CALIFORNIA (RHD) REAR SUSPENSION PARTS DIAGRAM")
-part-diagram-0048.webp "FERRARI CALIFORNIA (RHD) WHEELS AND TYRES PARTS DIAGRAM")
-part-diagram-0049.webp "FERRARI CALIFORNIA (RHD) TYRE PRESSURE MONITORING SYSTEM PARTS DIAGRAM")
-part-diagram-0050.webp "FERRARI CALIFORNIA (RHD) BATTERY PARTS DIAGRAM")
-part-diagram-0051.webp "FERRARI CALIFORNIA (RHD) ALTERNATOR, STARTER MOTOR AND AC COMPRESSOR PARTS DIAGRAM")
-part-diagram-0052.webp "FERRARI CALIFORNIA (RHD) AC UNIT: COMPONENTS IN ENGINE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0053.webp "FERRARI CALIFORNIA (RHD) AC UNIT: COMPONENTS IN ENGINE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0054.webp "FERRARI CALIFORNIA (RHD) AC UNIT: DASHBOARD COMPONENTS PARTS DIAGRAM")
-part-diagram-0055.webp "FERRARI CALIFORNIA (RHD) AC UNIT: DISTRIBUTION PARTS DIAGRAM")
-part-diagram-0056.webp "FERRARI CALIFORNIA (RHD) STANDARD ACCESSORIES PARTS DIAGRAM")
-part-diagram-0100.webp "FERRARI CALIFORNIA (RHD) BODYSHELL AND EXTERNAL FRONT TRIM PARTS DIAGRAM")
-part-diagram-0101.webp "FERRARI CALIFORNIA (RHD) FRONT BODYSHELL AND EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0102.webp "FERRARI CALIFORNIA (RHD) CENTRE BODYSHELL AND EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0103.webp "FERRARI CALIFORNIA (RHD) CENTRE BODYSHELL AND EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0104.webp "FERRARI CALIFORNIA (RHD) REAR BODYSHELL AND EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0105.webp "FERRARI CALIFORNIA (RHD) REAR BODYSHELL AND EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0106.webp "FERRARI CALIFORNIA (RHD) FRONT STRUCTURES AND CHASSIS BOX SECTIONS PARTS DIAGRAM")
-part-diagram-0107.webp "FERRARI CALIFORNIA (RHD) FRONT STRUCTURES AND CHASSIS BOX SECTIONS PARTS DIAGRAM")
-part-diagram-0108.webp "FERRARI CALIFORNIA (RHD) CENTRE STRUCTURES AND CHASSIS BOX SECTIONS PARTS DIAGRAM")
-part-diagram-0109.webp "FERRARI CALIFORNIA (RHD) CENTRE STRUCTURES AND CHASSIS BOX SECTIONS PARTS DIAGRAM")
-part-diagram-0110.webp "FERRARI CALIFORNIA (RHD) REAR STRUCTURES AND CHASSIS BOX SECTIONS PARTS DIAGRAM")
-part-diagram-0111.webp "FERRARI CALIFORNIA (RHD) REAR STRUCTURES AND CHASSIS BOX SECTIONS PARTS DIAGRAM")
-part-diagram-0112.webp "FERRARI CALIFORNIA (RHD) UNDERBODY SHIELDS AND FLAT UNDERTRAY SECTIONS PARTS DIAGRAM")
-part-diagram-0113.webp "FERRARI CALIFORNIA (RHD) WHEELHOUSES AND DOORS PARTS DIAGRAM")
-part-diagram-0114.webp "FERRARI CALIFORNIA (RHD) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-0115.webp "FERRARI CALIFORNIA (RHD) REAR BUMPER PARTS DIAGRAM")
-part-diagram-0116.webp "FERRARI CALIFORNIA (RHD) SOUNDPROOFING IN VEHICLE PARTS DIAGRAM")
-part-diagram-0117.webp "FERRARI CALIFORNIA (RHD) HEAT SHIELDS IN VEHICLE PARTS DIAGRAM")
-part-diagram-0118.webp "FERRARI CALIFORNIA (RHD) PASSENGER COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0119.webp "FERRARI CALIFORNIA (RHD) LUGGAGE COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0120.webp "FERRARI CALIFORNIA (RHD) LUGGAGE COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0121.webp "FERRARI CALIFORNIA (RHD) HEADLINER TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0122.webp "FERRARI CALIFORNIA (RHD) ELECTRIC ROOF: ROLLBAR AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0123.webp "FERRARI CALIFORNIA (RHD) ELECTRIC ROOF: TRIM PARTS DIAGRAM")
-part-diagram-0124.webp "FERRARI CALIFORNIA (RHD) ELECTRIC ROOF: KINEMATICS PARTS DIAGRAM")
-part-diagram-0125.webp "FERRARI CALIFORNIA (RHD) ELECTRIC ROOF: STRUCTURE PARTS DIAGRAM")
-part-diagram-0126.webp "FERRARI CALIFORNIA (RHD) ELECTRIC ROOF: HYDRAULICS PARTS DIAGRAM")
-part-diagram-0127.webp "FERRARI CALIFORNIA (RHD) FRONT LID PARTS DIAGRAM")
-part-diagram-0128.webp "FERRARI CALIFORNIA (RHD) REAR LID PARTS DIAGRAM")
-part-diagram-0129.webp "FERRARI CALIFORNIA (RHD) FUEL FILLER FLAP AND CONTROLS PARTS DIAGRAM")
-part-diagram-0130.webp "FERRARI CALIFORNIA (RHD) FRONT DOORS: TRIM PARTS DIAGRAM")
-part-diagram-0131.webp "FERRARI CALIFORNIA (RHD) FRONT DOORS: MECHANISMS PARTS DIAGRAM")
-part-diagram-0132.webp "FERRARI CALIFORNIA (RHD) POWER WINDOWS AND REAR VIEW MIRRORS PARTS DIAGRAM")
-part-diagram-0133.webp "FERRARI CALIFORNIA (RHD) SCREENS, WINDOWS AND SEALS PARTS DIAGRAM")
-part-diagram-0134.webp "FERRARI CALIFORNIA (RHD) FRONT SEAT - SEAT BELTS PARTS DIAGRAM")
-part-diagram-0135.webp "FERRARI CALIFORNIA (RHD) FRONT SEAT - TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0136.webp "FERRARI CALIFORNIA (RHD) FRONT SEAT - RACING PARTS DIAGRAM")
-part-diagram-0137.webp "FERRARI CALIFORNIA (RHD) CENTRE TUNNEL AND ACCESSORY UNIT PARTS DIAGRAM")
-part-diagram-0138.webp "FERRARI CALIFORNIA (RHD) INTERIOR TRIM PARTS DIAGRAM")
-part-diagram-0139.webp "FERRARI CALIFORNIA (RHD) DASHBOARD PARTS DIAGRAM")
-part-diagram-0140.webp "FERRARI CALIFORNIA (RHD) GLOVE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0141.webp "FERRARI CALIFORNIA (RHD) AIRBAG SYSTEM PARTS DIAGRAM")
-part-diagram-0142.webp "FERRARI CALIFORNIA (RHD) AIRBAG SYSTEM PARTS DIAGRAM")
-part-diagram-0143.webp "FERRARI CALIFORNIA (RHD) INTERNAL PASSENGER COMPARTMENT SERVICES PARTS DIAGRAM")
-part-diagram-0144.webp "FERRARI CALIFORNIA (RHD) HEADLIGHTS PARTS DIAGRAM")
-part-diagram-0145.webp "FERRARI CALIFORNIA (RHD) TAILLIGHTS PARTS DIAGRAM")
-part-diagram-0146.webp "FERRARI CALIFORNIA (RHD) SHIELDS, TRIM AND COVERS PARTS DIAGRAM")
-part-diagram-0147.webp "FERRARI CALIFORNIA (RHD) SHIELDS, TRIM AND COVERS PARTS DIAGRAM")
-part-diagram-0148.webp "FERRARI CALIFORNIA (RHD) MAIN WIRING HARNESSES PARTS DIAGRAM")
-part-diagram-0149.webp "FERRARI CALIFORNIA (RHD) VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-0150.webp "FERRARI CALIFORNIA (RHD) ELECTRONIC MANAGEMENT (SUSPENSION) PARTS DIAGRAM")
-part-diagram-0151.webp "FERRARI CALIFORNIA (RHD) PASSENGER COMPARTMENT ECUS PARTS DIAGRAM")
-part-diagram-0152.webp "FERRARI CALIFORNIA (RHD) LUGGAGE COMPARTMENT ECUS PARTS DIAGRAM")
-part-diagram-0153.webp "FERRARI CALIFORNIA (RHD) ALARM AND IMMOBILIZER SYSTEM PARTS DIAGRAM")
-part-diagram-0154.webp "FERRARI CALIFORNIA (RHD) INFOTAINMENT SYSTEM PARTS DIAGRAM")
-part-diagram-0155.webp "FERRARI CALIFORNIA (RHD) AUDIO SPEAKER SYSTEM PARTS DIAGRAM")
-part-diagram-0156.webp "FERRARI CALIFORNIA (RHD) WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-0157.webp "FERRARI CALIFORNIA (RHD) ADHESIVE LABELS AND PLAQUES PARTS DIAGRAM")
-part-diagram-0999.webp "FERRARI CALIFORNIA (RHD) COLOUR CODES PARTS DIAGRAM")
-part-diagram-0000.webp "FERRARI CALIFORNIA (RHD) SPARE ASSEMBLY UNITS PARTS DIAGRAM")
-part-diagram-0001.webp "FERRARI CALIFORNIA (RHD) CRANKCASE PARTS DIAGRAM")
-part-diagram-0002.webp "FERRARI CALIFORNIA (RHD) CRANKSHAFT, CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-0003.webp "FERRARI CALIFORNIA (RHD) RIGHT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0004.webp "FERRARI CALIFORNIA (RHD) LEFT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0005.webp "FERRARI CALIFORNIA (RHD) TIMING SYSTEM - CAMSHAFTS AND VALVES PARTS DIAGRAM")
-part-diagram-0006.webp "FERRARI CALIFORNIA (RHD) TIMING SYSTEM - DRIVE PARTS DIAGRAM")
-part-diagram-0007.webp "FERRARI CALIFORNIA (RHD) FUEL PUMP AND CONNECTOR PIPES PARTS DIAGRAM")
-part-diagram-0008.webp "FERRARI CALIFORNIA (RHD) FUEL TANK PARTS DIAGRAM")
-part-diagram-0009.webp "FERRARI CALIFORNIA (RHD) EVAPORATIVE EMISSIONS CONTROL SYSTEM PARTS DIAGRAM")
-part-diagram-0010.webp "FERRARI CALIFORNIA (RHD) RIGHT HAND INJECTION SYSTEM - IGNITION PARTS DIAGRAM")
-part-diagram-0011.webp "FERRARI CALIFORNIA (RHD) LEFT HAND INJECTION SYSTEM - IGNITION PARTS DIAGRAM")
-part-diagram-0012.webp "FERRARI CALIFORNIA (RHD) SECONDARY AIR SYSTEM PARTS DIAGRAM")
-part-diagram-0013.webp "FERRARI CALIFORNIA (RHD) INTAKE MANIFOLD AND THROTTLE BODY PARTS DIAGRAM")
-part-diagram-0014.webp "FERRARI CALIFORNIA (RHD) AIR FILTER, AIR INTAKE AND DUCTS PARTS DIAGRAM")
-part-diagram-0015.webp "FERRARI CALIFORNIA (RHD) PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS PARTS DIAGRAM")
-part-diagram-0016.webp "FERRARI CALIFORNIA (RHD) SILENCERS PARTS DIAGRAM")
-part-diagram-0017.webp "FERRARI CALIFORNIA (RHD) HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-0018.webp "FERRARI CALIFORNIA (RHD) VAPOUR OIL RECOVERY SYSTEM PARTS DIAGRAM")
-part-diagram-0019.webp "FERRARI CALIFORNIA (RHD) LUBRICATION: CIRCUIT AND PICKUP PARTS DIAGRAM")
-part-diagram-0020.webp "FERRARI CALIFORNIA (RHD) LUBRICATION: PUMP AND FILTER PARTS DIAGRAM")
-part-diagram-0021.webp "FERRARI CALIFORNIA (RHD) COOLING: WATER PUMP PARTS DIAGRAM")
-part-diagram-0022.webp "FERRARI CALIFORNIA (RHD) COOLING: RADIATORS AND AIR DUCTS PARTS DIAGRAM")
-part-diagram-0023.webp "FERRARI CALIFORNIA (RHD) COOLING: HEADER TANK AND PIPES PARTS DIAGRAM")
-part-diagram-0024.webp "FERRARI CALIFORNIA (RHD) TRANSMISSION HOUSING PARTS DIAGRAM")
-part-diagram-0025.webp "FERRARI CALIFORNIA (RHD) EXTERNAL GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-0026.webp "FERRARI CALIFORNIA (RHD) GEARBOX HOUSING PARTS DIAGRAM")
-part-diagram-0027.webp "FERRARI CALIFORNIA (RHD) GEARBOX REPAIR KIT PARTS DIAGRAM")
-part-diagram-0028.webp "FERRARI CALIFORNIA (RHD) GEARBOX OIL LUBRICATION AND COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-0029.webp "FERRARI CALIFORNIA (RHD) GEARBOX OIL LUBRICATION AND COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-0030.webp "FERRARI CALIFORNIA (RHD) GEARBOX LUBRICATION AND COOLING CIRCUIT PARTS DIAGRAM")
-part-diagram-0031.webp "FERRARI CALIFORNIA (RHD) MANUAL DCT GEARBOX LOCK RELEASE CONTROL PARTS DIAGRAM")
-part-diagram-0032.webp "FERRARI CALIFORNIA (RHD) TRANSMISSION PIPE PARTS DIAGRAM")
-part-diagram-0033.webp "FERRARI CALIFORNIA (RHD) DIFFERENTIAL AND REAR AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-0034.webp "FERRARI CALIFORNIA (RHD) POWER STEERING SYSTEM PARTS DIAGRAM")
-part-diagram-0035.webp "FERRARI CALIFORNIA (RHD) COMPLETE PEDAL BOARD ASSEMBLY PARTS DIAGRAM")
-part-diagram-0036.webp "FERRARI CALIFORNIA (RHD) COMPLETE PEDAL BOARD ASSEMBLY PARTS DIAGRAM")
-part-diagram-0037.webp "FERRARI CALIFORNIA (RHD) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0038.webp "FERRARI CALIFORNIA (RHD) BRAKE SYSTEM PARTS DIAGRAM")
