ferrari california (rhd) bodyshell and external front trim parts diagram

0100 - BODYSHELL AND EXTERNAL FRONT TRIM

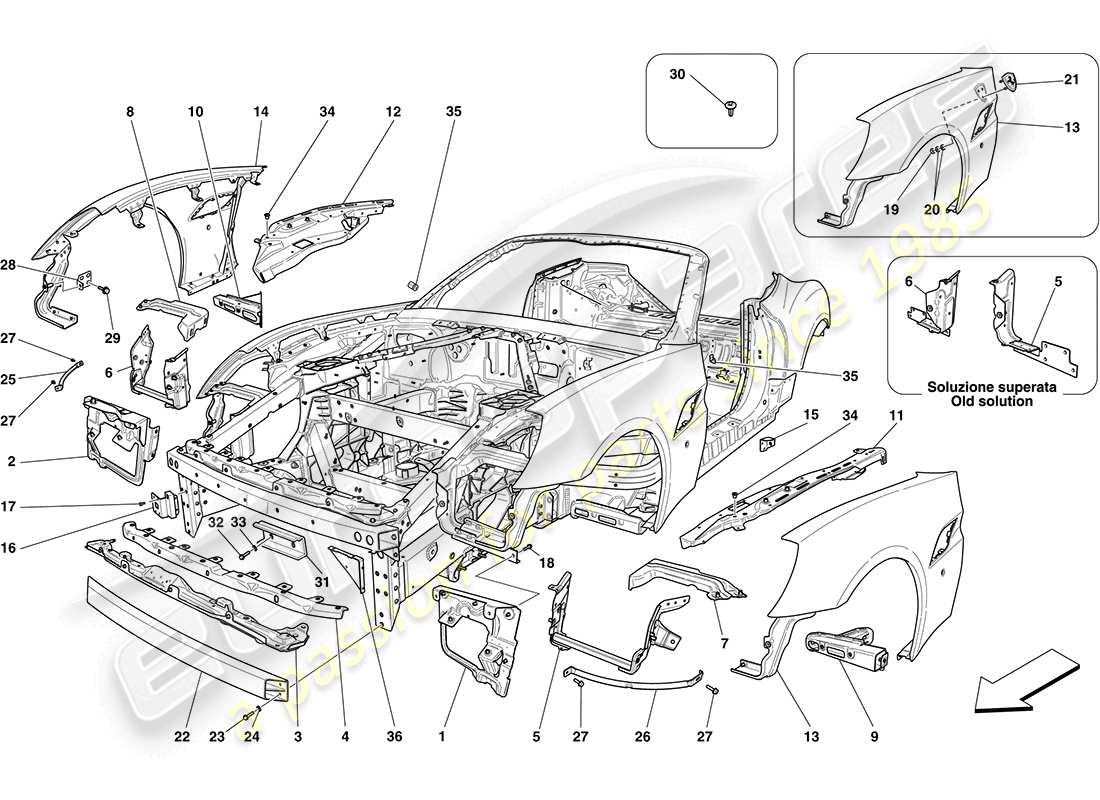

Ferrari California (RHD) BODYSHELL AND EXTERNAL FRONT TRIM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 000
      MPN: 808910000

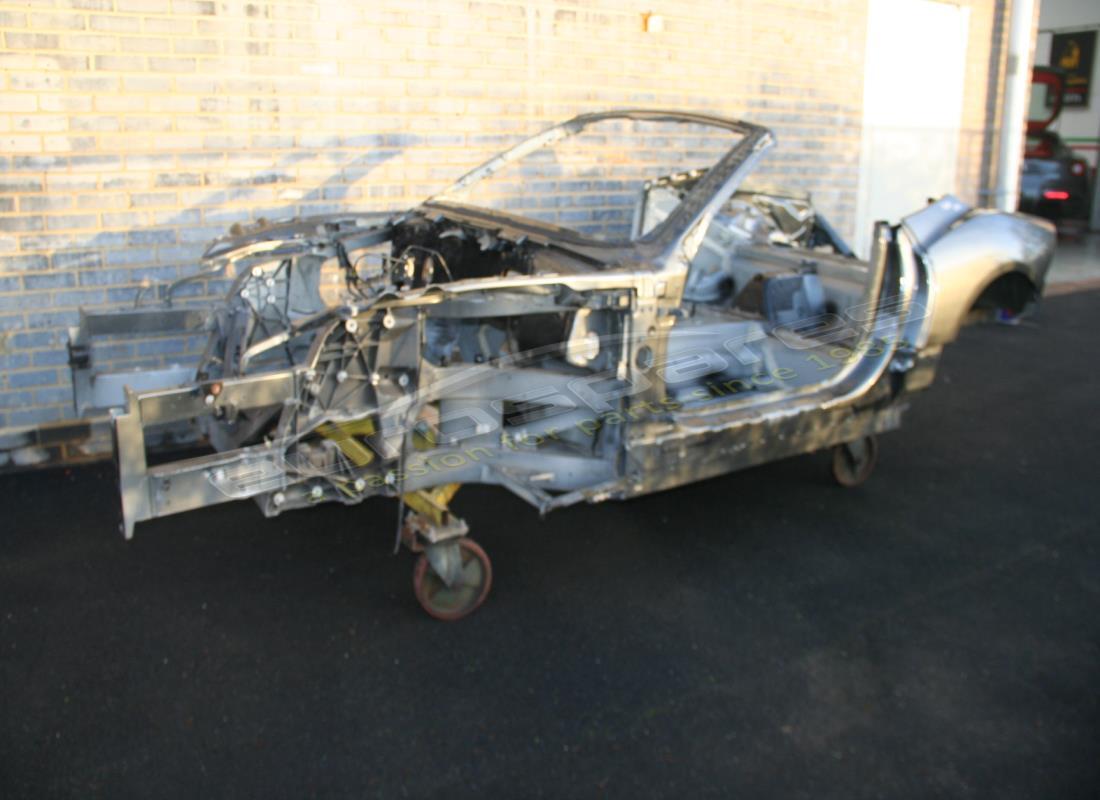

      BODYSHELL
      from £18,894.75
      from £18,894.75
      BODYSHELL CALIFORNIA t Genuine Ferrari Part - New (to order)
      BODYSHELL CALIFORNIA t Genuine Ferrari Part - Used In stock
      # 001
      MPN: 80857200
      LH BRAKE AIR INTAKE FIXING
      -Applicable up to Ass. No. 103178-
      from £514.50
      from £514.50
      LH BRAKE AIR INTAKE FIXING Genuine Ferrari Part - New (to order)
      # 002
      MPN: 80856800
      RH BRAKE AIR INTAKE FIXING
      -Applicable up to Ass. No. 103178-
      from £514.50
      from £514.50
      RH BRAKE AIR INTAKE FIXING Genuine Ferrari Part - New (to order)
      # 003
      MPN: 80356511
      COMPLETE LOCK CROSS MEMBER
      -Request ASM authorisation- -Applicable up to Ass. No. 103178-
      from £585.42
      from £585.42
      COMPLETE LOCK CROSS MEMBER Genuine Ferrari Part - New (to order)
      # 004
      MPN: 80967311
      BUMPER SUPPORT UPPER BRACKET
      -Request ASM authorisation- -Applicable up to Ass. No. 103178-
      from £230.62
      from £230.62
      BUMPER SUPPORT UPPER BRACKET Genuine Ferrari Part - New (to order)
      # 005
      MPN: 80670111
      LH FRONT HEADLIGHT INNER FIXING
      -Request ASM authorisation- -No longer supplied- -Replaced by 82858700-
      Supersession
      Supersession
      Genuine Ferrari Part (no longer available to order)
      # 005
      MPN: 82858700
      COMPL. LH HEADLIGHT TUB
      -Request ASM authorisation- -Applicable up to Ass. No. 103178-
      from £532.20
      from £532.20
      This part replaces part number 80670111
      BRACKET Genuine Ferrari Part - New (to order)
      # 006
      MPN: 80667011
      RH FRONT HEADLIGHT INNER FIXING
      -Request ASM authorisation- -No longer supplied- -Replaced by 82858600-
      Supersession
      Supersession
      Genuine Ferrari Part (no longer available to order)
      # 006
      MPN: 82858600
      COMPL. RH HEADLIGHT TUB
      -Request ASM authorisation- -Applicable up to Ass. No. 103178-
      from £532.20
      from £532.20
      This part replaces part number 80667011
      BRACKET Genuine Ferrari Part - New In stock
      # 007
      MPN: 80846011
      COMPLETE LH FRONT FENDER LINKAGE BRACKET
      -Request ASM authorisation- -Applicable up to Ass. No. 103178-
      from £262.50
      from £262.50
      COMPLETE LH FRONT FENDER LI Genuine Ferrari Part - New In stock
      # 008
      MPN: 80845911
      COMPLETE RH FRONT FENDER LINKAGE BRACKET
      -Request ASM authorisation- -Applicable up to Ass. No. 103178-
      from £262.50
      from £262.50
      COMPLETE RH FRONT FENDER LI Genuine Ferrari Part - New In stock
      # 009
      MPN: 80003911
      LOWER MOUNTING FOR LH FRONT FENDER
      -Request ASM authorisation- -Applicable until depletion-
      Supersession
      Supersession
      Genuine Ferrari Part (no longer available to order)
      # 009
      MPN: 82528311
      LOWER MOUNTING FOR LH FRONT FENDER
      -Request ASM authorisation- -Applicable up to Ass. No. 103178- -Applicable after depletion of 80003911-
      from £98.77
      from £98.77
      This part replaces part number 80003911
      LOWER MOUNTING FOR LH FRONT Genuine Ferrari Part - New (to order)
      # 010
      MPN: 80003811
      LOWER MOUNTING FOR RH FRONT FENDER
      -Request ASM authorisation- -Applicable until depletion-
      Supersession
      Supersession
      Genuine Ferrari Part (no longer available to order)
      # 010
      MPN: 82528211
      LOWER MOUNTING FOR RH FRONT FENDER
      -Request ASM authorisation- -Applicable up to Ass. No. 103178- -Applicable after depletion of 80003811-
      from £157.50
      from £157.50
      This part replaces part number 80003811
      LOWER MOUNTING FOR RH FRONT Genuine Ferrari Part - New In stock
      # 011
      MPN: 69883511
      COMPLETE LH FENDER SUPPORT
      -Applicable up to Ass. No. 103178-
      from £526.29
      from £526.29
      LH FRONT WING SUPPORT Genuine Ferrari Part - New (to order)
      # 012
      MPN: 69883311
      COMPLETE RH FENDER SUPPORT
      -Applicable up to Ass. No. 103178-
      from £327.12
      from £327.12
      COMPLETE RH FENDER SUPPORT Genuine Ferrari Part - New In stock
      # 013
      MPN: 69874911
      CPL. LH FRONT MODGUARD
      -Replaced by 84630711- -Applicable up to Ass. No. 103178- -Applicable until depletion-
      from £1,265.68
      from £1,265.68
      LH FRONT FENDER COMPLETE Genuine Ferrari Part - New In stock
      LH FRONT FENDER COMPLETE Genuine Ferrari Part - Used In stock
      LH FRONT FENDER COMPLETE Genuine Ferrari Part - New (other) In stock
      PAINTED
      # 013
      MPN: 80965111
      CPL. LH FRONT MODGUARD
      -Scuderia Ferrari shields on fenders- -Replaced by 84630811- -Applicable up to Ass. No. 103178- -Applicable until depletion-
      from £3,943.95
      from £3,943.95
      LH FRONT MUDGUARD COMPLETE Genuine Ferrari Part - New In stock
      # 013
      MPN: 84630711
      COMPL. LH FRONT FENDER
      -Applicable up to Ass. No. 103178- -Applicable after depletion of 69874911-
      from £1,499.47
      from £1,499.47
      This part replaces part number 69874911 which we have in stock - and 1 more. Click to view details
      COMPLETE LH FRONT FENDER Genuine Ferrari Part - New (to order)
      COMPLETE LH FRONT FENDER Genuine Ferrari Part - Used In stock
      # 013
      MPN: 84630811
      COMPL. LH FRONT FENDER
      -Scuderia Ferrari shields on fenders- -Applicable up to Ass. No. 103178- -Applicable after depletion of 80965111-
      from £2,726.31
      from £2,726.31
      This part replaces part number 80965111 which we have in stock
      COMPLETE LH FRONT FENDER Genuine Ferrari Part - New In stock
      # 014
      MPN: 69874811
      CPL. RH FRONT MODGUARD
      -Applicable up to Ass. No. 103178-
      from £2,928.66
      from £2,928.66
      PARAFANGO ANTER.DX.CPL.+CATA Genuine Ferrari Part - New In stock
      # 014
      MPN: 80965211
      CPL. RH FRONT MODGUARD
      -Scuderia Ferrari shields on fenders- -Applicable up to Ass. No. 103178-
      from £2,301.24
      from £2,301.24
      COMPLETE RH FRONT FENDER Genuine Ferrari Part - New In stock
      # 015
      MPN: 81424211
      WINDSCREEN WASHER TANK FIXING BRACKET
      -Applicable up to Ass. No. 103178-
      Supersession
      Supersession
      Genuine Ferrari Part (no longer available to order)
      # 016
      MPN: 81580900
      TOW HOOK BRACKET
      -Request ASM authorisation- -Not for CINA, USA, CDN, GOLFO, USA LIGHT- -Applicable up to Ass. No. 103178-
      from £231.00
      from £231.00
      TOW HOOK BRACKET Genuine Ferrari Part - New In stock
      # 017
      MPN: 11568027
      SCREW
      -Not for USA, CDN, GOLFO, USA LIGHT- -Applicable up to Ass. No. 103178-
      from £0.80
      from £0.80
      SCREW Genuine Ferrari Part - New In stock
      VITE TCE M 6X18 CON EL IMP M (11568027) Genuine Maserati Part - New (to order)
      # 018
      MPN: 16286121
      SCREW
      -M6 X 20- -Applicable up to Ass. No. 103178-
      from £0.47
      from £0.47
      SCREW Genuine Ferrari Part - New In stock
      SCREW (16286121) Genuine Maserati Part - New (to order)
      # 019
      MPN: 16101711
      NUT
      -Scuderia Ferrari shields on fenders- -Applicable up to Ass. No. 103178-
      from £0.47
      from £0.47
      This part replaces part number 16101715
      NUT Genuine Ferrari Part - New In stock
      HEX .NUT M3X2.4 (16101711) Genuine Maserati Part - New (to order)
      # 020
      MPN: 12642878
      WASHER
      -Scuderia Ferrari shields on fenders- -Applicable up to Ass. No. 103178-
      from £0.52
      from £0.52
      WASHER Genuine Ferrari Part - New (to order)
      SPLIT WASHER D.2 4.15-12X 1 (12642878) Genuine Maserati Part - New (to order)
      # 021
      MPN: 69750300
      MOULDING FRAME SQUADRA CORSE
      -Scuderia Ferrari shields on fenders- -Applicable up to Ass. No. 103178-
      from £421.12
      from £421.12
      MOULDING FRAME SQUADRA CORSE Genuine Ferrari Part - New (to order)
      # 022
      MPN: 69768900
      BRACKET
      -Applicable up to Ass. No. 103178-
      from £651.69
      from £651.69
      BRACKET Genuine Ferrari Part - New (to order)
      # 023
      MPN: 14306424
      SCREW
      -Applicable up to Ass. No. 103178-
      from £0.47
      from £0.47
      This part replaces part number 14306324 - and 2 more. Click to view details
      SCREW Genuine Ferrari Part - New In stock
      SCREW (14306424) Genuine Maserati Part - New In stock
      # 024
      MPN: 13578321
      WASHER
      -Applicable up to Ass. No. 103178-
      from £0.47
      from £0.47
      WASHER Genuine Ferrari Part - New In stock
      # 025
      MPN: 82239700
      RH STIFFENER CROSS MEMBER.
      -Applicable up to Ass. No. 103178-
      from £13.15
      from £13.15
      RH CROSS METAL Genuine Ferrari Part - New (to order)
      # 026
      MPN: 82239600
      LH STIFFENER CROSS MEMBER.
      -Applicable up to Ass. No. 103178-
      from £13.15
      from £13.15
      LH CROSS METAL Genuine Ferrari Part - New (to order)
      # 027
      MPN: 16286121
      SCREW
      -M6 X 20- -Applicable up to Ass. No. 103178-
      from £0.47
      from £0.47
      SCREW Genuine Ferrari Part - New In stock
      SCREW (16286121) Genuine Maserati Part - New (to order)
      # 028
      MPN: 82862600
      HEADLIGHT MOUNTING BRACKET
      -Applicable up to Ass. No. 103178-
      from £4.09
      from £4.09
      This part replaces part number 82862700
      RH HEADLIGHT FASTENER BRACKE Genuine Ferrari Part - New (to order)
      # 029
      MPN: 81290900
      SCREW
      -Applicable up to Ass. No. 103178-
      from £0.47
      from £0.47
      This part replaces part number 67578600
      SCREW WITH DOUBLE WASHER M6 x 20 x 22 Genuine Ferrari Part - New (to order)
      # 030
      MPN: 81126500
      RIVET
      -3.9 x 5.5- -Applicable up to Ass. No. 103178-
      from £0.54
      from £0.54
      RIVET Genuine Ferrari Part - New In stock
      # 030
      MPN: 81126600
      RIVET
      -3.9 x 5.5- -Applicable up to Ass. No. 103178-
      from £0.47
      from £0.47
      RIVET Genuine Ferrari Part - New In stock
      # 030
      MPN: 81126700
      RIVET
      -3.9 x 5.5- -Applicable up to Ass. No. 103178-
      from £0.54
      from £0.54
      RIVET Genuine Ferrari Part - New In stock
      # 030
      MPN: 81126800
      RIVET
      -3.9 x 5.5- -Applicable up to Ass. No. 103178-
      from £0.47
      from £0.47
      RIVET Genuine Ferrari Part - New In stock
      # 030
      MPN: 81126900
      RIVET
      -3.9 x 5.5- -Applicable up to Ass. No. 103178-
      from £0.54
      from £0.54
      RIVET Genuine Ferrari Part - New In stock
      # 030
      MPN: 82398700
      RIVET
      -3.9 x 5.5- -Applicable up to Ass. No. 103178-
      from £0.47
      from £0.47
      RIVET Genuine Ferrari Part - New In stock
      # 031
      MPN: 80102500
      CENTRAL ABSORBER BRACKET
      -Applicable up to Ass. No. 103178-
      from £84.89
      from £84.89
      BRACKET ABSORBER CENTRAL UPP Genuine Ferrari Part - New (to order)
      # 032
      MPN: 16287127
      SCREW
      -Applicable up to Ass. No. 103178-
      from £0.47
      from £0.47
      SCREW Genuine Ferrari Part - New (to order)
      SCREW. (16287127) Genuine Maserati Part - New (to order)
      # 033
      MPN: 13578305
      WASHER
      -Applicable up to Ass. No. 103178-
      from £0.47
      from £0.47
      WASHER Genuine Ferrari Part - New (to order)
      WASHER (13578305) Genuine Maserati Part - New (to order)
      # 034
      MPN: 256799
      BUSHING
      -Applicable up to Ass. No. 103178-
      from £3.12
      from £3.12
      BUSHING Genuine Ferrari Part - New (to order)
      # 035
      MPN: 82130200
      BRACKET
      -Applicable up to Ass. No. 103178-
      from £4.45
      from £4.45
      BRACKET Genuine Ferrari Part - New (to order)
      # 036
      MPN: 81231100
      LH CROSS MEMBER REINFORCEMENT BRACKET
      from £66.71
      from £66.71
      This part replaces part number 81030800
      LH BRACKET REINFORCE CROSS B Genuine Ferrari Part - New (to order)
      # 036
      MPN: 81231300
      RH CROSS MEMBER REINFORCEMENT BRACKET
      from £66.71
      from £66.71
      This part replaces part number 81033000
      RH BRACKET REINFORCE CROSS B Genuine Ferrari Part - New (to order)
      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
