0108 - centre structures and chassis box sections

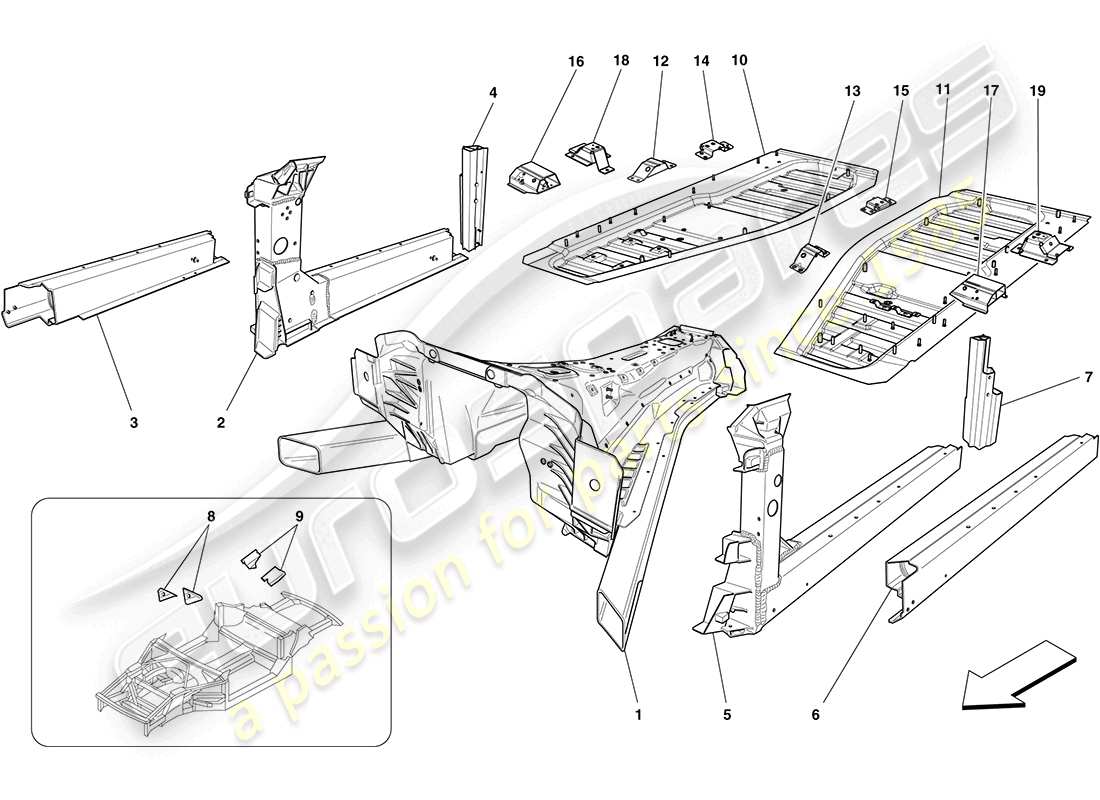

Ferrari California (RHD) CENTRE STRUCTURES AND CHASSIS BOX SECTIONS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 985234440
TUNNEL
-Request ASM authorisation- -Not for USA, CDN, GD, USA LIGHT- -No longer supplied- -Replaced by 985256369-
Supersession
Supersession
# 001
MPN: 985246967
TUNNEL
-Request ASM authorisation- -Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -Applicable for GD- -Applicable up to Ass. No. 103178-
from £4,283.91
from £4,283.91
# 001
MPN: 985256369
TUNNEL
-Request ASM authorisation- -Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -Not for GD- -Applicable up to Ass. No. 103178-
from £4,283.91
from £4,283.91
This part replaces part number 985234440
# 001
MPN: 985261841
TUNNEL
-Request ASM authorisation- -Not for DCT-F1 gearbox (Applicable for mechanical gearbox)- -Not for GD- -Applicable up to Ass. No. 103178-
# 001
MPN: 985261851
TUNNEL
-Request ASM authorisation- -Not for DCT-F1 gearbox (Applicable for mechanical gearbox)- -Applicable for GD- -Applicable up to Ass. No. 103178-
# 002
MPN: 985234994
RH CENTRAL SIDEWALL
-Request ASM authorisation- -Not for GD- -No longer supplied- -Replaced by 985256367-
Supersession
Supersession
# 002
MPN: 985250199
RH CENTRAL SIDEWALL
-Request ASM authorisation- -Applicable for GD- -Applicable up to Ass. No. 87998- -Applicable until depletion-
Supersession
Supersession
# 002
MPN: 985256367
RH CENTRAL SIDEWALL
-Request ASM authorisation- -Not for GD- -Applicable up to Ass. No. 87998- -Applicable until depletion-
Supersession
Supersession
This part replaces part number 985234994
# 002
MPN: 985261503
RH CENTRAL SIDEWALL
-Request ASM authorisation- -Not for GD- -Applicable from Ass. No. 87999 up to Ass. No. 103178-
from £5,166.62
from £5,166.62
This part replaces part number 985256367
# 002
MPN: 985262123
RH CENTRAL SIDEWALL
-Request ASM authorisation- -Applicable for GD- -Applicable from Ass. No. 87999 up to Ass. No. 103178-
from £5,166.62
from £5,166.62
This part replaces part number 985250199
# 003
MPN: 985240314
COMPLETE RH CROSS MEMBER
-Request ASM authorisation- -Not for GD- -No longer supplied- -Replaced by 985256368-
Supersession
Supersession
# 003
MPN: 985250881
COMPLETE RH CROSS MEMBER
-Request ASM authorisation- -Applicable for GD- -Applicable up to Ass. No. 87998- -Applicable until depletion-
Supersession
Supersession
# 003
MPN: 985256368
COMPLETE RH CROSS MEMBER
-Request ASM authorisation- -Not for GD- -Applicable up to Ass. No. 87998- -Applicable until depletion-
Supersession
Supersession
This part replaces part number 985240314
# 003
MPN: 985261506
COMPLETE RH CROSS MEMBER
-Request ASM authorisation- -Not for GD- -Applicable from Ass. No. 87999 up to Ass. No. 103178-
from £2,179.44
from £2,179.44
This part replaces part number 985256368
# 003
MPN: 985262122
COMPLETE RH CROSS MEMBER
-Request ASM authorisation- -Applicable for GD- -Applicable from Ass. No. 87999 up to Ass. No. 103178-
from £3,816.20
from £3,816.20
This part replaces part number 985250881
# 004
MPN: 985242174
RH REAR VERTICAL ROD
-Request ASM authorisation- -Applicable up to Ass. No. 103178-
from £480.37
from £480.37
# 005
MPN: 985234993
LH CENTRAL SIDE SHIELD
-Request ASM authorisation- -No longer supplied- -Replaced by 985256292-
Supersession
Supersession
# 005
MPN: 985256292
LH CENTRAL SIDE SHIELD
-Request ASM authorisation- -Applicable up to Ass. No. 87998- -Applicable until depletion-
Supersession
Supersession
This part replaces part number 985234993
# 005
MPN: 985261499
LH CENTRAL SIDE SHIELD
-Request ASM authorisation- -Applicable from Ass. No. 87999 up to Ass. No. 103178-
from £5,166.62
from £5,166.62
This part replaces part number 985256292
# 006
MPN: 985240315
COMPLETE LH CROSS MEMBER
-Request ASM authorisation- -No longer supplied- -Replaced by 985256291-
Supersession
Supersession
# 006
MPN: 985256291
COMPLETE LH CROSS MEMBER
-Request ASM authorisation- -Applicable up to Ass. No. 87998- -Applicable until depletion-
Supersession
Supersession
This part replaces part number 985240315
# 006
MPN: 985261502
COMPLETE LH CROSS MEMBER
-Request ASM authorisation- -Applicable from Ass. No. 87999 up to Ass. No. 103178-
from £2,179.44
from £2,179.44
This part replaces part number 985256291
# 007
MPN: 985242175
LH REAR VERTICAL ROD
-Request ASM authorisation- -Applicable up to Ass. No. 103178-
from £480.86
from £480.86
# 008
MPN: 985261236
FRONT LH BRACE
-Applicable up to Ass. No. 103178-
from £61.26
from £61.26
# 008
MPN: 985261237
FRONT RH BRACE
-Applicable up to Ass. No. 103178-
from £61.26
from £61.26
# 009
MPN: 985261238
REAR LH BRACE
-Applicable up to Ass. No. 103178-
from £86.48
from £86.48
# 009
MPN: 985261239
REAR RH BRACE
-Applicable up to Ass. No. 103178-
from £86.48
from £86.48
# 010
MPN: 985251716
RH FLOOR
-Applicable up to Ass. No. 103178-
from £435.64
from £435.64
# 011
MPN: 985251715
LH FLOOR
-Applicable up to Ass. No. 103178-
from £435.64
from £435.64
# 012
MPN: 226699
INNER FRONT BRACKET, RH SEAT
from £62.18
from £62.18
# 013
MPN: 224957
INNER FRONT BRACKET, LH SEAT
from £62.75
from £62.75
# 014
MPN: 226698
INNER REAR BRACKET, RH SEAT
from £39.21
from £39.21
# 015
MPN: 224958
INNER REAR BRACKET, LH SEAT
from £54.89
from £54.89
# 016
MPN: 224959
OUTER FRONT BRACKET, RH SEAT
from £446.11
from £446.11
# 017
MPN: 224960
OUTER FRONT BRACKET, LH SEAT
from £62.75
from £62.75
# 018
MPN: 248050
OUTER REAR BRACKET, RH SEAT
from £129.71
from £129.71
# 019
MPN: 248051
OUTER REAR BRACKET, LH SEAT
from £288.25
from £288.25
