0128 - REAR LID

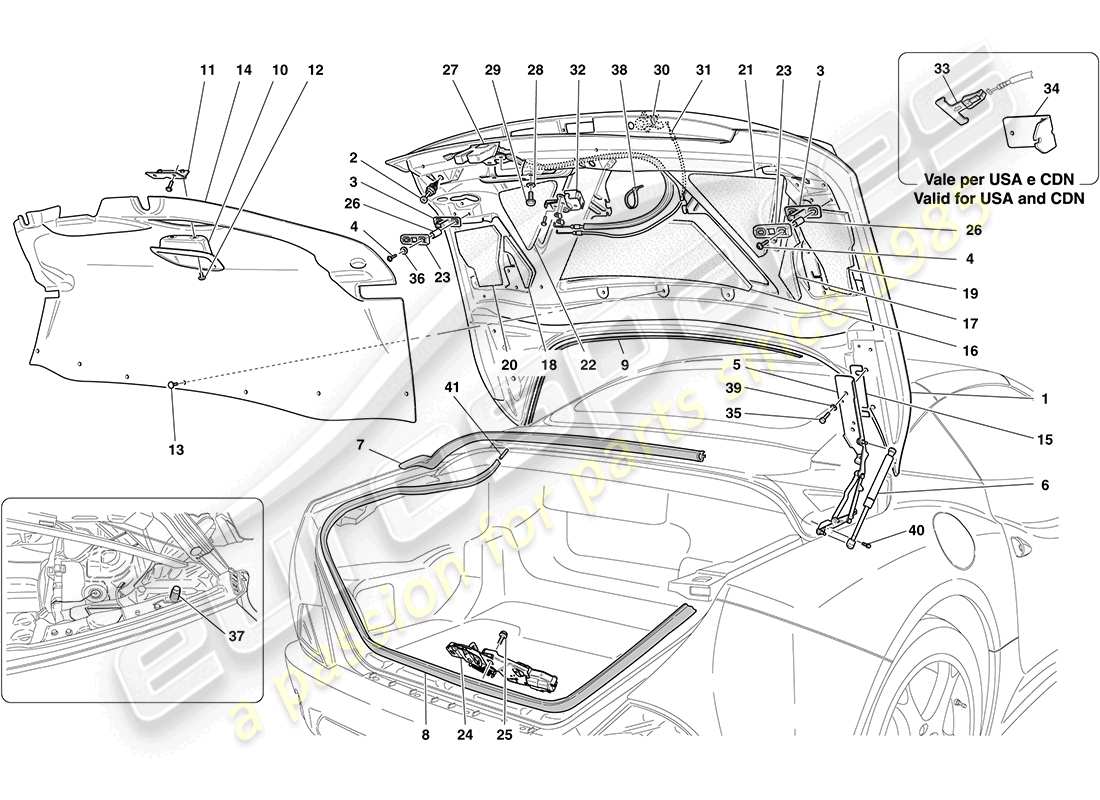

Ferrari California (RHD) REAR LID Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit

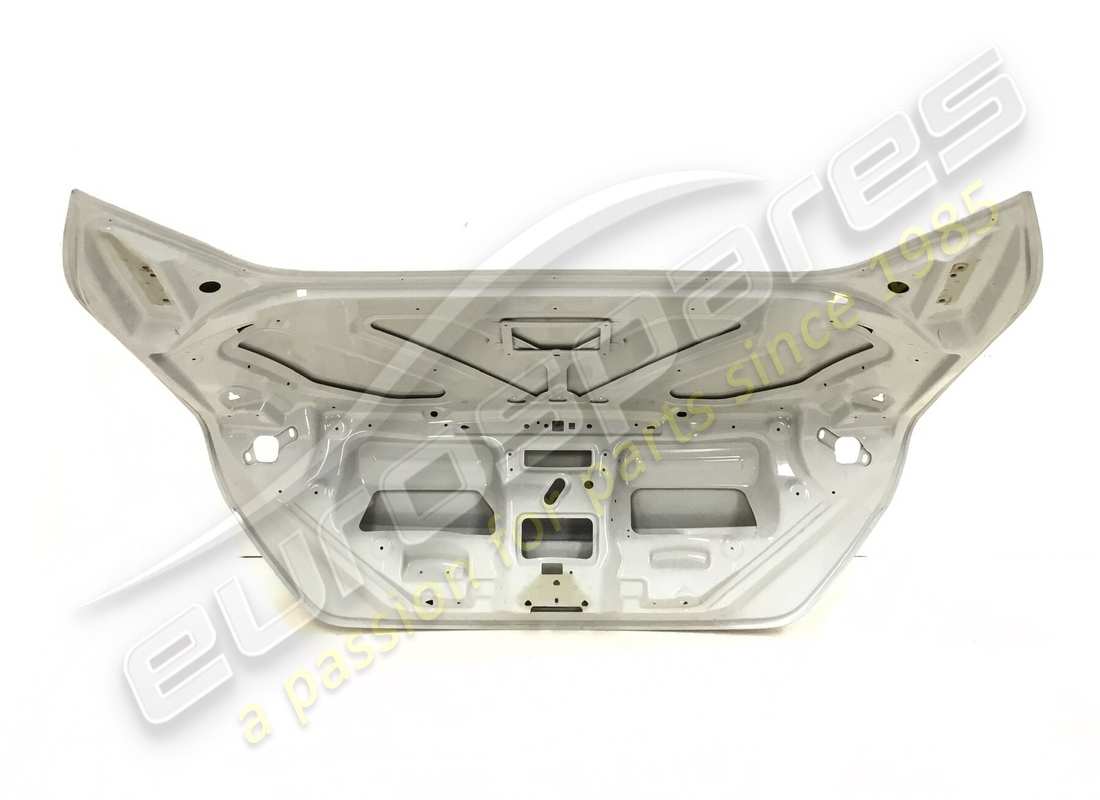

# 001
MPN: 69803810
REAR HOOD BONNET
from £3,370.17
from £3,370.17
# 002
MPN: 67615500
SMALL BLOCK
-Applicable until depletion-
Supersession
Supersession
# 002
MPN: 68204100
SMALL BLOCK
-Applicable after depletion of 67615500-
from £5.86
from £5.86
This part replaces part number 67615500 - and 1 more. Click to view details
# 003
MPN: 80559300
LUGGAGE COMPARTMENT LID STRIKER PLATE
from £14.50
from £14.50
# 004
MPN: 15902601
SCREW
-No longer supplied- -Replaced by 64830600-
from £0.47
from £0.47
This part replaces part number 15642501
# 004
MPN: 64830600
SCREW
from £0.96
from £0.96
This part replaces part number 64882800 - and 1 more. Click to view details
# 005
MPN: 70001686
LUGGAGE COMPARTMENT LID MECHANISM KIT
from £676.62
from £676.62

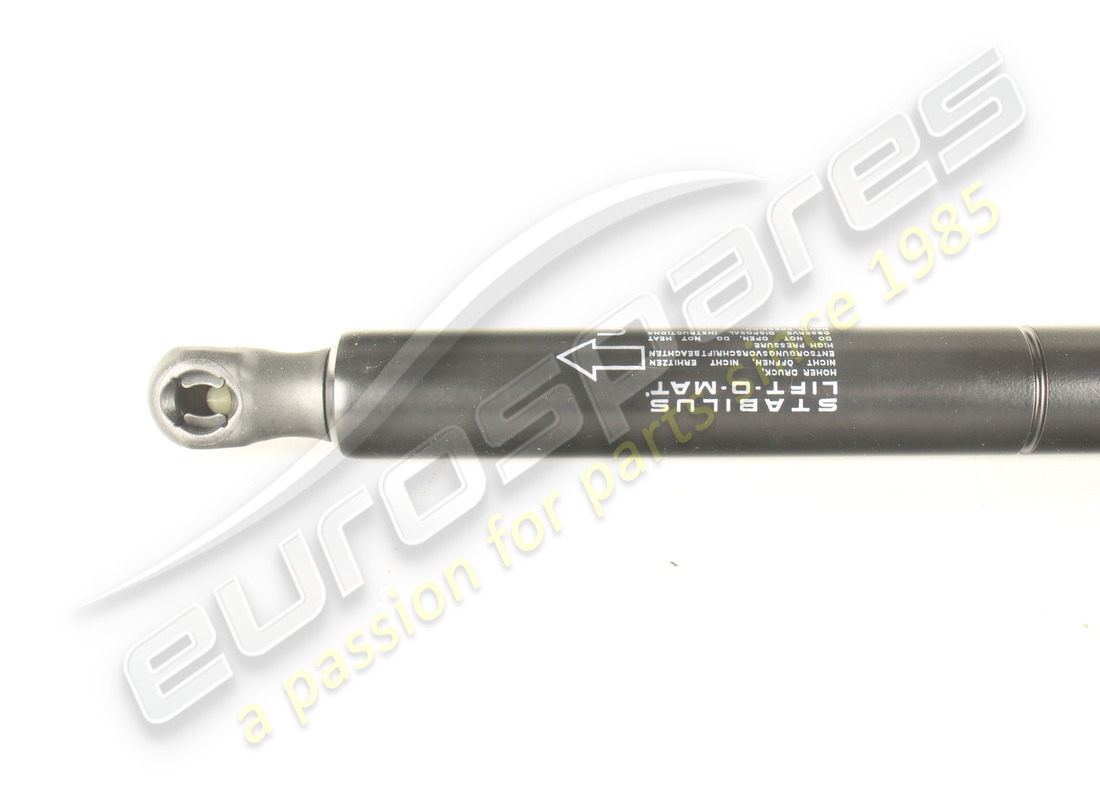

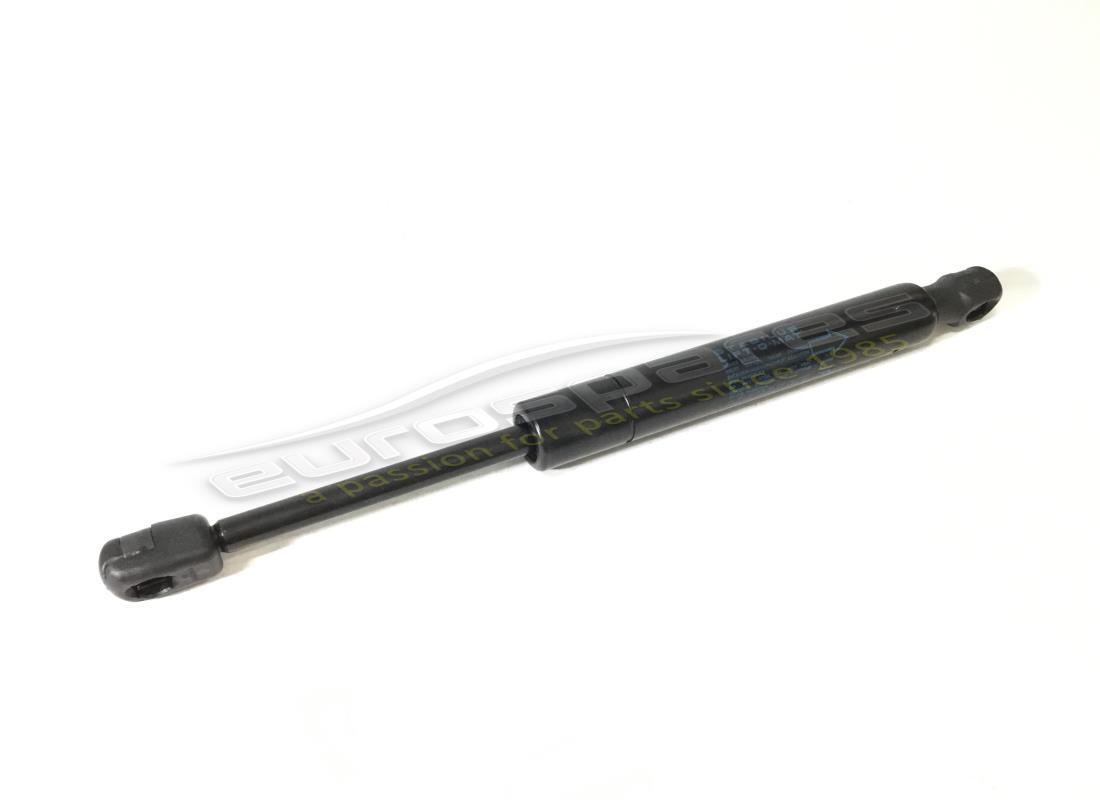

# 006
MPN: 80854400
GAS SPRING
from £23.73
from £23.73
# 007
MPN: 80458500
TONNEAU COVER GASKET
-Applicable until depletion-
from £164.95
from £164.95
# 007
MPN: 86718900
TONNEAU COVER SEAL
-Applicable after depletion of 80458500-
from £170.32
from £170.32
This part replaces part number 80458500 which we have in stock
# 008
MPN: 69773500
GASKET FOR TRUNK HOOD
from £42.37
from £42.37
# 009
MPN: 80529800
GASKET
from £16.17
from £16.17
# 010
MPN: 69772400
LUGGAGE COMPARTMENT LID HANDLE
-Not for USA, CDN, USA LIGHT- -Applicable up to Ass. No. 88758-
from £5.38
from £5.38
# 010
MPN: 826427..
LUGGAGE COMPARTMENT LID HANDLE
-Soft touch-
Supersession
Supersession
# 010
MPN: 82853300
LUGGAGE COMPARTMENT LID HANDLE
-Not for USA, CDN, USA LIGHT- -Applicable from Ass. No. 88759-
from £10.60
from £10.60
# 011
MPN: 80685800
BRACKET
from £10.39
from £10.39
# 012
MPN: 14591687
FASTENER BUTTON
from £0.30
from £0.30
This part replaces part number 69767700 - and 1 more. Click to view details
# 013
MPN: 14591987
FIXING BUTTON
-No longer supplied- -Replaced by 62797500-
from £0.47
from £0.47
# 013
MPN: 62797500
PLUG
from £0.47
from £0.47
This part replaces part number 64578000
# 013
MPN: 826428
CAP
-Soft touch-
from £10.82
from £10.82
This part replaces part number 325145 - and 2 more. Click to view details
# 014
MPN: 69772100
LUGGAGE COMPARTMENT TRIM
-Standard- -Applicable up to Ass. No. 88758-
from £123.56
from £123.56
# 014
MPN: 820669..
LUGGAGE COMPARTMENT TRIM
-Alcantara-
Supersession
Supersession
# 014
MPN: 82852000
LUGGAGE COMPARTMENT TRIM
-Standard- -Applicable from Ass. No. 88759-
from £197.48
from £197.48
# 015
MPN: 81240300
THICKNESS
-Th. 0.5 mm- -No longer supplied-
from £5.31
from £5.31
# 015
MPN: 81240400
THICKNESS
-Th. 1 mm- -No longer supplied-
from £10.47
from £10.47
# 016
MPN: 81343000
CENTRAL INSULATION FOR TRUNK COMPARTMENT
from £10.60
from £10.60
# 017
MPN: 81343200
RH INSULATION FOR TRUNK COMPARTMENT
from £7.57
from £7.57
# 018
MPN: 81343100
LH INSULATION FOR TRUNK COMPARTMENT
from £7.57
from £7.57
# 019
MPN: 81343400
RH LATERAL INSULATION FOR TRUNK COMPARTMENT
from £51.44
from £51.44
# 020
MPN: 81343300
LH LATERAL INSULATION FOR TRUNK COMPARTMENT
from £51.44
from £51.44
# 021
MPN: 81342000
RH UPPER LATERAL INSULATION FOR TRUNK COMPARTMENT
-No longer supplied-
from £9.54
from £9.54
# 022
MPN: 81342800
LH UPPER LATERAL INSULATION FOR TRUNK COMPARTMENT
-No longer supplied-
from £8.84
from £8.84
# 023
MPN: 81982900
LUGGAGE COMPARTMENT LID STRIKER PLATE BUFFER
from £44.53
from £44.53
# 024
MPN: 69773100
LUGGAGE COMPARTMENT LID STRIKER PLATE WITH MOTOR
from £306.81
from £306.81
# 025
MPN: 11617624
SCREW
-No longer supplied- -Replaced by 82271400-
from £1.95
from £1.95
# 025
MPN: 82271400
SCREW
from £0.69
from £0.69
# 026
MPN: 83742100
BUSHING
from £1.73
from £1.73
# 027
MPN: 80797900

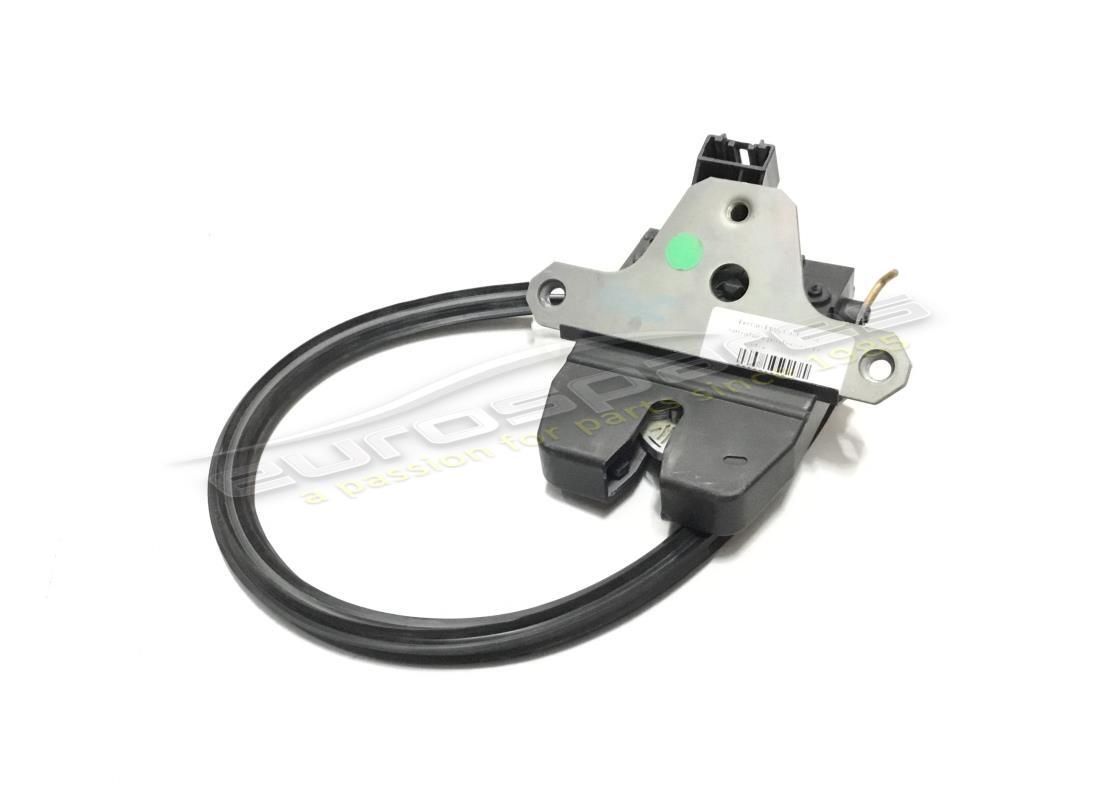

LUGGAGE COMPARTMENT LOCK
-After depletion, also order emergency release mechanism 86263400 ref.32- -Applicable for USA, CDN, USA LIGHT- -Applicable up to Ass. No. 117731- -Applicable until depletion-
Supersession
Supersession
# 027
MPN: 82035300
LUGGAGE COMPARTMENT LOCK
-After depletion, also order emergency release mechanism 86263400 ref.32- -Not for USA, CDN, USA LIGHT- -Applicable up to Ass. No. 118403- -Applicable until depletion-
Supersession
Supersession
# 027
MPN: 86263600
LUGGAGE COMPARTMENT LOCK
-Not for USA, CDN, USA LIGHT- -Applicable from Ass. No. 118404- -Applicable after depletion of 82035300-
Supersession
Supersession
This part replaces part number 82035300
# 027
MPN: 86263800
LUGGAGE COMPARTMENT LOCK
-Applicable for USA, CDN, USA LIGHT- -Applicable from Ass. No. 117732- -Applicable after depletion of 80797900-
Supersession
Supersession
# 028
MPN: 16287127
SCREW
from £0.47
from £0.47
# 029
MPN: 12646724
WASHER
from £0.47
from £0.47
This part replaces part number 12601571 - and 3 more. Click to view details
# 030
MPN: 67080000
TRUNK COMPARTMENT OPENING BLOCK
from £11.86
from £11.86
# 031
MPN: 82073700
BOWDEN CABLE
from £9.67
from £9.67
This part replaces part number 69772600 - and 1 more. Click to view details
# 032
MPN: 69772500
EMERGENCY RELEASE ASSEMBLY
-After depletion, also order luggage compartment lock 86263600 ref.27- -Not for USA, CDN, USA LIGHT- -Applicable up to Ass. No. 118403- -Applicable until depletion-
from £35.75
from £35.75
# 032
MPN: 69772500
EMERGENCY RELEASE ASSEMBLY
-After depletion, also order luggage compartment lock 86263800 ref.27- -Applicable for USA, CDN, USA LIGHT- -Applicable up to Ass. No. 117731- -Applicable until depletion-
from £35.75
from £35.75
# 032
MPN: 86263400
COMPL. EMERGENCY RELEASE
-Not for USA, CDN, USA LIGHT- -Applicable from Ass. No. 118404- -Applicable after depletion of 69772500-
from £164.04
from £164.04
This part replaces part number 69772500 which we have in stock - and 1 more. Click to view details
# 032
MPN: 86263400
COMPL. EMERGENCY RELEASE
-Applicable for USA, CDN, USA LIGHT- -Applicable from Ass. No. 117732- -Applicable after depletion of 69772500-
from £164.04
from £164.04
This part replaces part number 69772500 which we have in stock - and 1 more. Click to view details
# 033
MPN: 66403900
HANDLE FOR SAFETY CHILDREN
-Applicable for USA, CDN, USA LIGHT-
from £24.85
from £24.85
# 034
MPN: 82306900
BRACKET
-Applicable for USA, CDN, USA LIGHT-
from £5.80
from £5.80
# 035
MPN: 82271400
SCREW
from £0.68
from £0.68
# 036
MPN: 12643778
WASHER
from £0.53
from £0.53
This part replaces part number 12643777 - and 1 more. Click to view details
# 036
MPN: 12647778
WASHER
-No longer supplied- -Replaced by 12643778-
from £0.47
from £0.47
This part replaces part number 12647777
# 037
MPN: 69058800
PLUG
from £0.48
from £0.48
This part replaces part number 88546700
# 038
MPN: 145854
CLAMP
from £0.47
from £0.47
# 039
MPN: 12647121
WASHER
from £0.47
from £0.47
# 040
MPN: 210246
SCREW
-M8 X 25-
from £0.69
from £0.69
# 041
MPN: 83212600
STUFFER FOR LUGGAGE COMPARTMENT SEAL
from £3.29
from £3.29
