0138 - INTERIOR TRIM

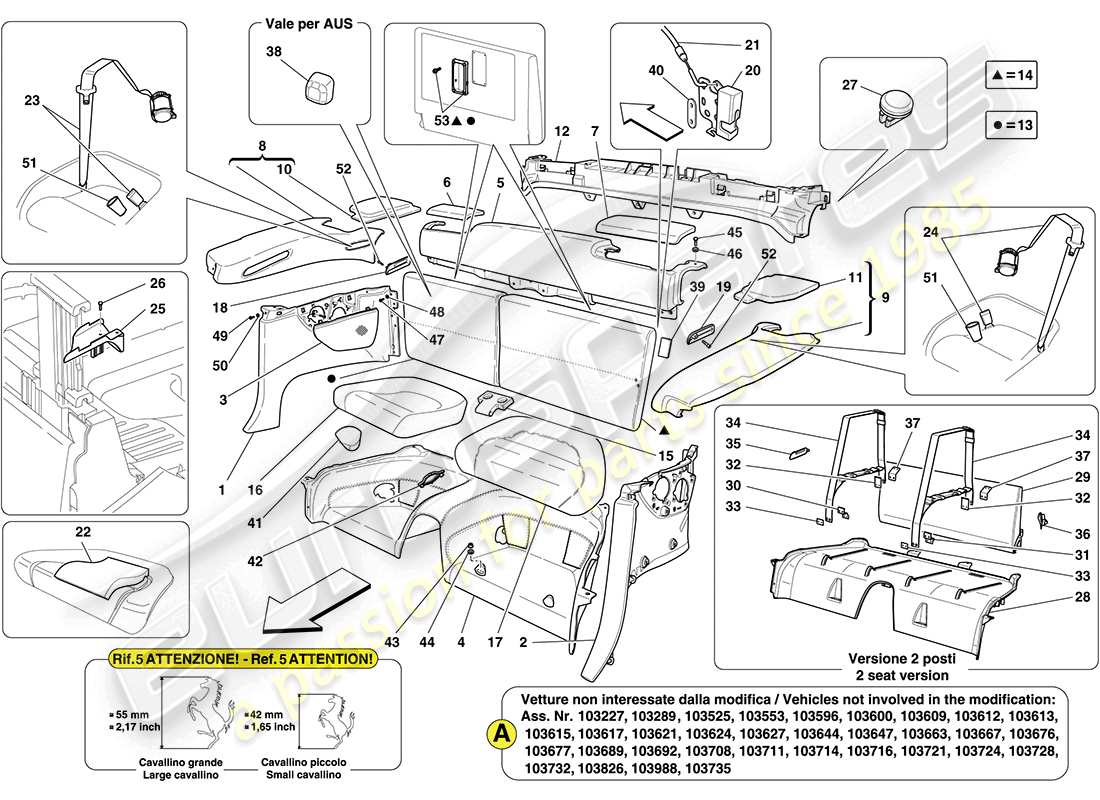

Ferrari California (RHD) INTERIOR TRIM Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 815624..
COMPL. RH REAR LATERAL TRIM
-Not for AUS- -No longer supplied- -Replaced by 848506..-
Supersession
Supersession
# 001
MPN: 81562411
RHD COMPLETE REAR CONSOLE TRIMS
# 001
MPN: 824039..
COMPL. RH REAR LATERAL TRIM
-Applicable for AUS- -Applicable up to Ass. No. 103178-
# 001
MPN: 848506..
COMPL. RH LATERAL REAR TRIM
-Not for AUS-
Supersession
Supersession
# 001
MPN: 848508..
COMPL. RH LATERAL REAR TRIM
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable for AUS- -Applicable from Ass. No. 103179-
# 002
MPN: 815625..
COMPL. LH REAR LATERAL TRIM
-Not for AUS- -No longer supplied- -Replaced by 848507..-
Supersession
Supersession
# 002
MPN: 824036..
COMPL. LH REAR LATERAL TRIM
-Applicable for AUS- -Applicable up to Ass. No. 103178-
# 002
MPN: 848507..
COMPL. LH LATERAL REAR TRIM
-Not for AUS-
Supersession
Supersession
# 002
MPN: 848509
COMPL. LH LATERAL REAR TRIM
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable for AUS- -Applicable from Ass. No. 103179-
from £20.27
from £20.27
# 003
MPN: 697898..
LH LOUD SPEAKER COVER
Supersession
Supersession
# 003
MPN: 697899..
RH LOUD SPEAKER COVER
Supersession
Supersession
# 004
MPN: 808754..
REAR SEAT TRIM
-STC1- -STC2- -Not for USA, CDN, USA LIGHT- -No longer supplied- -Replaced by 820095..-
# 004
MPN: 820095..
REAR SEAT TRIM
-Not for 2-seat version- -STC1- -STC2- -Not for USA, CDN, USA LIGHT- -Applicable up to Ass. No. 103178-
Supersession
Supersession
# 004
MPN: 823135..
REAR SEAT TRIM
-Not for 2-seat version- -STC1- -STC2- -Applicable for USA, CDN, USA LIGHT- -Applicable up to Ass. No. 103178-
Supersession
Supersession
# 004
MPN: 839499..
REAR SEAT TRIM
-Not for 2-seat version- -STC1- -STC2- -See note A for Ass. Numbers of vehicles not affected by modification- -Not for USA, CDN, USA LIGHT- -Applicable from Ass. No. 103179-
Supersession
Supersession
# 004
MPN: 845840..
REAR SEAT TRIM
-Not for 2-seat version- -STC1- -STC2- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable for USA, CDN, USA LIGHT- -Applicable from Ass. No. 103179-
Supersession
Supersession
# 005
MPN: 697878..

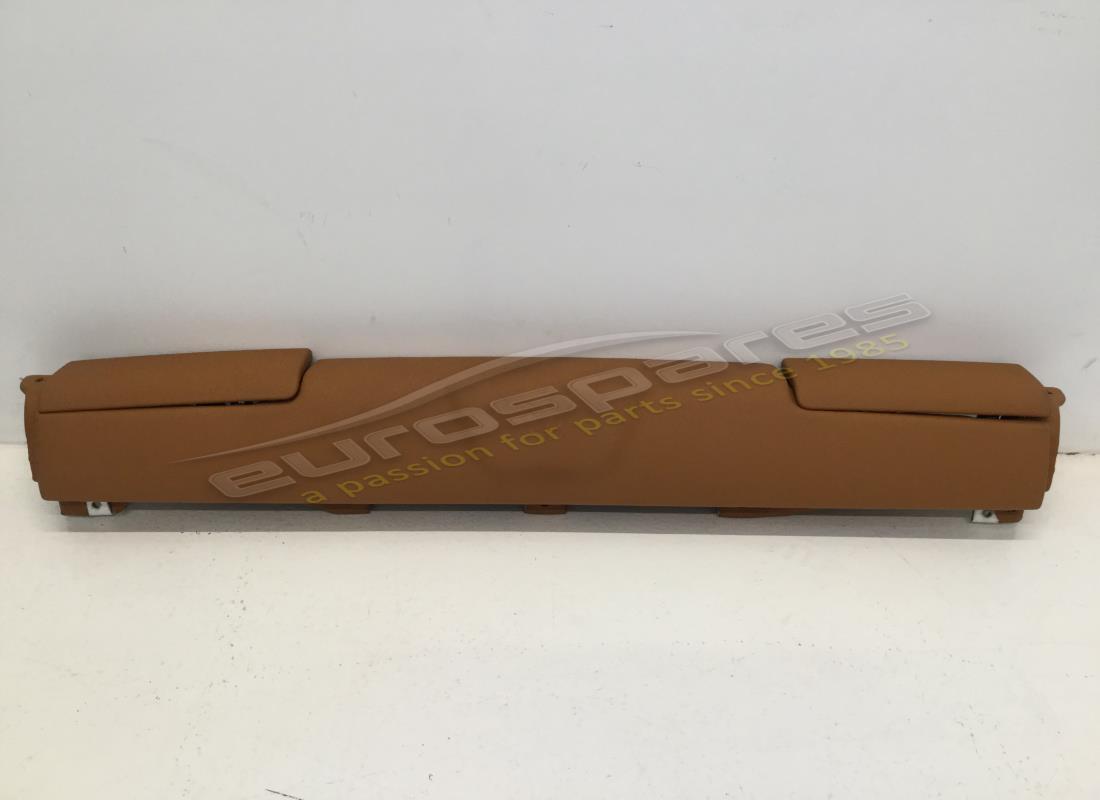

UPPER REAR MOLDING
-With large embossed Cavallino motif, see specific box for dimensions-
from £1,044.75
from £1,044.75
# 005
MPN: 853904..
UPPER REAR TRIM
-With small embossed Cavallino motif, see specific box for dimensions- -No longer supplied-
Supersession
Supersession
# 005
MPN: 853905..
UPPER REAR TRIM
-Without Cavallino logo-
Supersession
Supersession
# 005
MPN: 856206..
UPPER REAR TRIM
-Small embroidered Cavallino motif, see specific box for dimensions- -EMPH-
Supersession
Supersession
# 005
MPN: 858489..
UPPER REAR TRIM
-Big embroidered Cavallino logo, see specific box for dimensions- -4CAV-
Supersession
Supersession
# 006
MPN: 801499..
RH ROLL BAR COVER
Supersession
Supersession
# 007
MPN: 697902..
LH ROLL BAR COVER
Supersession
Supersession
# 008
MPN: 814237..
RH UPPER REAR MOLDING
Supersession
Supersession
# 009
MPN: 814236..
LH UPPER REAR MOLDING
Supersession
Supersession
# 010
MPN: 697901..
RH DOOR
-No longer supplied- -Replaced by 820856..-
Supersession
Supersession
# 010
MPN: 820856..
RH DOOR
Supersession
Supersession
# 011
MPN: 697900..
LH DOOR
-No longer supplied- -Replaced by 820855..-
# 011
MPN: 820855..
LH DOOR
Supersession
Supersession
# 012
MPN: 80150100
CENTRAL BRACKET
from £37.17
from £37.17
# 013
MPN: 808773..
REAR RH BACKREST TRIM PANEL
-Standard- -No longer supplied- -Replaced by 820934..-
Supersession
Supersession
# 013
MPN: 820934..
REAR RH BACKREST TRIM PANEL
-Standard- -Not for AUS- -Applicable up to Ass. No. 88758-
Supersession
Supersession
# 013
MPN: 823249..
REAR RH BACKREST TRIM PANEL
-Alcantara- -Not for 2-seat version- -See note A for Ass. Numbers of vehicles not affected by modification- -Not for AUS- -Applicable up to Ass. No. 103178- -Applicable until depletion-
# 013
MPN: 824042..
REAR RH BACKREST TRIM PANEL
-Standard- -Not for 2-seat version- -Applicable for AUS- -Applicable up to Ass. No. 88758-
# 013
MPN: 824063..
REAR RH BACKREST TRIM PANEL
-Alcantara- -Not for 2-seat version- -Applicable for AUS- -Applicable up to Ass. No. 103178- -Applicable until depletion-
# 013
MPN: 828535..
REAR RH BACKREST TRIM PANEL
-Standard- -Not for AUS- -Applicable from Ass. No. 88759 up to Ass. No. 103178- -Applicable until depletion-
Supersession
Supersession
# 013
MPN: 828539..
REAR RH BACKREST TRIM PANEL
-Standard- -Not for 2-seat version- -Applicable for AUS- -Applicable from Ass. No. 88759 up to Ass. No. 103178- -Applicable until depletion-
Supersession
Supersession
# 013
MPN: 840664..
RH REAR BACKREST TRIM
-Standard- -Not for AUS- -Applicable from Ass. No. 88759 up to Ass. No. 103178- -Applicable after depletion of 828535..-
Supersession
Supersession
# 013
MPN: 840670..
RH REAR BACKREST TRIM
-Alcantara- -Not for 2-seat version- -See note A for Ass. Numbers of vehicles not affected by modification- -Not for AUS- -Applicable up to Ass. No. 103178- -Applicable after depletion of 823249..-
# 013
MPN: 840674..
RH REAR BACKREST TRIM
-Standard- -Not for 2-seat version- -Applicable for AUS- -Applicable from Ass. No. 88759 up to Ass. No. 103178- -Applicable after depletion of 828539..-
Supersession
Supersession
# 013
MPN: 840678..
RH REAR BACKREST TRIM
-Alcantara- -Not for 2-seat version- -Applicable for AUS- -Applicable up to Ass. No. 103178- -Applicable after depletion of 824063..-
# 013
MPN: 843248..
RH REAR BACKREST TRIM
-Standard- -See note A for Ass. Numbers of vehicles not affected by modification- -Not for AUS- -Applicable from Ass. No. 103179-
Supersession
Supersession
# 013
MPN: 844774..
RH REAR BACKREST TRIM
-Alcantara- -Not for 2-seat version- -See note A for Ass. Numbers of vehicles not affected by modification- -Not for AUS- -Applicable from Ass. No. 103179-
# 013
MPN: 846799..
RH REAR BACKREST TRIM
-Standard- -Not for 2-seat version- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable for AUS- -Applicable from Ass. No. 103179-
# 013
MPN: 846803..
RH REAR BACKREST TRIM
-Alcantara- -Not for 2-seat version- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable for AUS- -Applicable from Ass. No. 103179-
# 014
MPN: 808772..
REAR LH BACKREST TRIM PANEL
-Standard- -No longer supplied- -Replaced by 820933..-
Supersession
Supersession
# 014
MPN: 820933..
REAR LH BACKREST TRIM PANEL
-Standard- -Not for AUS- -Applicable up to Ass. No. 88758-
Supersession
Supersession
# 014
MPN: 823245..
REAR LH BACKREST TRIM PANEL
-Alcantara- -Not for 2-seat version- -Not for AUS- -Applicable up to Ass. No. 103178- -Applicable until depletion-
# 014
MPN: 824041..
REAR LH BACKREST TRIM PANEL
-Standard- -Not for 2-seat version- -Applicable for AUS- -Applicable up to Ass. No. 88758-
# 014
MPN: 824062..
REAR LH BACKREST TRIM PANEL
-Alcantara- -Not for 2-seat version- -Applicable for AUS- -Applicable up to Ass. No. 103178- -Applicable until depletion-
# 014
MPN: 828536..
REAR LH BACKREST TRIM PANEL
-Standard- -Not for AUS- -Applicable from Ass. No. 88759 up to Ass. No. 103178- -Applicable until depletion-
Supersession
Supersession
# 014
MPN: 828540..
REAR LH BACKREST TRIM PANEL
-Standard- -Not for 2-seat version- -Applicable for AUS- -Applicable from Ass. No. 88759 up to Ass. No. 103178- -Applicable until depletion-
# 014
MPN: 840665..
LH REAR BACKREST TRIM
-Standard- -Not for AUS- -Applicable from Ass. No. 88759 up to Ass. No. 103178- -Applicable after depletion of 828536..-
Supersession
Supersession
# 014
MPN: 840673..
LH REAR BACKREST TRIM
-Alcantara- -Not for 2-seat version- -Not for AUS- -Applicable up to Ass. No. 103178- -Applicable after depletion of 823245..-
# 014
MPN: 840676..
LH REAR BACKREST TRIM
-Standard- -Not for 2-seat version- -Applicable for AUS- -Applicable from Ass. No. 88759 up to Ass. No. 103178- -Applicable after depletion of 828540..-
# 014
MPN: 840680..
LH REAR BACKREST TRIM
-Alcantara- -Not for 2-seat version- -Applicable for AUS- -Applicable up to Ass. No. 103178- -Applicable after depletion of 824062..-
# 014
MPN: 843249..
LH REAR BACKREST TRIM
-Standard- -See note A for Ass. Numbers of vehicles not affected by modification- -Not for AUS- -Applicable from Ass. No. 103179-
Supersession
Supersession
# 014
MPN: 844776..
LH REAR BACKREST TRIM
-Alcantara- -Not for 2-seat version- -See note A for Ass. Numbers of vehicles not affected by modification- -Not for AUS- -Applicable from Ass. No. 103179-
# 014
MPN: 846801..
LH REAR BACKREST TRIM
-Standard- -Not for 2-seat version- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable for AUS- -Applicable from Ass. No. 103179-
# 014
MPN: 846805..
LH REAR BACKREST TRIM
-Alcantara- -Not for 2-seat version- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable for AUS- -Applicable from Ass. No. 103179-
# 015
MPN: 80877600
INTERNAL REAR BACKREST HINGE
from £31.23
from £31.23
# 016
MPN: 82010500
RH SEAT CUSHION
-Racing seat- -Not for 2-seat version- -INTP- -DUAL- -STC1- -STC2- -Applicable up to Ass. No. 101558-
from £1,135.84
from £1,135.84
# 016
MPN: 82748000
RH SEAT CUSHION
-Daytona- -Not for 2-seat version- -INTP- -DUAL- -Daal- -STP1- -STP2- -STC1- -STC2- -Applicable up to Ass. No. 103178-
from £1,514.47
from £1,514.47
# 016
MPN: 83007300
RH SEAT CUSHION
-Standard- -Not for 2-seat version- -INTP- -DUAL- -STC1- -STC2- -Applicable up to Ass. No. 99175-
from £1,135.84
from £1,135.84
# 016
MPN: 83007500
RH SEAT CUSHION
-Alcantara- -Not for 2-seat version- -INTP- -Daal- -STC1- -STC2- -Applicable up to Ass. No. 99175-
from £1,135.84
from £1,135.84
This part replaces part number 82326000
# 016
MPN: 83193000
RH SEAT CUSHION
-Diamond style pattern- -Not for 2-seat version- -INTP- -DUAL- -Daal- -STC1- -STC2- -Applicable up to Ass. No. 103178-
from £1,514.47
from £1,514.47
# 016
MPN: 839506..
RH SEAT CUSHION
-Daytona- -Not for 2-seat version- -INTP- -DUAL- -Daal- -STP1- -STP2- -STC1- -STC2- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
Supersession
Supersession
# 016
MPN: 83950700
RH SEAT CUSHION
-Alcantara- -Not for 2-seat version- -INTP- -Daal- -STC1- -STC2- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
# 016
MPN: 83950900
RH SEAT CUSHION
-Standard- -Not for 2-seat version- -INTP- -DUAL- -STC1- -STC2- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £1,325.78
from £1,325.78
# 016
MPN: 83951100
RH SEAT CUSHION
-Diamond style pattern- -Not for 2-seat version- -INTP- -DUAL- -Daal- -STC1- -STC2- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
# 016
MPN: 84269100
RH SEAT CUSHION
-Standard- -Not for 2-seat version- -INTP- -DUAL- -STC1- -STC2- -Applicable from Ass. No. 99176 up to Ass. No. 103178-
from £1,135.84
from £1,135.84
# 016
MPN: 84418100
RH SEAT CUSHION
-458 style- -Not for 2-seat version- -Leather- -Leather- -INTP- -DUAL- -STC1- -STC2- -Applicable from Ass. No. 101559 up to Ass. No. 103178-
from £1,309.31
from £1,309.31
# 016
MPN: 84418300
RH SEAT CUSHION
-458 style- -Not for 2-seat version- -Leather- -Alcantara- -INTP- -Daal- -STC1- -STC2- -Applicable from Ass. No. 101559 up to Ass. No. 103178-
# 016
MPN: 84430600
RH SEAT CUSHION
-Alcantara- -Not for 2-seat version- -INTP- -Daal- -STC1- -STC2- -Applicable from Ass. No. 99176 up to Ass. No. 103178-
# 016
MPN: 84848500
RH SEAT CUSHION
-458 style- -Not for 2-seat version- -Leather- -Leather- -INTP- -DUAL- -STC1- -STC2- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
# 016
MPN: 84848600
RH SEAT CUSHION
-458 style- -Not for 2-seat version- -Leather- -Alcantara- -INTP- -Daal- -STC1- -STC2- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
# 017
MPN: 82010400
LH SEAT CUSHION
-Racing seat- -Not for 2-seat version- -INTP- -DUAL- -STC1- -STC2- -Applicable up to Ass. No. 101558-
from £1,135.84
from £1,135.84
# 017
MPN: 82748100
LH SEAT CUSHION
-Daytona- -Not for 2-seat version- -INTP- -DUAL- -Daal- -STP1- -STP2- -STC1- -STC2- -Applicable up to Ass. No. 103178-
from £1,514.47
from £1,514.47
# 017
MPN: 83007200
LH SEAT CUSHION
-Standard- -Not for 2-seat version- -INTP- -DUAL- -STC1- -STC2- -Applicable up to Ass. No. 99175-
from £1,135.84
from £1,135.84
# 017
MPN: 83007400
LH SEAT CUSHION
-Alcantara- -Not for 2-seat version- -INTP- -Daal- -STC1- -STC2- -Applicable up to Ass. No. 99175-
from £1,135.84
from £1,135.84
This part replaces part number 82325900
# 017
MPN: 83192900
LH SEAT CUSHION
-Diamond style pattern- -Not for 2-seat version- -INTP- -DUAL- -Daal- -STC1- -STC2- -Applicable up to Ass. No. 103178-
from £1,514.47
from £1,514.47
# 017
MPN: 839501..
LH SEAT CUSHION
-Daytona- -Not for 2-seat version- -INTP- -DUAL- -Daal- -STP1- -STP2- -STC1- -STC2- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
Supersession
Supersession
# 017
MPN: 83950200
LH SEAT CUSHION
-Alcantara- -Not for 2-seat version- -INTP- -Daal- -STC1- -STC2- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
# 017
MPN: 83950300
LH SEAT CUSHION
-Standard- -Not for 2-seat version- -INTP- -DUAL- -STC1- -STC2- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £1,393.30
from £1,393.30
# 017
MPN: 83950800
LH SEAT CUSHION
-Diamond style pattern- -Not for 2-seat version- -INTP- -DUAL- -Daal- -STC1- -STC2- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £1,393.30
from £1,393.30
# 017
MPN: 84268900
LH SEAT CUSHION
-Standard- -Not for 2-seat version- -INTP- -DUAL- -STC1- -STC2- -Applicable from Ass. No. 99176 up to Ass. No. 103178-
from £1,135.84
from £1,135.84
# 017
MPN: 84418200
LH SEAT CUSHION
-458 style- -Not for 2-seat version- -Leather- -Leather- -INTP- -DUAL- -STC1- -STC2- -Applicable from Ass. No. 101559 up to Ass. No. 103178-
# 017
MPN: 84418400
LH SEAT CUSHION
-458 style- -Not for 2-seat version- -Leather- -Alcantara- -INTP- -Daal- -STC1- -STC2- -Applicable from Ass. No. 101559 up to Ass. No. 103178-
# 017
MPN: 84430400
LH SEAT CUSHION
-Alcantara- -Not for 2-seat version- -INTP- -Daal- -STC1- -STC2- -Applicable from Ass. No. 99176 up to Ass. No. 103178-
# 017
MPN: 84848700
LH SEAT CUSHION
-458 style- -Not for 2-seat version- -Leather- -Leather- -INTP- -DUAL- -STC1- -STC2- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
# 017
MPN: 84848800
LH SEAT CUSHION
-458 style- -Not for 2-seat version- -Leather- -Alcantara- -INTP- -Daal- -STC1- -STC2- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
# 018
MPN: 821187..
COMPL. REAR RH FIXING PLATE
-Not for 2-seat version-
Supersession
Supersession
# 019
MPN: 821186..
COMPL. REAR LH FIXING PLATE
-Not for 2-seat version-
Supersession
Supersession
# 020
MPN: 82093500
REAR LH TRIM
from £33.32
from £33.32
# 020
MPN: 82093600
REAR RH TRIM
from £33.32
from £33.32
# 021
MPN: 82085300
VERTICAL LOCK BOWDEN CABLE
from £10.62
from £10.62
# 022
MPN: 82253400
SUPPORT
-Not for 2-seat version- -Applicable up to Ass. No. 103178-
from £107.06
from £107.06

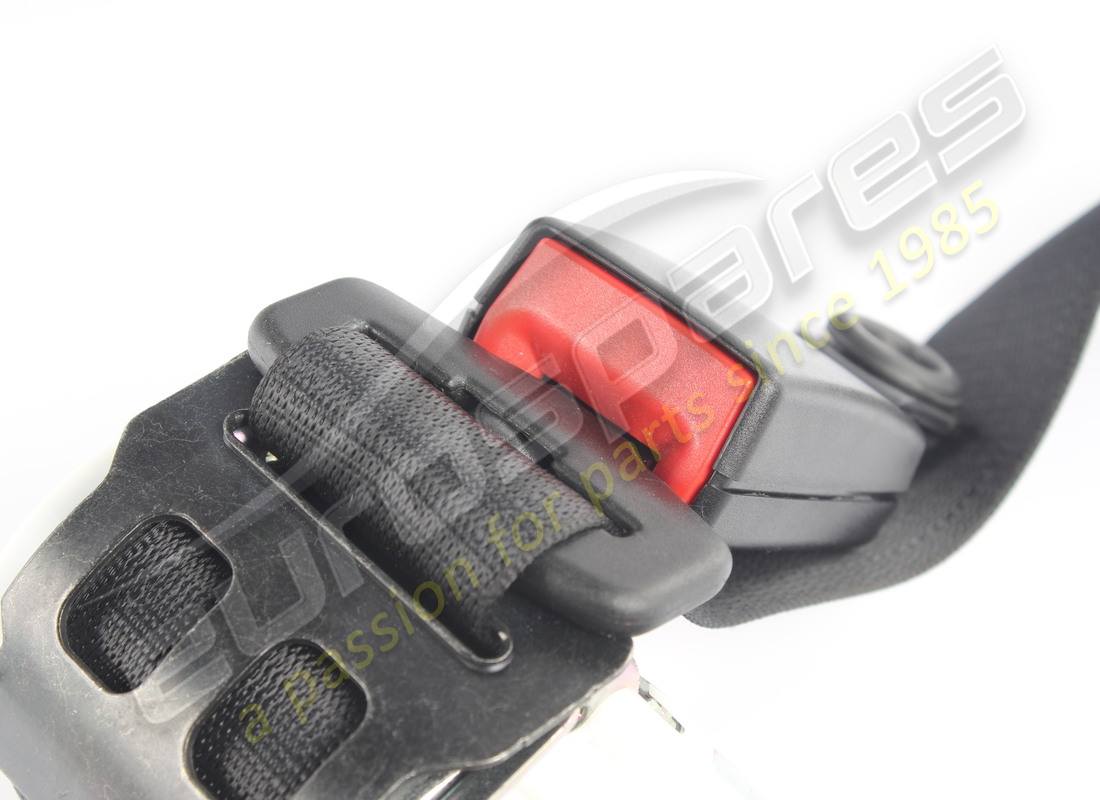

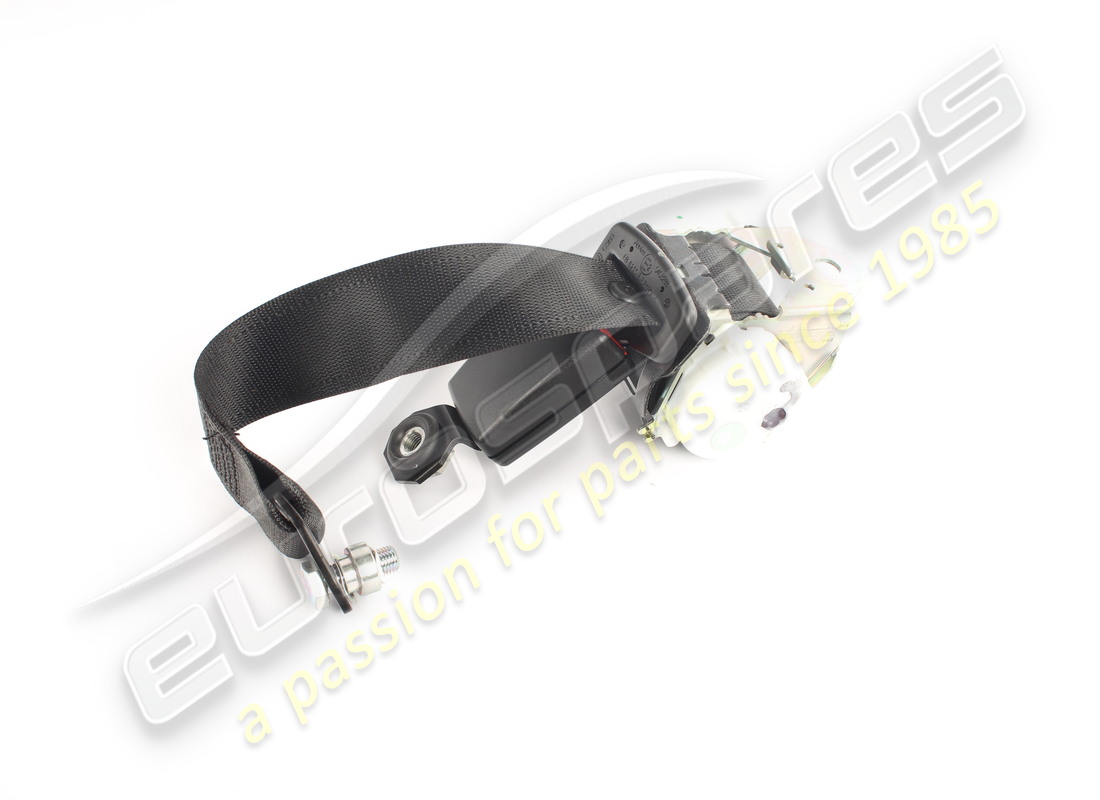

# 023
MPN: 810478..
RH REAR SEAT BELTS
-Not for 2-seat version- -Applicable up to Ass. No. 103178-
from £183.75
from £183.75
# 023
MPN: 839497..
RH REAR SEAT BELT
-Not for 2-seat version- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £204.75
from £204.75
# 024
MPN: 805784..
LH REAR SEAT BELTS
-Not for 2-seat version- -Applicable up to Ass. No. 103178-
from £183.75
from £183.75
# 024
MPN: 839498..
LH REAR SEAT BELT
-Not for 2-seat version- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £204.75
from £204.75
# 025
MPN: 69791700
UPPER GUIDE FOR REAR LH SEATBELT
from £10.09
from £10.09
# 025
MPN: 69791800
UPPER GUIDE FOR REAR RH SEATBELT
from £10.09
from £10.09
# 026
MPN: 16281824
SCREW
-M6 X 14-
from £0.53
from £0.53
# 026
MPN: 69717300
SCREW
-M6 X 18- -No longer supplied- -Replaced by 16281824-
from £2.39
from £2.39
# 027
MPN: 82026200
RUBBER PAD FOR BRACKET
from £4.07
from £4.07
# 028
MPN: 820073..
REAR SHELF
-Leather- -2-seat version- -STC1- -STC2- -Applicable up to Ass. No. 103178-
Supersession
Supersession
# 028
MPN: 850685..
REAR SHELF
-Leather- -2-seat version- -STC1- -STC2- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
Supersession
Supersession
# 029
MPN: 820941
REAR BACKREST
-Leather- -2-seat version- -Applicable up to Ass. No. 88758-
# 029
MPN: 823252..
REAR BACKREST
-Alcantara- -2-seat version- -Applicable until depletion-
# 029
MPN: 829536..
REAR BACKREST
-Leather- -2-seat version- -Applicable from Ass. No. 88759- -Applicable until depletion-
Supersession
Supersession
# 029
MPN: 840682..
REAR BACKREST
-Leather- -2-seat version- -Applicable from Ass. No. 88759- -Applicable after depletion of 829536..-
Supersession
Supersession
# 029
MPN: 842355..
REAR BACKREST
-Alcantara- -2-seat version- -Applicable after depletion of 823252..-
# 030
MPN: 81722800
FRONT RH BELT FASTENER BRACKET
-2-seat version- -Applicable up to Ass. No. 103178-
from £7.04
from £7.04
# 030
MPN: 84748700
BELT FASTENER BRACKET
-2-seat version- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £14.10
from £14.10
# 031
MPN: 82445400
FRONT LH BELT FASTENER BRACKET
-2-seat version- -Applicable up to Ass. No. 103178-
from £7.04
from £7.04
# 031
MPN: 84748700
BELT FASTENER BRACKET
-2-seat version- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £14.10
from £14.10
# 032
MPN: 81722600
BELT FASTENER BRACKET
-2-seat version-
from £3.87
from £3.87
# 033
MPN: 82457000
UPPER BELT BRACKET
-2-seat version-
from £2.67
from £2.67
# 034
MPN: 817229..
LUGGAGE STRAP
-2-seat version- -Leather- -STC1- -STC2-
Supersession
Supersession
# 035
MPN: 821189
RH WINDSTOP FASTENER PLATE
-2-seat version-
Supersession
Supersession
# 036
MPN: 821188..
LH WINDSTOP FASTENER PLATE
-2-seat version-
Supersession
Supersession
# 037
MPN: 82085000
REAR BRACKET
-Not for DCT-F1 gearbox (Applicable for mechanical gearbox)-
from £4.83
from £4.83
# 038
MPN: 82456700
ISOFIX COVER
-Applicable for AUS-
from £10.69
from £10.69
# 039
MPN: 159147
SHIM
-Applicable for AUS-
from £0.47
from £0.47
# 040
MPN: 83596300
PLATE
from £1.19
from £1.19
# 041
MPN: 810570..
LH BELT LOWER COVER CAP
-Not for USA, CDN, USA LIGHT- -Applicable up to Ass. No. 103178-
Supersession
Supersession
# 041
MPN: 810571..
RH BELT LOWER COVER CAP
-Not for USA, CDN, USA LIGHT- -Applicable up to Ass. No. 103178-
Supersession
Supersession
# 041
MPN: 823136..
LH BELT LOWER COVER CAP
-Applicable for USA, CDN, USA LIGHT- -Applicable up to Ass. No. 103178-
# 041
MPN: 823137..
RH BELT LOWER COVER CAP
-Applicable for USA, CDN, USA LIGHT- -Applicable up to Ass. No. 103178-
Supersession
Supersession
# 041
MPN: 843112..
LH BELT LOWER COVER CAP
-See note A for Ass. Numbers of vehicles not affected by modification- -Not for USA, CDN, USA LIGHT- -Applicable from Ass. No. 103179-
Supersession
Supersession
# 041
MPN: 843113..
RH BELT LOWER COVER CAP
-See note A for Ass. Numbers of vehicles not affected by modification- -Not for USA, CDN, USA LIGHT- -Applicable from Ass. No. 103179-
Supersession
Supersession
# 041
MPN: 845843..
LH BELT LOWER COVER CAP
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable for USA, CDN, USA LIGHT- -Applicable from Ass. No. 103179-
Supersession
Supersession
# 041
MPN: 845844..
RH BELT LOWER COVER CAP
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable for USA, CDN, USA LIGHT- -Applicable from Ass. No. 103179-
Supersession
Supersession
# 042
MPN: 810572..
LH BUCKLE STALK MOUNTING HOLE CAP
-Applicable up to Ass. No. 103178-
# 042
MPN: 810573..
RH BUCKLE STALK MOUNTING HOLE CAP
-Applicable up to Ass. No. 103178-
Supersession
Supersession
# 042
MPN: 843114..
LH BUCKLE STALK MOUNTING HOLE CAP
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
Supersession
Supersession
# 042
MPN: 843115..
RH BUCKLE STALK MOUNTING HOLE CAP
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
Supersession
Supersession
# 043
MPN: 13046112
NUT
from £0.47
from £0.47
# 044
MPN: 12647701
WASHER
from £0.47
from £0.47
# 045
MPN: 16130321
SCREW
from £1.11
from £1.11
# 046
MPN: 12638178
WASHER
from £0.47
from £0.47
This part replaces part number 10519578 - and 3 more. Click to view details
# 047
MPN: 62940900
SCREW
from £0.73
from £0.73
This part replaces part number 67352400
# 048
MPN: 12643778
WASHER
from £0.52
from £0.52
This part replaces part number 12643777 - and 1 more. Click to view details
# 049
MPN: 68176500
SCREW
-No longer supplied- -Replaced by 85692300-
from £0.47
from £0.47
# 049
MPN: 85692300
SCREW
from £0.47
from £0.47
This part replaces part number 83914200
# 050
MPN: 12638178
WASHER
from £0.47
from £0.47
This part replaces part number 10519578 - and 3 more. Click to view details
# 051
MPN: 856694..
REAR SEAT BELT SECTION UPHOLSTERY
Supersession
Supersession
# 052
MPN: 14303024
SCREW
from £0.53
from £0.53
This part replaces part number 14303021 - and 1 more. Click to view details

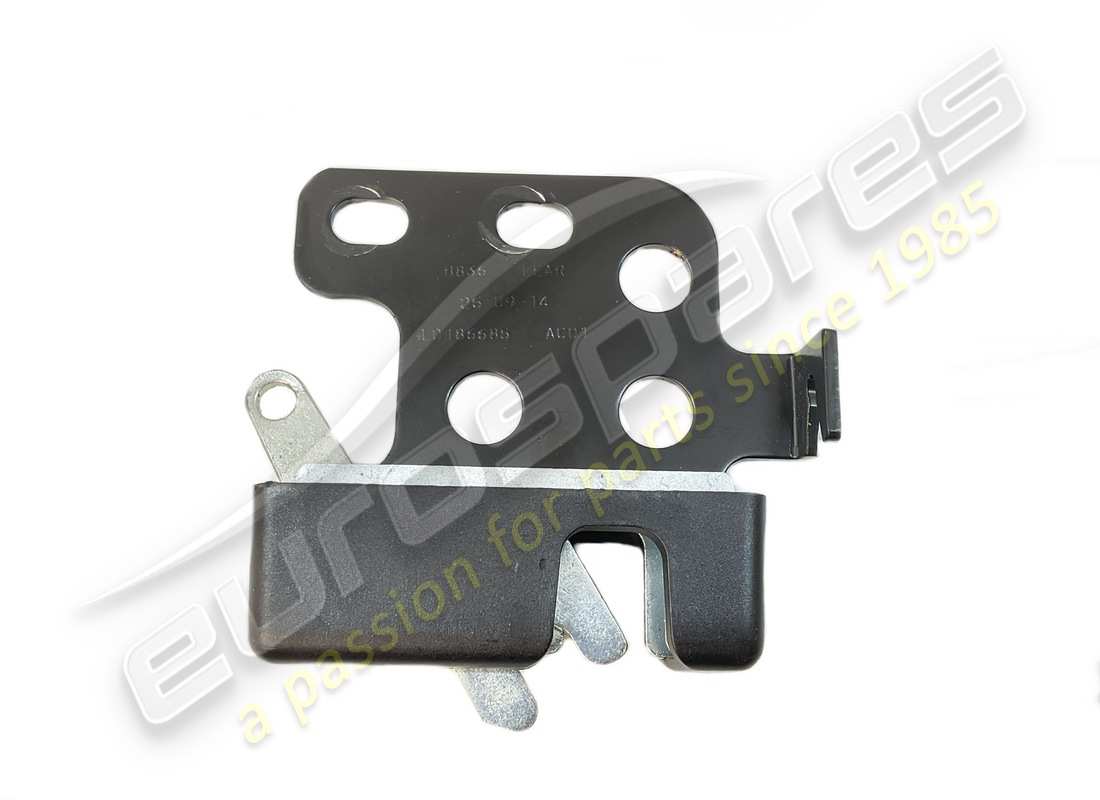

# 053
MPN: 86328800
STRIKER KIT
from £59.39
from £59.39
-part-diagram-0139.webp "FERRARI CALIFORNIA (RHD) DASHBOARD PARTS DIAGRAM")
-part-diagram-0140.webp "FERRARI CALIFORNIA (RHD) GLOVE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0141.webp "FERRARI CALIFORNIA (RHD) AIRBAG SYSTEM PARTS DIAGRAM")
-part-diagram-0142.webp "FERRARI CALIFORNIA (RHD) AIRBAG SYSTEM PARTS DIAGRAM")
-part-diagram-0143.webp "FERRARI CALIFORNIA (RHD) INTERNAL PASSENGER COMPARTMENT SERVICES PARTS DIAGRAM")
-part-diagram-0144.webp "FERRARI CALIFORNIA (RHD) HEADLIGHTS PARTS DIAGRAM")
-part-diagram-0145.webp "FERRARI CALIFORNIA (RHD) TAILLIGHTS PARTS DIAGRAM")
-part-diagram-0146.webp "FERRARI CALIFORNIA (RHD) SHIELDS, TRIM AND COVERS PARTS DIAGRAM")
-part-diagram-0147.webp "FERRARI CALIFORNIA (RHD) SHIELDS, TRIM AND COVERS PARTS DIAGRAM")
-part-diagram-0148.webp "FERRARI CALIFORNIA (RHD) MAIN WIRING HARNESSES PARTS DIAGRAM")
-part-diagram-0149.webp "FERRARI CALIFORNIA (RHD) VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-0150.webp "FERRARI CALIFORNIA (RHD) ELECTRONIC MANAGEMENT (SUSPENSION) PARTS DIAGRAM")
-part-diagram-0151.webp "FERRARI CALIFORNIA (RHD) PASSENGER COMPARTMENT ECUS PARTS DIAGRAM")
-part-diagram-0152.webp "FERRARI CALIFORNIA (RHD) LUGGAGE COMPARTMENT ECUS PARTS DIAGRAM")
-part-diagram-0153.webp "FERRARI CALIFORNIA (RHD) ALARM AND IMMOBILIZER SYSTEM PARTS DIAGRAM")
-part-diagram-0154.webp "FERRARI CALIFORNIA (RHD) INFOTAINMENT SYSTEM PARTS DIAGRAM")
-part-diagram-0155.webp "FERRARI CALIFORNIA (RHD) AUDIO SPEAKER SYSTEM PARTS DIAGRAM")
-part-diagram-0156.webp "FERRARI CALIFORNIA (RHD) WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-0157.webp "FERRARI CALIFORNIA (RHD) ADHESIVE LABELS AND PLAQUES PARTS DIAGRAM")
-part-diagram-0999.webp "FERRARI CALIFORNIA (RHD) COLOUR CODES PARTS DIAGRAM")
-part-diagram-0000.webp "FERRARI CALIFORNIA (RHD) SPARE ASSEMBLY UNITS PARTS DIAGRAM")
-part-diagram-0001.webp "FERRARI CALIFORNIA (RHD) CRANKCASE PARTS DIAGRAM")
-part-diagram-0002.webp "FERRARI CALIFORNIA (RHD) CRANKSHAFT, CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-0003.webp "FERRARI CALIFORNIA (RHD) RIGHT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0004.webp "FERRARI CALIFORNIA (RHD) LEFT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0005.webp "FERRARI CALIFORNIA (RHD) TIMING SYSTEM - CAMSHAFTS AND VALVES PARTS DIAGRAM")
-part-diagram-0006.webp "FERRARI CALIFORNIA (RHD) TIMING SYSTEM - DRIVE PARTS DIAGRAM")
-part-diagram-0007.webp "FERRARI CALIFORNIA (RHD) FUEL PUMP AND CONNECTOR PIPES PARTS DIAGRAM")
-part-diagram-0008.webp "FERRARI CALIFORNIA (RHD) FUEL TANK PARTS DIAGRAM")
-part-diagram-0009.webp "FERRARI CALIFORNIA (RHD) EVAPORATIVE EMISSIONS CONTROL SYSTEM PARTS DIAGRAM")
-part-diagram-0010.webp "FERRARI CALIFORNIA (RHD) RIGHT HAND INJECTION SYSTEM - IGNITION PARTS DIAGRAM")
-part-diagram-0011.webp "FERRARI CALIFORNIA (RHD) LEFT HAND INJECTION SYSTEM - IGNITION PARTS DIAGRAM")
-part-diagram-0012.webp "FERRARI CALIFORNIA (RHD) SECONDARY AIR SYSTEM PARTS DIAGRAM")
-part-diagram-0013.webp "FERRARI CALIFORNIA (RHD) INTAKE MANIFOLD AND THROTTLE BODY PARTS DIAGRAM")
-part-diagram-0014.webp "FERRARI CALIFORNIA (RHD) AIR FILTER, AIR INTAKE AND DUCTS PARTS DIAGRAM")
-part-diagram-0015.webp "FERRARI CALIFORNIA (RHD) PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS PARTS DIAGRAM")
-part-diagram-0016.webp "FERRARI CALIFORNIA (RHD) SILENCERS PARTS DIAGRAM")
-part-diagram-0017.webp "FERRARI CALIFORNIA (RHD) HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-0018.webp "FERRARI CALIFORNIA (RHD) VAPOUR OIL RECOVERY SYSTEM PARTS DIAGRAM")
-part-diagram-0019.webp "FERRARI CALIFORNIA (RHD) LUBRICATION: CIRCUIT AND PICKUP PARTS DIAGRAM")
-part-diagram-0020.webp "FERRARI CALIFORNIA (RHD) LUBRICATION: PUMP AND FILTER PARTS DIAGRAM")
-part-diagram-0021.webp "FERRARI CALIFORNIA (RHD) COOLING: WATER PUMP PARTS DIAGRAM")
-part-diagram-0022.webp "FERRARI CALIFORNIA (RHD) COOLING: RADIATORS AND AIR DUCTS PARTS DIAGRAM")
-part-diagram-0023.webp "FERRARI CALIFORNIA (RHD) COOLING: HEADER TANK AND PIPES PARTS DIAGRAM")
-part-diagram-0024.webp "FERRARI CALIFORNIA (RHD) TRANSMISSION HOUSING PARTS DIAGRAM")
-part-diagram-0025.webp "FERRARI CALIFORNIA (RHD) EXTERNAL GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-0026.webp "FERRARI CALIFORNIA (RHD) GEARBOX HOUSING PARTS DIAGRAM")
-part-diagram-0027.webp "FERRARI CALIFORNIA (RHD) GEARBOX REPAIR KIT PARTS DIAGRAM")
-part-diagram-0028.webp "FERRARI CALIFORNIA (RHD) GEARBOX OIL LUBRICATION AND COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-0029.webp "FERRARI CALIFORNIA (RHD) GEARBOX OIL LUBRICATION AND COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-0030.webp "FERRARI CALIFORNIA (RHD) GEARBOX LUBRICATION AND COOLING CIRCUIT PARTS DIAGRAM")
-part-diagram-0031.webp "FERRARI CALIFORNIA (RHD) MANUAL DCT GEARBOX LOCK RELEASE CONTROL PARTS DIAGRAM")
-part-diagram-0032.webp "FERRARI CALIFORNIA (RHD) TRANSMISSION PIPE PARTS DIAGRAM")
-part-diagram-0033.webp "FERRARI CALIFORNIA (RHD) DIFFERENTIAL AND REAR AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-0034.webp "FERRARI CALIFORNIA (RHD) POWER STEERING SYSTEM PARTS DIAGRAM")
-part-diagram-0035.webp "FERRARI CALIFORNIA (RHD) COMPLETE PEDAL BOARD ASSEMBLY PARTS DIAGRAM")
-part-diagram-0036.webp "FERRARI CALIFORNIA (RHD) COMPLETE PEDAL BOARD ASSEMBLY PARTS DIAGRAM")
-part-diagram-0037.webp "FERRARI CALIFORNIA (RHD) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0038.webp "FERRARI CALIFORNIA (RHD) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0039.webp "FERRARI CALIFORNIA (RHD) FRONT WHEEL BRAKE SYSTEM COMPONENTS PARTS DIAGRAM")
-part-diagram-0040.webp "FERRARI CALIFORNIA (RHD) REAR WHEEL BRAKE SYSTEM COMPONENTS PARTS DIAGRAM")
-part-diagram-0041.webp "FERRARI CALIFORNIA (RHD) PARKING BRAKE PARTS DIAGRAM")
-part-diagram-0042.webp "FERRARI CALIFORNIA (RHD) STEERING BOX AND POWER STEERING PUMP PARTS DIAGRAM")
-part-diagram-0043.webp "FERRARI CALIFORNIA (RHD) STEERING COLUMN ASSEMBLY AND STEERING WHEEL PARTS DIAGRAM")
-part-diagram-0044.webp "FERRARI CALIFORNIA (RHD) FRONT SHOCK ABSORBER COMPONENTS PARTS DIAGRAM")
-part-diagram-0045.webp "FERRARI CALIFORNIA (RHD) FRONT SUSPENSION PARTS DIAGRAM")
-part-diagram-0046.webp "FERRARI CALIFORNIA (RHD) REAR SHOCK ABSORBER COMPONENTS PARTS DIAGRAM")
-part-diagram-0047.webp "FERRARI CALIFORNIA (RHD) REAR SUSPENSION PARTS DIAGRAM")
-part-diagram-0048.webp "FERRARI CALIFORNIA (RHD) WHEELS AND TYRES PARTS DIAGRAM")
-part-diagram-0049.webp "FERRARI CALIFORNIA (RHD) TYRE PRESSURE MONITORING SYSTEM PARTS DIAGRAM")
-part-diagram-0050.webp "FERRARI CALIFORNIA (RHD) BATTERY PARTS DIAGRAM")
-part-diagram-0051.webp "FERRARI CALIFORNIA (RHD) ALTERNATOR, STARTER MOTOR AND AC COMPRESSOR PARTS DIAGRAM")
-part-diagram-0052.webp "FERRARI CALIFORNIA (RHD) AC UNIT: COMPONENTS IN ENGINE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0053.webp "FERRARI CALIFORNIA (RHD) AC UNIT: COMPONENTS IN ENGINE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0054.webp "FERRARI CALIFORNIA (RHD) AC UNIT: DASHBOARD COMPONENTS PARTS DIAGRAM")
-part-diagram-0055.webp "FERRARI CALIFORNIA (RHD) AC UNIT: DISTRIBUTION PARTS DIAGRAM")
-part-diagram-0056.webp "FERRARI CALIFORNIA (RHD) STANDARD ACCESSORIES PARTS DIAGRAM")
-part-diagram-0100.webp "FERRARI CALIFORNIA (RHD) BODYSHELL AND EXTERNAL FRONT TRIM PARTS DIAGRAM")
-part-diagram-0101.webp "FERRARI CALIFORNIA (RHD) FRONT BODYSHELL AND EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0102.webp "FERRARI CALIFORNIA (RHD) CENTRE BODYSHELL AND EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0103.webp "FERRARI CALIFORNIA (RHD) CENTRE BODYSHELL AND EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0104.webp "FERRARI CALIFORNIA (RHD) REAR BODYSHELL AND EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0105.webp "FERRARI CALIFORNIA (RHD) REAR BODYSHELL AND EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0106.webp "FERRARI CALIFORNIA (RHD) FRONT STRUCTURES AND CHASSIS BOX SECTIONS PARTS DIAGRAM")
-part-diagram-0107.webp "FERRARI CALIFORNIA (RHD) FRONT STRUCTURES AND CHASSIS BOX SECTIONS PARTS DIAGRAM")
-part-diagram-0108.webp "FERRARI CALIFORNIA (RHD) CENTRE STRUCTURES AND CHASSIS BOX SECTIONS PARTS DIAGRAM")
-part-diagram-0109.webp "FERRARI CALIFORNIA (RHD) CENTRE STRUCTURES AND CHASSIS BOX SECTIONS PARTS DIAGRAM")
-part-diagram-0110.webp "FERRARI CALIFORNIA (RHD) REAR STRUCTURES AND CHASSIS BOX SECTIONS PARTS DIAGRAM")
-part-diagram-0111.webp "FERRARI CALIFORNIA (RHD) REAR STRUCTURES AND CHASSIS BOX SECTIONS PARTS DIAGRAM")
-part-diagram-0112.webp "FERRARI CALIFORNIA (RHD) UNDERBODY SHIELDS AND FLAT UNDERTRAY SECTIONS PARTS DIAGRAM")
-part-diagram-0113.webp "FERRARI CALIFORNIA (RHD) WHEELHOUSES AND DOORS PARTS DIAGRAM")
-part-diagram-0114.webp "FERRARI CALIFORNIA (RHD) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-0115.webp "FERRARI CALIFORNIA (RHD) REAR BUMPER PARTS DIAGRAM")
-part-diagram-0116.webp "FERRARI CALIFORNIA (RHD) SOUNDPROOFING IN VEHICLE PARTS DIAGRAM")
-part-diagram-0117.webp "FERRARI CALIFORNIA (RHD) HEAT SHIELDS IN VEHICLE PARTS DIAGRAM")
-part-diagram-0118.webp "FERRARI CALIFORNIA (RHD) PASSENGER COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0119.webp "FERRARI CALIFORNIA (RHD) LUGGAGE COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0120.webp "FERRARI CALIFORNIA (RHD) LUGGAGE COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0121.webp "FERRARI CALIFORNIA (RHD) HEADLINER TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0122.webp "FERRARI CALIFORNIA (RHD) ELECTRIC ROOF: ROLLBAR AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0123.webp "FERRARI CALIFORNIA (RHD) ELECTRIC ROOF: TRIM PARTS DIAGRAM")
-part-diagram-0124.webp "FERRARI CALIFORNIA (RHD) ELECTRIC ROOF: KINEMATICS PARTS DIAGRAM")
-part-diagram-0125.webp "FERRARI CALIFORNIA (RHD) ELECTRIC ROOF: STRUCTURE PARTS DIAGRAM")
-part-diagram-0126.webp "FERRARI CALIFORNIA (RHD) ELECTRIC ROOF: HYDRAULICS PARTS DIAGRAM")
-part-diagram-0127.webp "FERRARI CALIFORNIA (RHD) FRONT LID PARTS DIAGRAM")
-part-diagram-0128.webp "FERRARI CALIFORNIA (RHD) REAR LID PARTS DIAGRAM")
-part-diagram-0129.webp "FERRARI CALIFORNIA (RHD) FUEL FILLER FLAP AND CONTROLS PARTS DIAGRAM")
-part-diagram-0130.webp "FERRARI CALIFORNIA (RHD) FRONT DOORS: TRIM PARTS DIAGRAM")
-part-diagram-0131.webp "FERRARI CALIFORNIA (RHD) FRONT DOORS: MECHANISMS PARTS DIAGRAM")
-part-diagram-0132.webp "FERRARI CALIFORNIA (RHD) POWER WINDOWS AND REAR VIEW MIRRORS PARTS DIAGRAM")
-part-diagram-0133.webp "FERRARI CALIFORNIA (RHD) SCREENS, WINDOWS AND SEALS PARTS DIAGRAM")
-part-diagram-0134.webp "FERRARI CALIFORNIA (RHD) FRONT SEAT - SEAT BELTS PARTS DIAGRAM")
-part-diagram-0135.webp "FERRARI CALIFORNIA (RHD) FRONT SEAT - TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0136.webp "FERRARI CALIFORNIA (RHD) FRONT SEAT - RACING PARTS DIAGRAM")
-part-diagram-0137.webp "FERRARI CALIFORNIA (RHD) CENTRE TUNNEL AND ACCESSORY UNIT PARTS DIAGRAM")
