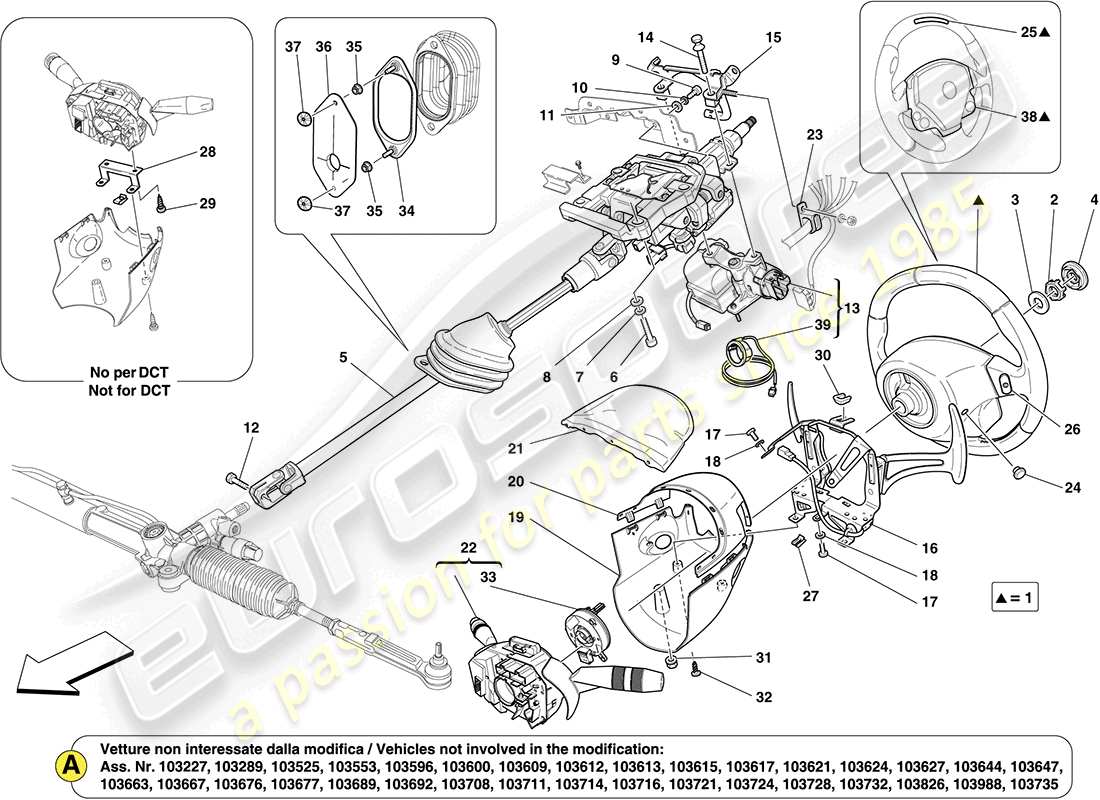

0043 - STEERING COLUMN ASSEMBLY AND STEERING WHEEL
Ferrari California (USA) STEERING COLUMN ASSEMBLY AND STEERING WHEEL Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 820234..
COMPL. STEERING WHEEL
-STIC- -Applicable until depletion-
Supersession
Supersession
# 001
MPN: 820235..
COMPL. STEERING WHEEL
-Carbon fibre trim- -STIC- -Not for USA, CDN, USA LIGHT- -Applicable up to Ass. No. 103178-
Supersession
Supersession
# 001
MPN: 820235..
COMPL. STEERING WHEEL
-Carbon fibre trim- -STIC- -Applicable for USA, CDN, USA LIGHT- -Applicable up to Ass. No. 100814-
Supersession
Supersession
# 001
MPN: 820236
COMPL. STEERING WHEEL
-Carbon fibre trim- -Steering wheel with LEDs- -STIC- -Not for USA, CDN, USA LIGHT- -Applicable up to Ass. No. 103178-
Supersession
Supersession
# 001
MPN: 820236
COMPL. STEERING WHEEL
-Carbon fibre trim- -Steering wheel with LEDs- -STIC- -Applicable for USA, CDN, USA LIGHT- -Applicable up to Ass. No. 100814-
Supersession
Supersession
# 001
MPN: 830763..
COMPL. STEERING WHEEL
-Galvanised plate, no wheel centre marker- -STIC- -Applicable up to Ass. No. 98954- -Applicable after depletion of 820234..-
Supersession
Supersession
# 001
MPN: 845334..
COMPL. STEERING WHEEL
-Grey paint finish- -STIC- -Not for USA, CDN, USA LIGHT- -Applicable from Ass. No. 98955 up to Ass. No. 103178-
Supersession
Supersession
# 001
MPN: 845334..
COMPL. STEERING WHEEL
-Grey paint finish- -STIC- -Applicable for USA, CDN, USA LIGHT- -Applicable from Ass. No. 98955 up to Ass. No. 100814-
Supersession
Supersession
# 001
MPN: 846530..
COMPL. STEERING WHEEL
-Applicable from MY 12- -Grey paint finish- -STIC- -Applicable for USA, CDN, USA LIGHT- -Applicable from Ass. No. 100815-
Supersession
Supersession
# 001
MPN: 846530..
COMPL. STEERING WHEEL
-Grey paint finish- -STIC- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
Supersession
Supersession
# 001
MPN: 846531..
COMPL. STEERING WHEEL
-Applicable from MY 12- -Carbon fibre trim- -Steering wheel with LEDs- -STIC- -Applicable for USA, CDN, USA LIGHT- -Applicable from Ass. No. 100815-
Supersession
Supersession
# 001
MPN: 846531..
COMPL. STEERING WHEEL
-Carbon fibre trim- -Steering wheel with LEDs- -STIC- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
Supersession
Supersession
# 001
MPN: 846533..
COMPL. STEERING WHEEL
-Applicable from MY 12- -Carbon fibre trim- -STIC- -Applicable for USA, CDN, USA LIGHT- -Applicable from Ass. No. 100815-
Supersession
Supersession
# 001
MPN: 846533..
COMPL. STEERING WHEEL
-Carbon fibre trim- -STIC- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
Supersession
Supersession
# 002
MPN: 199222
NUT
-No longer supplied- -Replaced by 299557-
from £0.71
from £0.71
# 002
MPN: 299557
NUT
from £0.68
from £0.68
# 003
MPN: 152034
WASHER
from £3.36
from £3.36
# 004
MPN: 199406
NUT CAP
-No longer supplied- -Replaced by 299558-
from £0.47
from £0.47
# 004
MPN: 299558
NUT CAP
from £0.47
from £0.47
# 005
MPN: 236210
COMPLETE STEERING ROD
from £1,270.98
from £1,270.98
# 006
MPN: 14306724
SCREW
from £0.50
from £0.50
# 007
MPN: 10519624
WASHER
from £0.47
from £0.47
This part replaces part number 10519601 - and 3 more. Click to view details
# 008
MPN: 11194074
WASHER
from £0.47
from £0.47
This part replaces part number 11194077 - and 1 more. Click to view details
# 009
MPN: 10902324
SCREW
from £0.47
from £0.47
This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
# 010
MPN: 12646624
WASHER
from £0.47
from £0.47
# 011
MPN: 11197774
WASHER
from £0.54
from £0.54
This part replaces part number 11197770 - and 3 more. Click to view details
# 012
MPN: 245173
SCREW
from £0.47
from £0.47
This part replaces part number 187006
# 013
MPN: 222863
STEERING LOCK
-Not for DCT-F1 gearbox (Applicable for mechanical gearbox)-
from £79.94
from £79.94
# 013
MPN: 247058
STEERING LOCK
-Applicable for DCT-F1 gearbox (Not for mechanical gearbox)-
from £350.00
from £350.00
# 014
MPN: 187005
SCREW
-Not for DCT-F1 gearbox (Applicable for mechanical gearbox)-
from £4.43
from £4.43
# 014
MPN: 192053
STEERING LOCK FASTENER SCREW
-Applicable for DCT-F1 gearbox (Not for mechanical gearbox)-
from £2.47
from £2.47
# 015
MPN: 204044
BRACKET SUPPORT
from £200.44
from £200.44
# 016

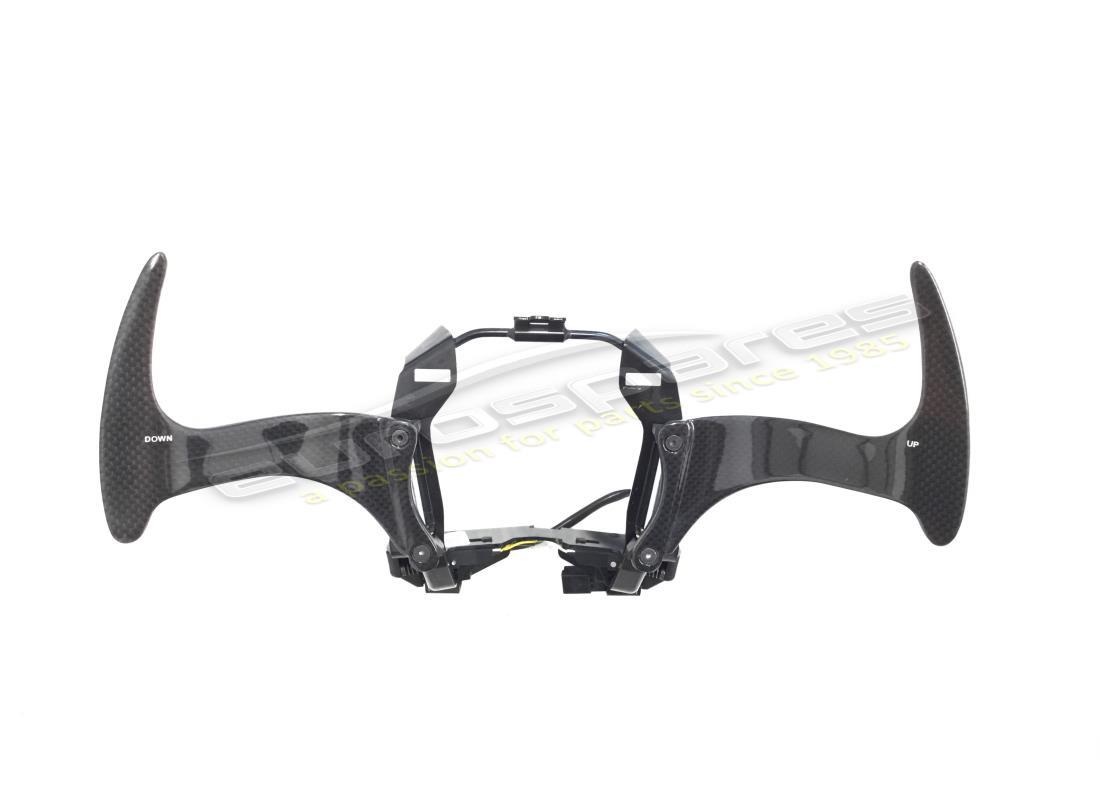

MPN: 226097
LEVERS SET
-Carbon fibre trim- -No longer supplied- -Replaced by 278728-
from £2,352.14
from £2,352.14
# 016
MPN: 250064
LEVERS SET
from £552.90
from £552.90
# 016
MPN: 278728
LEVER ASSEMBLY
-Carbon fibre trim-
from £1,785.42
from £1,785.42
# 017
MPN: 13025787
SCREW
-No longer supplied- -Replaced by 14304187-
from £0.47
from £0.47
# 017
MPN: 14304187
SCREW
from £0.47
from £0.47
This part replaces part number 87658800
# 018
MPN: 12601174
WASHER
from £0.47
from £0.47
This part replaces part number 12601173 - and 5 more. Click to view details
# 019
MPN: 820018..
LOWER STEERING COLUMN TRIM
-Not available if same colour as reflective leather- -Applicable for DCT-F1 gearbox (Not for mechanical gearbox)-
from £82.95
from £82.95
# 019
MPN: 820958..
LOWER STEERING COLUMN TRIM
-Not available if same colour as reflective leather- -Not for DCT-F1 gearbox (Applicable for mechanical gearbox)-
Supersession
Supersession
# 020
MPN: 697660..
UPPER STEERING COLUMN TRIM
-Not available if same colour as reflective leather- -Applicable for DCT-F1 gearbox (Not for mechanical gearbox)-
Supersession
Supersession
# 020
MPN: 820957..
UPPER STEERING COLUMN TRIM
-Not available if same colour as reflective leather- -Not for DCT-F1 gearbox (Applicable for mechanical gearbox)-
Supersession
Supersession
# 021
MPN: 69754800
COVER
from £93.95
from £93.95
# 022
MPN: 241571
COMPL. STEERING COLUMN SWITCH
-Applicable until depletion-
Supersession
Supersession
# 022
MPN: 241573
COMPL. STEERING COLUMN SWITCH
-Cruise control- -Applicable until depletion-
Supersession
Supersession
# 022
MPN: 261073
COMPL. STEERING COLUMN SWITCH
-Applicable after depletion of 241571-
from £759.22
from £759.22
This part replaces part number 241571
# 022
MPN: 261074
COMPL. STEERING COLUMN SWITCH
-Cruise control- -Applicable after depletion of 241573-
from £765.16
from £765.16
This part replaces part number 241573
# 023
MPN: 143119
FIXING CLIP
from £0.47
from £0.47
# 024
MPN: 14506587
CAP
from £0.47
from £0.47
# 025
MPN: 231697
LED FIXING PLATE
from £204.44
from £204.44
# 026
MPN: 246475
RH NIT BUTTON
from £121.17
from £121.17
# 026
MPN: 246476
LH NIT BUTTON
from £121.17
from £121.17
# 027
MPN: 66927700
BRACKET WITH COLLAR
from £0.75
from £0.75
# 028
MPN: 66974900
BRACKET
-Not for DCT-F1 gearbox (Applicable for mechanical gearbox)-
from £7.85
from £7.85
# 029
MPN: 15688875
SCREW
-Not for DCT-F1 gearbox (Applicable for mechanical gearbox)-
from £0.54
from £0.54
This part replaces part number 15688814
# 030
MPN: 68002000
RUBBER PAD
from £1.94
from £1.94
# 031
MPN: 13046011
NUT
from £0.47
from £0.47
# 032
MPN: 11566227
SCREW
-No longer supplied- -Replaced by 256323-
from £0.69
from £0.69
# 032
MPN: 256323
SCREW
-M5 X 16-
from £0.47
from £0.47
# 033
MPN: 259914
CLOCK SPRING CONTACT
from £151.36
from £151.36
This part replaces part number 187750
# 034
MPN: 237433
STEERING COLUMN GAITER FASTENER PLATE
from £15.11
from £15.11
# 035
MPN: 14058419
NUT
from £0.47
from £0.47
# 036
MPN: 250644
STEERING COLUMN GAITER SOUNDPROOFING SEAL
from £2.19
from £2.19
# 037
MPN: 250645
RING NUT
from £0.47
from £0.47
# 038
MPN: 246474
STEERING WHEEL MOUNTED CONTROLS
-Grey paint finish- -Not for USA, CDN, USA LIGHT- -Applicable from Ass. No. 98955 up to Ass. No. 103178-
from £2,227.12
from £2,227.12
# 038
MPN: 246474
STEERING WHEEL MOUNTED CONTROLS
-Grey paint finish- -Applicable for USA, CDN, USA LIGHT- -Applicable from Ass. No. 98955 up to Ass. No. 100814-
from £2,227.12
from £2,227.12
# 038
MPN: 246478
STEERING WHEEL MOUNTED CONTROLS
-Carbon fibre trim- -Steering wheel with LEDs- -Not for USA, CDN, USA LIGHT- -Applicable up to Ass. No. 103178-
from £1,945.95
from £1,945.95
# 038
MPN: 246478
STEERING WHEEL MOUNTED CONTROLS
-Carbon fibre trim- -Steering wheel with LEDs- -Applicable for USA, CDN, USA LIGHT- -Applicable up to Ass. No. 100814-
from £1,945.95
from £1,945.95
# 038
MPN: 251047
STEERING WHEEL MOUNTED CONTROLS
-Carbon fibre trim- -Not for USA, CDN, USA LIGHT- -Applicable up to Ass. No. 103178-
from £2,227.12
from £2,227.12
# 038
MPN: 251047
STEERING WHEEL MOUNTED CONTROLS
-Carbon fibre trim- -Applicable for USA, CDN, USA LIGHT- -Applicable up to Ass. No. 100814-
from £2,227.12
from £2,227.12
# 038
MPN: 255932
STEERING WHEEL MOUNTED CONTROLS
-Galvanised plate, no wheel centre marker- -Applicable up to Ass. No. 98954-
from £2,227.12
from £2,227.12
# 038
MPN: 273607
STEERING WHEEL MOUNTED CONTROLS
-Carbon fibre trim- -Steering wheel with LEDs- -See note A for Ass. Numbers of vehicles not affected by modification- -Not for USA, CDN, USA LIGHT- -Applicable from Ass. No. 103179-
from £2,227.12
from £2,227.12
# 038
MPN: 273607
STEERING WHEEL MOUNTED CONTROLS
-Applicable from MY 12- -Carbon fibre trim- -Steering wheel with LEDs- -Applicable for USA, CDN, USA LIGHT- -Applicable from Ass. No. 100815-
from £2,227.12
from £2,227.12
# 038
MPN: 273609
STEERING WHEEL MOUNTED CONTROLS
-Carbon fibre trim- -See note A for Ass. Numbers of vehicles not affected by modification- -Not for USA, CDN, USA LIGHT- -Applicable from Ass. No. 103179-
from £3,711.87
from £3,711.87
# 038
MPN: 273609
STEERING WHEEL MOUNTED CONTROLS
-Applicable from MY 12- -Carbon fibre trim- -Applicable for USA, CDN, USA LIGHT- -Applicable from Ass. No. 100815-
from £3,711.87
from £3,711.87
# 038
MPN: 273611
STEERING WHEEL MOUNTED CONTROLS
-Grey paint finish- -See note A for Ass. Numbers of vehicles not affected by modification- -Not for USA, CDN, USA LIGHT- -Applicable from Ass. No. 103179-
from £1,855.95
from £1,855.95
# 038
MPN: 273611
STEERING WHEEL MOUNTED CONTROLS
-Applicable from MY 12- -Grey paint finish- -Applicable for USA, CDN, USA LIGHT- -Applicable from Ass. No. 100815-
from £1,855.95
from £1,855.95
# 039
MPN: 191664
IMMOBILIZER ANTENNA
from £18.08
from £18.08
-part-diagram-0044.webp "FERRARI CALIFORNIA (USA) FRONT SHOCK ABSORBER COMPONENTS PARTS DIAGRAM")
-part-diagram-0045.webp "FERRARI CALIFORNIA (USA) FRONT SUSPENSION PARTS DIAGRAM")
-part-diagram-0046.webp "FERRARI CALIFORNIA (USA) REAR SHOCK ABSORBER COMPONENTS PARTS DIAGRAM")
-part-diagram-0047.webp "FERRARI CALIFORNIA (USA) REAR SUSPENSION PARTS DIAGRAM")
-part-diagram-0048.webp "FERRARI CALIFORNIA (USA) WHEELS AND TYRES PARTS DIAGRAM")
-part-diagram-0049.webp "FERRARI CALIFORNIA (USA) TYRE PRESSURE MONITORING SYSTEM PARTS DIAGRAM")
-part-diagram-0050.webp "FERRARI CALIFORNIA (USA) BATTERY PARTS DIAGRAM")
-part-diagram-0051.webp "FERRARI CALIFORNIA (USA) ALTERNATOR, STARTER MOTOR AND AC COMPRESSOR PARTS DIAGRAM")
-part-diagram-0052.webp "FERRARI CALIFORNIA (USA) AC UNIT: COMPONENTS IN ENGINE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0053.webp "FERRARI CALIFORNIA (USA) AC UNIT: COMPONENTS IN ENGINE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0054.webp "FERRARI CALIFORNIA (USA) AC UNIT: DASHBOARD COMPONENTS PARTS DIAGRAM")
-part-diagram-0055.webp "FERRARI CALIFORNIA (USA) AC UNIT: DISTRIBUTION PARTS DIAGRAM")
-part-diagram-0056.webp "FERRARI CALIFORNIA (USA) STANDARD ACCESSORIES PARTS DIAGRAM")
-part-diagram-0100.webp "FERRARI CALIFORNIA (USA) BODYSHELL AND EXTERNAL FRONT TRIM PARTS DIAGRAM")
-part-diagram-0101.webp "FERRARI CALIFORNIA (USA) FRONT BODYSHELL AND EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0102.webp "FERRARI CALIFORNIA (USA) CENTRE BODYSHELL AND EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0103.webp "FERRARI CALIFORNIA (USA) CENTRE BODYSHELL AND EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0104.webp "FERRARI CALIFORNIA (USA) REAR BODYSHELL AND EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0105.webp "FERRARI CALIFORNIA (USA) REAR BODYSHELL AND EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0106.webp "FERRARI CALIFORNIA (USA) FRONT STRUCTURES AND CHASSIS BOX SECTIONS PARTS DIAGRAM")
-part-diagram-0107.webp "FERRARI CALIFORNIA (USA) FRONT STRUCTURES AND CHASSIS BOX SECTIONS PARTS DIAGRAM")
-part-diagram-0108.webp "FERRARI CALIFORNIA (USA) CENTRE STRUCTURES AND CHASSIS BOX SECTIONS PARTS DIAGRAM")
-part-diagram-0109.webp "FERRARI CALIFORNIA (USA) CENTRE STRUCTURES AND CHASSIS BOX SECTIONS PARTS DIAGRAM")
-part-diagram-0110.webp "FERRARI CALIFORNIA (USA) REAR STRUCTURES AND CHASSIS BOX SECTIONS PARTS DIAGRAM")
-part-diagram-0111.webp "FERRARI CALIFORNIA (USA) REAR STRUCTURES AND CHASSIS BOX SECTIONS PARTS DIAGRAM")
-part-diagram-0112.webp "FERRARI CALIFORNIA (USA) UNDERBODY SHIELDS AND FLAT UNDERTRAY SECTIONS PARTS DIAGRAM")
-part-diagram-0113.webp "FERRARI CALIFORNIA (USA) WHEELHOUSES AND DOORS PARTS DIAGRAM")
-part-diagram-0114.webp "FERRARI CALIFORNIA (USA) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-0115.webp "FERRARI CALIFORNIA (USA) REAR BUMPER PARTS DIAGRAM")
-part-diagram-0116.webp "FERRARI CALIFORNIA (USA) SOUNDPROOFING IN VEHICLE PARTS DIAGRAM")
-part-diagram-0117.webp "FERRARI CALIFORNIA (USA) HEAT SHIELDS IN VEHICLE PARTS DIAGRAM")
-part-diagram-0118.webp "FERRARI CALIFORNIA (USA) PASSENGER COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0119.webp "FERRARI CALIFORNIA (USA) LUGGAGE COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0120.webp "FERRARI CALIFORNIA (USA) LUGGAGE COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0121.webp "FERRARI CALIFORNIA (USA) HEADLINER TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0122.webp "FERRARI CALIFORNIA (USA) ELECTRIC ROOF: ROLLBAR AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0123.webp "FERRARI CALIFORNIA (USA) ELECTRIC ROOF: TRIM PARTS DIAGRAM")
-part-diagram-0124.webp "FERRARI CALIFORNIA (USA) ELECTRIC ROOF: KINEMATICS PARTS DIAGRAM")
-part-diagram-0125.webp "FERRARI CALIFORNIA (USA) ELECTRIC ROOF: STRUCTURE PARTS DIAGRAM")
-part-diagram-0126.webp "FERRARI CALIFORNIA (USA) ELECTRIC ROOF: HYDRAULICS PARTS DIAGRAM")
-part-diagram-0127.webp "FERRARI CALIFORNIA (USA) FRONT LID PARTS DIAGRAM")
-part-diagram-0128.webp "FERRARI CALIFORNIA (USA) REAR LID PARTS DIAGRAM")
-part-diagram-0129.webp "FERRARI CALIFORNIA (USA) FUEL FILLER FLAP AND CONTROLS PARTS DIAGRAM")
-part-diagram-0130.webp "FERRARI CALIFORNIA (USA) FRONT DOORS: TRIM PARTS DIAGRAM")
-part-diagram-0131.webp "FERRARI CALIFORNIA (USA) FRONT DOORS: MECHANISMS PARTS DIAGRAM")
-part-diagram-0132.webp "FERRARI CALIFORNIA (USA) POWER WINDOWS AND REAR VIEW MIRRORS PARTS DIAGRAM")
-part-diagram-0133.webp "FERRARI CALIFORNIA (USA) SCREENS, WINDOWS AND SEALS PARTS DIAGRAM")
-part-diagram-0134.webp "FERRARI CALIFORNIA (USA) FRONT SEAT - SEAT BELTS PARTS DIAGRAM")
-part-diagram-0135.webp "FERRARI CALIFORNIA (USA) FRONT SEAT - TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0136.webp "FERRARI CALIFORNIA (USA) FRONT SEAT - RACING PARTS DIAGRAM")
-part-diagram-0137.webp "FERRARI CALIFORNIA (USA) CENTRE TUNNEL AND ACCESSORY UNIT PARTS DIAGRAM")
-part-diagram-0138.webp "FERRARI CALIFORNIA (USA) INTERIOR TRIM PARTS DIAGRAM")
-part-diagram-0139.webp "FERRARI CALIFORNIA (USA) DASHBOARD PARTS DIAGRAM")
-part-diagram-0140.webp "FERRARI CALIFORNIA (USA) GLOVE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0141.webp "FERRARI CALIFORNIA (USA) AIRBAG SYSTEM PARTS DIAGRAM")
-part-diagram-0142.webp "FERRARI CALIFORNIA (USA) AIRBAG SYSTEM PARTS DIAGRAM")
-part-diagram-0143.webp "FERRARI CALIFORNIA (USA) INTERNAL PASSENGER COMPARTMENT SERVICES PARTS DIAGRAM")
-part-diagram-0144.webp "FERRARI CALIFORNIA (USA) HEADLIGHTS PARTS DIAGRAM")
-part-diagram-0145.webp "FERRARI CALIFORNIA (USA) TAILLIGHTS PARTS DIAGRAM")
-part-diagram-0146.webp "FERRARI CALIFORNIA (USA) SHIELDS, TRIM AND COVERS PARTS DIAGRAM")
-part-diagram-0147.webp "FERRARI CALIFORNIA (USA) SHIELDS, TRIM AND COVERS PARTS DIAGRAM")
-part-diagram-0148.webp "FERRARI CALIFORNIA (USA) MAIN WIRING HARNESSES PARTS DIAGRAM")
-part-diagram-0149.webp "FERRARI CALIFORNIA (USA) VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-0150.webp "FERRARI CALIFORNIA (USA) ELECTRONIC MANAGEMENT (SUSPENSION) PARTS DIAGRAM")
-part-diagram-0151.webp "FERRARI CALIFORNIA (USA) PASSENGER COMPARTMENT ECUS PARTS DIAGRAM")
-part-diagram-0152.webp "FERRARI CALIFORNIA (USA) LUGGAGE COMPARTMENT ECUS PARTS DIAGRAM")
-part-diagram-0153.webp "FERRARI CALIFORNIA (USA) ALARM AND IMMOBILIZER SYSTEM PARTS DIAGRAM")
-part-diagram-0154.webp "FERRARI CALIFORNIA (USA) INFOTAINMENT SYSTEM PARTS DIAGRAM")
-part-diagram-0155.webp "FERRARI CALIFORNIA (USA) AUDIO SPEAKER SYSTEM PARTS DIAGRAM")
-part-diagram-0156.webp "FERRARI CALIFORNIA (USA) WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-0157.webp "FERRARI CALIFORNIA (USA) ADHESIVE LABELS AND PLAQUES PARTS DIAGRAM")
-part-diagram-0999.webp "FERRARI CALIFORNIA (USA) COLOUR CODES PARTS DIAGRAM")
-part-diagram-0000.webp "FERRARI CALIFORNIA (USA) SPARE ASSEMBLY UNITS PARTS DIAGRAM")
-part-diagram-0001.webp "FERRARI CALIFORNIA (USA) CRANKCASE PARTS DIAGRAM")
-part-diagram-0002.webp "FERRARI CALIFORNIA (USA) CRANKSHAFT, CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-0003.webp "FERRARI CALIFORNIA (USA) RIGHT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0004.webp "FERRARI CALIFORNIA (USA) LEFT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0005.webp "FERRARI CALIFORNIA (USA) TIMING SYSTEM - CAMSHAFTS AND VALVES PARTS DIAGRAM")
-part-diagram-0006.webp "FERRARI CALIFORNIA (USA) TIMING SYSTEM - DRIVE PARTS DIAGRAM")
-part-diagram-0007.webp "FERRARI CALIFORNIA (USA) FUEL PUMP AND CONNECTOR PIPES PARTS DIAGRAM")
-part-diagram-0008.webp "FERRARI CALIFORNIA (USA) FUEL TANK PARTS DIAGRAM")
-part-diagram-0009.webp "FERRARI CALIFORNIA (USA) EVAPORATIVE EMISSIONS CONTROL SYSTEM PARTS DIAGRAM")
-part-diagram-0010.webp "FERRARI CALIFORNIA (USA) RIGHT HAND INJECTION SYSTEM - IGNITION PARTS DIAGRAM")
-part-diagram-0011.webp "FERRARI CALIFORNIA (USA) LEFT HAND INJECTION SYSTEM - IGNITION PARTS DIAGRAM")
-part-diagram-0012.webp "FERRARI CALIFORNIA (USA) SECONDARY AIR SYSTEM PARTS DIAGRAM")
-part-diagram-0013.webp "FERRARI CALIFORNIA (USA) INTAKE MANIFOLD AND THROTTLE BODY PARTS DIAGRAM")
-part-diagram-0014.webp "FERRARI CALIFORNIA (USA) AIR FILTER, AIR INTAKE AND DUCTS PARTS DIAGRAM")
-part-diagram-0015.webp "FERRARI CALIFORNIA (USA) PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS PARTS DIAGRAM")
-part-diagram-0016.webp "FERRARI CALIFORNIA (USA) SILENCERS PARTS DIAGRAM")
-part-diagram-0017.webp "FERRARI CALIFORNIA (USA) HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-0018.webp "FERRARI CALIFORNIA (USA) VAPOUR OIL RECOVERY SYSTEM PARTS DIAGRAM")
-part-diagram-0019.webp "FERRARI CALIFORNIA (USA) LUBRICATION: CIRCUIT AND PICKUP PARTS DIAGRAM")
-part-diagram-0020.webp "FERRARI CALIFORNIA (USA) LUBRICATION: PUMP AND FILTER PARTS DIAGRAM")
-part-diagram-0021.webp "FERRARI CALIFORNIA (USA) COOLING: WATER PUMP PARTS DIAGRAM")
-part-diagram-0022.webp "FERRARI CALIFORNIA (USA) COOLING: RADIATORS AND AIR DUCTS PARTS DIAGRAM")
-part-diagram-0023.webp "FERRARI CALIFORNIA (USA) COOLING: HEADER TANK AND PIPES PARTS DIAGRAM")
-part-diagram-0024.webp "FERRARI CALIFORNIA (USA) TRANSMISSION HOUSING PARTS DIAGRAM")
-part-diagram-0025.webp "FERRARI CALIFORNIA (USA) EXTERNAL GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-0026.webp "FERRARI CALIFORNIA (USA) GEARBOX HOUSING PARTS DIAGRAM")
-part-diagram-0027.webp "FERRARI CALIFORNIA (USA) GEARBOX REPAIR KIT PARTS DIAGRAM")
-part-diagram-0028.webp "FERRARI CALIFORNIA (USA) GEARBOX OIL LUBRICATION AND COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-0029.webp "FERRARI CALIFORNIA (USA) GEARBOX OIL LUBRICATION AND COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-0030.webp "FERRARI CALIFORNIA (USA) GEARBOX LUBRICATION AND COOLING CIRCUIT PARTS DIAGRAM")
-part-diagram-0031.webp "FERRARI CALIFORNIA (USA) MANUAL DCT GEARBOX LOCK RELEASE CONTROL PARTS DIAGRAM")
-part-diagram-0032.webp "FERRARI CALIFORNIA (USA) TRANSMISSION PIPE PARTS DIAGRAM")
-part-diagram-0033.webp "FERRARI CALIFORNIA (USA) DIFFERENTIAL AND REAR AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-0034.webp "FERRARI CALIFORNIA (USA) POWER STEERING SYSTEM PARTS DIAGRAM")
-part-diagram-0035.webp "FERRARI CALIFORNIA (USA) COMPLETE PEDAL BOARD ASSEMBLY PARTS DIAGRAM")
-part-diagram-0036.webp "FERRARI CALIFORNIA (USA) COMPLETE PEDAL BOARD ASSEMBLY PARTS DIAGRAM")
-part-diagram-0037.webp "FERRARI CALIFORNIA (USA) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0038.webp "FERRARI CALIFORNIA (USA) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0039.webp "FERRARI CALIFORNIA (USA) FRONT WHEEL BRAKE SYSTEM COMPONENTS PARTS DIAGRAM")
-part-diagram-0040.webp "FERRARI CALIFORNIA (USA) REAR WHEEL BRAKE SYSTEM COMPONENTS PARTS DIAGRAM")
-part-diagram-0041.webp "FERRARI CALIFORNIA (USA) PARKING BRAKE PARTS DIAGRAM")
-part-diagram-0042.webp "FERRARI CALIFORNIA (USA) STEERING BOX AND POWER STEERING PUMP PARTS DIAGRAM")
