0001 - crankcase

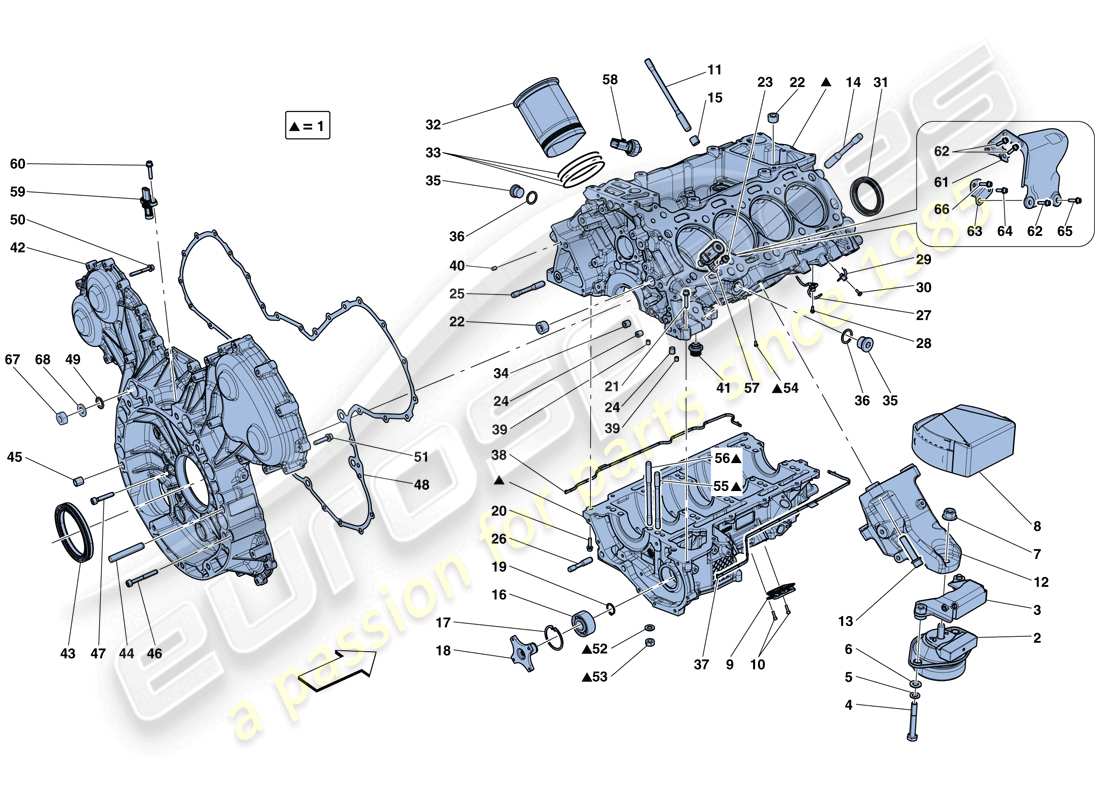

Ferrari California T (RHD) CRANKCASE Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 294784
CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY
-Not for USA, CDN, USA LIGHT- -Applicable up to engine No. 255474-
from £2,833.34
from £2,833.34
# 001
MPN: 311778
CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY
-Not for USA, CDN, USA LIGHT- -Applicable from engine No. 255475- -No longer supplied- -Replaced by 312884-
Supersession
Supersession
# 001
MPN: 312884
CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY
-Not for USA, CDN, USA LIGHT- -Applicable from engine No. 255475 up to engine No. 338904-
from £1,999.76
from £1,999.76
This part replaces part number 311778 - and 1 more. Click to view details
# 001
MPN: 312884
CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY
-Applicable for USA, CDN, USA LIGHT- -Applicable up to engine No. 338904-
from £1,999.76
from £1,999.76
This part replaces part number 311778 - and 1 more. Click to view details
# 001
MPN: 333144
CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY
-Applicable from engine No. 338905- -No longer supplied- -Replaced by 339315-
Supersession
Supersession
# 001
MPN: 339315
CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY
-Applicable from engine No. 338905-
from £2,716.02
from £2,716.02
This part replaces part number 333144
# 002
MPN: 303182
COMPL. LH BUSHING
from £143.10
from £143.10
# 002
MPN: 303183
COMPL. RH BUSHING
from £260.18
from £260.18
# 003
MPN: 303184
COMPL. RH BRACKET
from £37.58
from £37.58
# 003
MPN: 303185
COMPL. LH BRACKET
from £37.58
from £37.58
# 004
MPN: 15971324
SCREW
from £0.86
from £0.86
This part replaces part number 123198 - and 1 more. Click to view details
# 005
MPN: 127497
WASHER
from £0.53
from £0.53
This part replaces part number 10516871 - and 2 more. Click to view details
# 006
MPN: 14496624
WASHER
from £0.52
from £0.52
This part replaces part number 14496601 - and 2 more. Click to view details
# 007
MPN: 255271
NUT
from £0.44
from £0.44
This part replaces part number 14058721 - and 1 more. Click to view details
# 008
MPN: 304281
HEAT SHIELD
-Applicable until depletion-
from £18.09
from £18.09
# 008
MPN: 312024
HEAT SHIELD
-Applicable after depletion of 304281-
from £21.59
from £21.59
This part replaces part number 304281 which we have in stock - and 3 more. Click to view details
# 009
MPN: 255138
BLOW-BY VALVE ASSEMBLY
from £53.62
from £53.62
This part replaces part number 238362
# 010
MPN: 14303123
SCREW
from £0.53
from £0.53
This part replaces part number 14303124

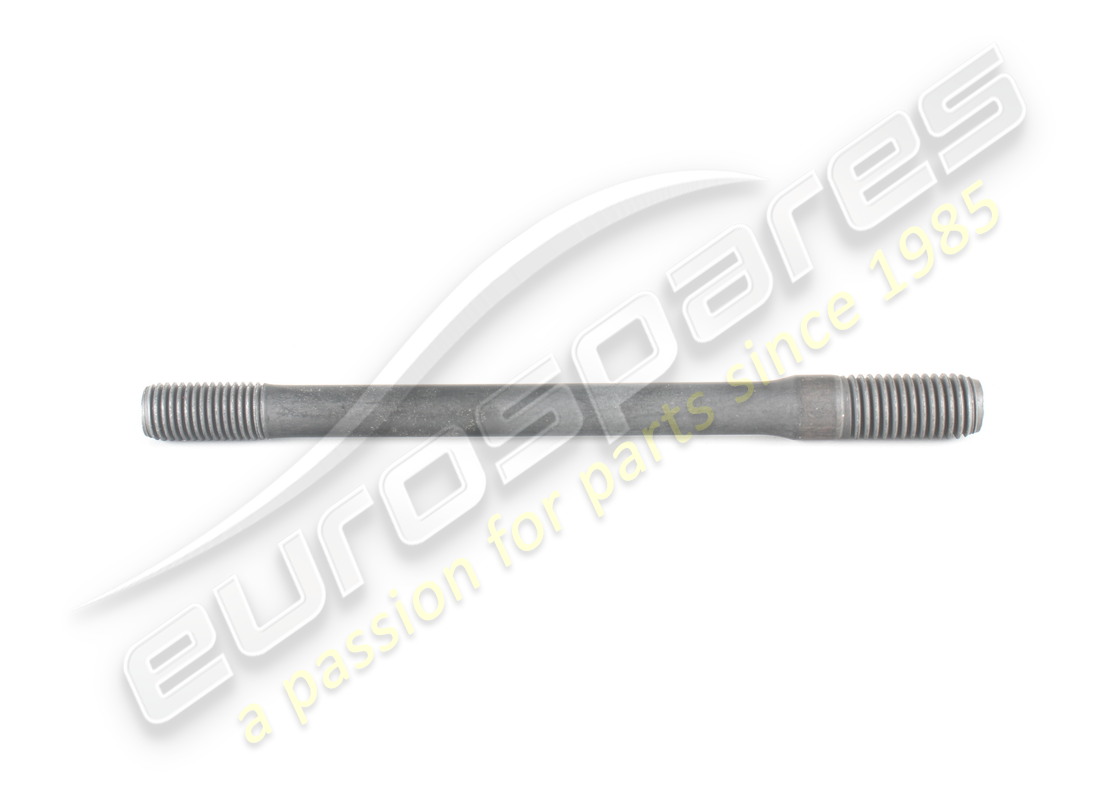

# 011
MPN: 270464
STUD BOLT
from £16.39
from £16.39
# 012
MPN: 296108
RH ENGINE STRUT
-No longer supplied- -Replaced by 311357-
Supersession
Supersession
# 012
MPN: 296109
LH ENGINE STRUT
-No longer supplied- -Replaced by 311358-
Supersession
Supersession
# 012
MPN: 311357
RH ENGINE STRUT
-Applicable until depletion-
Supersession
Supersession
This part replaces part number 296108
# 012
MPN: 311358
LH ENGINE STRUT
-Applicable until depletion-
Supersession
Supersession
This part replaces part number 296109

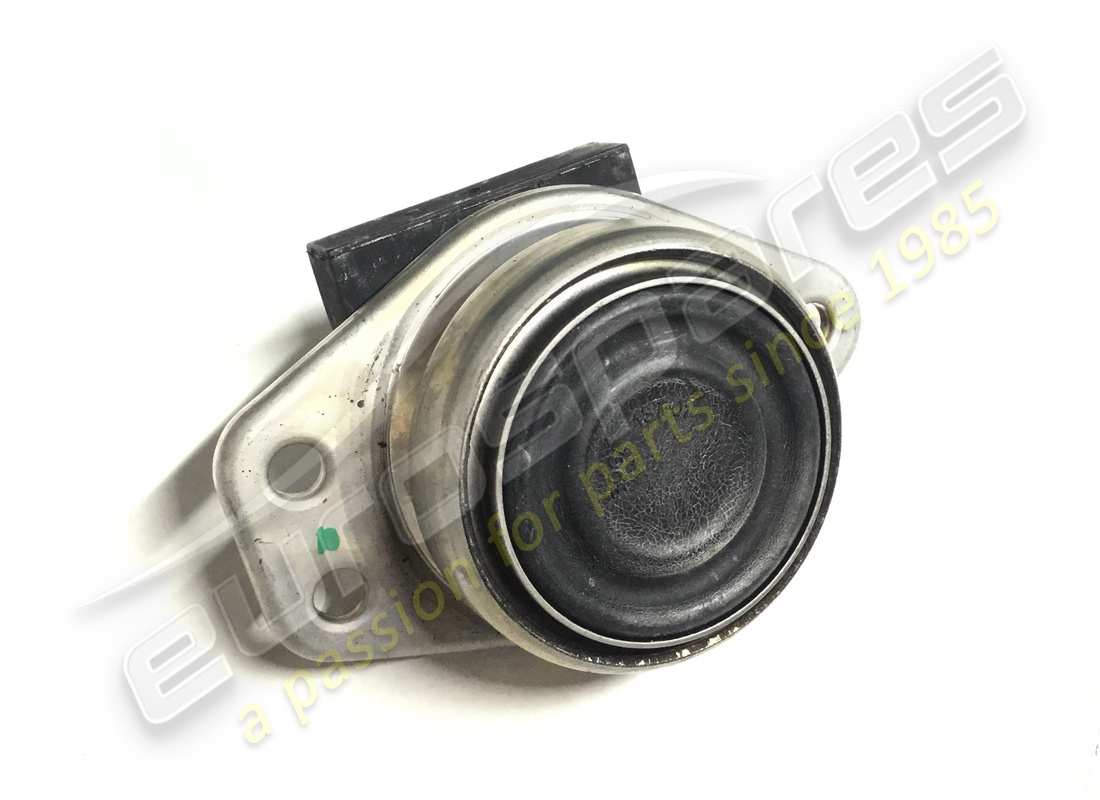

# 012
MPN: 332698
LH ENGINE STRUT
-Applicable after depletion of 311358-
from £98.27
from £98.27
This part replaces part number 311358 - and 1 more. Click to view details

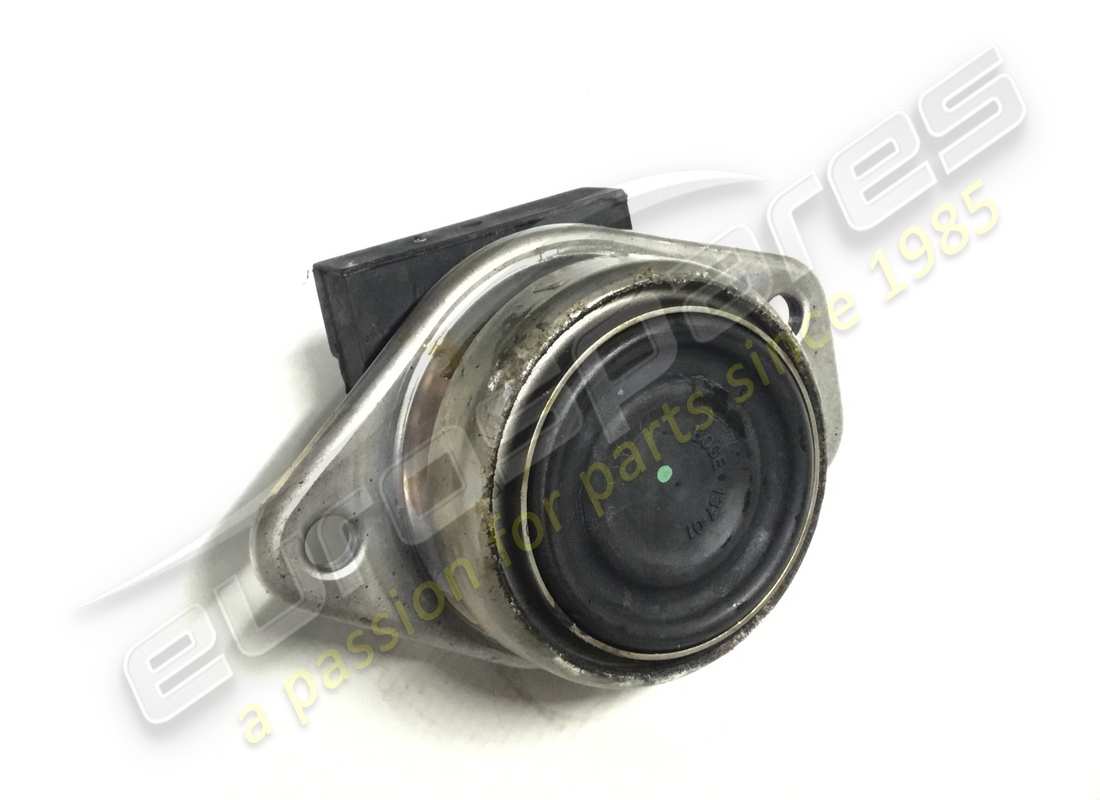

# 012
MPN: 337069
RH ENGINE STRUT
-Applicable after depletion of 311357-
from £96.94
from £96.94
This part replaces part number 311357 - and 2 more. Click to view details
# 013
MPN: 290127
SCREW
from £11.46
from £11.46
This part replaces part number 308266
# 014
MPN: 271564
STUD BOLT
from £14.95
from £14.95
# 015
MPN: 185360
ALIGNMENT DOWEL
from £1.75
from £1.75
# 016
MPN: 247049
BEARING
from £28.43
from £28.43
# 017
MPN: 11060276
SEEGER RING
from £0.53
from £0.53

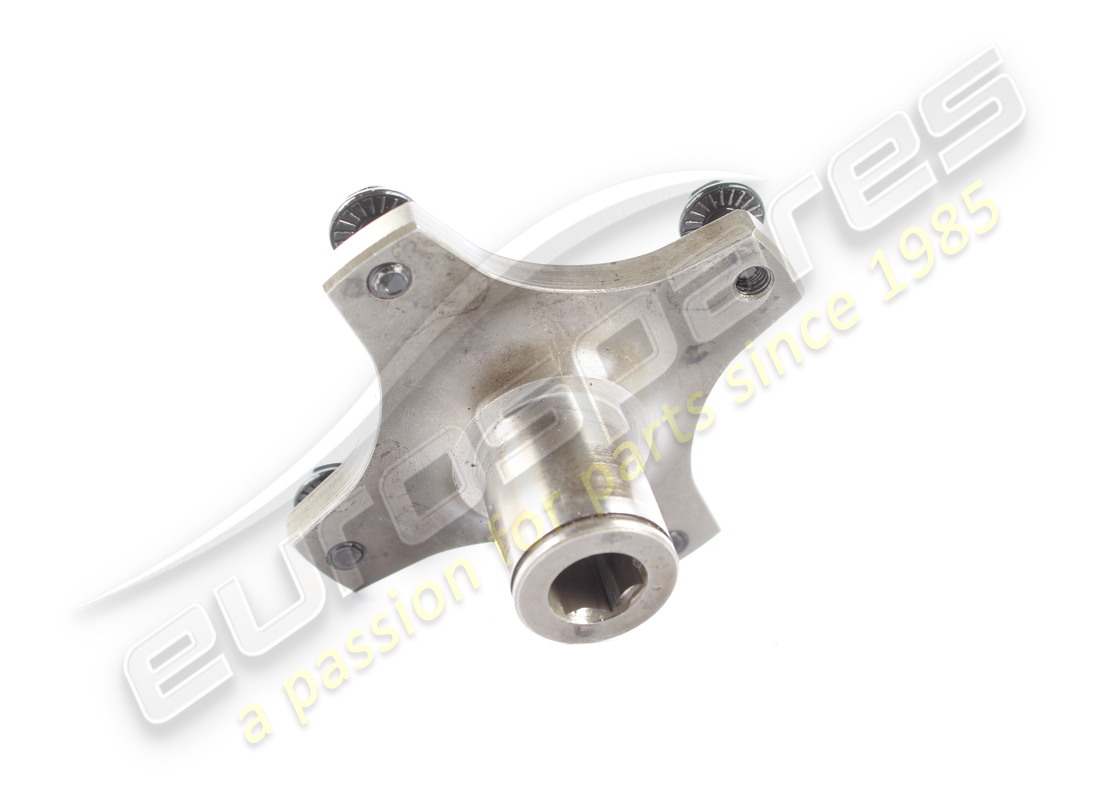

# 018
MPN: 288133
DRIVE JOINT
from £41.32
from £41.32
# 019
MPN: 11066876
SEEGER RING
from £0.47
from £0.47
This part replaces part number 11066875
# 020
MPN: 231620
SCREW
-M6 X 25-
from £0.49
from £0.49
# 021
MPN: 231621
SCREW
-M6 X 30-
from £0.54
from £0.54
This part replaces part number 216568
# 022
MPN: 282753
COVER
-Applicable after depletion of 302154-
from £3.59
from £3.59
This part replaces part number 302154
# 022
MPN: 302154
CAP
-Applicable until depletion-
Supersession
Supersession
# 023
MPN: 233600
SCREW
from £0.54
from £0.54
# 024
MPN: 14326001
THREADED PLUG
-No longer supplied- -Replaced by 282755-
from £0.51
from £0.51
This part replaces part number 194495
# 024
MPN: 282755
THREADED PLUG
from £1.22
from £1.22
# 025
MPN: 278119
STUD BOLT
from £11.45
from £11.45
# 026
MPN: 278120
STUD BOLT
from £12.59
from £12.59

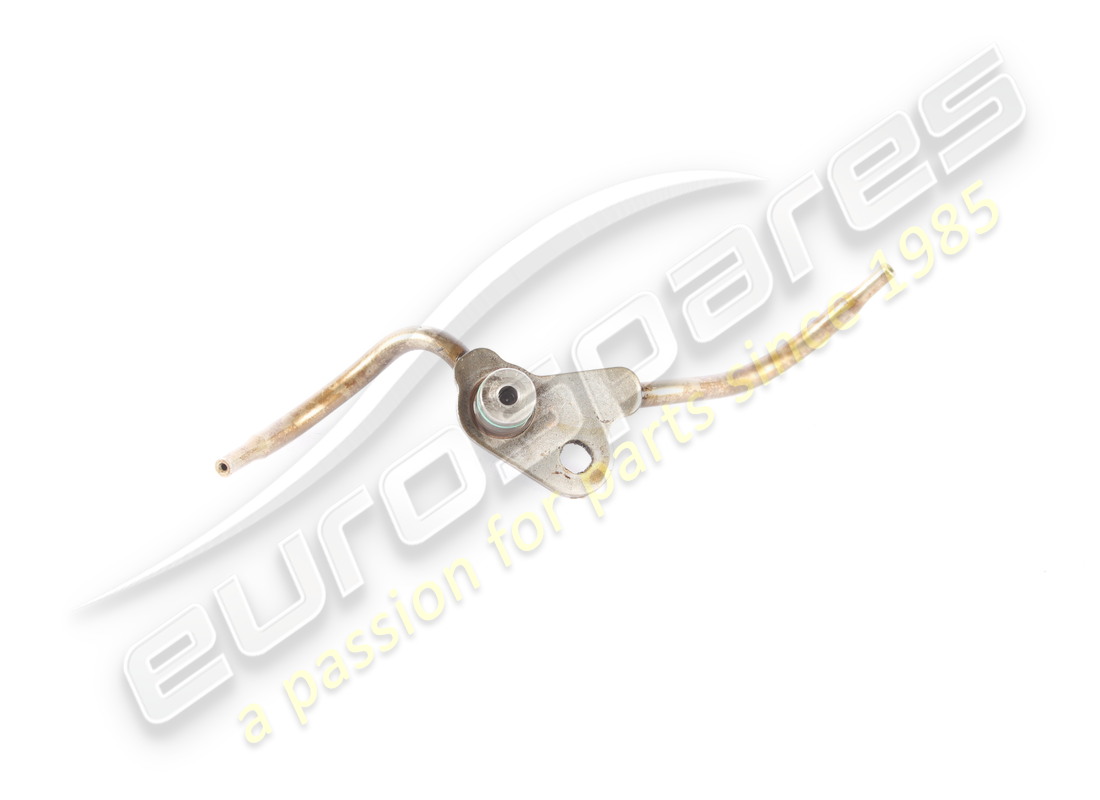

# 027
MPN: 298858
PISTON COOLING NOZZLE ASSEMBLY
from £12.46
from £12.46
# 028
MPN: 300499
SCREW
-Applicable until depletion-
from £2.13
from £2.13
# 028
MPN: 315493
SCREW
-Applicable after depletion of 300499-
from £0.61
from £0.61
This part replaces part number 300499
# 029
MPN: 298859
PISTON COOLING NOZZLE ASSEMBLY
from £15.58
from £15.58
# 030
MPN: 300499
SCREW
-Applicable until depletion-
from £2.13
from £2.13
# 030
MPN: 315493
SCREW
-Applicable after depletion of 300499-
from £0.61
from £0.61
This part replaces part number 300499
# 031
MPN: 271598
GASKET
from £19.86
from £19.86

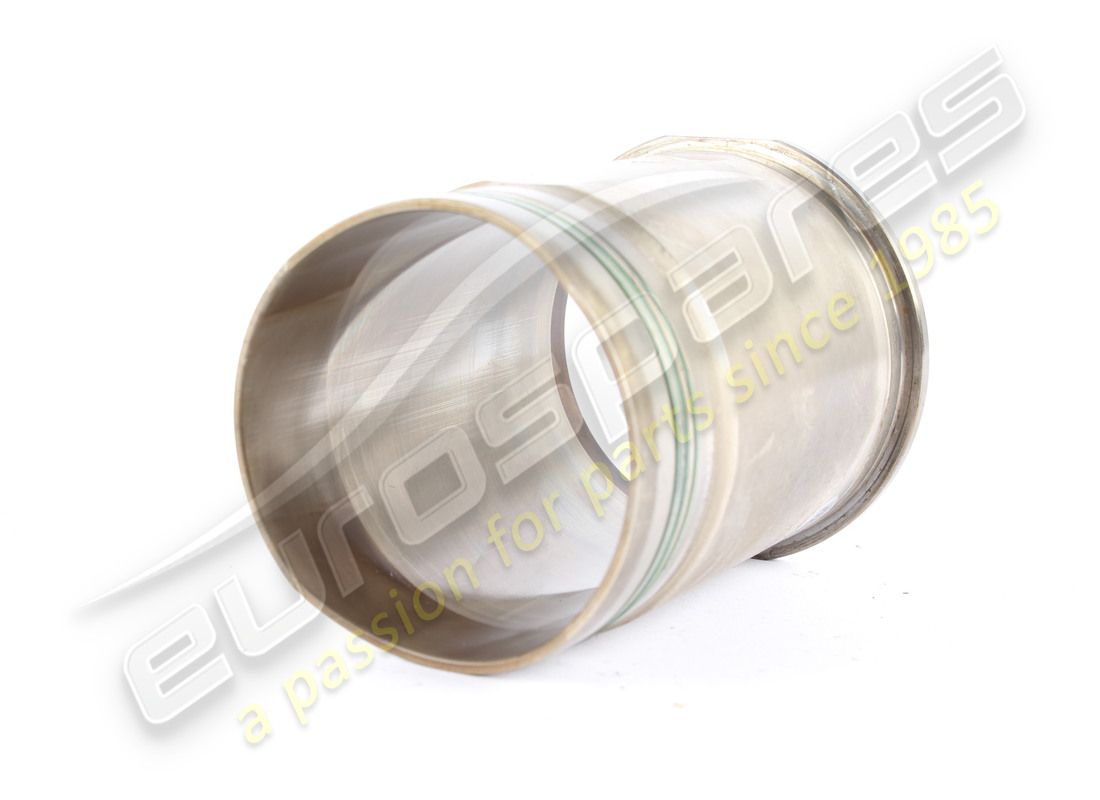

# 032
MPN: 271810
CYLINDER SLEEVE
from £89.35
from £89.35
# 033
MPN: 294153
GASKET
from £1.70
from £1.70
# 034
MPN: 10275501
THREADED PLUG
-M12 X 11- -No longer supplied- -Replaced by 291078-
from £0.58
from £0.58
# 034
MPN: 291078
THREADED PLUG
-M12 X 11-
from £1.33
from £1.33
# 035
MPN: 282754
THREADED PLUG
-No longer supplied- -Replaced by 307477-
from £1.69
from £1.69
# 035
MPN: 307477
THREADED PLUG
from £2.00
from £2.00
# 036
MPN: 10263460
GASKET
from £0.53
from £0.53
This part replaces part number 95119
# 037
MPN: 296396
GASKET
-No longer supplied- -Replaced by 339298-
Supersession
Supersession
# 037
MPN: 339298
GASKET
-Contact fgt-sathelpdesk@Ferrari.com for relative installation instructions-
from £29.05
from £29.05
This part replaces part number 296396
# 038
MPN: 296397
GASKET
-No longer supplied- -Replaced by 339289-
from £33.76
from £33.76
# 038
MPN: 339289
GASKET
-Contact fgt-sathelpdesk@Ferrari.com for relative installation instructions-
from £29.05
from £29.05
This part replaces part number 296397
# 039
MPN: 102725
ALIGNMENT DOWEL
from £0.64
from £0.64
# 040
MPN: 175611
ALIGNMENT DOWEL
-Applicable up to engine No. 255474-
from £1.14
from £1.14
# 040
MPN: 311001
ALIGNMENT DOWEL
-Applicable from engine No. 255475-
from £1.55
from £1.55
# 041
MPN: 294614
CHECK VALVE
from £9.87
from £9.87
# 042
-
REAR TIMING COVER
# 042
-
REAR TIMING COVER
# 042
-
REAR TIMING COVER
# 042
-
REAR TIMING COVER
# 042
-
REAR TIMING COVER
# 042
-
REAR TIMING COVER
# 042
-
REAR TIMING COVER
# 042
-
REAR TIMING COVER
# 042
-
REAR TIMING COVER
# 043
MPN: 240214
GASKET
from £35.12
from £35.12
This part replaces part number 239417
# 044
MPN: 13546734
STUD BOLT
from £0.73
from £0.73
# 045
MPN: 100052
ALIGNMENT DOWEL
from £1.52
from £1.52
# 046
MPN: 14306824
SCREW
-M8 X 45- -Not for USA, CDN, USA LIGHT- -Applicable from engine No. 255475- -No longer supplied- -Replaced by 285494-
from £0.51
from £0.51
This part replaces part number 14306874
# 046
MPN: 231624
SCREW
-M6 X 45- -Not for USA, CDN, USA LIGHT- -Applicable up to engine No. 255474-
from £0.50
from £0.50
# 046
MPN: 231624
SCREW
-M6 X 45- -Not for USA, CDN, USA LIGHT- -Applicable from engine No. 255475-
from £0.52
from £0.52
# 046
MPN: 231624
SCREW
-M6 X 45- -Applicable for USA, CDN, USA LIGHT-
from £0.52
from £0.52
# 046
MPN: 285494
SCREW
-M8 X 50- -Not for USA, CDN, USA LIGHT- -Applicable from engine No. 255475-
from £0.56
from £0.56
# 046
MPN: 285494
SCREW
-M8 X 50- -Applicable for USA, CDN, USA LIGHT-
from £0.56
from £0.56
# 047
MPN: 14306524
SCREW
-M8 X 30- -Not for USA, CDN, USA LIGHT- -Applicable from engine No. 255475- -No longer supplied- -Replaced by 231629-
from £0.51
from £0.51
This part replaces part number 14306521
# 047
MPN: 231621
SCREW
-M6 X 30- -Not for USA, CDN, USA LIGHT- -Applicable up to engine No. 255474-
from £0.47
from £0.47
This part replaces part number 216568
# 047
MPN: 231621
SCREW
-M6 X 30- -Not for USA, CDN, USA LIGHT- -Applicable from engine No. 255475-
from £0.49
from £0.49
This part replaces part number 216568
# 047
MPN: 231621
SCREW
-M6 X 30- -Applicable for USA, CDN, USA LIGHT-
from £0.49
from £0.49
This part replaces part number 216568
# 047
MPN: 231629
SCREW
-M8 X 30- -Not for USA, CDN, USA LIGHT- -Applicable from engine No. 255475-
from £0.53
from £0.53
# 047
MPN: 231629
SCREW
-M8 X 30- -Applicable for USA, CDN, USA LIGHT-
from £0.53
from £0.53

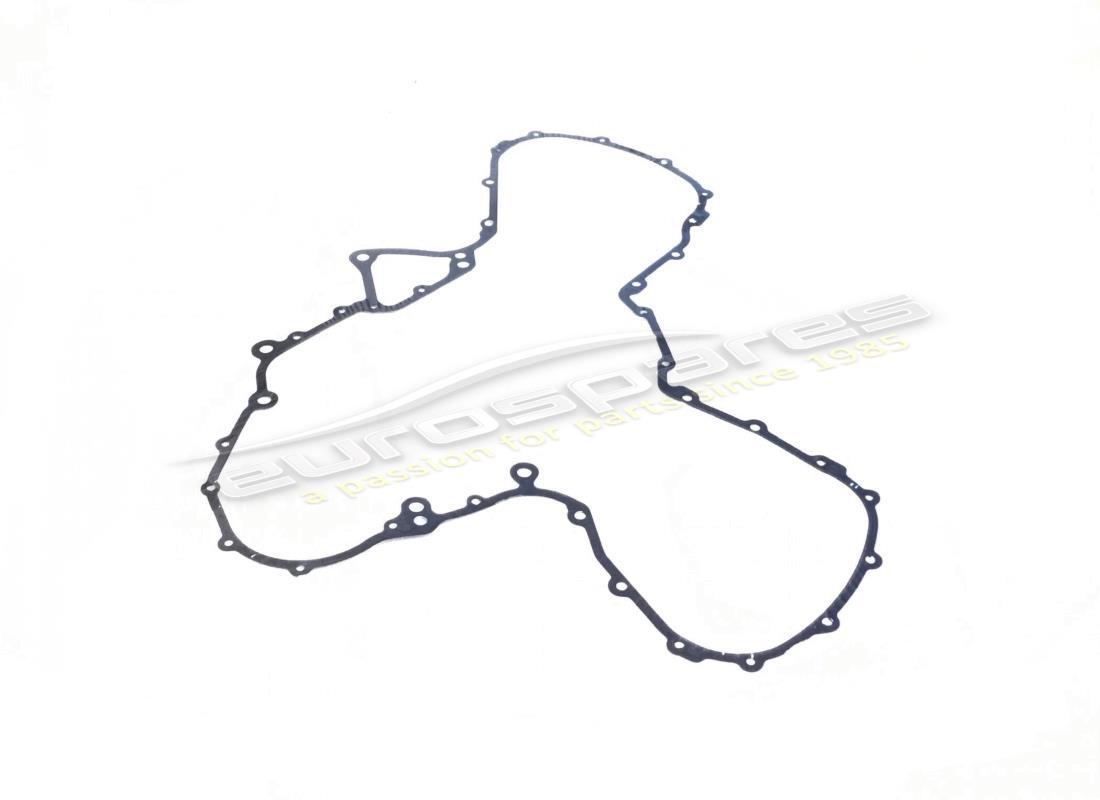

# 048
MPN: 305104
GASKET
-Not for USA, CDN, USA LIGHT- -Applicable up to engine No. 255474-
from £191.54
from £191.54
# 048
MPN: 310989
GASKET
-Not for USA, CDN, USA LIGHT- -Applicable from engine No. 255475- -No longer supplied- -Replaced by 312860-
Supersession
Supersession
# 048
MPN: 310989
GASKET
-Applicable for USA, CDN, USA LIGHT- -Applicable from engine No. 255475- -No longer supplied- -Replaced by 311317-
Supersession
Supersession
# 048
MPN: 311317
GASKET
-Not for USA, CDN, USA LIGHT- -Applicable from engine No. 255475- -Applicable until depletion-
Supersession
Supersession
This part replaces part number 310989
# 048
MPN: 311317
GASKET
-Applicable for USA, CDN, USA LIGHT- -Applicable from engine No. 255475- -Applicable until depletion-
Supersession
Supersession
This part replaces part number 310989
# 048
MPN: 312860
GASKET
-Not for USA, CDN, USA LIGHT- -Applicable from engine No. 255475- -No longer supplied- -Replaced by 311317-
from £105.11
from £105.11
# 048
MPN: 312860
GASKET
-Applicable for USA, CDN, USA LIGHT- -Applicable up to engine No. 255474-
from £105.11
from £105.11

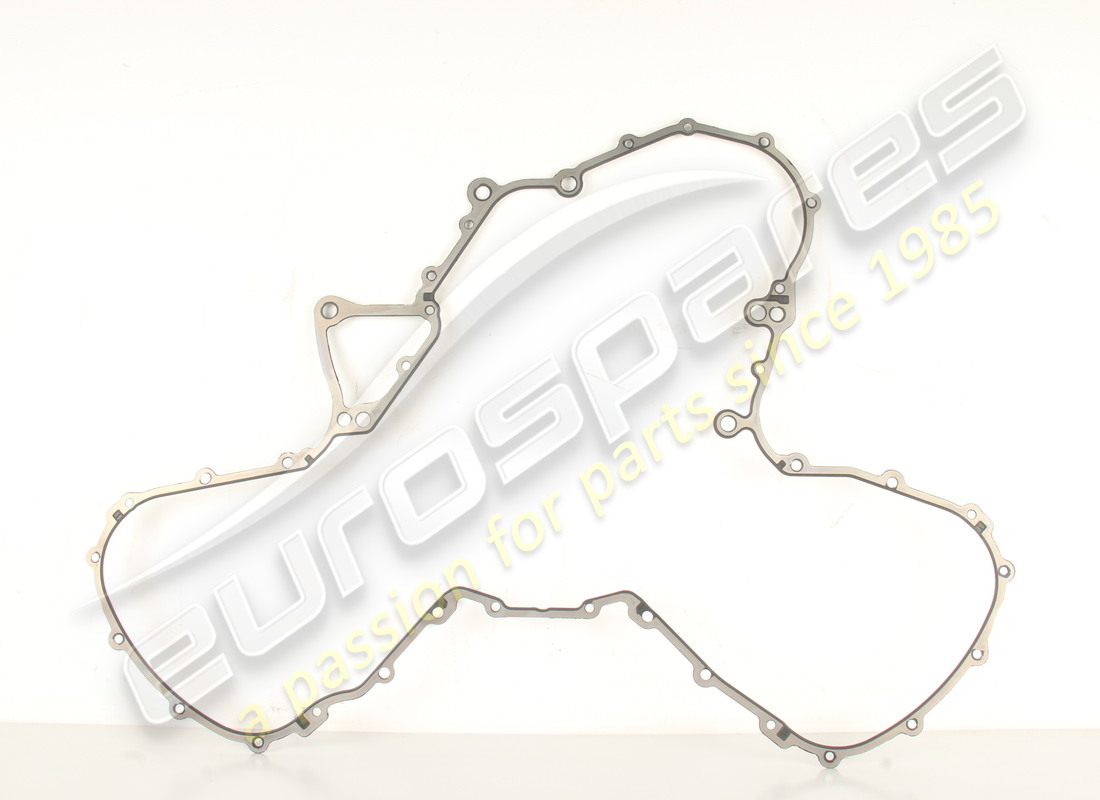

# 048
MPN: 317152
GASKET
-Applicable from engine No. 255475 up to engine No. 338904- -Applicable after depletion of 311317-
from £299.21
from £299.21
This part replaces part number 311317
# 048
MPN: 331565
GASKET
-Applicable from engine No. 338905-
from £127.87
from £127.87
# 049
MPN: 281725
GASKET
-Applicable up to engine No. 255474-
from £0.64
from £0.64
# 049
MPN: 313133
WASHER WITH RUBBER LINING
-Applicable from engine No. 255475 up to engine No. 338904-
from £4.80
from £4.80
# 049
MPN: 323886
WASHER WITH RUBBER LINING
-Applicable from engine No. 338905-
from £6.52
from £6.52
# 050
MPN: 231623
SCREW
-M6 X 40-
from £0.54
from £0.54
# 050
MPN: 231624
SCREW
-M6 X 45- -No longer supplied- -Replaced by 231623-
from £0.54
from £0.54
# 051
MPN: 231621
SCREW
-M6 X 30-
from £0.54
from £0.54
This part replaces part number 216568
# 052
MPN: 178348
WASHER
from £0.47
from £0.47
# 053
MPN: 133988
NUT
from £0.47
from £0.47
This part replaces part number 12164711 - and 2 more. Click to view details
# 054
MPN: 312059
ALIGNMENT DOWEL
from £0.63
from £0.63
# 055
MPN: 270465
STUD BOLT
from £12.54
from £12.54
# 056
MPN: 270466
STUD BOLT
from £13.98
from £13.98
# 057
MPN: 269972
OIL PRESSURE SOLENOID VALVE
from £107.12
from £107.12
# 058
MPN: 276205
OIL PRESSURE SENSOR
-Applicable until depletion-
Supersession
Supersession

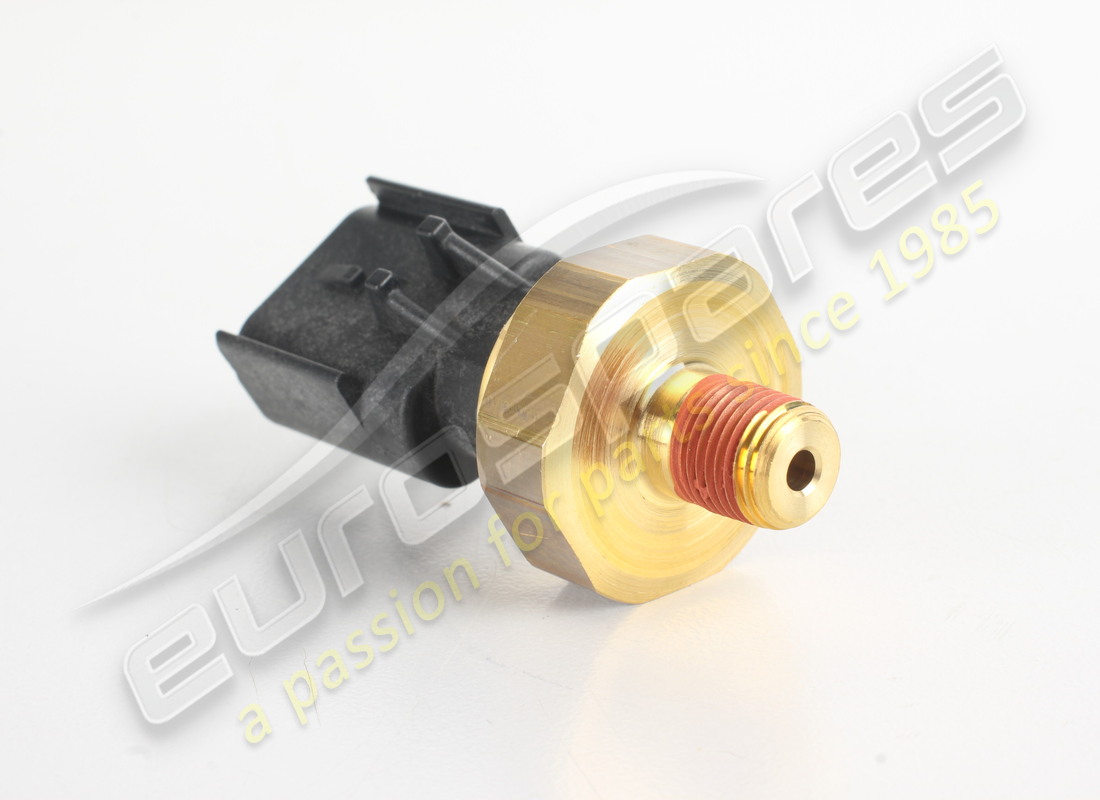

# 058
MPN: 318371
OIL PRESSURE SENSOR
-Applicable after depletion of 276205- -No longer supplied- -Replaced by 328660-
from £46.59
from £46.59
This part replaces part number 276205

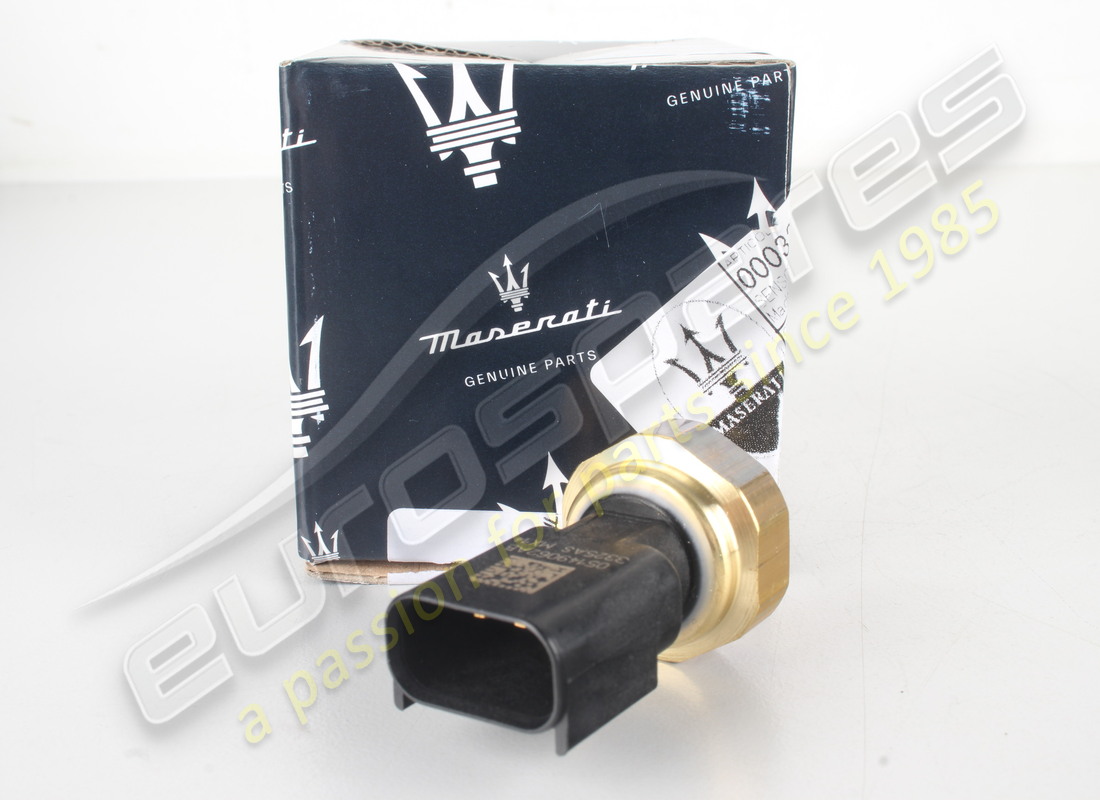

# 058
MPN: 328660
OIL PRESSURE SENSOR
from £29.35
from £29.35
This part replaces part number 318371
# 059
MPN: 287273
RPM SENSOR
from £33.39
from £33.39
# 060
MPN: 231618
SCREW
-M6 X 20-
from £0.54
from £0.54
# 061
MPN: 291662
SOLENOID VALVE HEAT SHIELD
from £53.85
from £53.85
# 062
MPN: 231616
SCREW
-M6 X 14-
from £0.53
from £0.53
This part replaces part number 14305724
# 063
MPN: 279626
SHIELD MOUNTING BRACKET
from £4.97
from £4.97
# 064
MPN: 233600
SCREW
from £0.54
from £0.54
# 065
MPN: 231616
SCREW
-M6 X 14-
from £0.54
from £0.54
This part replaces part number 14305724
# 066
MPN: 231616
SCREW
-M6 X 14-
from £0.54
from £0.54
This part replaces part number 14305724
# 067
MPN: 133988
NUT
from £0.47
from £0.47
This part replaces part number 12164711 - and 2 more. Click to view details
# 068
MPN: 178348
WASHER
from £0.51
from £0.51
-part-diagram-0002.webp "FERRARI CALIFORNIA T (RHD) CRANKSHAFT, CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-0003.webp "FERRARI CALIFORNIA T (RHD) RIGHT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0004.webp "FERRARI CALIFORNIA T (RHD) LEFT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0005.webp "FERRARI CALIFORNIA T (RHD) TIMING SYSTEM - CAMSHAFTS AND VALVES PARTS DIAGRAM")
-part-diagram-0006.webp "FERRARI CALIFORNIA T (RHD) TIMING SYSTEM - DRIVE PARTS DIAGRAM")
-part-diagram-0007.webp "FERRARI CALIFORNIA T (RHD) FUEL PUMP AND CONNECTOR PIPES PARTS DIAGRAM")
-part-diagram-0008.webp "FERRARI CALIFORNIA T (RHD) FUEL TANK PARTS DIAGRAM")
-part-diagram-0009.webp "FERRARI CALIFORNIA T (RHD) EVAPORATIVE EMISSIONS CONTROL SYSTEM PARTS DIAGRAM")
-part-diagram-0010.webp "FERRARI CALIFORNIA T (RHD) INJECTION - IGNITION SYSTEM PARTS DIAGRAM")
-part-diagram-0011.webp "FERRARI CALIFORNIA T (RHD) SECONDARY AIR SYSTEM PARTS DIAGRAM")
-part-diagram-0012.webp "FERRARI CALIFORNIA T (RHD) INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-0013.webp "FERRARI CALIFORNIA T (RHD) MANIFOLDS, TURBOCHARGING SYSTEM AND PIPES PARTS DIAGRAM")
-part-diagram-0014.webp "FERRARI CALIFORNIA T (RHD) COOLING-LUBRICATION FOR TURBOCHARGING SYSTEM PARTS DIAGRAM")
-part-diagram-0015.webp "FERRARI CALIFORNIA T (RHD) TURBOCHARGING SYSTEM ADJUSTMENTS-SOLUTION FOUND- PARTS DIAGRAM")
-part-diagram-0016.webp "FERRARI CALIFORNIA T (RHD) TURBOCHARGING SYSTEM ADJUSTMENTS PARTS DIAGRAM")
-part-diagram-0017.webp "FERRARI CALIFORNIA T (RHD) INTERCOOLER PARTS DIAGRAM")
-part-diagram-0018.webp "FERRARI CALIFORNIA T (RHD) AIR FILTER, AIR INTAKE AND DUCTS PARTS DIAGRAM")
-part-diagram-0019.webp "FERRARI CALIFORNIA T (RHD) PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS PARTS DIAGRAM")
-part-diagram-0020.webp "FERRARI CALIFORNIA T (RHD) SILENCERS PARTS DIAGRAM")
-part-diagram-0021.webp "FERRARI CALIFORNIA T (RHD) ENGINE HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-0022.webp "FERRARI CALIFORNIA T (RHD) VENTS PARTS DIAGRAM")
-part-diagram-0023.webp "FERRARI CALIFORNIA T (RHD) LUBRICATION: CIRCUIT AND PICKUP PARTS DIAGRAM")
-part-diagram-0024.webp "FERRARI CALIFORNIA T (RHD) LUBRICATION: PUMP AND FILTER PARTS DIAGRAM")
-part-diagram-0025.webp "FERRARI CALIFORNIA T (RHD) COOLING: WATER PUMP PARTS DIAGRAM")
-part-diagram-0026.webp "FERRARI CALIFORNIA T (RHD) COOLING: RADIATORS AND AIR DUCTS PARTS DIAGRAM")
-part-diagram-0027.webp "FERRARI CALIFORNIA T (RHD) COOLING: HEADER TANK AND PIPES PARTS DIAGRAM")
-part-diagram-0028.webp "FERRARI CALIFORNIA T (RHD) TRANSMISSION HOUSING PARTS DIAGRAM")
-part-diagram-0029.webp "FERRARI CALIFORNIA T (RHD) GEARBOX HOUSING PARTS DIAGRAM")
-part-diagram-0030.webp "FERRARI CALIFORNIA T (RHD) GEARBOX REPAIR KIT PARTS DIAGRAM")
-part-diagram-0031.webp "FERRARI CALIFORNIA T (RHD) GEARBOX OIL LUBRICATION AND COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-0032.webp "FERRARI CALIFORNIA T (RHD) TRANSMISSION PIPE PARTS DIAGRAM")
-part-diagram-0033.webp "FERRARI CALIFORNIA T (RHD) SERVO BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0034.webp "FERRARI CALIFORNIA T (RHD) COMPLETE PEDAL BOARD ASSEMBLY PARTS DIAGRAM")
-part-diagram-0035.webp "FERRARI CALIFORNIA T (RHD) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0036.webp "FERRARI CALIFORNIA T (RHD) FRONT BRAKE CALLIPERS PARTS DIAGRAM")
-part-diagram-0037.webp "FERRARI CALIFORNIA T (RHD) REAR BRAKE CALLIPERS PARTS DIAGRAM")
-part-diagram-0038.webp "FERRARI CALIFORNIA T (RHD) PARKING BRAKE PARTS DIAGRAM")
-part-diagram-0039.webp "FERRARI CALIFORNIA T (RHD) HYDRAULIC POWER STEERING BOX PARTS DIAGRAM")
-part-diagram-0040.webp "FERRARI CALIFORNIA T (RHD) STEERING CONTROL PARTS DIAGRAM")
-part-diagram-0041.webp "FERRARI CALIFORNIA T (RHD) POWER STEERING PUMP AND RESERVOIR PARTS DIAGRAM")
-part-diagram-0042.webp "FERRARI CALIFORNIA T (RHD) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0043.webp "FERRARI CALIFORNIA T (RHD) FRONT SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0044.webp "FERRARI CALIFORNIA T (RHD) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0045.webp "FERRARI CALIFORNIA T (RHD) REAR SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0046.webp "FERRARI CALIFORNIA T (RHD) WHEELS PARTS DIAGRAM")
-part-diagram-0047.webp "FERRARI CALIFORNIA T (RHD) TYRE PRESSURE MONITORING SYSTEM PARTS DIAGRAM")
-part-diagram-0048.webp "FERRARI CALIFORNIA T (RHD) BATTERY PARTS DIAGRAM")
-part-diagram-0049.webp "FERRARI CALIFORNIA T (RHD) ALTERNATOR - STARTER MOTOR PARTS DIAGRAM")
-part-diagram-0050.webp "FERRARI CALIFORNIA T (RHD) AC SYSTEM COMPRESSOR PARTS DIAGRAM")
-part-diagram-0051.webp "FERRARI CALIFORNIA T (RHD) AC SYSTEM - WATER AND FREON PARTS DIAGRAM")
-part-diagram-0052.webp "FERRARI CALIFORNIA T (RHD) EVAPORATOR UNIT PARTS DIAGRAM")
-part-diagram-0053.webp "FERRARI CALIFORNIA T (RHD) DASHBOARD AIR DUCTS PARTS DIAGRAM")
-part-diagram-0054.webp "FERRARI CALIFORNIA T (RHD) STANDARD ACCESSORIES PARTS DIAGRAM")
-part-diagram-0100.webp "FERRARI CALIFORNIA T (RHD) BODYSHELL - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0101.webp "FERRARI CALIFORNIA T (RHD) STRUCTURES AND ELEMENTS, FRONT OF VEHICLE PARTS DIAGRAM")
-part-diagram-0102.webp "FERRARI CALIFORNIA T (RHD) STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE PARTS DIAGRAM")
-part-diagram-0103.webp "FERRARI CALIFORNIA T (RHD) STRUCTURES AND ELEMENTS, REAR OF VEHICLE PARTS DIAGRAM")
-part-diagram-0104.webp "FERRARI CALIFORNIA T (RHD) CHASSIS COMPLETION PARTS DIAGRAM")
-part-diagram-0105.webp "FERRARI CALIFORNIA T (RHD) FLAT UNDERTRAY AND WHEELHOUSES PARTS DIAGRAM")
-part-diagram-0106.webp "FERRARI CALIFORNIA T (RHD) INSULATION PARTS DIAGRAM")
-part-diagram-0107.webp "FERRARI CALIFORNIA T (RHD) PASSENGER COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0108.webp "FERRARI CALIFORNIA T (RHD) LUGGAGE COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0109.webp "FERRARI CALIFORNIA T (RHD) HEADLINER TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0110.webp "FERRARI CALIFORNIA T (RHD) ELECTRIC ROOF: ROLLBAR AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0111.webp "FERRARI CALIFORNIA T (RHD) ELECTRIC ROOF: TRIM PARTS DIAGRAM")
-part-diagram-0112.webp "FERRARI CALIFORNIA T (RHD) ELECTRIC ROOF: KINEMATICS PARTS DIAGRAM")
-part-diagram-0113.webp "FERRARI CALIFORNIA T (RHD) ELECTRIC ROOF: STRUCTURE PARTS DIAGRAM")
-part-diagram-0114.webp "FERRARI CALIFORNIA T (RHD) ELECTRIC ROOF: HYDRAULICS PARTS DIAGRAM")
-part-diagram-0115.webp "FERRARI CALIFORNIA T (RHD) FRONT LID AND OPENING MECHANISM PARTS DIAGRAM")
-part-diagram-0116.webp "FERRARI CALIFORNIA T (RHD) REAR LID AND OPENING MECHANISM PARTS DIAGRAM")
-part-diagram-0117.webp "FERRARI CALIFORNIA T (RHD) FUEL FILLER FLAP AND CONTROLS PARTS DIAGRAM")
-part-diagram-0118.webp "FERRARI CALIFORNIA T (RHD) DOORS - SUBSTRUCTURE AND TRIM PARTS DIAGRAM")
-part-diagram-0119.webp "FERRARI CALIFORNIA T (RHD) DOORS - OPENING MECHANISMS AND HINGES PARTS DIAGRAM")
-part-diagram-0120.webp "FERRARI CALIFORNIA T (RHD) DOORS - POWER WINDOW AND REAR VIEW MIRROR PARTS DIAGRAM")
-part-diagram-0121.webp "FERRARI CALIFORNIA T (RHD) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-0122.webp "FERRARI CALIFORNIA T (RHD) REAR BUMPER PARTS DIAGRAM")
-part-diagram-0123.webp "FERRARI CALIFORNIA T (RHD) SCREENS, WINDOWS AND SEALS PARTS DIAGRAM")
-part-diagram-0124.webp "FERRARI CALIFORNIA T (RHD) FRONT SEAT - SEAT BELTS PARTS DIAGRAM")
-part-diagram-0125.webp "FERRARI CALIFORNIA T (RHD) FRONT SEAT - TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0126.webp "FERRARI CALIFORNIA T (RHD) INTERIOR TRIM PARTS DIAGRAM")
-part-diagram-0127.webp "FERRARI CALIFORNIA T (RHD) TUNNEL - SUBSTRUCTURE AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0128.webp "FERRARI CALIFORNIA T (RHD) DASHBOARD - SUBSTRUCTURE PARTS DIAGRAM")
-part-diagram-0129.webp "FERRARI CALIFORNIA T (RHD) DASHBOARD - TRIM PARTS DIAGRAM")
-part-diagram-0130.webp "FERRARI CALIFORNIA T (RHD) GLOVE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0131.webp "FERRARI CALIFORNIA T (RHD) AIRBAGS PARTS DIAGRAM")
-part-diagram-0132.webp "FERRARI CALIFORNIA T (RHD) DASHBOARD AND TUNNEL INSTRUMENTS PARTS DIAGRAM")
-part-diagram-0133.webp "FERRARI CALIFORNIA T (RHD) HEADLIGHTS AND TAILLIGHTS PARTS DIAGRAM")
-part-diagram-0134.webp "FERRARI CALIFORNIA T (RHD) SHIELDS, EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0135.webp "FERRARI CALIFORNIA T (RHD) WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-0136.webp "FERRARI CALIFORNIA T (RHD) MAIN WIRING HARNESSES PARTS DIAGRAM")
-part-diagram-0137.webp "FERRARI CALIFORNIA T (RHD) VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-0138.webp "FERRARI CALIFORNIA T (RHD) ELECTRONIC MANAGEMENT (SUSPENSION) PARTS DIAGRAM")
-part-diagram-0139.webp "FERRARI CALIFORNIA T (RHD) VEHICLE ECUS PARTS DIAGRAM")
-part-diagram-0140.webp "FERRARI CALIFORNIA T (RHD) ANTI-THEFT SYSTEM PARTS DIAGRAM")
-part-diagram-0141.webp "FERRARI CALIFORNIA T (RHD) INFOTAINMENT SYSTEM PARTS DIAGRAM")
-part-diagram-0142.webp "FERRARI CALIFORNIA T (RHD) AUDIO SPEAKER SYSTEM PARTS DIAGRAM")
-part-diagram-0143.webp "FERRARI CALIFORNIA T (RHD) ADHESIVE LABELS AND PLAQUES PARTS DIAGRAM")
-part-diagram-0999.webp "FERRARI CALIFORNIA T (RHD) COLOUR CODES PARTS DIAGRAM")
-part-diagram-0000.webp "FERRARI CALIFORNIA T (RHD) SPARE ASSEMBLY UNITS PARTS DIAGRAM")
