031 - Differential Gearbox

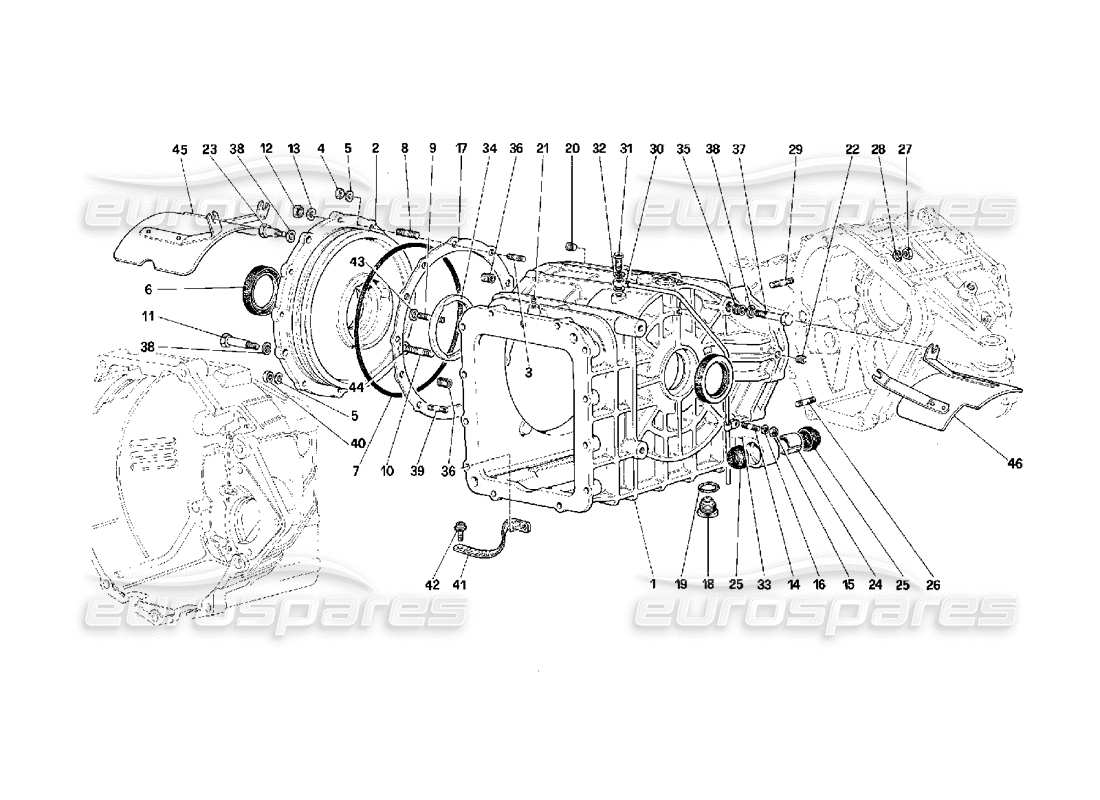

Ferrari F40 Differential Gearbox Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 126604
GEARBOX SEAL KIT
from £189.69
from £189.69
# 001
MPN: 122719
DIFFERENTIAL HOUSING
from £3,924.15
from £3,924.15

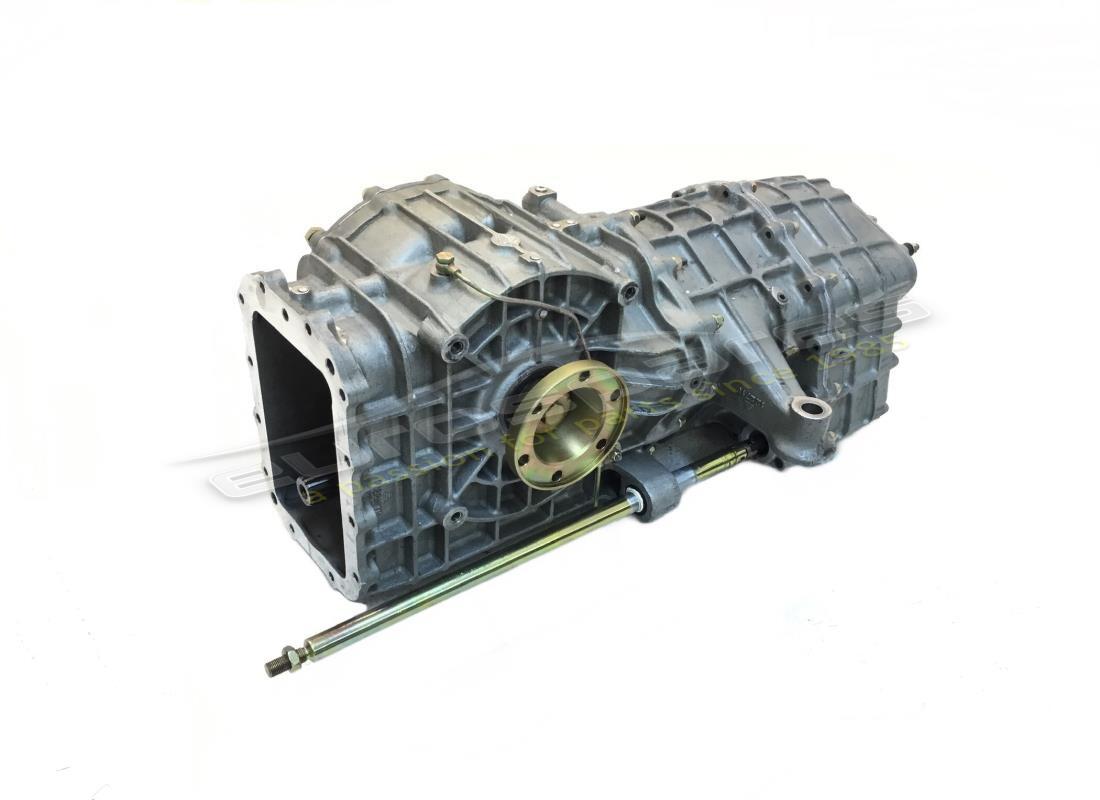

# 001
MPN: 149031
GEARBOX UNIT
from £127,457.93
from £127,457.93
# 002
MPN: 121606
LATERAL COVER
from £748.91
from £748.91
# 003
MPN: 13543421
STUD
Supersession
Supersession
# 004
MPN: 16100824
NUT
from £0.50
from £0.50
This part replaces part number 16100814 - and 1 more. Click to view details
# 005
MPN: 12601379
WASHER
from £0.87
from £0.87
This part replaces part number 12601370
# 006
MPN: 141509
SEALING RING
from £63.37
from £63.37
This part replaces part number 125077
# 007
MPN: 122153
SEALING RING
from £3.27
from £3.27
# 008
MPN: 13449621
STUD
Supersession
Supersession
# 009
MPN: 13543721
STUD
Supersession
Supersession
# 010
MPN: 13546621
STUD
from £4.26
from £4.26
# 011
MPN: 126289
SCREW
from £15.83
from £15.83
# 012
MPN: 12164711
NUT
Supersession
Supersession
This part replaces part number 12164712
# 013
MPN: 127497
WASHER
from £0.54
from £0.54
This part replaces part number 10516871 - and 2 more. Click to view details
# 014
MPN: 11500021
STUD
from £9.50
from £9.50
# 015
MPN: 15896214
NUT
from £0.54
from £0.54
This part replaces part number 15896211
# 016
MPN: 12601279
WASHER
from £0.54
from £0.54
This part replaces part number 12601271 - and 2 more. Click to view details
# 017
MPN: 122044
SPACER FOR DIFFERENTIAL COVER THICKNESS MM. 2,5 (EVENTUAL USE)
from £13.73
from £13.73
# 017
MPN: 122045
DITTO, THICKNESS MM. 3,1
from £14.98
from £14.98
# 017
MPN: 122046
DITTO, THICKNESS MM. 3,3
from £15.07
from £15.07
# 017
MPN: 122047
DITTO, THICKNESS MM. 2,7
from £104.82
from £104.82
# 017
MPN: 122048
DITTO, THICKNESS MM. 2,9
from £34.34
from £34.34
# 018
MPN: 104280
PLUG
from £4.95
from £4.95
This part replaces part number 523977
# 019
MPN: 10263460
GASKET
from £0.53
from £0.53
This part replaces part number 95119
# 020
MPN: 14326050
PLUG
from £0.96
from £0.96
# 021
MPN: 65928500
PLUG
from £23.50
from £23.50
This part replaces part number 10267550
# 022
MPN: 14326001
PLUG
from £0.53
from £0.53
This part replaces part number 194495
# 023
MPN: 126290
SCREW
from £57.46
from £57.46
# 024
MPN: 117812
BUSH
from £38.43
from £38.43
# 025
MPN: 121929
RING
from £13.17
from £13.17
# 026
MPN: 13543521
STUD
Supersession
Supersession
# 027
MPN: 16100824
NUT
from £0.50
from £0.50
This part replaces part number 16100814 - and 1 more. Click to view details
# 028
MPN: 12601379
WASHER
from £0.85
from £0.85
This part replaces part number 12601370
# 029
MPN: 13543621
STUD
Supersession
Supersession
# 030
MPN: 122773
TUBE
from £16.63
from £16.63
# 031
MPN: 113664
BRETHER
Supersession
Supersession
# 032
MPN: 14330260
GASKET
from £0.47
from £0.47
# 033
MPN: 10116501
CLAMP
from £1.31
from £1.31
# 034
MPN: 122067
SPACER FOR DIFFERENTIAL BEARING THICKNESS MM. 2,80 (EVENTUAL USE)
from £12.19
from £12.19
# 034
MPN: 122068
DITTO, THICKNESS MM. 3,40
from £10.81
from £10.81
# 034
MPN: 122069
DITTO, THICKNESS MM. 3,60
from £10.81
from £10.81
# 034
MPN: 122070
DITTO, THICKNESS MM. 3
from £1.72
from £1.72
# 034
MPN: 122071
DITTO, THICKNESS MM. 3,20
from £10.81
from £10.81
# 034
MPN: 138134
DITTO, THICKNESS MM. 2,60
from £23.54
from £23.54
# 035
MPN: 13526070
HELI COIL
- For part. 37
from £1.90
from £1.90
This part replaces part number 104657
# 036
MPN: 13525870
HELI COIL
- For part. 11 and 23
from £1.50
from £1.50
This part replaces part number 105510
# 037
MPN: 11234721
SCREW
from £0.52
from £0.52
# 038
MPN: 127497
WASHER
from £0.53
from £0.53
This part replaces part number 10516871 - and 2 more. Click to view details
# 039
MPN: 13543521
STUD
Supersession
Supersession
# 040
MPN: 16102311
NUT
from £0.42
from £0.42
This part replaces part number 16102315

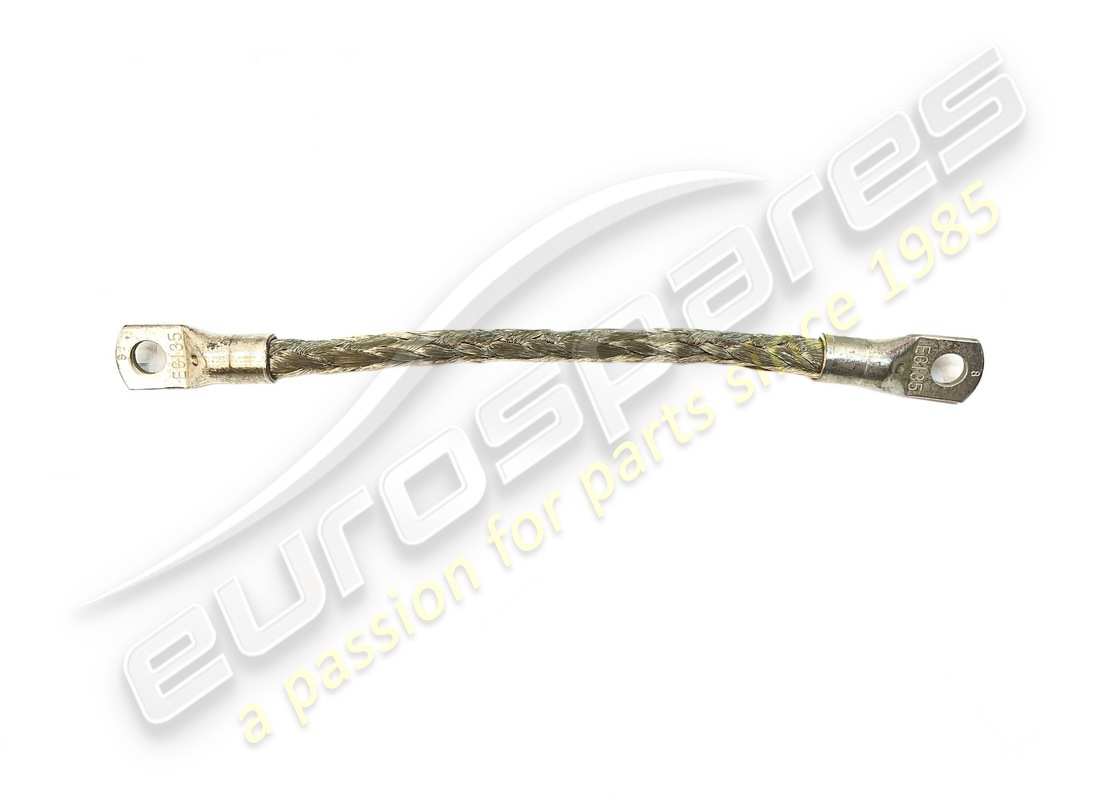

# 041
MPN: 155073
CABLE
from £7.24
from £7.24
This part replaces part number 115668
# 042
MPN: 16296421
SCREW
from £37.16
from £37.16
# 043
MPN: 12646721
WASHER
# 044
MPN: 14496621
WASHER
Supersession
Supersession
# 045
MPN: 142522
RH PROTECTION
from £210.21
from £210.21
# 046
MPN: 142523
LH PROTECTION
- Not for cars with catalyst
from £182.89
from £182.89
# 046
MPN: 142820
LH PROTECTION
- Valid for cars with catalyst
from £106.83
from £106.83
