015 - AIR INTAKE

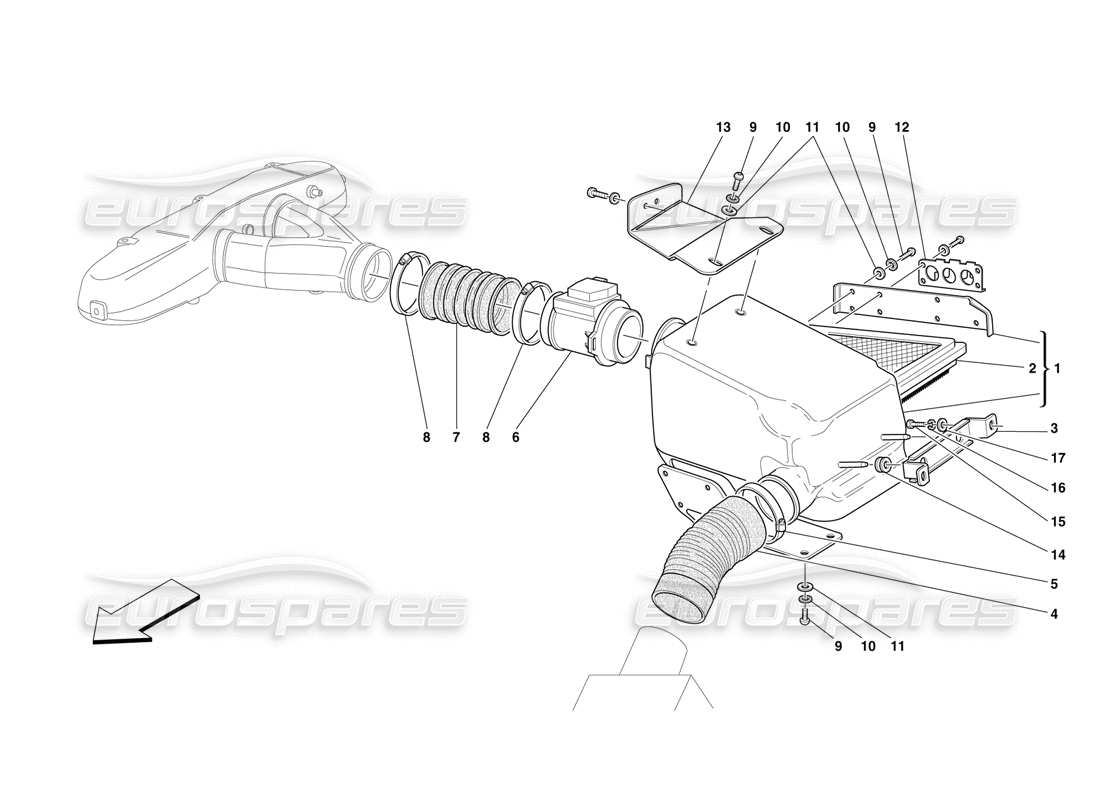

Ferrari F50 Air Intake Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 162399
RH AIR FILTER BOX
- Not for car 74 DB
from £2,182.39
from £2,182.39
# 001
MPN: 162542
LH AIR FILTER BOX
- Not for car 74 DB
from £3,581.99
from £3,581.99
# 001
MPN: 171267
RH AIR FILTER BOX
- Valid for car 74 DB
from £1,916.95
from £1,916.95
# 001
MPN: 171268
LH AIR FILTER BOX
- Valid for car 74 DB
from £1,916.95
from £1,916.95
# 002
MPN: 162541
AIR FILTER
from £119.91
from £119.91
# 003
MPN: 64195500
BRACKET
from £54.99
from £54.99
# 004
MPN: 161434
SLEEVE
from £94.05
from £94.05
# 005
MPN: 13001290
SCREW COLLAR
from £7.08
from £7.08
This part replaces part number 126489 - and 1 more. Click to view details
# 006

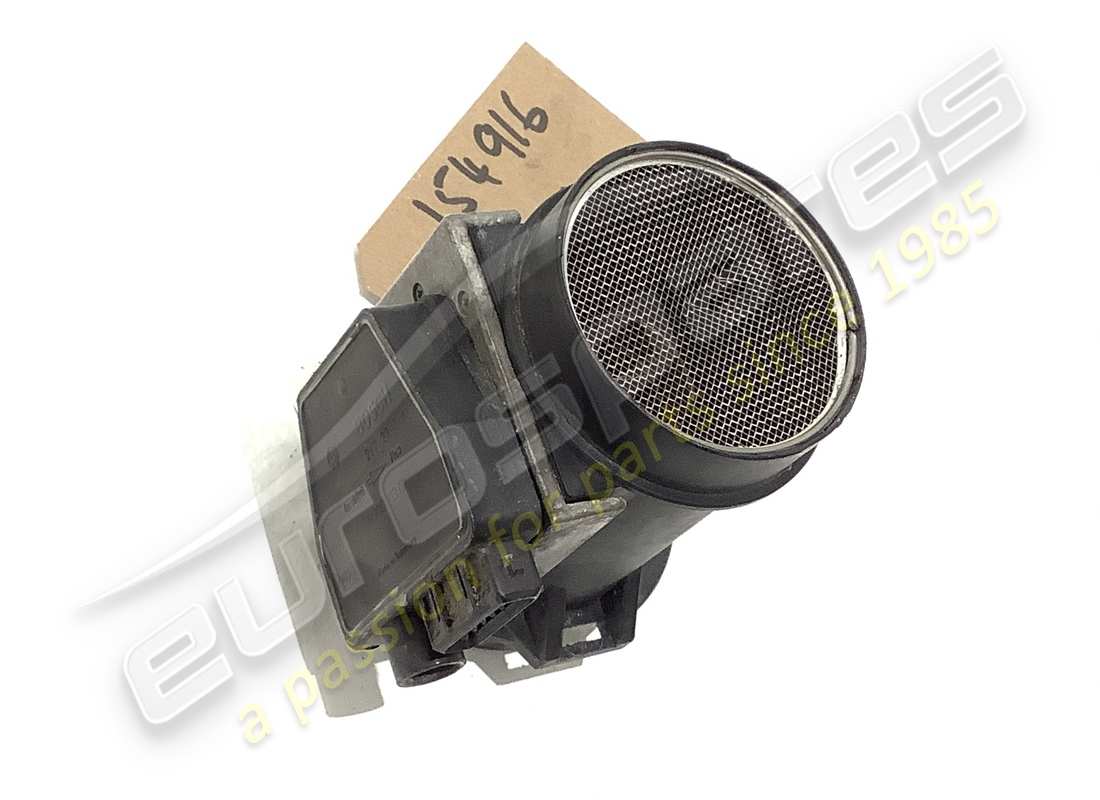

MPN: 154916

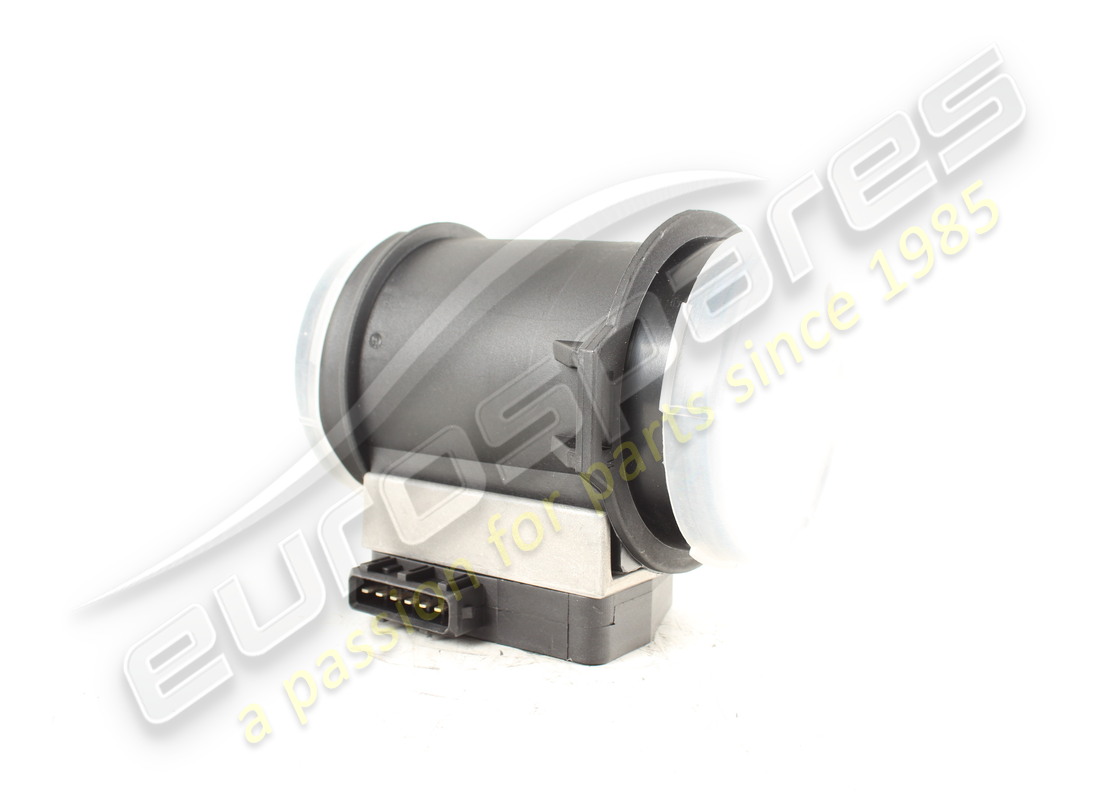

AIR FLOW METER
from £995.00
from £995.00
This part replaces part number 138403
# 007
MPN: 170917

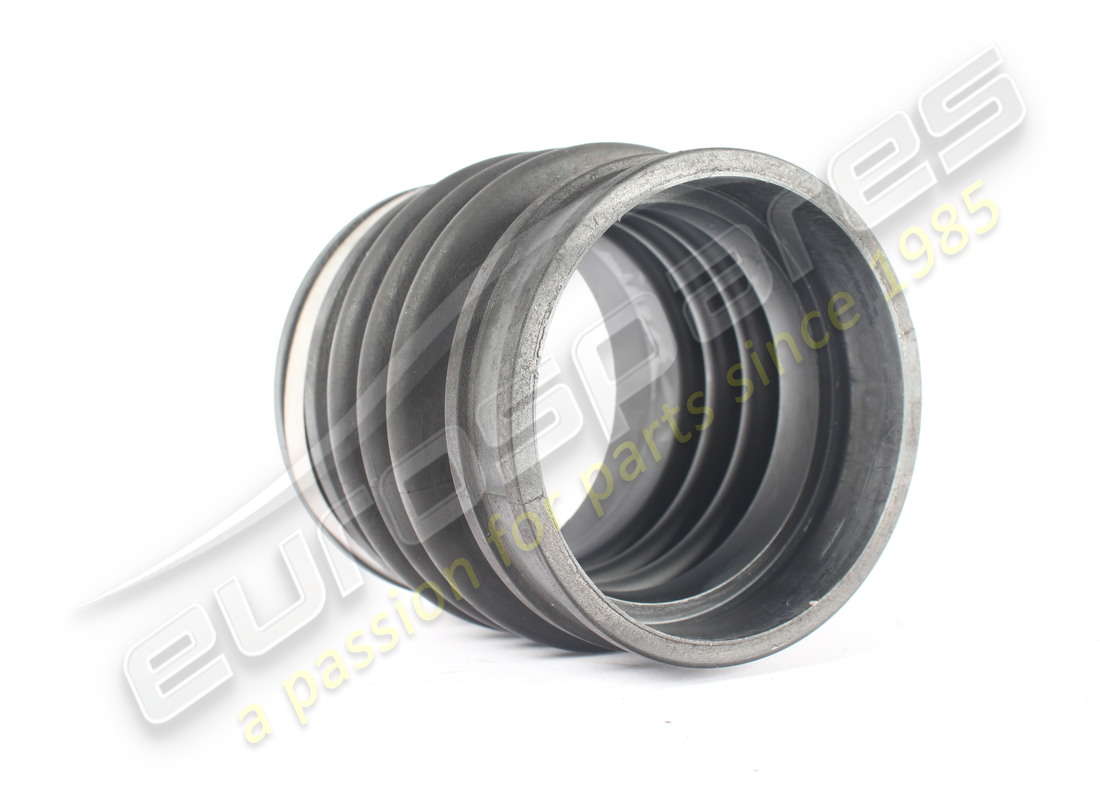

SLEEVE
- Not as spare parrt now for F50 - Replaced by 170917
from £42.57
from £42.57
# 007
MPN: 170917
SLEEVE
from £42.57
from £42.57
# 008
MPN: 13001190
SCREW COLLAR
from £0.62
from £0.62
# 009
MPN: 13274172
SCREW
Supersession
Supersession
# 010
MPN: 12605274
WASHER
from £0.71
from £0.71
This part replaces part number 12605270 - and 1 more. Click to view details
# 011
MPN: 14496377
WASHER
from £1.07
from £1.07
This part replaces part number 14496309
# 012
MPN: 163021
BRACKET
from £87.74
from £87.74
# 013
MPN: 64169400
RH BRACKET
from £9.33
from £9.33
# 013
MPN: 64169500
LH BRACKET
from £9.56
from £9.56
# 014
MPN: 10396180
CABLE GROMMET
from £1.13
from £1.13
This part replaces part number 10459687
# 015
MPN: 10977524
SCREW
from £0.47
from £0.47
# 016
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 017
MPN: 12643724
WASHER
from £0.47
from £0.47
This part replaces part number 109684 - and 4 more. Click to view details
