021 - Oil-Water Pump - Inner Parts

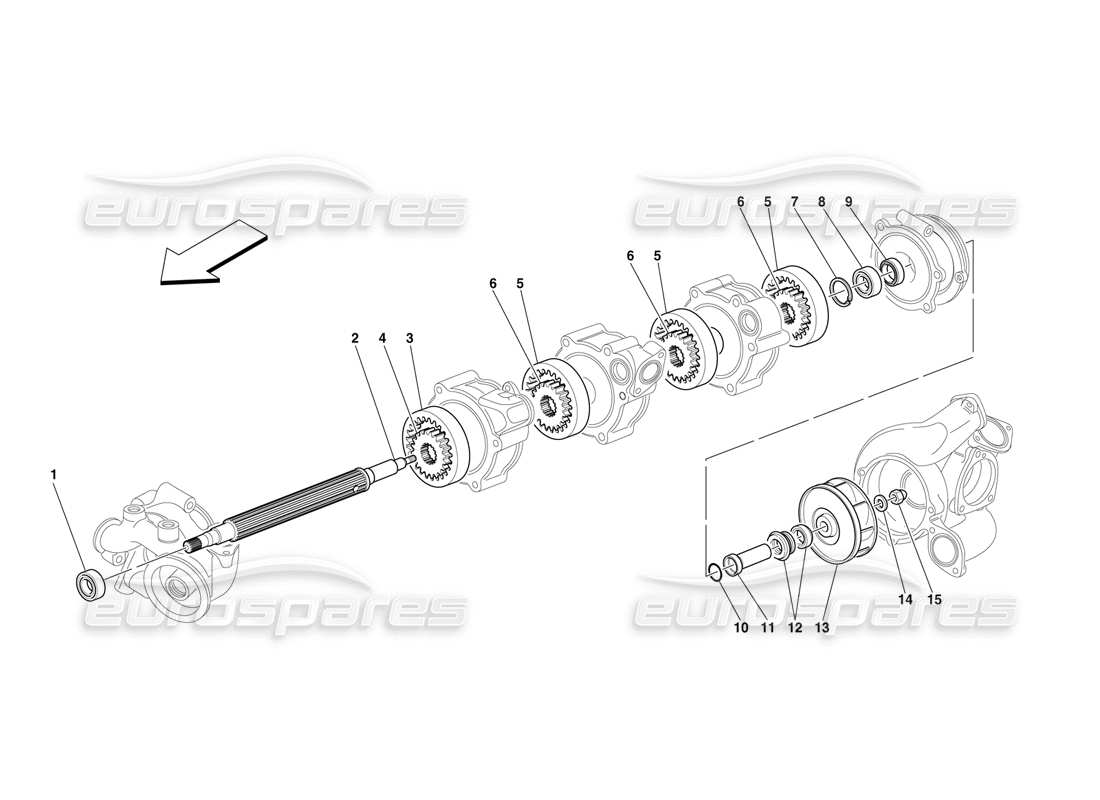

Ferrari F50 Oil-Water Pump - Inner Parts Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 122057
BEARING
from £3.92
from £3.92
# 002
MPN: 164379
SHAFT
from £1,746.05
from £1,746.05
# 003
MPN: 148473
DRIVEN GEAR
from £410.16
from £410.16
# 004
MPN: 148474
INNER GEAR
from £410.16
from £410.16
# 005
MPN: 148472
DRIVEN GEAR
from £173.06
from £173.06
# 006
MPN: 148475
INNER GEAR
from £410.16
from £410.16
# 007
MPN: 11059976
SEEGER RING
from £0.56
from £0.56
This part replaces part number 11059975
# 008
MPN: 101299
BEARING
Supersession
Supersession
# 009
MPN: 149495
GASKET
from £11.10
from £11.10
# 010
MPN: 123622
GASKET
from £0.79
from £0.79
# 011
MPN: 164377
SPACER
from £93.17
from £93.17
# 012
MPN: 170073
SEAL RING
from £32.67
from £32.67
# 012
MPN: 183759
SEAL RING
- Not as spare part for F50 now - Replaced by 170073
from £23.36
from £23.36
This part replaces part number 130932 - and 1 more. Click to view details
# 013
MPN: 164431
WATER PUMP IMPELLER
from £1,141.24
from £1,141.24
# 014
MPN: 11193874
WASHER
from £0.47
from £0.47
This part replaces part number 11193879 which we have in stock
# 015
MPN: 100436
CAP NUT
from £7.41
from £7.41
This part replaces part number 92896
