024 - Cooling - Nourice, Heat Exchanger and Pipes

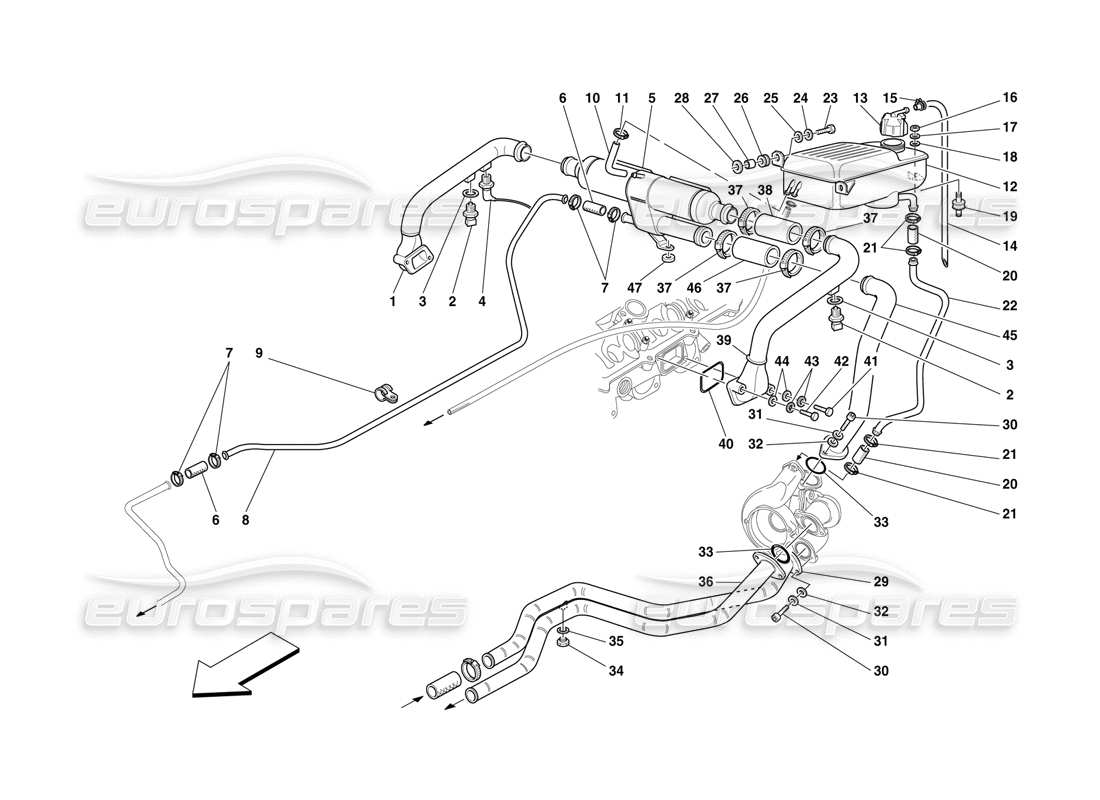

Ferrari F50 Cooling - Nourice, Heat Exchanger and Pipes Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 160978

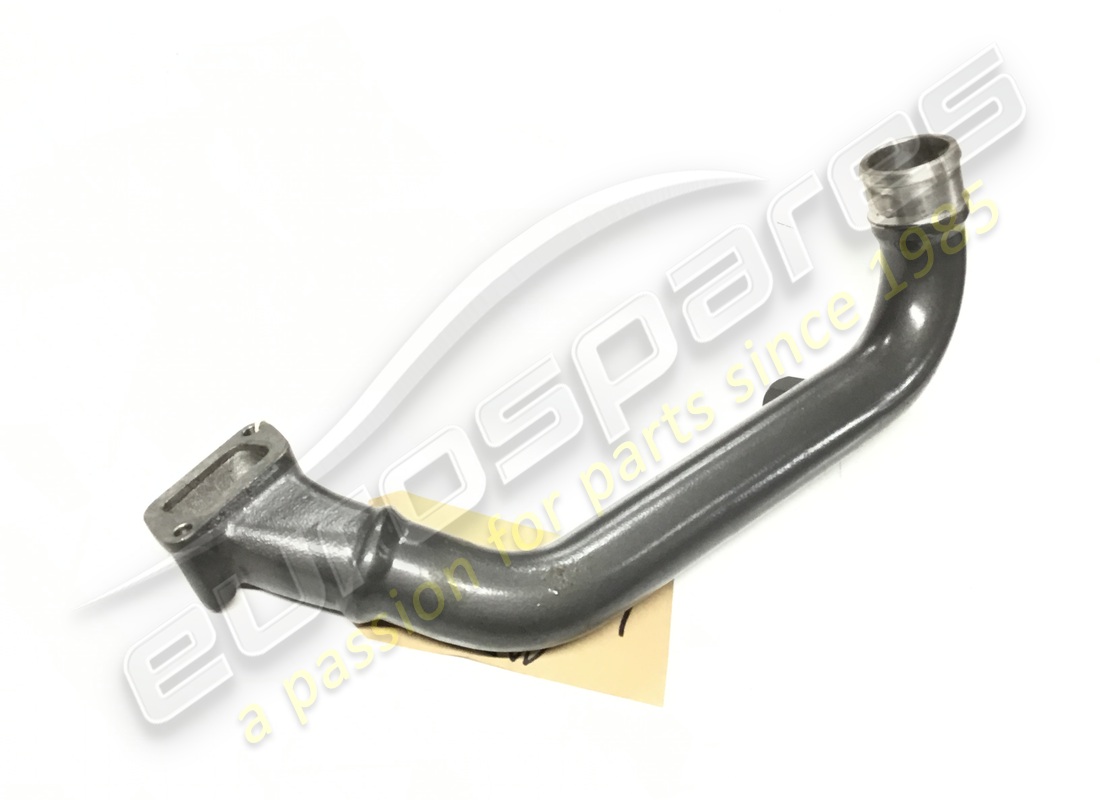

RH WATER OUTLET PIPE
from £407.43
from £407.43
# 002
MPN: 125769
WATER TEMPERATURE SENSOR
from £17.73
from £17.73
# 003
MPN: 10296160
GASKET
from £0.47
from £0.47
# 004
MPN: 104628
TEMPERATURE SENDER UNIT
from £31.50
from £31.50
This part replaces part number 4108672 - and 3 more. Click to view details
# 005
MPN: 165957
HEAT EXCHANGER
from £3,714.59
from £3,714.59
# 006
MPN: 64774300
SHORT SLEEVE
from £26.36
from £26.36
# 007
MPN: 13000390
SCREW COLLAR
from £0.47
from £0.47
This part replaces part number 12179590 - and 1 more. Click to view details
# 008
MPN: 153778
PIPE FROM HEAT EXCHANGER
from £160.88
from £160.88
# 009
MPN: 10441690
BRACKET WITH SHEATH
- Not as spare part now for F50 now - Replaced by 10450490
from £1.10
from £1.10
This part replaces part number 1044690
# 009
MPN: 10450490
BRACKET WITH SHEATH
from £0.47
from £0.47
# 010
MPN: 160898
PIPE FROM HEAT EXCHANGER TO TANK
from £203.63
from £203.63
# 011
MPN: 13000190
SCREW COLLAR
from £0.53
from £0.53
This part replaces part number 12178990 - and 1 more. Click to view details
# 012
MPN: 166699
TANK FOR WATER RADIATOR
from £287.60
from £287.60
# 013
MPN: 145030
TANK PLUG
from £13.19
from £13.19
# 014
MPN: 156082
RUBBER PIPE
from £98.72
from £98.72
# 015
MPN: 13423171
ELASTIC COLLAR
from £0.71
from £0.71
# 016
MPN: 15896414
NUT
from £0.53
from £0.53
This part replaces part number 15896411
# 017
MPN: 12605274
WASHER
from £0.71
from £0.71
This part replaces part number 12605270 - and 1 more. Click to view details
# 018
MPN: 14496377
WASHER
from £1.07
from £1.07
This part replaces part number 14496309
# 019
MPN: 148835
PAD
from £7.87
from £7.87
# 020
MPN: 167347
RUBBER PIPE
from £10.67
from £10.67
# 021
MPN: 13000490
SCREW COLLAR
from £0.51
from £0.51
This part replaces part number 10169090 - and 3 more. Click to view details
# 022
MPN: 155434
PIPE FROM TANK TO WATER PUMP
from £59.91
from £59.91
# 023
MPN: 10902424
SCREW
from £0.53
from £0.53
This part replaces part number 10902324 - and 3 more. Click to view details
# 024
MPN: 12605374
WASHER
from £0.71
from £0.71
This part replaces part number 12605370 which we have in stock - and 1 more. Click to view details
# 025
MPN: 12639724
WASHER
from £0.47
from £0.47
This part replaces part number 12639725 - and 1 more. Click to view details
# 026
MPN: 103549
CABLE GROMMET
from £0.64
from £0.64
# 027
MPN: 103550
SPACER
from £1.97
from £1.97
This part replaces part number 4130913
# 028
MPN: 12643724
WASHER
from £0.47
from £0.47
This part replaces part number 109684 - and 4 more. Click to view details
# 029
MPN: 154841
HOSE FROM RADIATOR TO WATER PUMP
from £233.35
from £233.35
# 030
MPN: 14305224
SCREW
from £0.47
from £0.47
# 031
MPN: 12605374
WASHER
from £0.71
from £0.71
This part replaces part number 12605370 which we have in stock - and 1 more. Click to view details
# 032
MPN: 12639724
WASHER
from £0.47
from £0.47
This part replaces part number 12639725 - and 1 more. Click to view details
# 033
MPN: 152054
GASKET
from £1.52
from £1.52
# 034
MPN: 139603
PLUG
from £7.79
from £7.79
# 035
MPN: 100317
GASKET
(minimum order quantity = 10)
from £0.61
from £0.61
# 036
MPN: 154846
TUBE TO RIADIATOR
from £137.07
from £137.07
# 037
MPN: 296782
SCREW COLLAR
from £4.99
from £4.99
This part replaces part number 12174090
# 038
MPN: 164498
RUBBER PIPE
- Not as spare part now - Replaced by 168231
Supersession
Supersession
# 038
MPN: 168231
RUBBER PIPE
from £258.92
from £258.92
This part replaces part number 164498
# 039
MPN: 160981
LH WATER OUTLET PIPE
from £380.28
from £380.28
# 040
MPN: 154140
GASKET
from £59.79
from £59.79
This part replaces part number 157785
# 041
MPN: 10902524
SCREW
from £0.47
from £0.47
# 042
MPN: 10903224
SCREW
from £0.47
from £0.47
This part replaces part number 10903221
# 043
MPN: 10615474
WASHER
Supersession
Supersession
This part replaces part number 10615470 - and 3 more. Click to view details
# 044
MPN: 12639724
WASHER
from £0.47
from £0.47
This part replaces part number 12639725 - and 1 more. Click to view details
# 045
MPN: 162831
PIPE FROM HEAT EXCHANGER TO WATER PUMP
from £305.27
from £305.27
# 046
MPN: 168232
RUBBER PIPE
from £50.03
from £50.03
# 046
MPN: 168232
RUBBER PIPE
from £50.03
from £50.03
# 047
MPN: 169216
BUSHING
from £4.04
from £4.04
