025 - Cooling - Radiator and Pipes

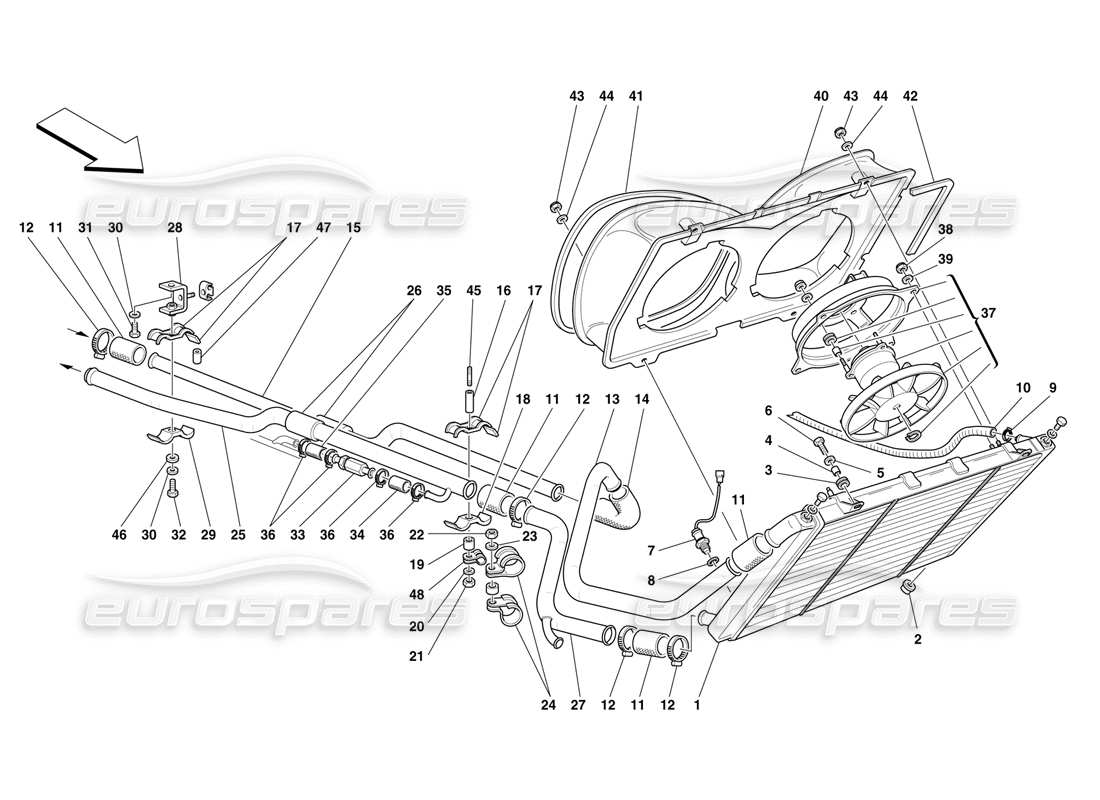

Ferrari F50 Cooling - Radiator and Pipes Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 157034
WATER RADIATOR
from £5,408.78
from £5,408.78
# 002
MPN: 138926
RUBBER
from £2.32
from £2.32
# 003
MPN: 103549
CABLE GROMMET
from £0.64
from £0.64
# 004
MPN: 103550
SPACER
from £1.97
from £1.97
This part replaces part number 4130913
# 005
MPN: 12643724
WASHER
from £0.47
from £0.47
This part replaces part number 109684 - and 4 more. Click to view details
# 006
MPN: 10902424
SCREW
from £0.53
from £0.53
This part replaces part number 10902324 - and 3 more. Click to view details
# 007
MPN: 140314
TEMPERATURE SWITCH
Supersession
Supersession
# 008
MPN: 101508
GASKET
from £0.69
from £0.69
This part replaces part number 94706
# 009
MPN: 13000190
SCREW COLLAR
from £0.53
from £0.53
This part replaces part number 12178990 - and 1 more. Click to view details
# 010
MPN: 154849
RUBBER PIPE
from £387.83
from £387.83
# 011
MPN: 168232
RUBBER PIPE
from £50.03
from £50.03
# 012
MPN: 296782
SCREW COLLAR
from £4.99
from £4.99
This part replaces part number 12174090
# 013
MPN: 154843
FRONT DELIVERY TUBE
from £129.25
from £129.25
# 014
MPN: 158166
RUBBER PIPE
from £251.88
from £251.88
# 015
MPN: 154842
CENTRAL RETURN TUBE
from £130.10
from £130.10
# 016
MPN: 166690
SPACER
from £5.84
from £5.84
# 017
MPN: 166688
BRACKET WITH SHEATH
from £20.56
from £20.56
# 018
MPN: 166689
BRACKET WITH SHEATH
from £20.92
from £20.92
# 019
MPN: 165878
SPACER
- Not as spare part now - Replaced by 166730
from £4.20
from £4.20
# 019
MPN: 166730
SPACER
from £3.29
from £3.29
# 020
MPN: 11181874
WASHER
from £0.53
from £0.53
# 021
MPN: 102741
NUT
from £0.47
from £0.47
This part replaces part number 12575411 - and 1 more. Click to view details
# 022
MPN: 102948
NUT
from £0.47
from £0.47
This part replaces part number 12574211 - and 4 more. Click to view details
# 023
MPN: 12648224
WASHER
from £0.47
from £0.47
# 024
MPN: 107002
BRACKET WITH SHEATH
from £7.32
from £7.32
# 025
MPN: 154845
CENTRAL DELIVERY TUBE
from £198.36
from £198.36
# 026
MPN: 139412
PROTECTIO RUBBER
from £5.91
from £5.91
# 027
MPN: 154844
FRONT RETURN TUBE
from £126.69
from £126.69
# 028
MPN: 149196
BRACKET
from £67.75
from £67.75
# 029
MPN: 104011
BRACKET WITH SHEATH
from £9.62
from £9.62
This part replaces part number 14511 - and 1 more. Click to view details
# 030
MPN: 11181874
WASHER
from £0.51
from £0.51
# 031
MPN: 10977524
SCREW
from £0.47
from £0.47
# 032
MPN: 10902324
SCREW
from £0.47
from £0.47
This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
# 033
MPN: 64893000
BY PASS VALVE
from £430.05
from £430.05
# 034
MPN: 64774300
SLEEVE
from £26.36
from £26.36
# 035
MPN: 64892900
RUBBER HOSE
from £110.16
from £110.16
This part replaces part number 63666700
# 036
MPN: 13000490
SCREW COLLAR
from £0.51
from £0.51
This part replaces part number 10169090 - and 3 more. Click to view details
# 037
MPN: 168071
ELECTROFAN
from £1,070.82
from £1,070.82
# 038
MPN: 102741
NUT
from £0.47
from £0.47
This part replaces part number 12575411 - and 1 more. Click to view details
# 039
MPN: 10519424
WASHER
from £0.47
from £0.47
This part replaces part number 10519401 - and 3 more. Click to view details
# 040
MPN: 63654300
AIR CONVEYOR
from £4,362.35
from £4,362.35
# 041
MPN: 64160600
GASKET
from £3.53
from £3.53
# 042
MPN: 64131500
GASKET
from £24.27
from £24.27
# 043
MPN: 102741
NUT
from £0.47
from £0.47
This part replaces part number 12575411 - and 1 more. Click to view details
# 044
MPN: 14496478
WASHER
from £0.71
from £0.71
# 045
MPN: 133843
STUD
from £0.69
from £0.69
# 046
MPN: 14496401
WASHER
Supersession
Supersession
# 047
MPN: 170660
SPACER
from £4.50
from £4.50
# 048
MPN: 10441690
BRACKET WITH SHEATH
from £1.10
from £1.10
This part replaces part number 1044690
