116 - Seats and Safety Belts -Valid for USA-

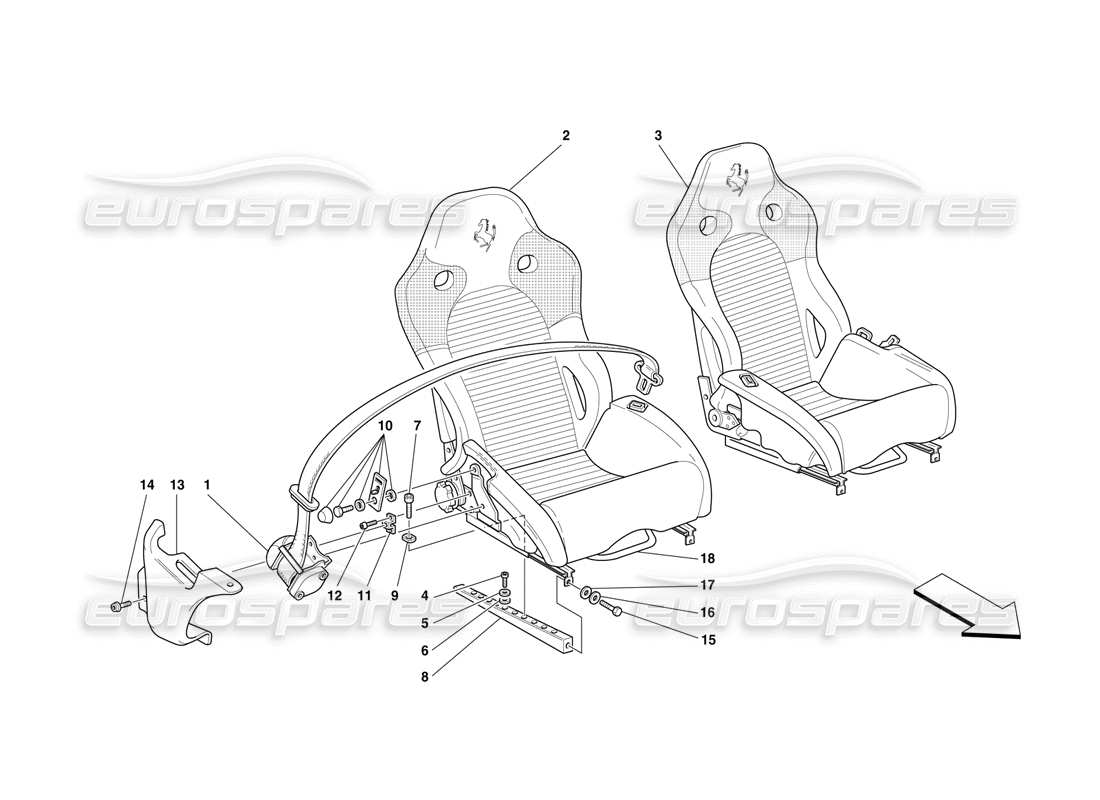

Ferrari F50 Seats and Safety Belts -Valid for USA- Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 64549000
ABDOMINAL BELTS COMPLETE SET
from £410.84
from £410.84
# 001
MPN: 64171300
RH ABDOMINAL BELTS
from £297.12
from £297.12
# 001
MPN: 64171400
LH ABDOMINAL BELTS
from £297.12
from £297.12
# 002
MPN: 65096800
RH SEAT COMPLETE WITH GUIDES
- Black cover
# 002
MPN: 65096900
RH SEAT COMPLETE WITH GUIDES
- Black/Red cover
from £7,092.02
from £7,092.02
# 003
MPN: 65097000
LH SEAT COMPLETE WITH GUIDES
- Black cover
# 003
MPN: 65097100
LH SEAT COMPLETE WITH GUIDES
- Black/Red cover
from £7,092.02
from £7,092.02
# 004
MPN: 14306424
SCREW
from £0.47
from £0.47
This part replaces part number 14306324 - and 2 more. Click to view details
# 005
MPN: 127496
WASHER
from £0.47
from £0.47
This part replaces part number 10516671 - and 2 more. Click to view details
# 006
MPN: 12638524
WASHER
from £0.47
from £0.47
This part replaces part number 12638501 - and 2 more. Click to view details
# 007
MPN: 13029024
SCREW
from £6.18
from £6.18
# 008
MPN: 151329
SEAT GUIDE CONNECTION
from £331.63
from £331.63
# 009
MPN: 63395300
ELASTIC PLATE
from £0.87
from £0.87
# 010
MPN: 63382500
ANCHORAGE BRACKET (ASSEM.)
from £52.28
from £52.28
This part replaces part number 62749800
# 011
MPN: 64976200
BRACKET
from £79.55
from £79.55
# 012
MPN: 64674300
SCREW
from £1.98
from £1.98
# 013
MPN: 64976000
RH SEAT OUTER ARTICULATED JOINT COVER
from £411.00
from £411.00
# 013
MPN: 64976100
LH SEAT OUTER ARTICULATED JOINT COVER
from £411.00
from £411.00
# 014
MPN: 169611
SCREW
from £0.72
from £0.72
This part replaces part number 64047400
# 015
MPN: 14306326
SCREW
from £1.11
from £1.11
# 016
MPN: 12034574
WASHER
from £0.47
from £0.47
# 017
MPN: 10519624
WASHER
from £0.47
from £0.47
This part replaces part number 10519601 - and 3 more. Click to view details
# 018
MPN: 62532000
SLIDING CONTROL KNOB
from £45.81
from £45.81
