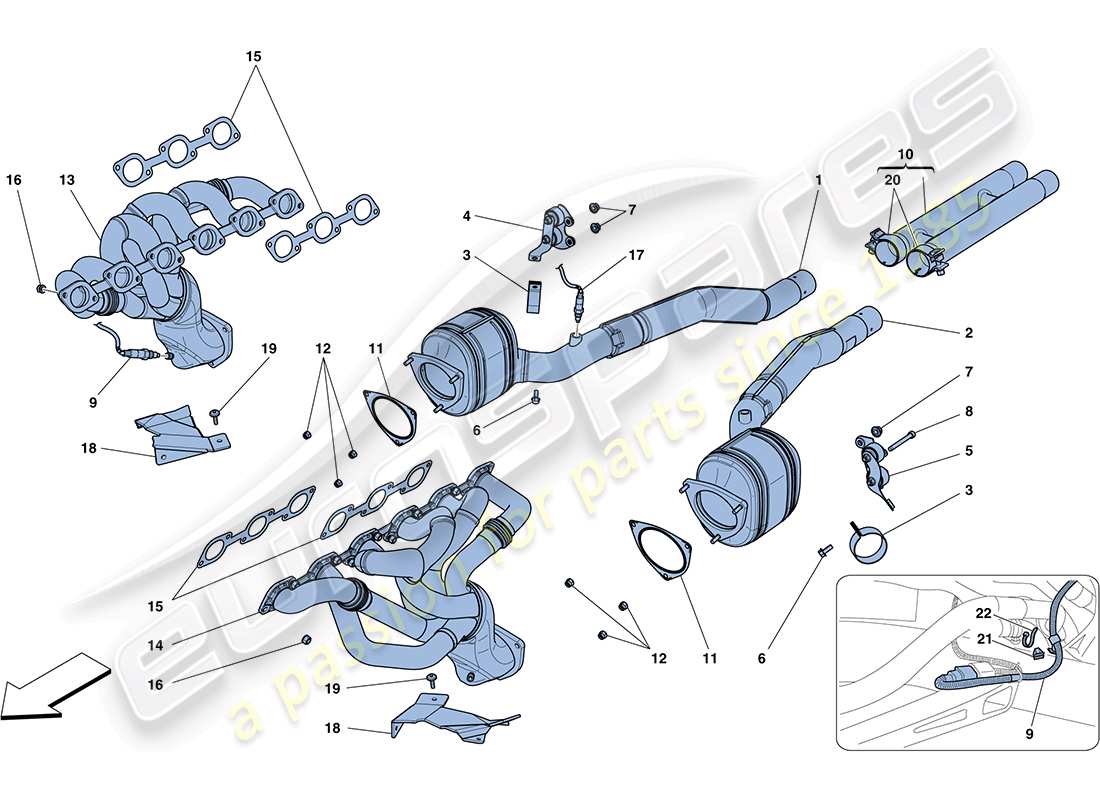

Ferrari FF (Europe) PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Price
                              # 003
                              MPN: 270634
                              RING CLAMP
                              from £38.41
                              from £38.41
                              # 004
                              MPN: 274148
                              COMPL. RH MOUNTING
                              from £46.61
                              from £46.61
                              # 005
                              MPN: 274152
                              COMPL. LH MOUNTING
                              from £46.61
                              from £46.61
                              # 006
                              MPN: 16287127
                              SCREW
                              -M8 X 20-
                              from £0.47
                              from £0.47
                              # 007
                              MPN: 14059421
                              NUT
                              from £0.53
                              from £0.53
                              This part replaces part number 156462
                              # 008
                              MPN: 14359424
                              SCREW
                              -M8 X 75-
                              from £1.14
                              from £1.14
                              # 009
                              MPN: 217447
                              FRONT OXYGEN SENSOR
                              -L. 500 mm- -No longer supplied- -Replaced by 280463-
                              from £79.05
                              from £79.05
                              # 009
                              MPN: 280463
                              FRONT OXYGEN SENSOR
                              -L. 500 mm-
                              from £74.59
                              from £74.59
                              # 010
                              MPN: 290100
                              CENTRAL EXTENSION
                              -Applicable up to Ass. No. 107607- -Applicable until depletion-
                              from £805.02
                              from £805.02
                              This part replaces part number 266420 - and 1 more. Click to view details
                              # 010
                              MPN: 290124
                              CENTRAL EXTENSION
                              -Applicable from Ass. No. 107608- -Applicable after depletion of 290100-
                              from £156.90
                              from £156.90
                              This part replaces part number 290100 - and 1 more. Click to view details
                              # 011
                              MPN: 267362
                              GASKET
                              from £11.95
                              from £11.95
                              # 012
                              MPN: 138392
                              NUT
                              from £0.74
                              from £0.74
                              # 013
                              MPN: 272365
                              COMPL. RH EXHAUST MANIFOLD
                              -Applicable until depletion-
                              Supersession
                              Supersession
                              # 013
                              MPN: 281030
                              COMPL. RH EXHAUST MANIFOLD
                              -Applicable after depletion of 272365-
                              from £809.92
                              from £809.92
                              This part replaces part number 272365 - and 1 more. Click to view details
                              # 014
                              MPN: 272366
                              COMPL. LH EXHAUST MANIFOLD
                              -Applicable until depletion-
                              Supersession
                              Supersession
                              # 014
                              MPN: 281031
                              COMPL. LH EXHAUST MANIFOLD
                              -Applicable after depletion of 272366-
                              from £809.92
                              from £809.92
                              This part replaces part number 272366 - and 1 more. Click to view details
                              # 015
                              MPN: 212702
                              GASKET
                              from £6.84
                              from £6.84
                              # 016
                              MPN: 210971
                              NUT
                              from £1.12
                              from £1.12
                              # 017
                              MPN: 180915
                              REAR OXYGEN SENSOR
                              -L. 1200 mm-
                              from £26.25
                              from £26.25
                              This part replaces part number 177674 - and 3 more. Click to view details
                              # 018
                              MPN: 270865
                              RH ENGINE SUBFRAME HEAT SHIELD
                              from £24.50
                              from £24.50
                              This part replaces part number 270866
                              # 019
                              MPN: 168133
                              SCREW
                              -M5 X 20- -No longer supplied- -Replaced by 85692400-
                              from £0.58
                              from £0.58
                              # 019
                              MPN: 85692400
                              SCREW
                              -M5 X 20-
                              from £0.51
                              from £0.51
                              # 020
                              MPN: 292231
                              RING CLAMP
                              from £13.53
                              from £13.53
                              # 021
                              MPN: 291283
                              CLIP
                              from £0.53
                              from £0.53
                              # 022
                              MPN: 145854
                              RING CLAMP
                              from £0.53
                              from £0.53
