0019 - COOLING - HEADER TANK AND PIPES

Ferrari FF (Europe) COOLING - HEADER TANK AND PIPES Parts Diagram

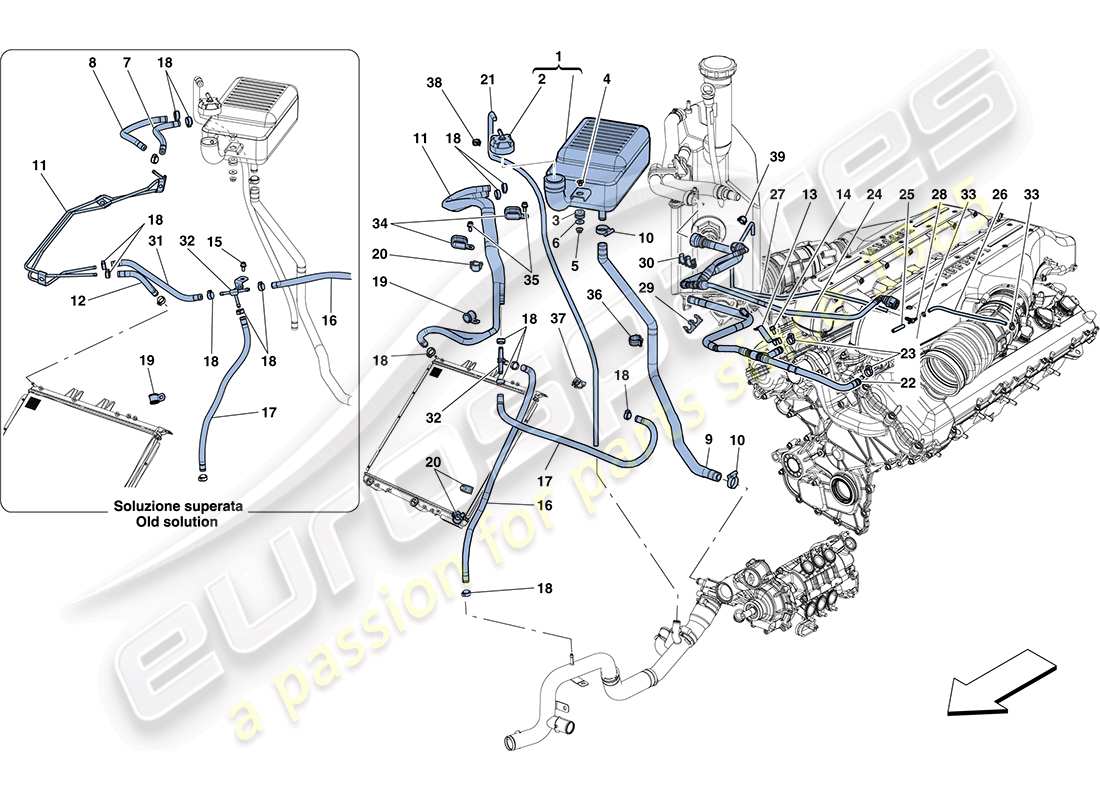

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # 001
                          MPN: 266733
                          COMPL. HEADER TANK
                          from £686.51
                          from £686.51
                          COMPLETE HEADER TANK Genuine Ferrari Part - New (to order)
                          # 002
                          MPN: 145030
                          CAP WITH BREATHER
                          from £12.51
                          from £12.51
                          TANK PLUG Genuine Ferrari Part - New In stock
                          Genuine Maserati Part (no longer available to order)
                          TANK PLUG Genuine Ferrari Part - Used In stock
                          # 003
                          MPN: 103549
                          GROMMET
                          from £0.69
                          from £0.69
                          RING Genuine Ferrari Part - New (to order)
                          CABLE GROMMET Genuine Maserati Part - New (to order)
                          # 004
                          MPN: 149707
                          SHIM
                          from £0.77
                          from £0.77
                          SPACER Genuine Ferrari Part - New In stock
                          SPACER Genuine Maserati Part - New (to order)
                          # 005
                          MPN: 14059214
                          NUT
                          from £0.53
                          from £0.53
                          NUT. Genuine Ferrari Part - New In stock
                          NUT Genuine Maserati Part - New (to order)
                          # 006
                          MPN: 12643724
                          WASHER
                          from £0.52
                          from £0.52
                          This part replaces part number 109684 - and 4 more. Click to view details
                          WASHER Genuine Ferrari Part - New In stock
                          WASHER Genuine Maserati Part - New In stock
                          # 007
                          MPN: 260430
                          RUBBER PIPE
                          -D. 6-13 X 200- -Applicable up to Ass. No. 102621-
                          from £11.89
                          from £11.89
                          RUBBER PIPE Genuine Ferrari Part - New (to order)
                          # 008
                          MPN: 260431
                          RUBBER PIPE
                          -D. 6-13 X 270- -Applicable up to Ass. No. 102621-
                          from £14.07
                          from £14.07
                          RUBBER PIPE Genuine Ferrari Part - New (to order)
                          # 009
                          MPN: 266732
                          WATER HOSE
                          from £118.90
                          from £118.90
                          WATER HOSE Genuine Ferrari Part - New In stock
                          # 010
                          MPN: 13000390
                          SCREW COLLAR
                          -No longer supplied- -Replaced by 296778-
                          from £0.53
                          from £0.53
                          This part replaces part number 12179590 - and 1 more. Click to view details
                          SCREW COLLAR Genuine Ferrari Part - New In stock
                          SCREW COLLAR Genuine Maserati Part - New In stock
                          # 010
                          MPN: 178052
                          RING CLAMP
                          -No longer supplied- -Replaced by 13000390-
                          from £0.93
                          from £0.93
                          This part replaces part number 296778
                          CLAMP Genuine Ferrari Part - New In stock
                          CLAMP D.20-2X220.2 Genuine Maserati Part - New (to order)
                          # 010
                          MPN: 296778
                          COLLAR
                          Supersession
                          Supersession
                          Genuine Ferrari Part (no longer available to order)
                          # 011
                          MPN: 275323
                          METAL BREATHER PIPE
                          -Applicable up to Ass. No. 102621-
                          from £224.87
                          from £224.87
                          METAL BREATHER PIPE Genuine Ferrari Part - New (to order)
                          # 011
                          MPN: 280315
                          HEADER TANK PIPE WITH SHEATH
                          -Applicable from Ass. No. 102622-
                          from £178.46
                          from £178.46
                          HEADER TANK PIPE WITH SHEATH Genuine Ferrari Part - New (to order)
                          # 012
                          MPN: 260430
                          RUBBER PIPE
                          -D. 6-13 X 200- -Applicable up to Ass. No. 102621-
                          from £11.89
                          from £11.89
                          RUBBER PIPE Genuine Ferrari Part - New (to order)
                          # 013
                          MPN: 268074
                          BRACKET
                          from £16.35
                          from £16.35
                          BRACKET Genuine Ferrari Part - New (to order)
                          # 014
                          MPN: 233600
                          SCREW
                          -M6 X 12-
                          from £0.54
                          from £0.54
                          SCREW Genuine Ferrari Part - New In stock
                          SCREW Genuine Maserati Part - New (to order)
                          # 015
                          MPN: 231616
                          SCREW
                          -M6 X 14- -Applicable up to Ass. No. 102621-
                          from £0.54
                          from £0.54
                          This part replaces part number 14305724 which we have in stock
                          Genuine Ferrari Part (no longer available to order)
                          SCREW Genuine Maserati Part - New (to order)
                          # 016
                          MPN: 275326
                          RUBBER PIPE
                          -D. 6-13 X 500-
                          from £18.89
                          from £18.89
                          RUBBER PIPE Genuine Ferrari Part - New (to order)
                          # 017
                          MPN: 275325
                          RUBBER PIPE
                          -D. 6-13 X 470- -Applicable until depletion-
                          Supersession
                          Supersession
                          Genuine Ferrari Part (no longer available to order)
                          # 017
                          MPN: 281900
                          RUBBER PIPE
                          -D. 6-13 X 470- -Applicable after depletion of 275325-
                          from £16.65
                          from £16.65
                          This part replaces part number 275325 - and 3 more. Click to view details
                          RUBBER PIPE Genuine Ferrari Part - New (to order)
                          RUBBER PIPE Genuine Ferrari Part - Used In stock
                          # 018
                          MPN: 177995
                          RING CLAMP
                          -Applicable up to Ass. No. 102621-
                          from £0.58
                          from £0.58
                          SCREW COLLAR Genuine Ferrari Part - New In stock
                          CLAMP Genuine Maserati Part - New (to order)
                          # 018
                          MPN: 177995
                          RING CLAMP
                          -Applicable from Ass. No. 102622-
                          from £0.61
                          from £0.61
                          SCREW COLLAR Genuine Ferrari Part - New In stock
                          CLAMP Genuine Maserati Part - New (to order)
                          # 019
                          MPN: 10441490
                          BRACKET WITH SHEATH
                          -D. 14- -Applicable up to Ass. No. 102621-
                          from £0.53
                          from £0.53
                          CLAMP Genuine Ferrari Part - New In stock
                          BRACKET Genuine Maserati Part - New (to order)
                          # 020
                          MPN: 206536
                          CLIP
                          from £0.53
                          from £0.53
                          CLIP Genuine Ferrari Part - New In stock
                          1 SECT. CLIP D.14 WITH CORD Genuine Maserati Part - New In stock
                          # 021
                          MPN: 276556
                          RUBBER PIPE
                          -D. 7-1.5 X 825-
                          from £10.45
                          from £10.45
                          RUBBER PIPE Genuine Ferrari Part - New (to order)
                          # 022
                          MPN: 271277
                          VAPOUR PIPE FROM HEADS
                          -Not for USA, CDN, USA LIGHT-
                          from £71.41
                          from £71.41
                          VAPOUR PIPE FROM HEADS Genuine Ferrari Part - New (to order)
                          # 022
                          MPN: 280210
                          VAPOUR PIPE FROM HEADS
                          -Applicable for USA, CDN, USA LIGHT- -Applicable up to Ass. No. 110465-
                          from £79.98
                          from £79.98
                          VAPOUR PIPE FROM HEADS Genuine Ferrari Part - New (to order)
                          # 022
                          MPN: 284225
                          VAPOUR PIPE FROM HEADS
                          -Applicable for USA, CDN, USA LIGHT- -Applicable from Ass. No. 110466-
                          from £92.37
                          from £92.37
                          VAPOUR PIPE FROM HEADS Genuine Ferrari Part - New (to order)
                          # 023
                          MPN: 13430770
                          COLLAR
                          from £0.53
                          from £0.53
                          SCREW COLLAR. Genuine Ferrari Part - New In stock
                          SCREW COLLAR Genuine Maserati Part - New (to order)
                          # 024
                          MPN: 266116
                          BLOW-BY PIPE FROM TANK
                          -Applicable for USA, CDN, USA LIGHT- -Applicable up to Ass. No. 110465-
                          from £148.45
                          from £148.45
                          BLOW-BY PIPE FROM TANK Genuine Ferrari Part - New (to order)
                          # 024
                          MPN: 271275
                          BLOW-BY PIPE FROM TANK
                          -Not for USA, CDN, USA LIGHT-
                          from £90.08
                          from £90.08
                          BLOW-BY PIPE FROM TANK Genuine Ferrari Part - New In stock
                          # 024
                          MPN: 284227
                          BLOW-BY PIPE FROM TANK
                          -Applicable for USA, CDN, USA LIGHT- -Applicable from Ass. No. 110466-
                          from £108.54
                          from £108.54
                          BLOW-BY PIPE FROM TANK Genuine Ferrari Part - New (to order)
                          # 025
                          MPN: 165608
                          RUBBER PIPE
                          -D. 3.5-8 X 80-
                          from £1.52
                          from £1.52
                          PIPE Genuine Ferrari Part - New (to order)
                          RUBBER HOSE FOR BLOW BY S Genuine Maserati Part - New (to order)
                          # 026
                          MPN: 159542
                          RUBBER PIPE
                          -D. 3.5-8 X 260- -Replaces 264424- -Also order union 258855 ref. 28 and collar 171406 ref. 33-
                          from £1.27
                          from £1.27
                          This part replaces part number 264424 - and 1 more. Click to view details
                          PIPE Genuine Ferrari Part - New (to order)
                          Genuine Maserati Part (no longer available to order)
                          PIPE Genuine Ferrari Part - Used In stock
                          # 026
                          MPN: 264424
                          RUBBER PIPE
                          -D. 3.5-8 X 245- -No longer supplied- -Replaced by 159542-
                          Supersession
                          Supersession
                          Genuine Ferrari Part (no longer available to order)
                          # 027
                          MPN: 268062
                          RUBBER PIPE
                          -D. 6-9 X 950- -No longer supplied- -Replaced by 291833-
                          Supersession
                          Supersession
                          Genuine Ferrari Part (no longer available to order)
                          # 027
                          MPN: 291833
                          RUBBER PIPE
                          -D. 6-9 X 950-
                          from £17.28
                          from £17.28
                          This part replaces part number 268062
                          RUBBER PIPE Genuine Ferrari Part - New (to order)
                          # 028
                          MPN: 161816
                          T UNION
                          -No longer supplied- -Replaced by 258855-
                          from £1.03
                          from £1.03
                          UNION Genuine Ferrari Part - New In stock
                          3-WAY UNION Genuine Maserati Part - New (to order)
                          # 028
                          MPN: 258855
                          3-WAY CONNECTOR
                          -Replaces 161816- -Also order pipe 159542 ref. 26 and collar 171406 ref. 33-
                          from £22.23
                          from £22.23
                          3-WAY CONNECTOR Genuine Ferrari Part - New (to order)
                          # 029
                          MPN: 140727
                          CLIP
                          -D. 14-
                          from £0.53
                          from £0.53
                          SPRING Genuine Ferrari Part - New In stock
                          PIPE FASTENING CLIP D.14 Genuine Maserati Part - New (to order)
                          # 030
                          MPN: 140130
                          CLIP
                          -D. 10-
                          from £0.54
                          from £0.54
                          CLAMP Genuine Ferrari Part - New In stock
                          CLIP Genuine Maserati Part - New (to order)
                          # 030
                          MPN: 140728
                          CLIP
                          -D. 16-
                          from £0.54
                          from £0.54
                          FIXING CLIP Genuine Ferrari Part - New (to order)
                          FIXING CLIP Genuine Maserati Part - New (to order)
                          # 031
                          MPN: 275324
                          RUBBER PIPE
                          -Applicable up to Ass. No. 102621-
                          from £9.37
                          from £9.37
                          RUBBER PIPE Genuine Ferrari Part - New (to order)
                          # 032
                          MPN: 275328
                          3-WAY UNION COMPLETE WITH BRACKET
                          -Applicable up to Ass. No. 102621-
                          from £53.53
                          from £53.53
                          3 WAY UNION WITH BRACKET COMPLETE Genuine Ferrari Part - New (to order)

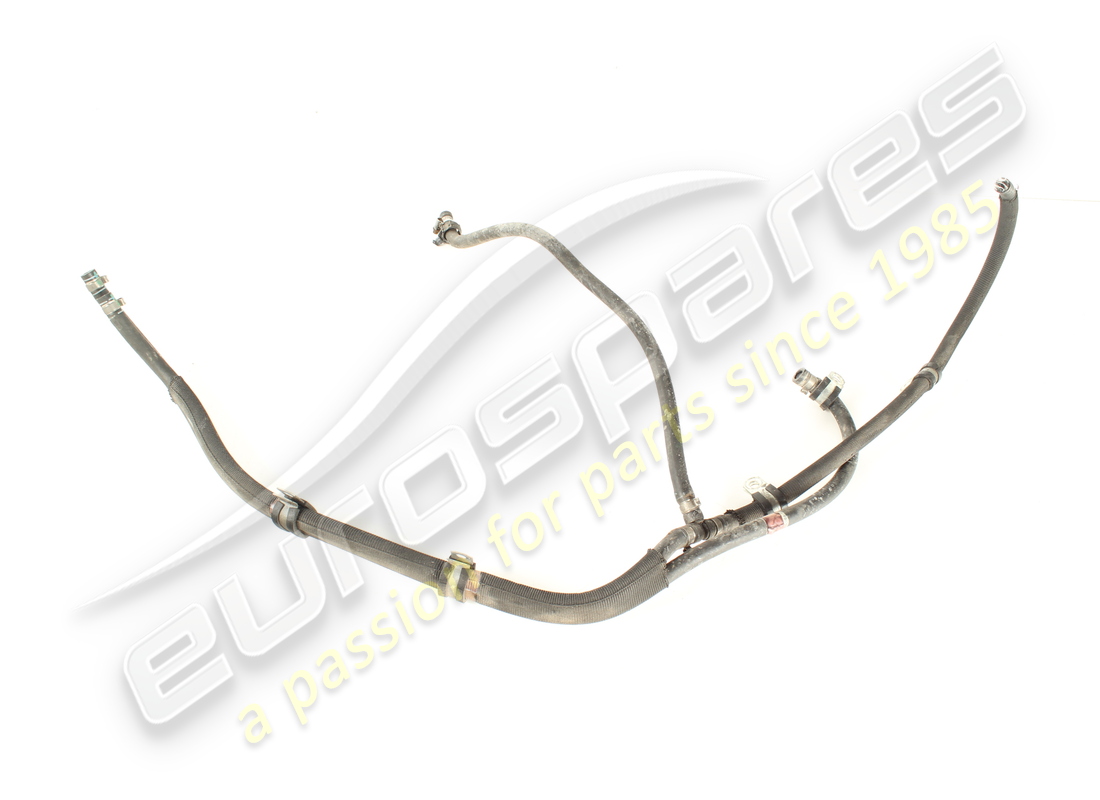

                          # 032
                          MPN: 281899
                          3-WAY UNION COMPLETE WITH BRACKET
                          -Applicable from Ass. No. 102622-
                          from £0.97
                          from £0.97
                          3-WAY UNION COMPLETE WITH BR Genuine Ferrari Part - New (to order)
                          3-WAY UNION COMPLETE WITH BR Genuine Ferrari Part - Used In stock
                          # 033
                          MPN: 171406
                          COLLAR FOR SLEEVE
                          from £0.53
                          from £0.53
                          SCREW COLLAR Genuine Ferrari Part - New In stock
                          SLEEVE FASTENING COLLAR D.10 Genuine Maserati Part - New (to order)
                          # 034
                          MPN: 253512
                          BRACKET WITH SHEATH
                          -Applicable from Ass. No. 102622-
                          from £4.37
                          from £4.37
                          BRACKET WITH SHEATH Genuine Ferrari Part - New (to order)
                          # 035
                          MPN: 231616
                          SCREW
                          -M6 X 14- -Applicable from Ass. No. 102622-
                          from £0.53
                          from £0.53
                          This part replaces part number 14305724 which we have in stock
                          Genuine Ferrari Part (no longer available to order)
                          SCREW Genuine Maserati Part - New (to order)
                          # 036
                          MPN: 198273
                          CLIP
                          -Applicable from Ass. No. 102622-
                          from £0.95
                          from £0.95
                          CLIP Genuine Ferrari Part - New (to order)
                          # 037
                          MPN: 69708300
                          CLIP
                          from £0.76
                          from £0.76
                          CLIP Genuine Ferrari Part - New In stock
                          # 038
                          MPN: 14570080
                          CLIP
                          -No longer supplied-
                          from £0.53
                          from £0.53
                          CLIP Genuine Ferrari Part - New (to order)
                          # 039
                          MPN: 14569480
                          CLIP
                          from £0.53
                          from £0.53
                          This part replaces part number 81580800
                          CLIP Genuine Ferrari Part - New In stock
                          WIRE RETAINING CLIP Genuine Maserati Part - New (to order)
                          # 039
                          MPN: 14570080
                          CLIP
                          -No longer supplied- -Replaced by 14569480-
                          from £0.53
                          from £0.53
                          CLIP Genuine Ferrari Part - New (to order)
