0028 - Power Steering System

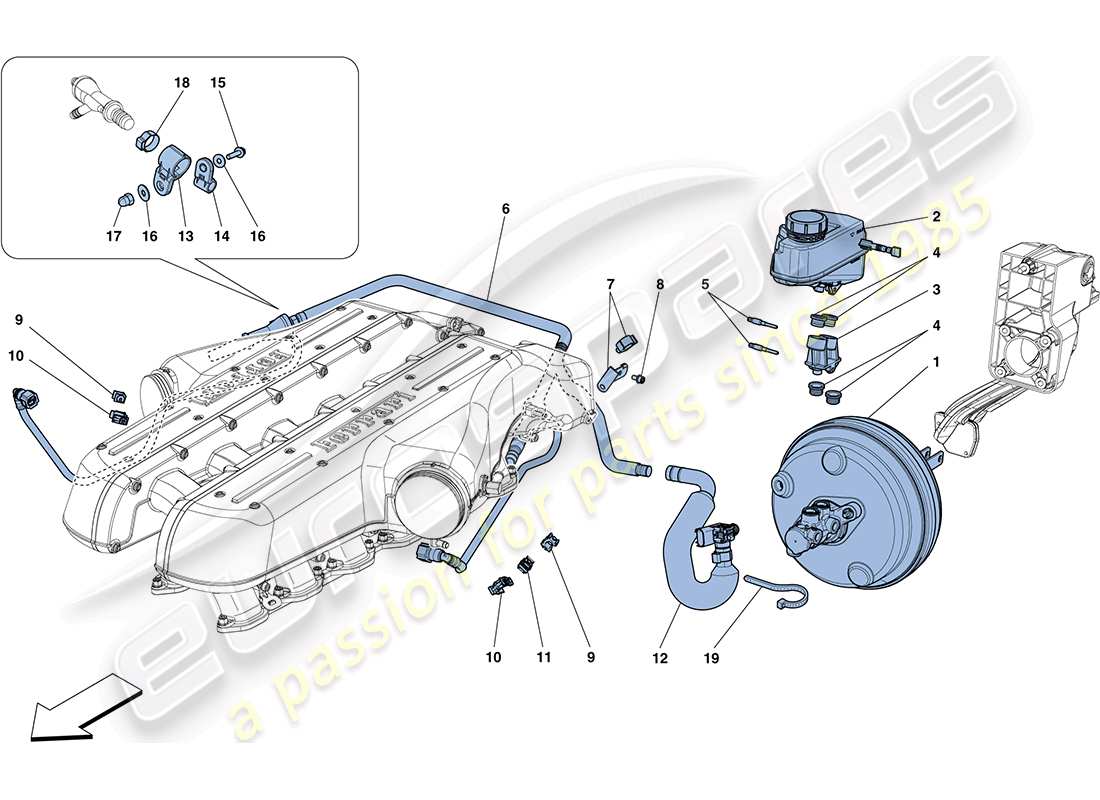

Ferrari FF (Europe) POWER STEERING SYSTEM Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 261826
Brake Servo
from £150.66
from £150.66
# 002
MPN: 242849
OIL TRAY
from £24.40
from £24.40
# 003
MPN: 241549
ADAPTER UNION
from £4.61
from £4.61
# 004
MPN: 241550
GASKET
from £0.53
from £0.53
# 005
MPN: 241537
SPECIAL SCREW
from £0.53
from £0.53
# 006
MPN: 274558
KAYSER PIPE WITH VALVES
-Not for GD- -Applicable until depletion-
Supersession
Supersession
# 006
MPN: 280135
KAYSER PIPE WITH VALVES
-Applicable for GD- -Applicable until depletion-
Supersession
Supersession
# 006
MPN: 293057
KAYSER PIPE WITH VALVES
-Not for GD- -Applicable after depletion of 274558-
from £243.08
from £243.08
This part replaces part number 274558
# 006
MPN: 293060
KAYSER PIPE WITH VALVES
-Applicable for GD- -Applicable after depletion of 280135-
from £229.15
from £229.15
This part replaces part number 280135
# 007
MPN: 277006
BRACKET
-Not for GD-
from £17.12
from £17.12
# 007
MPN: 280141
BRACKET
-Applicable for GD-
from £18.61
from £18.61
# 008
MPN: 233600
SCREW
-M6 X 12-
from £0.54
from £0.54
# 009
MPN: 140130
CLIP
-D. 10-
from £0.54
from £0.54
# 010
MPN: 140727
CLIP
-D. 14-
from £0.53
from £0.53
# 011
MPN: 209864
ANCHOR FOR CLIPS
from £1.56
from £1.56
# 012
MPN: 249731
PIPE FROM KAYSER VALVE TO BRAKE SERVO
-Not for Stop&Start- -Not for GD- -No longer supplied- -Replaced by 288434-
Supersession
Supersession
# 012
MPN: 258631
PIPE FROM KAYSER VALVE TO BRAKE SERVO
-Applicable for Stop&Start- -Not for GD- -No longer supplied- -Replaced by 289205-
Supersession
Supersession
# 012
MPN: 280137
PIPE FROM KAYSER VALVE TO BRAKE SERVO
-Not for Stop&Start- -Applicable for GD- -No longer supplied- -Replaced by 289344-
Supersession
Supersession
# 012
MPN: 280139
PIPE FROM KAYSER VALVE TO BRAKE SERVO
-Applicable for Stop&Start- -Applicable for GD- -No longer supplied- -Replaced by 289345-
Supersession
Supersession
# 012
MPN: 288434
PIPE FROM KAYSER VALVE TO BRAKE SERVO
-Not for Stop&Start- -Not for GD-
from £96.33
from £96.33
This part replaces part number 249731
# 012
MPN: 289205
PIPE FROM KAYSER VALVE TO BRAKE SERVO
-Applicable for Stop&Start- -Not for GD-
from £143.41
from £143.41
This part replaces part number 258631
# 012
MPN: 289344
PIPE FROM KAYSER VALVE TO BRAKE SERVO
-Not for Stop&Start- -Applicable for GD-
from £88.14
from £88.14
This part replaces part number 280137 - and 1 more. Click to view details
# 012
MPN: 289345
PIPE FROM KAYSER VALVE TO BRAKE SERVO
-Applicable for Stop&Start- -Applicable for GD-
from £200.41
from £200.41
This part replaces part number 280139
# 013
MPN: 244221
CLIP
from £2.58
from £2.58
# 014
MPN: 244218
CLIP
from £2.21
from £2.21
# 015
MPN: 16285227
SCREW
-M5 X 20-
from £0.54
from £0.54
# 016
MPN: 12638178
WASHER
from £0.47
from £0.47
This part replaces part number 10519578 which we have in stock - and 3 more. Click to view details
# 017
MPN: 168698
NUT
from £1.05
from £1.05
This part replaces part number 14054048 which we have in stock
# 018
MPN: 13434670
COLLAR
from £0.53
from £0.53
# 019
MPN: 206739
CABLE TIE
from £3.63
from £3.63
This part replaces part number 243232
