0035 - POWER STEERING PUMP AND RESERVOIR

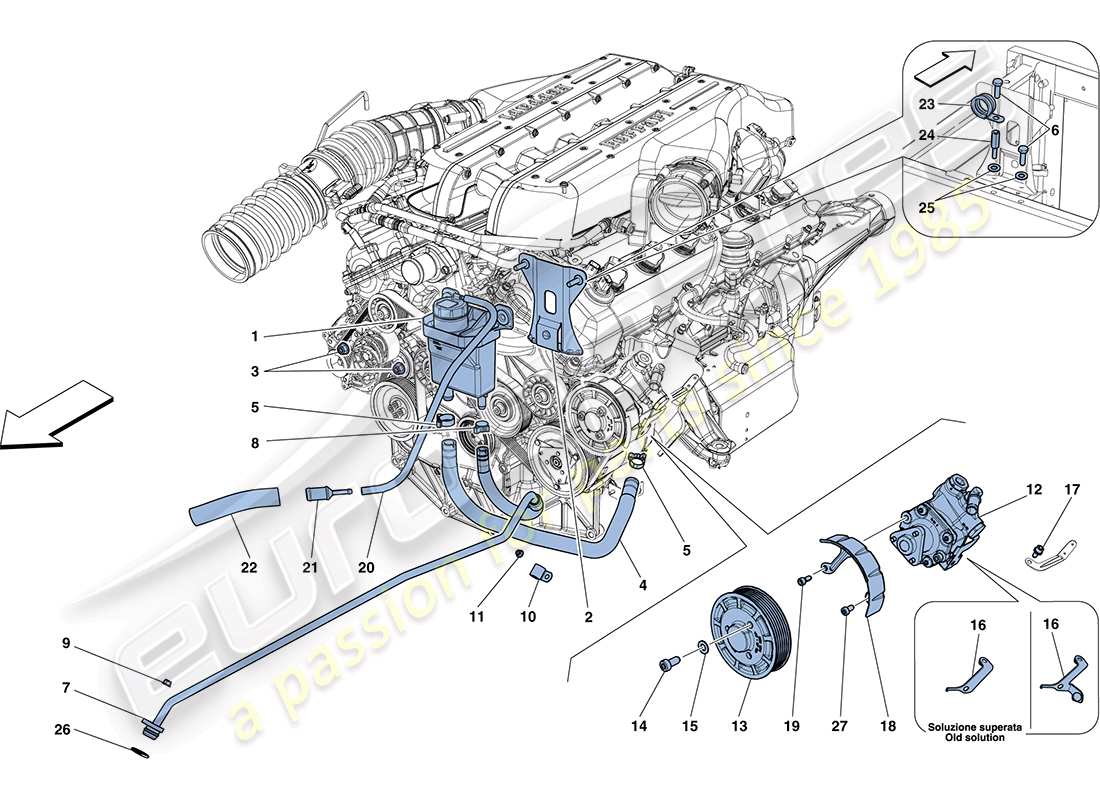

Ferrari FF (Europe) POWER STEERING PUMP AND RESERVOIR Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Price
                              # 001
                              MPN: 277696
                              COMPL. POWER STEERING FLUID RESERVOIR
                              -No longer supplied- -Replaced by 280021-
                              Supersession
                              Supersession
                              # 001
                              MPN: 280021
                              COMPL. POWER STEERING FLUID RESERVOIR
                              -Applicable until depletion-
                              from £20.85
                              from £20.85
                              This part replaces part number 199617 - and 3 more. Click to view details
                              # 001
                              MPN: 292342
                              COMPL. POWER STEERING FLUID RESERVOIR
                              -Applicable after depletion of 280021-
                              from £24.88
                              from £24.88
                              This part replaces part number 233605 which we have in stock - and 11 more. Click to view details
                              # 002
                              MPN: 267954
                              BRACKET
                              from £31.17
                              from £31.17
                              # 003
                              MPN: 13046212
                              NUT
                              from £6.03
                              from £6.03
                              # 004
                              MPN: 276797
                              PIPE FROM RESERVOIR TO POWER STEERING PUMP
                              from £22.08
                              from £22.08
                              # 005
                              MPN: 13126370
                              CLAMP
                              from £0.72
                              from £0.72
                              # 006
                              MPN: 10902424
                              SCREW
                              -M6 X 20- -Fastening bracket to chassis-
                              from £0.53
                              from £0.53
                              This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
                              # 007
                              MPN: 268010
                              PIPE FROM RADIATOR TO POWER STEERING FLUID RESERVOIR
                              from £38.41
                              from £38.41
                              # 008
                              MPN: 13126070
                              COLLAR
                              from £0.64
                              from £0.64
                              # 009
                              MPN: 14058419
                              NUT
                              from £0.61
                              from £0.61
                              # 010
                              MPN: 10441390
                              BRACKET WITH SHEATH
                              -D. 12- -Fastening pipe to radiator-
                              from £0.51
                              from £0.51
                              # 011
                              MPN: 15896277
                              NUT
                              -Fastening pipe to radiator-
                              from £1.08
                              from £1.08
                              # 012
                              MPN: 272325
                              POWER STEERING PUMP
                              -No longer supplied- -Replaced by 277567-
                              Supersession
                              Supersession
                              # 012
                              MPN: 277567
                              POWER STEERING PUMP
                              from £718.00
                              from £718.00
                              This part replaces part number 272325 - and 2 more. Click to view details
                              # 013
                              MPN: 250874
                              PULLEY ON POWER STEERING PUMP
                              from £34.94
                              from £34.94
                              # 014
                              MPN: 13028324
                              SCREW
                              -M8 X 16-
                              from £2.42
                              from £2.42
                              # 015
                              MPN: 11193874
                              WASHER
                              from £0.54
                              from £0.54
                              This part replaces part number 11193879 which we have in stock
                              # 016
                              MPN: 272695
                              BRACKET
                              -On rear power steering pump body- -No longer supplied- -Replaced by 275397-
                              Supersession
                              Supersession
                              # 016
                              MPN: 275397
                              BRACKET
                              -On rear power steering pump body-
                              from £19.71
                              from £19.71
                              This part replaces part number 272695
                              # 017
                              MPN: 231627
                              SCREW
                              -M8 X 16-
                              from £0.54
                              from £0.54
                              # 018
                              MPN: 272016
                              BELT GUARD
                              from £17.25
                              from £17.25
                              # 019
                              MPN: 231627
                              SCREW
                              -M8 X 16-
                              from £0.54
                              from £0.54
                              # 020
                              MPN: 124790
                              RUBBER PIPE
                              -D. 3.5-8 X 400- -Applicable for GD-
                              from £3.09
                              from £3.09
                              # 020
                              MPN: 125826
                              RUBBER PIPE
                              -D. 3.5-8 X 320- -Not for GD-
                              from £6.19
                              from £6.19
                              # 021
                              MPN: 222606
                              BREATHER PIPE UNION
                              -Not for GD-
                              from £5.41
                              from £5.41
                              # 022
                              MPN: 277606
                              oil breather pipe
                              -L= 1685- -Not for GD-
                              from £6.57
                              from £6.57
                              # 023
                              MPN: 172995
                              BRACKET WITH SHEATH
                              from £2.25
                              from £2.25
                              # 024
                              MPN: 178772
                              STUD BOLT
                              from £5.78
                              from £5.78
                              # 025
                              MPN: 11197774
                              WASHER
                              from £0.54
                              from £0.54
                              This part replaces part number 11197770 - and 3 more. Click to view details
                              # 026
                              MPN: 14457381
                              GASKET
                              from £0.54
                              from £0.54
                              # 027
                              MPN: 231616
                              SCREW
                              -M6 X 14-
                              from £0.54
                              from £0.54
                              This part replaces part number 14305724
