0103 - STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE

Ferrari FF (Europe) STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE Parts Diagram

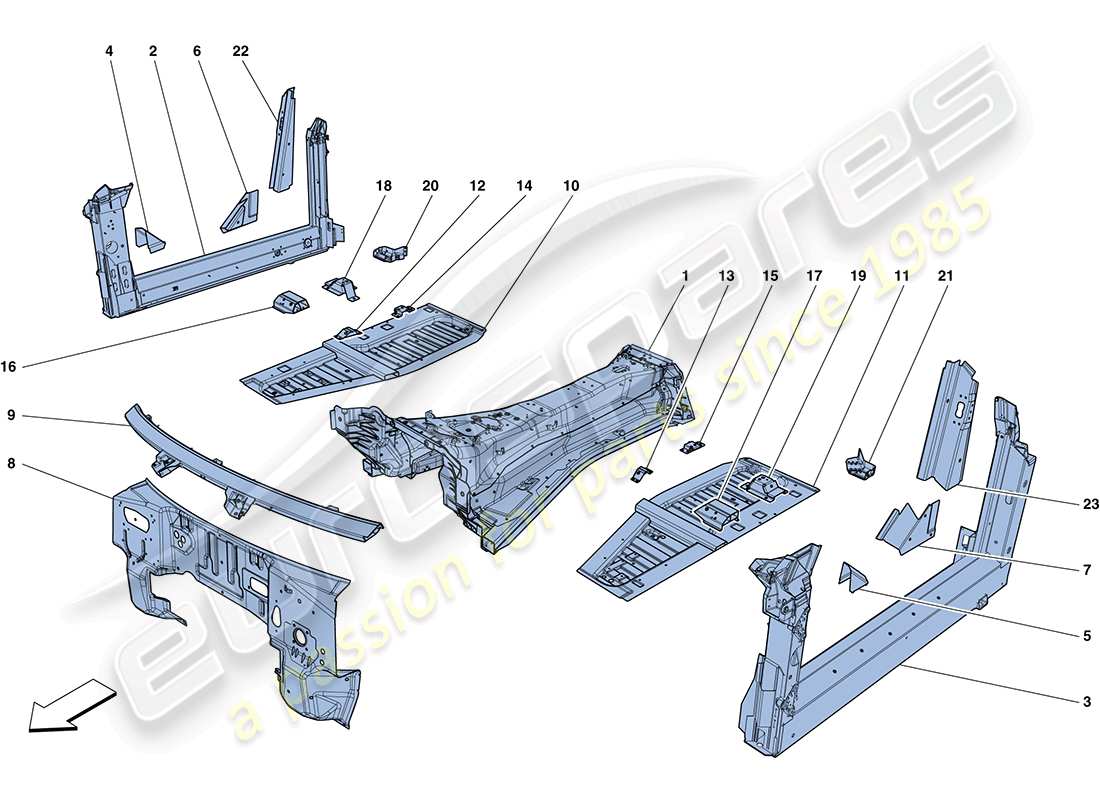

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Price
                                  # 001
                                  MPN: 265428
                                  COMPL. TUNNEL
                                  -Request ASM authorisation- -Not for GD- -Applicable up to Ass. No. 100296-
                                  from £26,723.97
                                  from £26,723.97
                                  # 001
                                  MPN: 277306
                                  COMPL. TUNNEL
                                  -Request ASM authorisation- -Not for GD- -Applicable from Ass. No. 100297 up to Ass. No. 101569-
                                  from £11,120.69
                                  from £11,120.69
                                  # 001
                                  MPN: 279341
                                  COMPL. TUNNEL
                                  -Request ASM authorisation- -Applicable for GD- -Applicable up to Ass. No. 101569-
                                  from £11,120.69
                                  from £11,120.69
                                  # 001
                                  MPN: 283285
                                  COMPL. TUNNEL
                                  -Request ASM authorisation- -Not for GD- -Applicable from Ass. No. 101570-
                                  from £17,626.44
                                  from £17,626.44
                                  # 001
                                  MPN: 283384
                                  COMPL. TUNNEL
                                  -Request ASM authorisation- -Applicable for GD- -Applicable from Ass. No. 101570-
                                  from £10,773.17
                                  from £10,773.17
                                  # 002
                                  MPN: 265385
                                  RH SILL BEAM PILLAR SECTION
                                  -Request ASM authorisation- -Not for GD- -Applicable up to Ass. No. 131045-
                                  from £5,734.10
                                  from £5,734.10
                                  # 002
                                  MPN: 281402
                                  RH SILL BEAM PILLAR SECTION
                                  -Request ASM authorisation- -Applicable for GD- -Applicable up to Ass. No. 131045-
                                  from £5,734.10
                                  from £5,734.10
                                  # 002
                                  MPN: 322434
                                  RH SILL BEAM PILLAR SECTION
                                  -Request ASM authorisation- -Not for GD- -Applicable from Ass. No. 131046-
                                  # 002
                                  MPN: 323632
                                  RH SILL BEAM PILLAR SECTION
                                  -Request ASM authorisation- -Applicable for GD- -Applicable from Ass. No. 131046-
                                  # 003
                                  MPN: 265384
                                  LH SILL BEAM PILLAR SECTION
                                  -Request ASM authorisation- -Applicable up to Ass. No. 131045-
                                  from £5,734.10
                                  from £5,734.10
                                  # 003
                                  MPN: 322423
                                  LH SILL BEAM PILLAR SECTION
                                  -Request ASM authorisation- -Applicable from Ass. No. 131046-
                                  # 004
                                  MPN: 265590
                                  INTERNAL RH FRONT TRUSS
                                  from £7.44
                                  from £7.44
                                  # 005
                                  MPN: 265591
                                  INTERNAL LH FRONT TRUSS
                                  from £7.44
                                  from £7.44
                                  # 006
                                  MPN: 265597
                                  EXTERNAL RH PILLAR TRUSS
                                  from £72.97
                                  from £72.97
                                  # 007
                                  MPN: 265598
                                  EXTERNAL LH PILLAR TRUSS
                                  from £34.01
                                  from £34.01
                                  # 008
                                  MPN: 265560
                                  FRONT FIREWALL
                                  -Not for GD-
                                  from £1,008.49
                                  from £1,008.49
                                  # 008
                                  MPN: 272427
                                  FRONT FIREWALL
                                  -Applicable for GD-
                                  from £1,008.49
                                  from £1,008.49
                                  # 009
                                  MPN: 265549
                                  WINDSCREEN VALENCE PANEL
                                  -Not for GD-
                                  from £1,395.62
                                  from £1,395.62
                                  # 009
                                  MPN: 276976
                                  WINDSCREEN VALENCE PANEL
                                  -Applicable for GD-
                                  from £2,343.38
                                  from £2,343.38
                                  # 010
                                  MPN: 266042
                                  RH SEMI-FLOOR
                                  from £285.09
                                  from £285.09
                                  # 011
                                  MPN: 266043
                                  LH SEMI-FLOOR
                                  from £285.09
                                  from £285.09
                                  # 012
                                  MPN: 257928
                                  INNER RH FRONT SEAT BRACKET
                                  from £18.69
                                  from £18.69
                                  # 013
                                  MPN: 257930
                                  INNER LH FRONT SEAT BRACKET
                                  from £36.49
                                  from £36.49
                                  # 014
                                  MPN: 259981
                                  INNER RH REAR SEAT BRACKET
                                  from £15.57
                                  from £15.57
                                  # 015
                                  MPN: 259980
                                  INNER LH REAR SEAT BRACKET
                                  from £51.23
                                  from £51.23
                                  # 016
                                  MPN: 265601
                                  OUTER RH FRONT SEAT BRACKET
                                  from £39.26
                                  from £39.26
                                  # 017
                                  MPN: 265602
                                  OUTER LH FRONT SEAT BRACKET
                                  from £39.26
                                  from £39.26
                                  # 018
                                  MPN: 271343
                                  OUTER RH REAR SEAT BRACKET
                                  from £218.92
                                  from £218.92
                                  # 019
                                  MPN: 271342
                                  OUTER LH REAR SEAT BRACKET
                                  from £218.92
                                  from £218.92
                                  # 020
                                  MPN: 270166
                                  RH BRACE
                                  from £72.97
                                  from £72.97
                                  # 021
                                  MPN: 270165
                                  LH BRACE
                                  from £30.80
                                  from £30.80
                                  # 022
                                  MPN: 265595
                                  INTERNAL RH PILLAR TRUSS
                                  -Applicable after depletion of 266041-
                                  Supersession
                                  Supersession
                                  This part replaces part number 266041
                                  # 022
                                  MPN: 266041
                                  INTERNAL RH PILLAR TRUSS
                                  -Applicable until depletion-
                                  Supersession
                                  Supersession
                                  # 023
                                  MPN: 265596
                                  INTERNAL LH PILLAR TRUSS
                                  -Applicable after depletion of 266040-
                                  from £291.92
                                  from £291.92
                                  This part replaces part number 266040
                                  # 023
                                  MPN: 266040
                                  INTERNAL LH PILLAR TRUSS
                                  -Applicable until depletion-
                                  Supersession
                                  Supersession
                                  Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
