0104 - STRUCTURES AND ELEMENTS, REAR OF VEHICLE

Ferrari FF (Europe) STRUCTURES AND ELEMENTS, REAR OF VEHICLE Parts Diagram

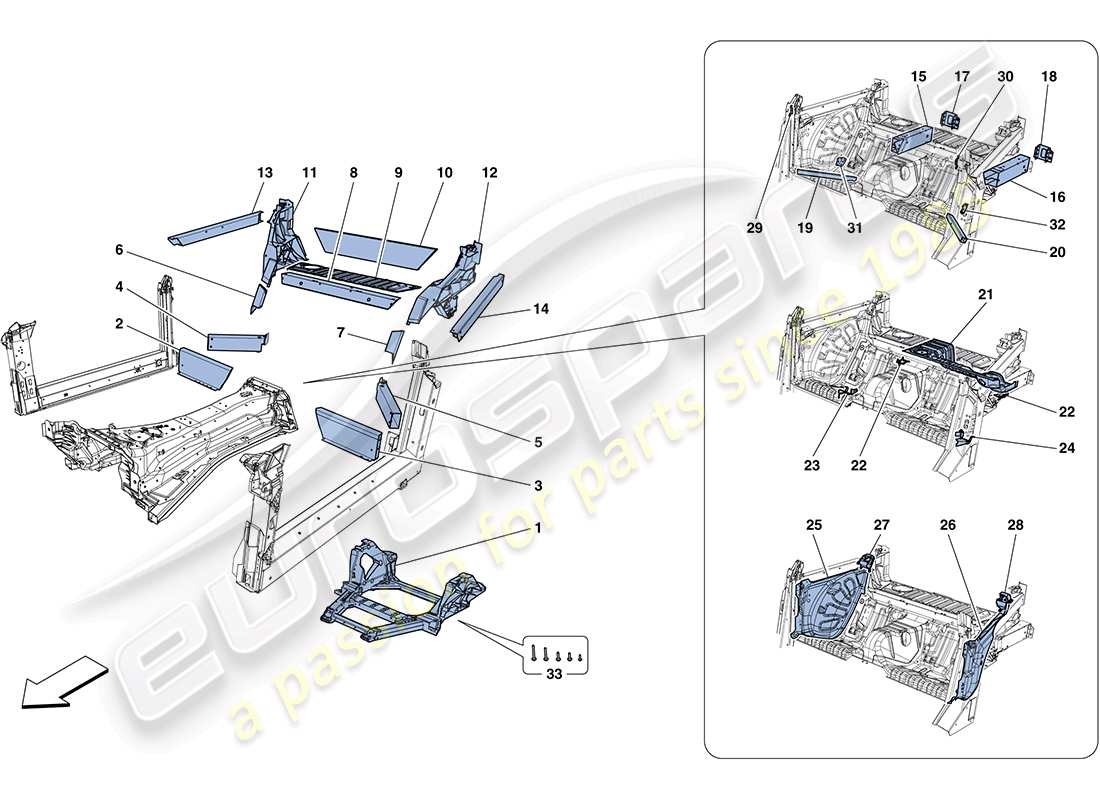

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Key
                                            Price
                                            # 001
                                            MPN: 265466
                                            REAR SUBFRAME
                                            -Request ASM authorisation- -Applicable up to Ass. No. 100296-
                                            from £7,339.50
                                            from £7,339.50
                                            REAR SUBFRAME Genuine Ferrari Part - New In stock
                                            REAR SUBFRAME Genuine Ferrari Part - Used In stock
                                            # 001
                                            MPN: 277269
                                            REAR SUBFRAME
                                            -Request ASM authorisation- -Applicable from Ass. No. 100297 up to Ass. No. 100724-
                                            from £9,487.32
                                            from £9,487.32
                                            REAR SUBFRAME -ASK SAT AUTHO Genuine Ferrari Part - New (to order)
                                            # 001
                                            MPN: 277409
                                            REAR SUBFRAME
                                            -Request ASM authorisation- -Applicable from Ass. No. 100725 up to Ass. No. 101569-
                                            from £7,649.84
                                            from £7,649.84
                                            REAR SUBFRAME Genuine Ferrari Part - New (to order)
                                            # 001
                                            MPN: 283293
                                            REAR SUBFRAME
                                            -Request ASM authorisation- -Applicable from Ass. No. 101570- -Applicable until depletion-
                                            Supersession
                                            Supersession
                                            Genuine Ferrari Part (no longer available to order)
                                            # 001
                                            MPN: 289251
                                            REAR SUBFRAME
                                            -Request ASM authorisation- -Applicable from Ass. No. 101570- -Applicable after depletion of 283293-
                                            from £9,487.32
                                            from £9,487.32
                                            This part replaces part number 283293
                                            REAR SUBFRAME Genuine Ferrari Part - New (to order)
                                            # 002
                                            MPN: 265293
                                            RH LOWER REAR FLOOR CROSS-PIECE
                                            -Request ASM authorisation- -Applicable up to Ass. No. 100296-
                                            from £145.95
                                            from £145.95
                                            RH LOWER REAR FLOOR CROSS-PI Genuine Ferrari Part - New (to order)
                                            # 002
                                            MPN: 276482
                                            RH LOWER REAR FLOOR CROSS-PIECE
                                            -Request ASM authorisation- -Applicable from Ass. No. 100297-
                                            from £234.33
                                            from £234.33
                                            RH LOWER REAR FLOOR CROSS-PI Genuine Ferrari Part - New (to order)
                                            # 003
                                            MPN: 265292
                                            LH LOWER REAR FLOOR CROSS-PIECE
                                            -Request ASM authorisation- -Applicable up to Ass. No. 100296-
                                            from £145.95
                                            from £145.95
                                            LH LOWER REAR FLOOR CROSS-PI Genuine Ferrari Part - New (to order)
                                            # 003
                                            MPN: 276481
                                            LH LOWER REAR FLOOR CROSS-PIECE
                                            -Request ASM authorisation- -Applicable from Ass. No. 100297-
                                            from £261.11
                                            from £261.11
                                            LH LOWER REAR FLOOR CROSS-PI Genuine Ferrari Part - New (to order)
                                            # 004
                                            MPN: 265600
                                            WER RH REAR DIAGONAL BRACE
                                            -Request ASM authorisation-
                                            from £437.87
                                            from £437.87
                                            WER RH REAR DIAGONAL BRACE - Genuine Ferrari Part - New (to order)
                                            # 005
                                            MPN: 265599
                                            LOWER LH REAR DIAGONAL BRACE
                                            -Request ASM authorisation-
                                            from £437.87
                                            from £437.87
                                            LOWER LH REAR DIAGONAL BRACE Genuine Ferrari Part - New (to order)
                                            # 006
                                            MPN: 275088
                                            RH REAR SEAT BASE UPRIGHT
                                            from £36.93
                                            from £36.93
                                            RH REAR SEAT BASE UPRIGHT Genuine Ferrari Part - New (to order)
                                            # 007
                                            MPN: 275089
                                            LH REAR SEAT BASE UPRIGHT
                                            from £87.57
                                            from £87.57
                                            LH REAR SEAT BASE UPRIGHT Genuine Ferrari Part - New (to order)
                                            # 008
                                            MPN: 265237
                                            REAR CROSS-PIECE OF FRONT STEP
                                            from £291.92
                                            from £291.92
                                            REAR CROSS-PIECE OF FRONT ST Genuine Ferrari Part - New (to order)
                                            # 009
                                            MPN: 265225
                                            TANK COVER
                                            from £174.09
                                            from £174.09
                                            TANK COVER Genuine Ferrari Part - New (to order)
                                            # 010
                                            MPN: 265224
                                            REAR CROSS-PIECE OF REAR STEP
                                            from £674.98
                                            from £674.98
                                            REAR CROSS-PIECE OF REAR STE Genuine Ferrari Part - New (to order)
                                            # 011
                                            MPN: 275082
                                            RH UPPER REAR SUSPENSION MOUNT CASTING
                                            -Request ASM authorisation- -Applicable up to Ass. No. 100724-
                                            from £6,950.42
                                            from £6,950.42
                                            RH UPPER REAR SUSPENSION MOU Genuine Ferrari Part - New (to order)
                                            # 011
                                            MPN: 277251
                                            RH UPPER REAR SUSPENSION MOUNT CASTING
                                            -Request ASM authorisation- -Applicable from Ass. No. 100725- -Applicable until depletion-
                                            Supersession
                                            Supersession
                                            Genuine Ferrari Part (no longer available to order)
                                            # 011
                                            MPN: 280366
                                            RH UPPER REAR SUSPENSION MOUNT CASTING
                                            -Request ASM authorisation- -Applicable from Ass. No. 100725- -Applicable after depletion of 277251-
                                            from £5,155.44
                                            from £5,155.44
                                            This part replaces part number 277251
                                            RH UPPER REAR SUSPENSION MOU Genuine Ferrari Part - New (to order)
                                            # 012
                                            MPN: 275083
                                            LH UPPER REAR SUSPENSION MOUNT CASTING
                                            -Request ASM authorisation- -Applicable up to Ass. No. 100724-
                                            from £6,950.42
                                            from £6,950.42
                                            LH UPPER REAR SUSPENSION MOU Genuine Ferrari Part - New (to order)
                                            # 012
                                            MPN: 277250
                                            LH UPPER REAR SUSPENSION MOUNT CASTING
                                            -Request ASM authorisation- -Applicable from Ass. No. 100725- -Applicable until depletion-
                                            Supersession
                                            Supersession
                                            Genuine Ferrari Part (no longer available to order)
                                            # 012
                                            MPN: 280367
                                            LH UPPER REAR SUSPENSION MOUNT CASTING
                                            -Request ASM authorisation- -Applicable from Ass. No. 100725- -Applicable after depletion of 277250-
                                            from £5,155.44
                                            from £5,155.44
                                            This part replaces part number 277250
                                            LH UPPER REAR SUSPENSION MOU Genuine Ferrari Part - New (to order)
                                            # 013
                                            MPN: 265276
                                            RH UPPER REAR DIAGONAL BRACE
                                            -Applicable up to Ass. No. 131045-
                                            from £81.00
                                            from £81.00
                                            RH UPPER REAR DIAGONAL BRACE Genuine Ferrari Part - New (to order)
                                            # 013
                                            MPN: 322442
                                            RH UPPER REAR DIAGONAL BRACE
                                            -Applicable from Ass. No. 131046-
                                            from £1,094.70
                                            from £1,094.70
                                            RH UPPER REAR DIAGONAL BRACE Genuine Ferrari Part - New (to order)
                                            # 014
                                            MPN: 265275
                                            LH UPPER REAR DIAGONAL BRACE
                                            -Applicable up to Ass. No. 131045-
                                            from £81.00
                                            from £81.00
                                            LH UPPER REAR DIAGONAL BRACE Genuine Ferrari Part - New (to order)
                                            # 014
                                            MPN: 322432
                                            LH UPPER REAR DIAGONAL BRACE
                                            -Applicable from Ass. No. 131046-
                                            from £1,094.70
                                            from £1,094.70
                                            LH UPPER REAR DIAGONAL BRACE Genuine Ferrari Part - New (to order)
                                            # 015
                                            MPN: 275159
                                            REAR RH STRUT
                                            from £176.30
                                            from £176.30
                                            REAR RH STRUT Genuine Ferrari Part - New (to order)
                                            REAR RH STRUT Genuine Ferrari Part - Used In stock
                                            # 016
                                            MPN: 275160
                                            REAR LH STRUT
                                            from £176.30
                                            from £176.30
                                            REAR LH STRUT Genuine Ferrari Part - New (to order)
                                            REAR LH STRUT Genuine Ferrari Part - Used In stock
                                            # 017
                                            MPN: 265213
                                            REAR RH STRUT FLANGE
                                            from £109.48
                                            from £109.48
                                            REAR RH STRUT FLANGE Genuine Ferrari Part - New (to order)
                                            # 018
                                            MPN: 268662
                                            REAR LH STRUT FLANGE
                                            from £109.48
                                            from £109.48
                                            REAR LH STRUT FLANGE Genuine Ferrari Part - New (to order)
                                            # 019
                                            MPN: 275092
                                            LOWER RH REAR JOINT REINFORCEMENT
                                            from £102.17
                                            from £102.17
                                            LOWER RH REAR JOINT REINFORC Genuine Ferrari Part - New (to order)
                                            # 020
                                            MPN: 275093
                                            LOWER LH REAR JOINT REINFORCEMENT
                                            from £68.16
                                            from £68.16
                                            LOWER LH REAR JOINT REINFORC Genuine Ferrari Part - New (to order)
                                            # 021
                                            MPN: 268922
                                            REAR SERVICES TRAY
                                            from £736.49
                                            from £736.49
                                            REAR SERVICES TRAY Genuine Ferrari Part - New (to order)
                                            # 022
                                            MPN: 265936
                                            REAR TORSION BAR MOUNTING BRACKET
                                            from £14.09
                                            from £14.09
                                            REAR TORSION BAR MOUNTING BR Genuine Ferrari Part - New (to order)
                                            # 023
                                            MPN: 275239
                                            RH REAR BRAKE HOSE FASTENER BRACKET
                                            from £65.68
                                            from £65.68
                                            RH REAR BRAKE HOSE FASTENER Genuine Ferrari Part - New (to order)
                                            # 024
                                            MPN: 275235
                                            LH REAR BRAKE HOSE FASTENER BRACKET
                                            from £71.00
                                            from £71.00
                                            LH REAR BRAKE HOSE FASTENER Genuine Ferrari Part - New (to order)
                                            # 025
                                            MPN: 266135
                                            RH REAR WHEELHOUSE
                                            -Applicable up to Ass. No. 131045- -Applicable until depletion-
                                            Supersession
                                            Supersession
                                            Genuine Ferrari Part (no longer available to order)
                                            # 025
                                            MPN: 280202
                                            RH REAR WHEELHOUSE
                                            -Applicable up to Ass. No. 131045- -Applicable after depletion of 266135-
                                            from £434.11
                                            from £434.11
                                            This part replaces part number 266135
                                            RH REAR WHEELHOUSE Genuine Ferrari Part - New (to order)
                                            # 025
                                            MPN: 322449
                                            RH REAR WHEELHOUSE
                                            -Applicable from Ass. No. 131046-
                                            from £401.63
                                            from £401.63
                                            RH REAR WHEELHOUSE Genuine Ferrari Part - New (to order)
                                            # 026
                                            MPN: 266134
                                            LH REAR WHEELHOUSE
                                            -Applicable up to Ass. No. 131045- -Applicable until depletion-
                                            Supersession
                                            Supersession
                                            Genuine Ferrari Part (no longer available to order)
                                            # 026
                                            MPN: 280200
                                            LH REAR WHEELHOUSE
                                            -Applicable up to Ass. No. 131045- -Applicable after depletion of 266134-
                                            from £398.26
                                            from £398.26
                                            This part replaces part number 266134
                                            LH REAR WHEELHOUSE Genuine Ferrari Part - New (to order)
                                            # 026
                                            MPN: 322445
                                            LH REAR WHEELHOUSE
                                            -Applicable from Ass. No. 131046-
                                            from £366.42
                                            from £366.42
                                            LH REAR WHEELHOUSE Genuine Ferrari Part - New (to order)
                                            # 027
                                            MPN: 271517
                                            RH SEAT LATCH FASTENER BRACKET
                                            from £277.33
                                            from £277.33
                                            RH SEAT LATCH FASTENER BRACK Genuine Ferrari Part - New (to order)
                                            # 028
                                            MPN: 271511
                                            LH SEAT LATCH FASTENER BRACKET
                                            from £277.33
                                            from £277.33
                                            LH SEAT LATCH FASTENER BRACK Genuine Ferrari Part - New (to order)
                                            # 029
                                            MPN: 272904
                                            SIDE PANEL FASTENER BRACKET ON RH PILLAR
                                            from £6.34
                                            from £6.34
                                            SIDE PANEL FASTENER BRACKET Genuine Ferrari Part - New (to order)
                                            # 030
                                            MPN: 272903
                                            SIDE PANEL FASTENER BRACKET ON LH PILLAR
                                            from £23.82
                                            from £23.82
                                            SIDE PANEL FASTENER BRACKET Genuine Ferrari Part - New (to order)
                                            # 031
                                            MPN: 269847
                                            RH LATERAL SEAT BELT MOUNTING BRACKET
                                            from £36.49
                                            from £36.49
                                            RH LATERAL SEAT BELT MOUNTIN Genuine Ferrari Part - New (to order)
                                            # 032
                                            MPN: 269846
                                            LH LATERAL SEAT BELT MOUNTING BRACKET
                                            from £11.59
                                            from £11.59
                                            LH LATERAL SEAT BELT MOUNTIN Genuine Ferrari Part - New (to order)
                                            # 033
                                            MPN: 239867
                                            SCREW
                                            -M12 X 1.75 X 45-
                                            from £1.29
                                            from £1.29
                                            SCREW Genuine Ferrari Part - New (to order)
                                            # 033
                                            MPN: 268291
                                            SCREW
                                            -M10 X 1.25 X 50-
                                            from £2.40
                                            from £2.40
                                            SCREW Genuine Ferrari Part - New (to order)
                                            # 033
                                            MPN: 268294
                                            SCREW
                                            -M10 X 1.25 X 85-
                                            from £2.62
                                            from £2.62
                                            SCREW Genuine Ferrari Part - New (to order)
                                            # 033
                                            MPN: 268371
                                            SCREW
                                            -M12 X 1.75 X 100-
                                            from £10.45
                                            from £10.45
                                            SCREW Genuine Ferrari Part - New (to order)
                                            # 033
                                            MPN: 277287
                                            SCREW
                                            -M10 X 1.25 X 40-
                                            from £8.04
                                            from £8.04
                                            SCREW Genuine Ferrari Part - New (to order)
