ferrari ff (europe) flat undertray and wheelhouses parts diagram

0106 - FLAT UNDERTRAY AND WHEELHOUSES

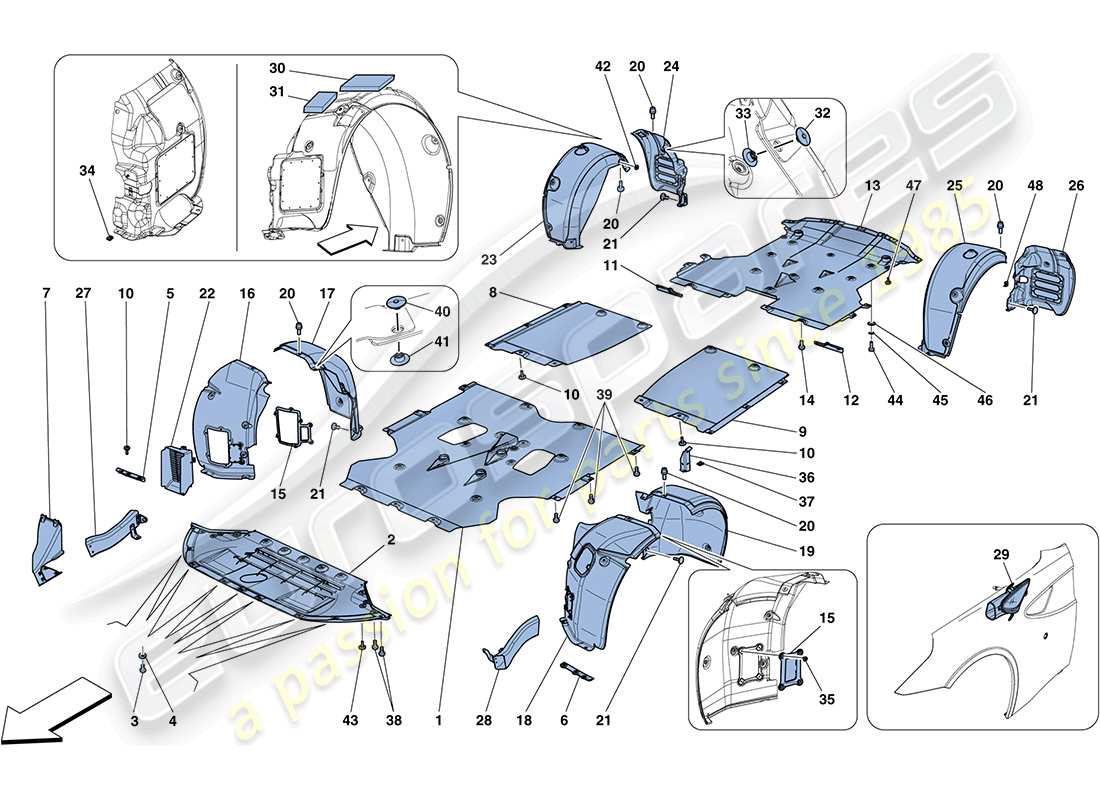

Ferrari FF (Europe) FLAT UNDERTRAY AND WHEELHOUSES Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Key
                                                Price
                                                # 001
                                                MPN: 84056800
                                                COMPL. FRONT FLAT UNDERTRAY SECTION
                                                from £676.98
                                                from £676.98
                                                FRONT FLAT UNDERTRAY SECTION Genuine Ferrari Part - New (to order)
                                                # 002
                                                MPN: 84056900
                                                CONNECTION FROM FRONT FLAT UNDERTRAY SECTION TO BUMPER
                                                from £240.62
                                                from £240.62
                                                Front Undertray Genuine Ferrari Part - New (to order)
                                                # 003
                                                MPN: 83442900
                                                SCREW
                                                -M6 X 22-
                                                from £0.52
                                                from £0.52
                                                This part replaces part number 80874700
                                                SCREW M6 x 22 Genuine Ferrari Part - New In stock
                                                # 004
                                                MPN: 105864
                                                WASHER
                                                -D. 6.5-24 X 1.5- -Installed if necessary-
                                                from £0.91
                                                from £0.91
                                                This part replaces part number 95404
                                                WASHER Genuine Ferrari Part - New In stock
                                                # 004
                                                MPN: 14496624
                                                WASHER
                                                -D. 10.5-21 X 2- -Installed if necessary-
                                                from £0.52
                                                from £0.52
                                                This part replaces part number 14496601 - and 2 more. Click to view details
                                                WASHER Genuine Ferrari Part - New In stock
                                                WASHER Genuine Maserati Part - New (to order)
                                                # 005
                                                MPN: 83719100
                                                RH FRONT DAM
                                                from £10.45
                                                from £10.45
                                                RH FRONT DAM Genuine Ferrari Part - New (to order)
                                                # 006
                                                MPN: 83719200
                                                LH FRONT DAM
                                                from £10.45
                                                from £10.45
                                                LH FRONT DAM Genuine Ferrari Part - New (to order)
                                                # 007
                                                MPN: 83565500
                                                RH AIR DUCT, FIXED PART
                                                -No longer supplied- -Replaced by 84092900-
                                                Supersession
                                                Supersession
                                                Genuine Ferrari Part (no longer available to order)
                                                # 007
                                                MPN: 84092900
                                                RH AIR DUCT, FIXED PART
                                                from £29.54
                                                from £29.54
                                                This part replaces part number 83565500
                                                RH AIR DUCT, FIXED PART Genuine Ferrari Part - New (to order)
                                                # 008
                                                MPN: 82602000
                                                RH CENTRE FLAT UNDERTRAY SECTION
                                                from £132.70
                                                from £132.70
                                                RH CENTRE FLAT UNDERTRAY SEC Genuine Ferrari Part - New (to order)
                                                # 009
                                                MPN: 82602100
                                                LH CENTRE FLAT UNDERTRAY SECTION
                                                from £132.70
                                                from £132.70
                                                LH CENTRE FLAT UNDERTRAY SECTION Genuine Ferrari Part - New In stock
                                                # 010
                                                MPN: 80874700
                                                SCREW
                                                -No longer supplied- -Replaced by 81290900-
                                                Supersession
                                                Supersession
                                                Genuine Ferrari Part (no longer available to order)
                                                # 010
                                                MPN: 81290900
                                                SCREW
                                                -M6 X 20 X 22-
                                                from £0.52
                                                from £0.52
                                                This part replaces part number 67578600
                                                SCREW WITH DOUBLE WASHER M6 x 20 x 22 Genuine Ferrari Part - New (to order)
                                                # 011
                                                MPN: 83719800
                                                RH REAR DAM
                                                -Applicable until depletion-
                                                Supersession
                                                Supersession
                                                Genuine Ferrari Part (no longer available to order)
                                                # 011
                                                MPN: 87469900
                                                RH REAR DAM
                                                -Applicable after depletion of 83719800-
                                                from £7.07
                                                from £7.07
                                                This part replaces part number 83719800
                                                RH REAR DAM Genuine Ferrari Part - New (to order)
                                                # 012
                                                MPN: 83719900
                                                LH REAR DAM
                                                -Applicable until depletion-
                                                Supersession
                                                Supersession
                                                Genuine Ferrari Part (no longer available to order)
                                                # 012
                                                MPN: 87470000
                                                LH REAR DAM
                                                -Applicable after depletion of 83719900-
                                                from £7.07
                                                from £7.07
                                                This part replaces part number 83719900
                                                LH REAR DAM Genuine Ferrari Part - New (to order)
                                                # 013
                                                MPN: 84057000
                                                REAR FLAT UNDERTRAY SECTION
                                                from £358.94
                                                from £358.94
                                                REAR FLAT UNDERTRAY SECTION Genuine Ferrari Part - New (to order)
                                                # 014
                                                MPN: 80874700
                                                SCREW
                                                -No longer supplied- -Replaced by 81290900-
                                                Supersession
                                                Supersession
                                                Genuine Ferrari Part (no longer available to order)
                                                # 014
                                                MPN: 81290900
                                                SCREW
                                                -M6 X 20 X 22-
                                                from £0.51
                                                from £0.51
                                                This part replaces part number 67578600
                                                SCREW WITH DOUBLE WASHER M6 x 20 x 22 Genuine Ferrari Part - New (to order)
                                                # 015
                                                MPN: 83584900
                                                RH SWITCH SURROUND
                                                from £35.82
                                                from £35.82
                                                This part replaces part number 83849900
                                                RH SWITCH SURROUND Genuine Ferrari Part - New (to order)
                                                # 015
                                                MPN: 83585000
                                                LH SWITCH SURROUND
                                                from £35.82
                                                from £35.82
                                                LH SWITCH SURROUND Genuine Ferrari Part - New (to order)
                                                # 015
                                                MPN: 83849900
                                                RH SWITCH SURROUND
                                                -No longer supplied- -Replaced by 83584900-
                                                Supersession
                                                Supersession
                                                Genuine Ferrari Part (no longer available to order)
                                                # 016
                                                MPN: 83296700
                                                COMPL. SHIELD FOR FRONT PART OF FRONT RH WHEEL BAY
                                                -Also order 83296900 ref. 17, 83296800 ref. 18, 83297000 ref. 19-
                                                from £493.48
                                                from £493.48
                                                This part replaces part number 83638700
                                                COMPL.SHIELD FOR FRONT RH Genuine Ferrari Part - New In stock
                                                # 016
                                                MPN: 83638700
                                                COMPL. SHIELD FOR FRONT PART OF FRONT RH WHEEL BAY
                                                -No longer supplied- -Replaced by 83296700-
                                                Supersession
                                                Supersession
                                                Genuine Ferrari Part (no longer available to order)
                                                # 017
                                                MPN: 83296900
                                                SHIELD FOR REAR PART OF FRONT RH WHEEL BAY
                                                -Also order 83296700 ref. 16, 83296800 ref. 18, 83297000 ref. 19-
                                                from £246.73
                                                from £246.73
                                                SHIELD FOR REAR PART OF FRON Genuine Ferrari Part - New (to order)
                                                # 018
                                                MPN: 83296800
                                                COMPL. SHIELD FOR FRONT PART OF FRONT LH WHEEL BAY
                                                -Also order 83296700 ref. 16, 83296900 ref. 17, 83297000 ref. 19-
                                                from £493.48
                                                from £493.48
                                                This part replaces part number 83638800
                                                COMPL.SHIELD FOR FRONT LH Genuine Ferrari Part - New (to order)
                                                # 018
                                                MPN: 83638800
                                                COMPL. SHIELD FOR FRONT PART OF FRONT LH WHEEL BAY
                                                -No longer supplied- -Replaced by 83296800-
                                                Supersession
                                                Supersession
                                                Genuine Ferrari Part (no longer available to order)
                                                # 019
                                                MPN: 83297000
                                                SHIELD FOR REAR PART OF FRONT LH WHEEL BAY
                                                -Also order 83296700 ref. 16, 83296900 ref. 17, 83296800 ref. 18-
                                                from £246.73
                                                from £246.73
                                                SHIELD FOR REAR PART OF FRON Genuine Ferrari Part - New (to order)
                                                # 020
                                                MPN: 80874900
                                                SCREW
                                                from £0.70
                                                from £0.70
                                                SCREW Genuine Ferrari Part - New In stock
                                                # 021
                                                MPN: 83222200
                                                FASTENER BUTTON
                                                from £0.50
                                                from £0.50
                                                This part replaces part number 80873600
                                                FIXING BUTTON Genuine Ferrari Part - New In stock
                                                # 022
                                                MPN: 83584800
                                                AIR OUTLET DUCT
                                                -No longer supplied- -Replaced by 84093000-
                                                Supersession
                                                Supersession
                                                Genuine Ferrari Part (no longer available to order)
                                                # 022
                                                MPN: 84093000
                                                AIR OUTLET DUCT
                                                from £159.11
                                                from £159.11
                                                This part replaces part number 83584800
                                                AIR OUTLET DUCT Genuine Ferrari Part - New (to order)
                                                # 023
                                                MPN: 84055400
                                                SHIELD FOR FRONT PART OF REAR RH WHEEL BAY
                                                -Not for Geneva version- -Also order 84055700 ref. 25-
                                                from £131.34
                                                from £131.34
                                                SHIELD FOR FRONT PART OF REA Genuine Ferrari Part - New In stock
                                                SHIELD FOR FRONT PART OF REA Genuine Ferrari Part - Used In stock
                                                # 023
                                                MPN: 86391800
                                                SHIELD FOR FRONT PART OF REAR RH WHEEL BAY
                                                -Applicable for Geneva version- -Also order 86392300 ref. 25-
                                                from £187.38
                                                from £187.38
                                                SHIELD FOR FRONT PART OF REA Genuine Ferrari Part - New (to order)
                                                # 024
                                                MPN: 84055200
                                                SHIELD FOR REAR PART OF REAR RH WHEEL BAY
                                                -Also order 84055600 ref. 26-
                                                from £235.76
                                                from £235.76
                                                SHIELD FOR REAR PART OF REAR Genuine Ferrari Part - New (to order)
                                                # 025
                                                MPN: 84055700
                                                SHIELD FOR FRONT PART OF REAR LH WHEEL BAY
                                                -Not for Geneva version- -Also order 84055400 ref. 23-
                                                from £238.80
                                                from £238.80
                                                SHIELD FOR FRONT PART OF REA Genuine Ferrari Part - New In stock
                                                # 025
                                                MPN: 86392300
                                                SHIELD FOR FRONT PART OF REAR LH WHEEL BAY
                                                -Applicable for Geneva version- -Also order 86391800 ref. 23-
                                                from £187.38
                                                from £187.38
                                                SHIELD FOR FRONT PART OF REA Genuine Ferrari Part - New (to order)
                                                # 026
                                                MPN: 84055600
                                                SHIELD FOR REAR PART OF REAR LH WHEEL BAY
                                                -Also order 84055200 ref. 24-
                                                from £235.76
                                                from £235.76
                                                SHIELD FOR REAR PART OF REAR Genuine Ferrari Part - New (to order)
                                                # 027
                                                MPN: 83565300
                                                RH BRAKE AIR DUCT
                                                from £172.95
                                                from £172.95
                                                RH BRAKE AIR DUCT Genuine Ferrari Part - New (to order)
                                                # 028
                                                MPN: 83565400
                                                LH BRAKE AIR DUCT
                                                from £172.95
                                                from £172.95
                                                LH BRAKE AIR DUCT Genuine Ferrari Part - New (to order)
                                                # 029
                                                MPN: 84243600
                                                FRONT RH FENDER AIR OUTLET DUCT
                                                -No longer supplied- -Replaced by 86015000-
                                                Supersession
                                                Supersession
                                                Genuine Ferrari Part (no longer available to order)
                                                # 029
                                                MPN: 84243700
                                                FRONT LH FENDER AIR OUTLET DUCT
                                                -No longer supplied- -Replaced by 86015100-
                                                Supersession
                                                Supersession
                                                Genuine Ferrari Part (no longer available to order)
                                                # 029
                                                MPN: 86015000
                                                FRONT RH FENDER AIR OUTLET DUCT
                                                from £355.16
                                                from £355.16
                                                This part replaces part number 84243600
                                                FRONT RH FENDER AIR OUTLET D Genuine Ferrari Part - New (to order)
                                                # 029
                                                MPN: 86015100
                                                FRONT LH FENDER AIR OUTLET DUCT
                                                from £355.16
                                                from £355.16
                                                This part replaces part number 84243700
                                                FRONT LH FENDER AIR OUTLET D Genuine Ferrari Part - New In stock
                                                # 030
                                                MPN: 84058800
                                                INSULATION FOR WHEELHOUSE
                                                -Applicable until depletion-
                                                from £13.21
                                                from £13.21
                                                INSULATION FOR WHEELHOUSE Genuine Ferrari Part - New (to order)
                                                # 031
                                                MPN: 84059100
                                                INSULATION FOR FUEL FILLER NECK
                                                from £7.20
                                                from £7.20
                                                INSULATION FOR FUEL FILLER N Genuine Ferrari Part - New (to order)
                                                # 032
                                                MPN: 84247300
                                                MALE CLIP
                                                from £0.83
                                                from £0.83
                                                MALE CLIP Genuine Ferrari Part - New In stock
                                                # 033
                                                MPN: 84247400
                                                FEMALE CLIP
                                                from £0.77
                                                from £0.77
                                                FEMALE CLIP Genuine Ferrari Part - New In stock
                                                # 034
                                                MPN: 80874300
                                                CLIP
                                                from £0.56
                                                from £0.56
                                                CLIP Genuine Ferrari Part - New In stock
                                                # 035
                                                MPN: 256490
                                                SCREW
                                                from £1.14
                                                from £1.14
                                                This part replaces part number 86607000
                                                SCREW Genuine Ferrari Part - New (to order)
                                                # 036
                                                MPN: 84151800
                                                RH MOUNT BRACKET
                                                -Applicable up to Ass. No. 107347-
                                                from £79.28
                                                from £79.28
                                                RH MOUNT BRACKET Genuine Ferrari Part - New (to order)
                                                # 036
                                                MPN: 84486400
                                                LH MOUNT BRACKET
                                                -Applicable up to Ass. No. 107347-
                                                from £79.28
                                                from £79.28
                                                LH MOUNT BRACKET Genuine Ferrari Part - New (to order)
                                                # 036
                                                MPN: 84920500
                                                RH MOUNT BRACKET
                                                -Applicable from Ass. No. 107348-
                                                from £11.53
                                                from £11.53
                                                RH MOUNT BRACKET Genuine Ferrari Part - New (to order)
                                                # 036
                                                MPN: 84920600
                                                LH MOUNT BRACKET
                                                -Applicable from Ass. No. 107348-
                                                from £11.53
                                                from £11.53
                                                LH MOUNT BRACKET Genuine Ferrari Part - New (to order)
                                                # 037
                                                MPN: 66927700
                                                BRACKET
                                                from £0.77
                                                from £0.77
                                                BRACKET. Genuine Ferrari Part - New In stock
                                                # 038
                                                MPN: 83442900
                                                SCREW
                                                -M6 X 22-
                                                from £0.52
                                                from £0.52
                                                This part replaces part number 80874700
                                                SCREW M6 x 22 Genuine Ferrari Part - New In stock
                                                # 039
                                                MPN: 83442900
                                                SCREW
                                                -M6 X 22-
                                                from £0.52
                                                from £0.52
                                                This part replaces part number 80874700
                                                SCREW M6 x 22 Genuine Ferrari Part - New In stock
                                                # 040
                                                MPN: 84247300
                                                MALE CLIP
                                                from £0.81
                                                from £0.81
                                                MALE CLIP Genuine Ferrari Part - New In stock
                                                # 041
                                                MPN: 84247400
                                                FEMALE CLIP
                                                from £0.75
                                                from £0.75
                                                FEMALE CLIP Genuine Ferrari Part - New In stock
                                                # 042
                                                MPN: 12643778
                                                WASHER
                                                from £0.54
                                                from £0.54
                                                This part replaces part number 12643777 - and 1 more. Click to view details
                                                WASHER Genuine Ferrari Part - New In stock
                                                WASHER Genuine Maserati Part - New (to order)
                                                # 043
                                                MPN: 83442900
                                                SCREW
                                                -M6 X 22-
                                                from £0.53
                                                from £0.53
                                                This part replaces part number 80874700
                                                SCREW M6 x 22 Genuine Ferrari Part - New In stock
                                                # 044
                                                MPN: 10902824
                                                SCREW
                                                -M6 X 30-
                                                from £0.53
                                                from £0.53
                                                This part replaces part number 10902821 which we have in stock
                                                SCREW. Genuine Ferrari Part - New In stock
                                                # 045
                                                MPN: 11197774
                                                WASHER
                                                from £0.53
                                                from £0.53
                                                This part replaces part number 11197770 - and 3 more. Click to view details
                                                WASHER Genuine Ferrari Part - New In stock
                                                WASHER Genuine Maserati Part - New In stock
                                                # 046
                                                MPN: 12640624
                                                WASHER
                                                from £0.53
                                                from £0.53
                                                This part replaces part number 12640601 - and 1 more. Click to view details
                                                WASHER Genuine Ferrari Part - New In stock
                                                WASHER Genuine Maserati Part - New In stock
                                                # 047
                                                MPN: 82115900
                                                SCREW
                                                -M6 X 14-
                                                from £0.53
                                                from £0.53
                                                SCREW Genuine Ferrari Part - New In stock
                                                # 048
                                                MPN: 81182200
                                                CLIP
                                                from £0.48
                                                from £0.48
                                                CLIP Genuine Ferrari Part - New (to order)
                                                Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
