0137 - INFOTAINMENT SYSTEM

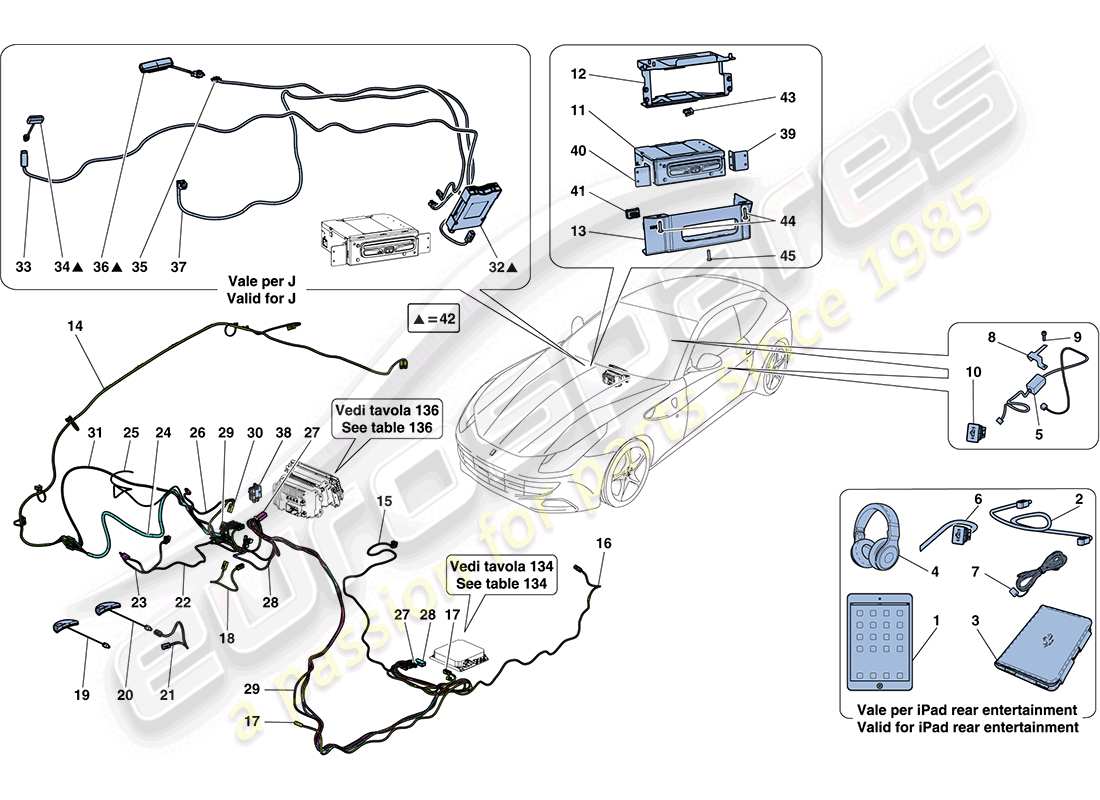

Ferrari FF (Europe) INFOTAINMENT SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 303248
MINI IPAD
-Black- -iPad rear entertainment- -Applicable until depletion-
from £1,479.33
from £1,479.33
MINI IPAD Genuine Ferrari Part - New (to order)
# 001
MPN: 303528
MINI IPAD
-White- -iPad rear entertainment- -Applicable until depletion-
from £1,479.33
from £1,479.33
MINI IPAD Genuine Ferrari Part - New (to order)
# 002
MPN: 302335
ECU-USB CONNECTION WIRING HARNESS
-iPad rear entertainment-
from £81.67
from £81.67
ECU-USB CONNECTION WIRING HA Genuine Ferrari Part - New (to order)
# 003
MPN: 857325..
IPAD CONTAINER
-Leather- -iPad rear entertainment- -STC1- -STC2-
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 004
MPN: 303247
BT BEATS HEADPHONES
-Black- -iPad rear entertainment- -No longer supplied-
from £627.14
from £627.14
BT BEATS HEADPHONES Genuine Ferrari Part - New (to order)
# 004
MPN: 303529
BT BEATS HEADPHONES
-White- -iPad rear entertainment-
from £627.14
from £627.14
BT BEATS HEADPHONES Genuine Ferrari Part - New (to order)
# 005
MPN: 301120
ECU USB
-Applicable for Geneva version- -Not for version with Apple Car Play-
from £96.96
from £96.96
ECU USB Genuine Ferrari Part - New (to order)
# 005
MPN: 302333
ECU USB
-iPad rear entertainment-
from £185.59
from £185.59
ECU USB Genuine Ferrari Part - New In stock
# 006
MPN: 288974
USB SOCKET
-iPad rear entertainment-
from £32.92
from £32.92
USB SOCKET Genuine Ferrari Part - New (to order)
# 007
MPN: 302327
USB CONNECTOR CABLE
-iPad rear entertainment-
from £111.37
from £111.37
USB CONNECTOR CABLE Genuine Ferrari Part - New (to order)
# 008
MPN: 302281
ECU USB MOUNTING BRACKET
-iPad rear entertainment- -Q.ty 1 from Ass.ly No. 125671-
from £7.28
from £7.28
BRACKET Genuine Ferrari Part - New (to order)
# 008
MPN: 311363
BRACKET
-Applicable for Geneva version- -Not for version with Apple Car Play-
from £22.28
from £22.28
BRACKET Genuine Ferrari Part - New (to order)
# 009
MPN: 14303024
SCREW
-M4 X 12- -iPad rear entertainment-
from £0.53
from £0.53
This part replaces part number 14303021 - and 1 more. Click to view details
SCREW Genuine Ferrari Part - New In stock
SCREW (14303024) Genuine Maserati Part - New (to order)
# 010
MPN: 303226
USB SOCKET
-Applicable for Geneva version- -Not for version with Apple Car Play-
from £18.99
from £18.99
USB SOCKET Genuine Ferrari Part - New (to order)
USB SOCKET Genuine Ferrari Part - Used In stock
# 010
MPN: 309772
USB PORT
-Applicable for Geneva version- -Version with Apple Car Play-
from £74.03
from £74.03
USB SOCKET Genuine Ferrari Part - New In stock
# 011
MPN: 287511
CD READER
-Applicable for Geneva version- -Version with CD reader-
from £427.61
from £427.61
CD READER Genuine Ferrari Part - New (to order)
# 012
MPN: 86473000
CD MOUNTING BRACKET
-Applicable for Geneva version- -Version with CD reader- -Applicable until depletion-
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 012
MPN: 87223700
CD MOUNTING BRACKET
-Applicable for Geneva version- -Version with CD reader- -Applicable after depletion of 86473000-
from £74.54
from £74.54
This part replaces part number 86473000
CD MOUNTING BRACKET Genuine Ferrari Part - New (to order)
# 013
MPN: 86472900
GLOVE BOX CD HOLDER
-Applicable for Geneva version- -Version with CD reader- -Not for GD-
from £57.17
from £57.17
GLOVE BOX CD HOLDER Genuine Ferrari Part - New (to order)
# 013
MPN: 86518100
GLOVE BOX CD HOLDER
-Applicable for Geneva version- -Version with CD reader- -Applicable for GD-
from £74.23
from £74.23
GLOVE BOX CD HOLDER Genuine Ferrari Part - New (to order)
# 014
MPN: 311373
PASSENGER COMPARTMENT AM/FM1/FM2/DAB ANTENNA CABLE
-Applicable for Geneva version- -Not for LIB-EG-TUR-ISR-TAI- -Applicable for UK and Eire-
from £59.34
from £59.34
PASSENGER COMPARTMENT AM/FM1 Genuine Ferrari Part - New (to order)
PASSENGER COMPARTMENT AM/FM1 Genuine Ferrari Part - Used In stock
# 014
MPN: 311724
PASSENGER COMPARTMENT AM/FM1/FM2/DAB ANTENNA CABLE
-Applicable for Geneva version- -Applicable for Mexico-
from £43.59
from £43.59
PASSENGER COMPARTMENT AM/FM1 Genuine Ferrari Part - New (to order)
# 014
MPN: 311726
PASSENGER COMPARTMENT AM/FM1/FM2 ANTENNA CABLE
-Applicable for Geneva version- -Applicable for LIB-EG-TUR-ISR-TAIW-IND-INDONESIA-MAL-SIN-THA-SA-MALAYSIA-BRU-CYPRUS-HK-IRAN- -Not for Mexico- -Applicable for AUS, CINA, GOLFO, J-
from £74.68
from £74.68
PASSENGER COMPARTMENT AM/FM1 Genuine Ferrari Part - New (to order)
# 015
MPN: 309771
NDM USB CABLE
-Applicable for Geneva version- -Version with Apple Car Play- -Applicable until depletion-
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 015
MPN: 311948
NDM USB CABLE
-Applicable for Geneva version- -Version with Apple Car Play- -Applicable after depletion of 309771-
from £92.08
from £92.08
This part replaces part number 309771 - and 2 more. Click to view details
USB-NDM SOCKET CABLE Genuine Ferrari Part - New (to order)
USB-NDM SOCKET CABLE Genuine Ferrari Part - Used In stock
# 016
MPN: 309774
WIFI ANTENNA CABLE
-Applicable for Geneva version- -Version with Apple Car Play-
from £32.07
from £32.07
WIFI ANTENNA CABLE Genuine Ferrari Part - New (to order)
# 017
MPN: 309760
NDC/NIT VIDEO CABLE
-Applicable for Geneva version- -Not for version with Apple Car Play- -Version with front camera with dual view-
from £185.59
from £185.59
NDC/NIT VIDEO CABLE Genuine Ferrari Part - New (to order)
# 018
MPN: 309775
SPLITTER/NIT GPS CABLE
-Applicable for Geneva version- -Version with Apple Car Play- -Not for USA, CDN, USA LIGHT-
from £21.16
from £21.16
SPLITTER/NIT GPS CABLE Genuine Ferrari Part - New (to order)
# 019
MPN: 286160
BLUETOOTH ANTENNA
-Applicable for Geneva version-
from £165.13
from £165.13
BLUETOOTH ANTENNA Genuine Ferrari Part - New In stock
BLUETOOTH ANTENNA Genuine Ferrari Part - Used In stock
# 020
MPN: 286161
WI-FI ANTENNA
-Applicable for Geneva version- -Version with Apple Car Play-
from £73.80
from £73.80
WI-FI ANTENNA Genuine Ferrari Part - New (to order)
WI-FI ANTENNA Genuine Ferrari Part - Used In stock
# 021
MPN: 300328
WI-FI/NTM ANTENNA EXTENSION
-Applicable for Geneva version- -Version with Apple Car Play-
from £68.22
from £68.22
WI-FI/NTM ANTENNA EXTENSION Genuine Ferrari Part - New (to order)
# 022
MPN: 310654
VP4-DISCONNECTOR CONNECTOR CABLE
-Applicable for Geneva version- -Version without CD player-
from £38.62
from £38.62
VP4-DISCONNECTOR CONNECTOR C Genuine Ferrari Part - New (to order)
# 023
MPN: 310655
USB-DISCONNECTOR CONNECTOR CABLE
-Applicable for Geneva version- -Version without CD player-
from £69.20
from £69.20
USB-DISCONNECTOR CONNECTOR C Genuine Ferrari Part - New (to order)
# 024
MPN: 307690
DASHBOARD AM/FM/DAB RADIO ANTENNA CABLE
-Applicable for Geneva version- -Applicable for Eire- -Not for LIB-EG-TUR-ISR-TAI- -Applicable for EU GS, CINA, GOLFO, UK-
from £32.96
from £32.96
DASHBOARD AM/FM/DAB RADIO AN Genuine Ferrari Part - New (to order)
DASHBOARD AM/FM/DAB RADIO AN Genuine Ferrari Part - Used In stock
# 025
MPN: 281971
USB / NIT / RHR CABLE
-Applicable for Geneva version- -Not for passenger display version-
from £29.39
from £29.39
This part replaces part number 275284 - and 1 more. Click to view details
USB-NIT-RHR CABLE Genuine Ferrari Part - New In stock
USB-NIT-RHR CABLE Genuine Ferrari Part - Used In stock
# 026
MPN: 311322
GPS ANTENNA EXTENSION CABLE
-Applicable for Geneva version- -Version with Apple Car Play- -After depletion, order 311635 ref. 30 for all versions- -Not for USA, CDN, USA LIGHT- -Applicable until depletion-
from £18.48
from £18.48
GPS ANTENNA EXTENSION CABLE Genuine Ferrari Part - New (to order)
# 027
MPN: 309773
NDM/NDR LVDS VIDEO CABLE
-Applicable for Geneva version- -Version with Apple Car Play-
from £356.35
from £356.35
NDM/NDR LVDS VIDEO CABLE Genuine Ferrari Part - New (to order)
# 028
MPN: 311025
VP4/NDM LVDS CABLE
-Applicable for Geneva version- -Version with Apple Car Play-
from £463.99
from £463.99
VP4/NDM LVDS CABLE Genuine Ferrari Part - New In stock
# 029
MPN: 309777
SPLITTER/NDM GPS CABLE
-Applicable for Geneva version- -Version with Apple Car Play- -Not for Turkey and Israel- -Applicable for Mexico, Eire, India, Indonesia, Singapore, MAL, SA, Malaysia- -Applicable for EU GS, AUS, CINA, GOLFO, UK, J-
from £43.14
from £43.14
SPLITTER/NDM GPS CABLE Genuine Ferrari Part - New (to order)
# 029
MPN: 311729
SPLITTER/NDM GPS CABLE
-Applicable for Geneva version- -Version with Apple Car Play- -Applicable for Turkey, Israel, Taiwan, Korea, Philippines, Puerto Rico, Dominican Republic, Brunei, Cyprus, Hong Kong, Iran- -Applicable for USA, CDN, USA LIGHT-
from £43.14
from £43.14
SPLITTER/NDM GPS CABLE Genuine Ferrari Part - New (to order)
# 030
MPN: 311635
GPS ANTENNA EXTENSION CABLE
-Applicable for Geneva version- -Not for USA, CDN, USA LIGHT-
from £23.54
from £23.54
GPS ANTENNA EXTENSION CABLE Genuine Ferrari Part - New (to order)
# 030
MPN: 311728
GPS ANTENNA EXTENSION CABLE
-Applicable for Geneva version- -Standard version without Apple Car Play- -Applicable for Mexico-
from £23.54
from £23.54
GPS ANTENNA EXTENSION CABLE Genuine Ferrari Part - New (to order)
# 031
MPN: 307692
DASHBOARD AM/FM ANTENNA CABLE
-Applicable for Geneva version- -Applicable for Indonesia markets-IND-MAL-SIN-THA-SA-BRU-CIPRO-MALAISIA-HK-IRAN- -Not for Mexico- -Applicable for AUS, CINA, GOLFO, J-
from £59.92
from £59.92
DASHBOARD AM/FM ANTENNA CABL Genuine Ferrari Part - New (to order)
# 031
MPN: 307694
DASHBOARD AM/FM ANTENNA CABLE
-Applicable for Geneva version- -Applicable for Mexico-
from £33.40
from £33.40
DASHBOARD AM/FM ANTENNA CABL Genuine Ferrari Part - New (to order)
# 032
MPN: 306122
VICS MODULE
-Applicable for Geneva version- -Applicable for J- -No longer supplied-
from £1,869.35
from £1,869.35
VICS MODULE Genuine Ferrari Part - New (to order)
# 033
MPN: 311095
RF ANTENNA CABLE
-Applicable for Geneva version- -Applicable for J-
from £33.86
from £33.86
This part replaces part number 308738
RF ANTENNA CABLE Genuine Ferrari Part - New (to order)
# 034
MPN: 306858
VICS 5.8 GHZ ANTENNA
-Applicable for Geneva version- -Applicable for J- -No longer supplied-
VICS 5.8 GHZ ANTENNA Genuine Ferrari Part - New (to order)
# 035
MPN: 311094
VICS ANTENNA CABLE
-Applicable for Geneva version- -Applicable for J-
from £48.24
from £48.24
VICS ANTENNA CABLE Genuine Ferrari Part - New (to order)
# 036
MPN: 306859
VICS TRANSCEIVER BEACON
-Applicable for Geneva version- -Applicable for J- -No longer supplied-
VICS TRANSCEIVER BEACON Genuine Ferrari Part - New (to order)
# 037
MPN: 311093
USB CABLE
-Applicable for Geneva version- -Applicable for J- -Applicable until depletion-
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 037
MPN: 314511
VICS CARD READER
- NIT CABLE -Applicable for Geneva version- -Applicable for J- -Applicable after depletion of 311093-
from £78.47
from £78.47
This part replaces part number 311093
USB CABLE Genuine Ferrari Part - New (to order)
# 038
MPN: 293328
GPS ANTENNA SPLITTER
-Applicable for Geneva version- -Version with Apple Car Play- -Not for USA, CDN, USA LIGHT-
from £83.91
from £83.91
GPS ANTENNA SPLITTER Genuine Ferrari Part - New (to order)
GPS ANTENNA SPLITTER Genuine Ferrari Part - Used In stock
# 039
MPN: 86652100
RH CD READER BRACKET
-Applicable for Geneva version- -Version with CD reader- -Applicable until depletion-
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 039
MPN: 87223800
RH CD READER BRACKET
-Applicable for Geneva version- -Version with CD reader- -Applicable after depletion of 86652100-
from £73.57
from £73.57
This part replaces part number 86652100
RH CD READER BRACKET Genuine Ferrari Part - New (to order)
# 040
MPN: 86652200
LH CD READER BRACKET
-Applicable for Geneva version- -Version with CD reader-
from £73.57
from £73.57
LH CD READER BRACKET Genuine Ferrari Part - New (to order)
# 041
MPN: 272232
USB PORT
-Version with DVD player- -Applicable for Geneva version- -Not for USA, CDN, USA LIGHT-
from £30.95
from £30.95
USB PORT Genuine Ferrari Part - New (to order)
# 042
MPN: 306860
VICS SYSTEM KIT, JPN
-Applicable for Geneva version- -Applicable for J-
from £4,607.83
from £4,607.83
VICS MODULE Genuine Ferrari Part - New (to order)
# 043
MPN: 67278400
BRACKET
-Version with CD reader-
from £1.11
from £1.11
BRACKET Genuine Ferrari Part - New (to order)
BRACKET. (67278400) Genuine Maserati Part - New In stock
# 044
MPN: 85692300
SCREW
-M5 X 20- -Version with CD reader-
from £0.47
from £0.47
This part replaces part number 83914200
SCREW Genuine Ferrari Part - New In stock
# 045
MPN: 85692000
SCREW
-M5 X 10- -Version with CD reader-
from £0.54
from £0.54
SCREW Genuine Ferrari Part - New In stock
Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
