0002 - crankshaft - connecting rods and pistons

Ferrari FF (RHD) CRANKSHAFT - CONNECTING RODS AND PISTONS Parts Diagram

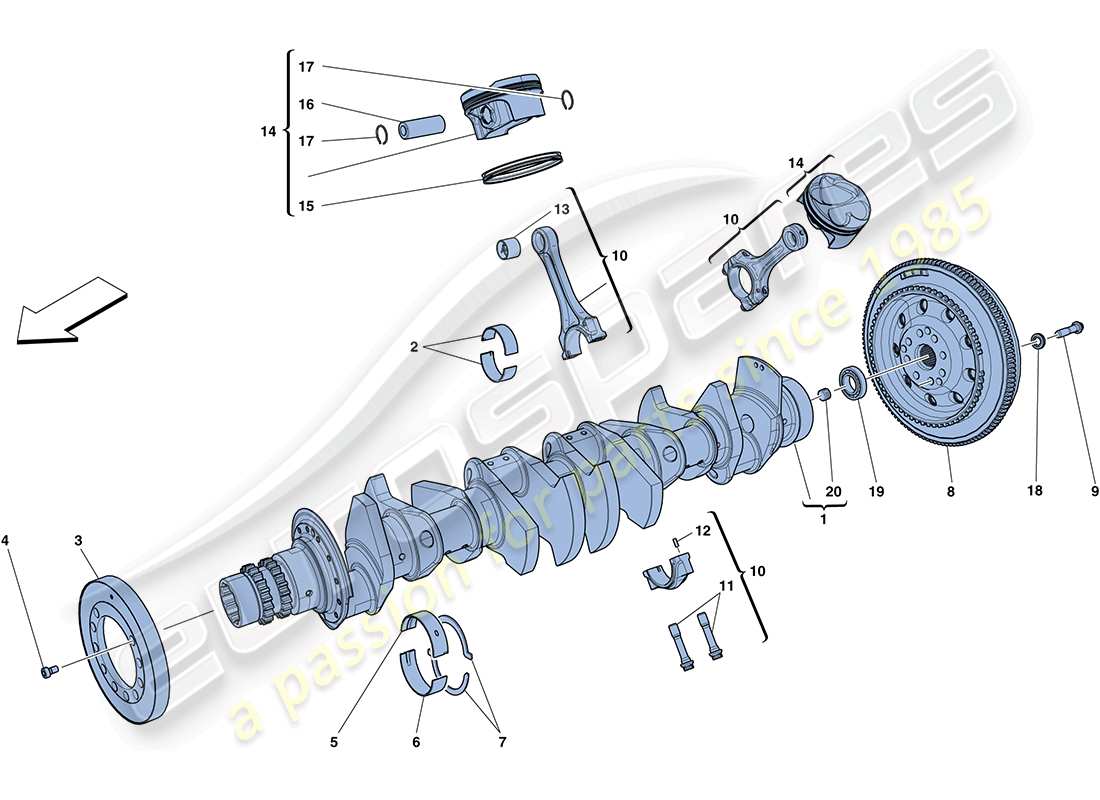

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 001
                    MPN: 275154
                    crankshaft
                    -Applicable up to engine No. 175376-
                    Supersession
                    Supersession
                    Genuine Ferrari Part (no longer available to order)
                    # 001
                    MPN: 278269
                    crankshaft
                    -Applicable for EU GS- -Applicable from engine No. 175377 up to engine No. 287242-
                    from £3,016.80
                    from £3,016.80
                    This part replaces part number 275154
                    crankshaft Genuine Ferrari Part - New (to order)
                    # 001
                    MPN: 278269
                    crankshaft
                    -Applicable for UK- -Applicable from engine No. 175377 up to engine No. 286830-
                    from £3,016.80
                    from £3,016.80
                    This part replaces part number 275154
                    crankshaft Genuine Ferrari Part - New (to order)
                    # 001
                    MPN: 314108
                    crankshaft
                    -Applicable for EU GS- -Applicable from engine No. 287243-
                    from £1,830.03
                    from £1,830.03
                    crankshaft Genuine Ferrari Part - New (to order)
                    # 001
                    MPN: 314108
                    crankshaft
                    -Applicable for UK- -Applicable from engine No. 286831-
                    from £1,830.03
                    from £1,830.03
                    crankshaft Genuine Ferrari Part - New (to order)
                    # 001
                    MPN: 314108
                    crankshaft
                    -Not for EU GS, UK- -Applicable from engine No. 291191-
                    from £1,830.03
                    from £1,830.03
                    crankshaft Genuine Ferrari Part - New (to order)
                    # 002
                    MPN: 244416
                    CONNECTING ROD HALF-BEARING
                    -Red- -Not for EU GS, UK-
                    from £13.51
                    from £13.51
                    CONNECTING ROD HALF-BEARING Genuine Ferrari Part - New (to order)
                    # 002
                    MPN: 244417
                    CONNECTING ROD HALF-BEARING
                    -Blue- -Not for EU GS, UK-
                    from £13.51
                    from £13.51
                    CONNECTING ROD HALF-BEARING Genuine Ferrari Part - New (to order)
                    # 002
                    MPN: 244418
                    CONNECTING ROD HALF-BEARING
                    -Black- -Not for EU GS, UK-
                    Supersession
                    Supersession
                    Genuine Ferrari Part (no longer available to order)
                    # 002
                    MPN: 261718
                    CONNECTING ROD HALF-BEARING
                    -Red- -Lead free- -Applicable for EU GS, UK-
                    from £10.03
                    from £10.03
                    CONNECTING ROD HALF-BEARING Genuine Ferrari Part - New (to order)
                    CONNECTING ROD HALF-BEARING (261718) Genuine Maserati Part - New (to order)
                    # 002
                    MPN: 261719
                    CONNECTING ROD HALF-BEARING
                    -Blue- -Lead free- -Applicable for EU GS, UK-
                    from £10.03
                    from £10.03
                    CONNECTING ROD HALF-BEARING Genuine Ferrari Part - New (to order)
                    CONNECTING ROD HALF-BEARING (261719) Genuine Maserati Part - New (to order)
                    # 002
                    MPN: 261720
                    CONNECTING ROD HALF-BEARING
                    -Black- -Lead free- -Applicable for EU GS, UK-
                    from £10.03
                    from £10.03
                    This part replaces part number 244418
                    CONNECTING ROD HALF-BEARING Genuine Ferrari Part - New (to order)
                    CONNECTING ROD HALF-BEARING (261720) Genuine Maserati Part - New (to order)
                    # 003
                    MPN: 270223
                    INTERNAL VISCOUS DAMPER
                    -Applicable up to engine No. 175376-
                    from £351.91
                    from £351.91
                    INTERNAL VISCOUS DAMPER Genuine Ferrari Part - New (to order)
                    # 004
                    MPN: 13026774
                    SCREW
                    -M6 X 10- -Applicable up to engine No. 175376-
                    from £0.59
                    from £0.59
                    SCREW Genuine Ferrari Part - New (to order)
                    # 005
                    MPN: 195307
                    UPPER HALF-BEARING
                    -Blue- -Not for EU GS, UK- -No longer supplied- -Replaced by 286832-
                    from £32.61
                    from £32.61
                    UPPER HALF BEARING -BLUE- -S Genuine Ferrari Part - New In stock
                    Genuine Maserati Part (no longer available to order)
                    # 005
                    MPN: 195308
                    UPPER HALF-BEARING
                    -Yellow- -Not for EU GS, UK- -No longer supplied- -Replaced by 286833-
                    from £15.40
                    from £15.40
                    UPPER HALF BEARING -YELLOW- Genuine Ferrari Part - New (to order)
                    Genuine Maserati Part (no longer available to order)
                    # 005
                    MPN: 198910
                    UPPER HALF-BEARING
                    -Green- -Not for EU GS, UK- -No longer supplied- -Replaced by 286834-
                    from £15.40
                    from £15.40
                    UPPER HALF BEARING -GREEN- Genuine Ferrari Part - New (to order)
                    Genuine Maserati Part (no longer available to order)
                    # 005
                    MPN: 271028
                    UPPER HALF-BEARING
                    -Blue- -Lead free- -Applicable for EU GS, UK-
                    from £17.90
                    from £17.90
                    UPPER HALF-BEARING Genuine Ferrari Part - New (to order)
                    # 005
                    MPN: 271029
                    UPPER HALF-BEARING
                    -Yellow- -Lead free- -Applicable for EU GS, UK-
                    from £20.34
                    from £20.34
                    UPPER HALF-BEARING Genuine Ferrari Part - New (to order)
                    # 005
                    MPN: 271030
                    UPPER HALF-BEARING
                    -Green- -Lead free- -Applicable for EU GS, UK-
                    from £19.55
                    from £19.55
                    UPPER HALF-BEARING Genuine Ferrari Part - New (to order)
                    # 005
                    MPN: 286832
                    UPPER HALF-BEARING
                    -Blue- -Not for EU GS, UK- -Applicable after depletion of 195307-
                    from £10.63
                    from £10.63
                    UPPER HALF BEARING Genuine Ferrari Part - New In stock
                    UPPER HALF-BEARING BLU (286832) Genuine Maserati Part - New (to order)
                    # 005
                    MPN: 286833
                    UPPER HALF-BEARING
                    -Yellow- -Not for EU GS, UK-
                    from £9.76
                    from £9.76
                    UPPER HALF BEARING Genuine Ferrari Part - New (to order)
                    UPPER HALF-BEARING GIALLO (286833) Genuine Maserati Part - New (to order)
                    # 005
                    MPN: 286834
                    UPPER HALF-BEARING
                    -Green- -Not for EU GS, UK-
                    from £11.86
                    from £11.86
                    UPPER HALF BEARING Genuine Ferrari Part - New In stock
                    UPPER HALF-BEARING VERDE STANDAR (286834) Genuine Maserati Part - New (to order)
                    # 006
                    MPN: 200194
                    LOWER HALF-BEARING
                    -Blue- -Not for EU GS, UK- -No longer supplied- -Replaced by 286836-
                    from £16.70
                    from £16.70
                    LOWER HALF BEARING -BLUE- -S Genuine Ferrari Part - New In stock
                    LOWER HALF-BEARING,BLU (200194) Genuine Maserati Part - New (to order)
                    # 006
                    MPN: 200195
                    LOWER HALF-BEARING
                    -Yellow- -Not for EU GS, UK- -No longer supplied- -Replaced by 286837-
                    from £13.08
                    from £13.08
                    LOWER HALF BEARING -YELLOW- Genuine Ferrari Part - New In stock
                    LOWER HALF-BEARING,YELLOW (200195) Genuine Maserati Part - New In stock
                    # 006
                    MPN: 200196
                    LOWER HALF-BEARING
                    -Green- -Not for EU GS, UK- -No longer supplied- -Replaced by 286838-
                    from £14.31
                    from £14.31
                    LOWER HALF BEARING -GREEN- Genuine Ferrari Part - New (to order)
                    LOWER HALF-BEARING,GREEN (200196) Genuine Maserati Part - New (to order)
                    # 006
                    MPN: 271023
                    LOWER HALF-BEARING
                    -Blue- -Lead free- -Applicable for EU GS, UK-
                    from £17.83
                    from £17.83
                    LOWER HALF-BEARING Genuine Ferrari Part - New In stock
                    # 006
                    MPN: 271024
                    LOWER HALF-BEARING
                    -Yellow- -Lead free- -Applicable for EU GS, UK-
                    from £20.23
                    from £20.23
                    LOWER HALF-BEARING Genuine Ferrari Part - New (to order)
                    # 006
                    MPN: 271025
                    LOWER HALF-BEARING
                    -Green- -Lead free- -Applicable for EU GS, UK-
                    from £19.44
                    from £19.44
                    LOWER HALF-BEARING Genuine Ferrari Part - New (to order)
                    # 006
                    MPN: 286836
                    LOWER HALF-BEARING
                    -Blue- -Not for EU GS, UK-
                    from £10.18
                    from £10.18
                    UPPER HALF BEARING Genuine Ferrari Part - New In stock
                    LOWER HALF-BEARING BLU (286836) Genuine Maserati Part - New In stock
                    # 006
                    MPN: 286837
                    LOWER HALF-BEARING
                    -Yellow- -Not for EU GS, UK-
                    from £10.63
                    from £10.63
                    LOWER HALF BEARING - Yellow- Genuine Ferrari Part - New (to order)
                    LOWER HALF-BEARING GIALLO (286837) Genuine Maserati Part - New (to order)
                    # 006
                    MPN: 286838
                    LOWER HALF-BEARING
                    -Green- -Not for EU GS, UK-
                    from £11.86
                    from £11.86
                    UPPER HALF BEARING Genuine Ferrari Part - New (to order)
                    LOWER HALF-BEARING VERDE STANDAR (286838) Genuine Maserati Part - New (to order)
                    # 007
                    MPN: 222874
                    CRANKSHAFT BEARING SHIM
                    -Not for EU GS, UK-
                    from £17.08
                    from £17.08
                    SHIM Genuine Ferrari Part - New In stock
                    ENGINE SHIMMING (222874) Genuine Maserati Part - New (to order)
                    # 007
                    MPN: 261727
                    CRANKSHAFT BEARING SHIM
                    -Lead free- -Applicable for EU GS, UK-
                    from £5.69
                    from £5.69
                    CRANKSHAFT BEARING SHIM Genuine Ferrari Part - New In stock
                    ENGINE SHIMMING (261727) Genuine Maserati Part - New (to order)
                    # 008
                    MPN: 259578
                    engine flywheel
                    -No longer supplied- -Replaced by 281741-
                    Supersession
                    Supersession
                    Genuine Ferrari Part (no longer available to order)
                    # 008
                    MPN: 281741
                    engine flywheel
                    from £847.77
                    from £847.77
                    This part replaces part number 259578 - and 1 more. Click to view details
                    engine flywheel Genuine Ferrari Part - New (to order)
                    engine flywheel Genuine Ferrari Part - Used In stock
                    # 009
                    MPN: 229907
                    FASTENER SCREW
                    -M10 X 1.25 X 41.5-
                    from £4.84
                    from £4.84
                    SCREW Genuine Ferrari Part - New (to order)
                    # 010
                    MPN: 266474
                    COMPL. CONNECTING ROD AND CAP
                    from £458.72
                    from £458.72
                    This part replaces part number 219158
                    COMPLETE CONNECTING ROD AND CA Genuine Ferrari Part - New (to order)
                    # 011
                    MPN: 257150
                    CONNECTING ROD FASTENER SCREW
                    from £47.55
                    from £47.55
                    CONNECTING ROD FASTENER SCRE Genuine Ferrari Part - New (to order)
                    # 012
                    MPN: 224608
                    ALIGNMENT PIN
                    from £1.91
                    from £1.91
                    CENTERING PIN Genuine Ferrari Part - New (to order)
                    CENTRING PIN FOR CONNECTING ROD/B (224608) Genuine Maserati Part - New (to order)
                    # 013
                    MPN: 234861
                    BUSHING
                    from £3.67
                    from £3.67
                    This part replaces part number 208094 - and 1 more. Click to view details
                    BUSHING Genuine Ferrari Part - New (to order)
                    # 014
                    MPN: 265024
                    RH CYLINDER BANK PISTON COMPLETE WITH RINGS
                    from £270.53
                    from £270.53
                    RH CYLINDER BANK PISTON COMPLETE Genuine Ferrari Part - New (to order)
                    RH CYLINDER BANK PISTON COMPLETE Genuine Ferrari Part - New (other) In stock
                    Right 7-12 piston no Gudgeon pin
                    # 014
                    MPN: 265025
                    LH CYLINDER BANK PISTON COMPLETE WITH RINGS
                    from £270.53
                    from £270.53
                    LH CYLINDER BANK PISTON COMP Genuine Ferrari Part - New (to order)
                    LH CYLINDER BANK PISTON COMP Genuine Ferrari Part - New (other) In stock
                    Left piston 1-6 no gubgeon pin
                    # 015
                    MPN: 270468
                    COMPL. PISTON RING SET
                    from £49.97
                    from £49.97
                    COMPLETE PISTON RING SET Genuine Ferrari Part - New (to order)
                    # 016
                    MPN: 255232
                    GUDGEON PIN
                    -Applicable until depletion-
                    from £43.21
                    from £43.21
                    GUDGEON PIN Genuine Ferrari Part - New (to order)
                    # 017
                    MPN: 255234
                    STOP RING
                    -Applicable until depletion-
                    from £19.35
                    from £19.35
                    ANELLO D`ARRESTO D.20 Genuine Ferrari Part - New (to order)
                    # 018
                    MPN: 282966
                    GASKET
                    from £2.35
                    from £2.35
                    O-RING Genuine Ferrari Part - New In stock
                    # 019
                    MPN: 103877
                    BEARING
                    from £15.20
                    from £15.20
                    This part replaces part number 24940440
                    BALL BEARING Genuine Ferrari Part - New In stock
                    BALL BEARING, 30-35 X 1 (103877) Genuine Maserati Part - New In stock
                    # 020
                    MPN: 176396
                    THREADED PLUG
                    from £2.75
                    from £2.75
                    THREADED PLUG Genuine Ferrari Part - New (to order)
                    THREADED PLUG (176396) Genuine Maserati Part - New (to order)
                    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
