ferrari ff (rhd) timing system - tappets parts diagram

0005 - timing system - tappets

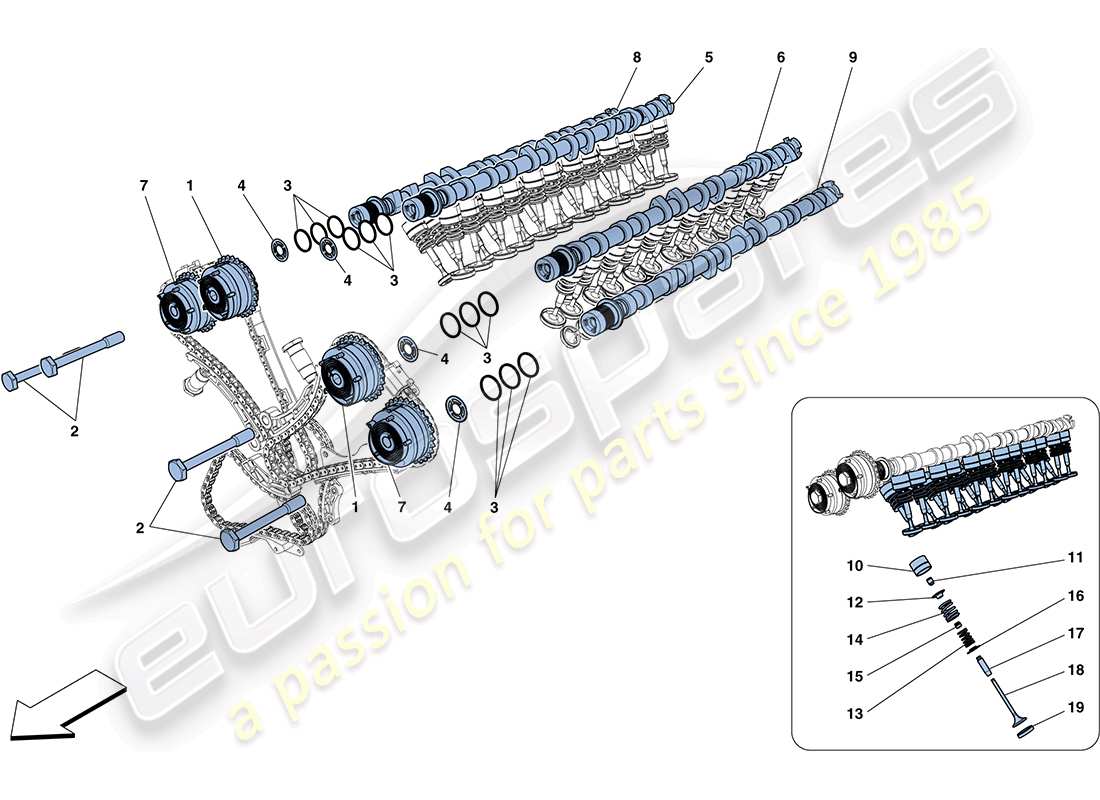

Ferrari FF (RHD) TIMING SYSTEM - TAPPETS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Key
                                      Price
                                      # 001
                                      MPN: 241906
                                      VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT
                                      from £148.39
                                      from £148.39
                                      INDUCTION PHASE VARIATOR Genuine Ferrari Part - New In stock
                                      INDUCTION PHASE VARIATOR Genuine Ferrari Part - Used In stock
                                      INTAKE TIMING VARIATOR (241906) Genuine Maserati Part - New (to order)
                                      # 002
                                      MPN: 254892
                                      SCREW
                                      -M14 X 1.5-
                                      from £3.90
                                      from £3.90
                                      This part replaces part number 248022 - and 4 more. Click to view details
                                      SCREW Genuine Ferrari Part - New In stock
                                      SCREW Genuine Ferrari Part - Used In stock
                                      VARIATOR SCREW INA M14X1.5 L.109 (254892) Genuine Maserati Part - New (to order)
                                      # 003
                                      MPN: 197975
                                      SEAL RING
                                      from £3.86
                                      from £3.86
                                      SEAL RING Genuine Ferrari Part - New (to order)
                                      # 004
                                      MPN: 240559
                                      DIAMOND COATED WASHER
                                      from £4.84
                                      from £4.84
                                      DIAMOND WASHER Genuine Ferrari Part - New In stock
                                      WASHER (240559) Genuine Maserati Part - New (to order)
                                      # 005
                                      MPN: 261603
                                      RH INTAKE CAMSHAFT
                                      from £5,191.82
                                      from £5,191.82
                                      RH INTAKE CAMSHAFT Genuine Ferrari Part - New (to order)
                                      # 006
                                      MPN: 261604
                                      LH INTAKE CAMSHAFT
                                      from £5,191.82
                                      from £5,191.82
                                      LH INTAKE CAMSHAFT Genuine Ferrari Part - New (to order)
                                      # 007
                                      MPN: 248020
                                      VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT
                                      from £149.01
                                      from £149.01
                                      EXHAUST PHASE VARIATOR Genuine Ferrari Part - New (to order)
                                      EXHAUST PHASE VARIATOR Genuine Ferrari Part - Used In stock
                                      # 008
                                      MPN: 261605
                                      RH EXHAUST CAMSHAFT
                                      from £5,191.82
                                      from £5,191.82
                                      RH EXHAUST CAMSHAFT Genuine Ferrari Part - New (to order)
                                      # 009
                                      MPN: 261606
                                      LH EXHAUST CAMSHAFT
                                      from £5,191.82
                                      from £5,191.82
                                      LH EXHAUST CAMSHAFT Genuine Ferrari Part - New (to order)
                                      # 010
                                      MPN: 247480
                                      HYDRAULIC TAPPET
                                      from £52.34
                                      from £52.34
                                      This part replaces part number 194700
                                      HYDRAULIC TAPPETS Genuine Ferrari Part - New (to order)
                                      HYDRAULIC TAPPET DIAM. 35 (247480) Genuine Maserati Part - New (to order)
                                      # 011
                                      MPN: 179763
                                      VALVE SPRING HALF-CONE
                                      from £0.27
                                      from £0.27
                                      COTTER FOR VALVE SPRING CUP. Genuine Ferrari Part - New In stock
                                      COTTER FOR VALVE SPRING CUP. Genuine Ferrari Part - Used In stock
                                      COTTER FOR SPRING VALVE (179763) Genuine Maserati Part - New (to order)
                                      COTTER FOR SPRING VALVE (179763) Genuine Maserati Part - Used In stock
                                      Removed from 4200 engine 81090
                                      # 012
                                      MPN: 237390
                                      UPPER VALVE SPRING CAP
                                      from £2.95
                                      from £2.95
                                      This part replaces part number 194713 - and 3 more. Click to view details
                                      UPPER STOP CAP Genuine Ferrari Part - New (to order)
                                      UPPER STOP CAP Genuine Ferrari Part - Used In stock
                                      SPRING RETANING UPPER DISC PLATE (237390) Genuine Maserati Part - New (to order)
                                      # 013
                                      MPN: 228824
                                      INTERNAL SPRING
                                      Supersession
                                      Supersession
                                      Genuine Ferrari Part (no longer available to order)
                                      # 014
                                      MPN: 228823
                                      EXTERNAL SPRING
                                      Supersession
                                      Supersession
                                      Genuine Ferrari Part (no longer available to order)
                                      # 015
                                      MPN: 221473
                                      OIL SEAL
                                      from £0.95
                                      from £0.95
                                      OIL RING Genuine Ferrari Part - New In stock
                                      OIL SEAL FOR VALVES (221473) Genuine Maserati Part - New (to order)
                                      # 016
                                      MPN: 247484
                                      LOWER VALVE SPRING CAP
                                      from £3.28
                                      from £3.28
                                      LOWER STOP COLLAR Genuine Ferrari Part - New (to order)
                                      # 017
                                      MPN: 6213498
                                      VALVE GUIDE
                                      from £1.77
                                      from £1.77
                                      This part replaces part number 213498
                                      INTAKE VALVE GUIDE Genuine Ferrari Part - New (to order)
                                      INTAKE AND EXHAUST VALVE GUI (6213498) Genuine Maserati Part - New In stock
                                      # 018
                                      MPN: 198581
                                      INTAKE VALVE
                                      from £4.57
                                      from £4.57
                                      This part replaces part number 175395 - and 4 more. Click to view details
                                      INTAKE VALVE Genuine Ferrari Part - New In stock
                                      INTAKE VALVE Genuine Ferrari Part - Used In stock
                                      INTAKE VALVE (198581) Genuine Maserati Part - New In stock
                                      # 018
                                      MPN: 198582
                                      EXHAUST VALVE
                                      from £10.96
                                      from £10.96
                                      EXHAUST VALVE Genuine Ferrari Part - New In stock
                                      EXHAUST VALVE Genuine Ferrari Part - Used In stock
                                      Genuine Maserati Part - New (no longer available to order)
                                      # 019
                                      MPN: 6222847
                                      INTAKE VALVE SEAT
                                      from £5.11
                                      from £5.11
                                      This part replaces part number 222847 - and 1 more. Click to view details
                                      INTAKE VALVE SEAT Genuine Ferrari Part - New (to order)
                                      SEMI-FIN. INTAKE VALVE SEAT (6222847) Genuine Maserati Part - New (to order)
                                      # 019
                                      MPN: 6222848
                                      EXHAUST VALVE SEAT
                                      from £5.47
                                      from £5.47
                                      This part replaces part number 222848 - and 1 more. Click to view details
                                      EXHAUST VALVE SEAT Genuine Ferrari Part - New (to order)
                                      SEMI-FIN. EXHAUST VALVE SEAT (6222848) Genuine Maserati Part - New (to order)
